Porsche Boxster 986 (1996-2002) passenger's side door lock module Wiring diagram
This page shows the only wiring diagram for the component.passenger's side door lock module, which is found in the car Porsche Boxster 986 (1996-2002). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

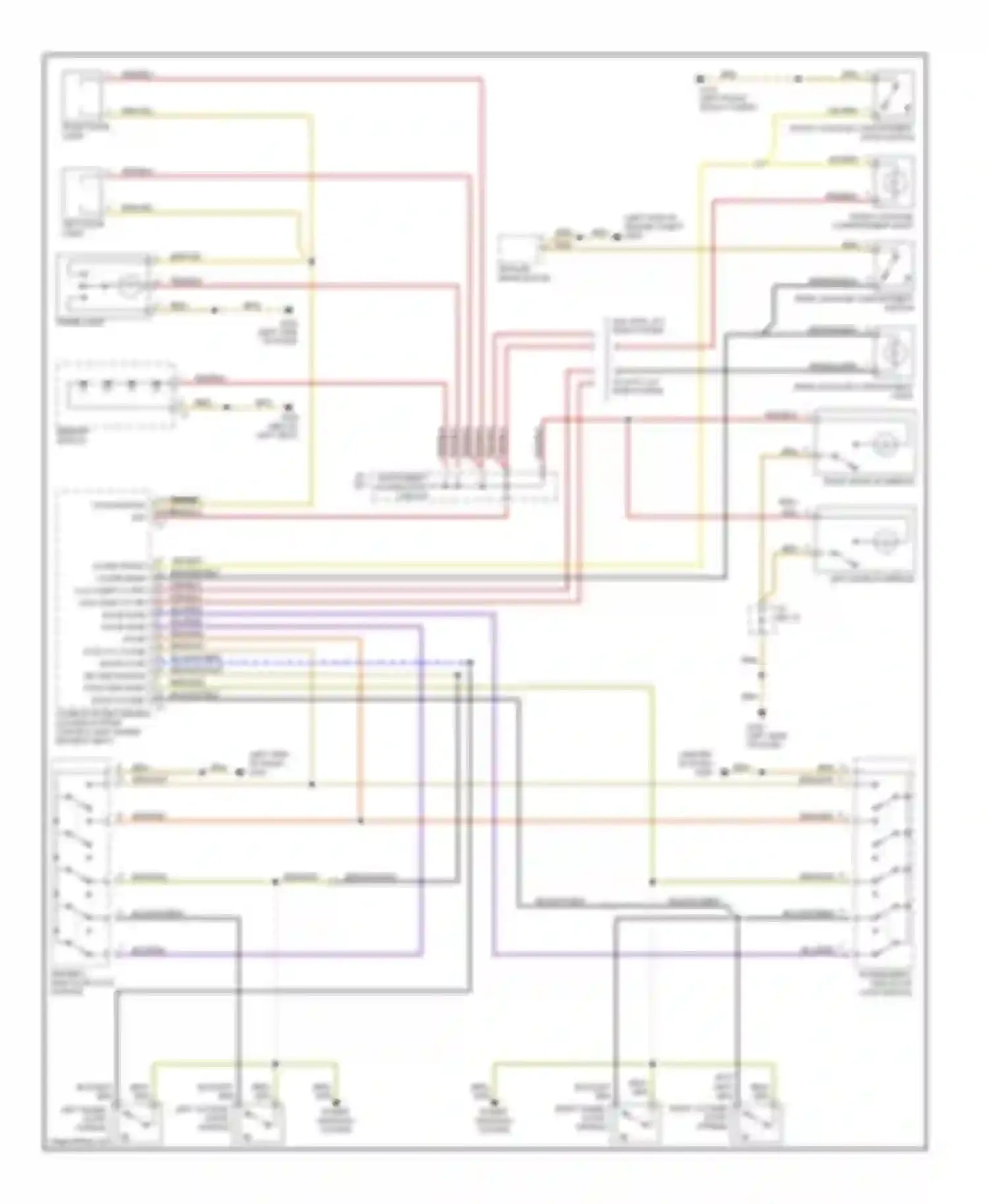

Wiring diagram passenger's side door lock module (1 of 1)
11 4 INSIDE LIGHT CONS SWITCH OFF
ALARM SYSTEM/ CENTRAL LOCKING SYSTEM CONTROL UNIT (UNDER DRIVER'S SEAT)
BLK WIRE
BLU WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/WHT/BLK WIRE
BLU/WHT/BRN WIRE
BRN WIRE
BRN/GRN WIRE
BRN/GRN/WHT WIRE
BRN/RED WIRE
BRN/RED/BLK WIRE
BRN/WHT WIRE
BRN/YEL WIRE
DRIVER'S SIDE DOOR LOCK MODULE
FRONT LUGGAGE COMPARTMENT HOOD SWITCH
FRONT LUGGAGE COMPARTMENT LIGHT
GRN WIRE
INSIDE LIGHT
INSTRUMENT ILLUMINATION CIRCUIT
J/C (BS 12)
J/C (BS 7)
LEFT DOOR LIGHT
LEFT INSIDE DOOR HANDLE
LEFT MAKE-UP MIRROR
MEMORY SWITCH
PASSENGER'S SIDE DOOR LOCK MODULE
POWER WINDOWS SYSTEM
REAR LUGGAGE COMPARTMENT LIGHT
REAR LUGGAGE COMPARTMENT SWITCH
RED WIRE
RED/BLK WIRE
RED/BLU/BRN WIRE
RIGHT DOOR LIGHT
RIGHT INSIDE DOOR HANDLE
RIGHT MAKE-UP MIRROR
SPOILER DRIVE MOTOR
W/ ANTI- JOY RIDE SYSTEM
W/O ANTI- JOY RIDE SYSTEM
WHT WIRE
YEL/BRN WIRE
Go to component -> Courtesy lamps circuit -> PASSENGER'S SIDE DOOR LOCK MODULE
