Porsche 911 Turbo 992 (2018-2024) front spoiler adjustment compressor Wiring diagram
This page shows the only wiring diagram for the component.front spoiler adjustment compressor, which is found in the car Porsche 911 Turbo 992 (2018-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

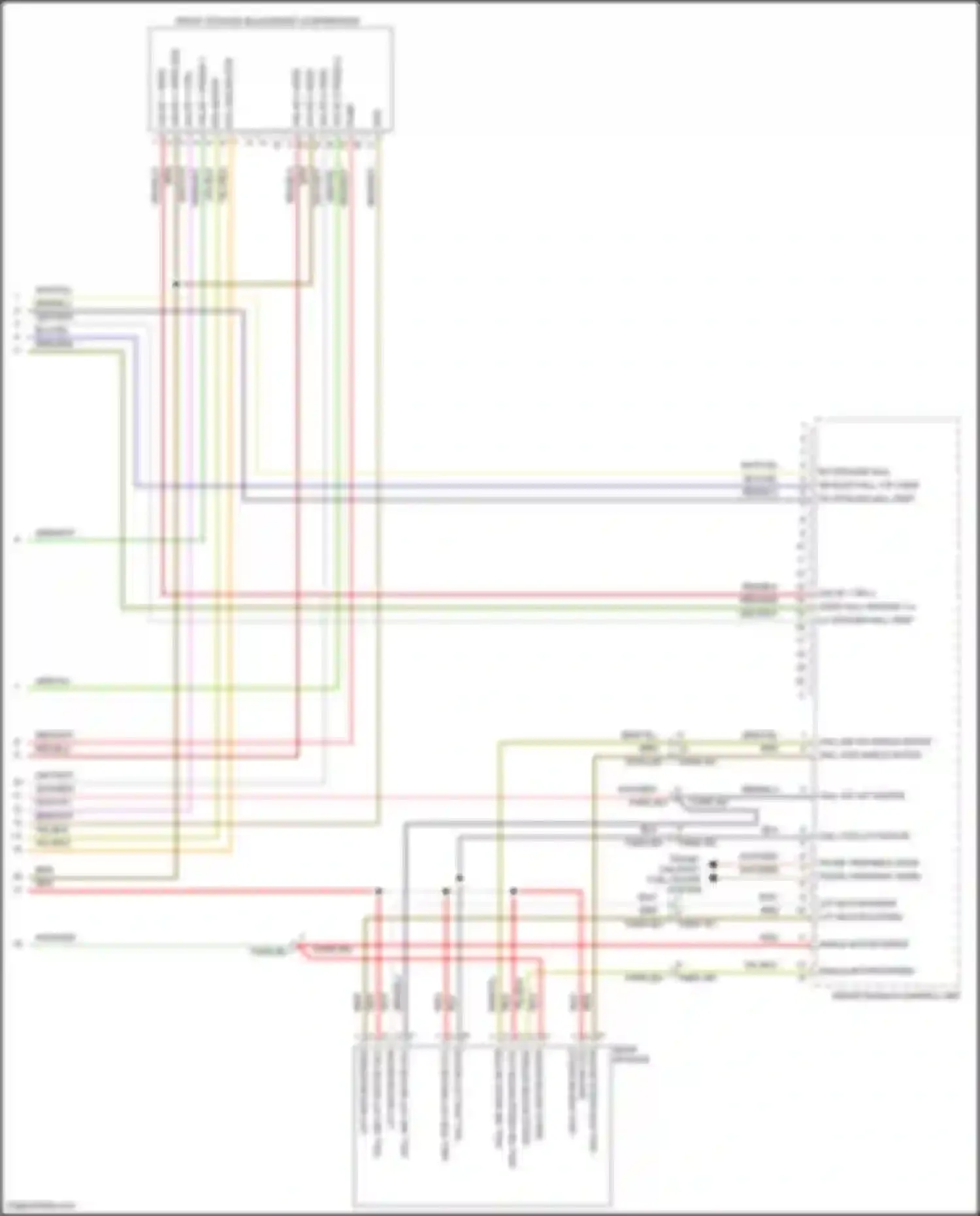

Wiring diagram front spoiler adjustment compressor (1 of 1)
AERODYNAMICS CONTROL UNIT
ANGLE MOTOR ENTER +
ANGLE MOTOR EXTEND +
BLK WIRE
BLU/YEL WIRE
BRN WIRE
BRN/BLU WIRE
BRN/GRN WIRE
BRN/WHT WIRE
BRN/YEL WIRE
FRONT SPOILER ADJUSTMENT COMPRESSOR
GRN/WHT WIRE
GRN/YEL WIRE
GRY/WHT WIRE
HALL INK ANGLE MOTOR
HALL INK ANGLE MOTOR VCC
HALL INK LIFT MOTOR VEC
HALL INK RH ANGLE MOTOR
HALL INT LIFT MOTOR
HALL POS ANGLE MOTOR
HALL POS LIFT MOTOR
HALL POS LIFT MOTOR VCC
HALL POS RH ANGLE
LH SPOILER HALL PERF
LIFT MOTOR ENTER +
LIFT MOTOR EXTEND +
MOTOR VCC
NTC GND MOTOR
NTC MOTOR
PUMP
REAR SPOILER
RED WIRE
RED/BLK WIRE
RED/WHT WIRE
RH SPOILER HALL CW
RH SPOILER HALL PERF
SPOILER HALL CW LINKS
TRUNK TRAPMENT ENTRI
TRUNK TRAPMENT VERRI
TRUNK, TAILGATE, FUEL DOORS SYSTEM
VALVE 1 CTRL
VALVE 1 PRESS 1
VALVE 1 SPLY CW
VALVE 1 VERS +
VALVE 1 VERS GND
VALVE 2 PRESS 2
VALVE 2 VERS +
VERS HALL SPOILER 1-4
WHT WIRE
WHT/BRN WIRE
WHT/GRN WIRE
WHT/RED WIRE
WHT/VIO WIRE
WHT/YEL WIRE
YEL/BLK WIRE
YEL/RED WIRE
Go to component -> Active rear spoiler circuit, w/ aerodynamics (2 of 2) -> FRONT SPOILER ADJUSTMENT COMPRESSOR
