Porsche 911 Targa 4 991 facelift (2015-2019) switch folding Wiring diagram
This page shows the only wiring diagram for the component.switch folding, which is found in the car Porsche 911 Targa 4 991 facelift (2015-2019). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

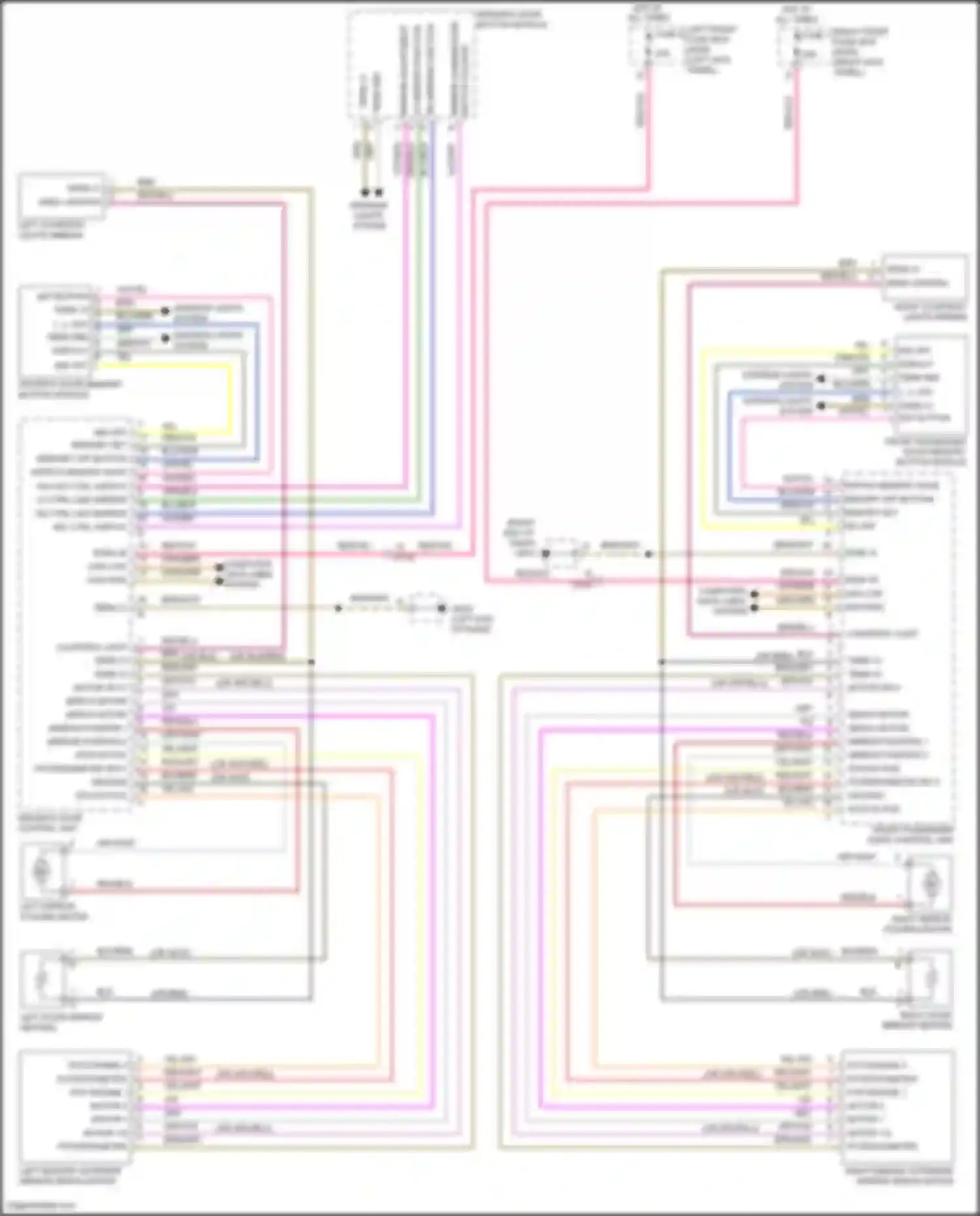

Wiring diagram switch folding (1 of 1)
1, 2, OFF
ADJUST CTRL SWITCH
AREA LIGHTING
BLK WIRE
BLK/BRN WIRE
BLU/BLK WIRE
BLU/GRN WIRE
BRN WIRE
BRN/GRY WIRE
BRN/WHT WIRE
CAN HIGH
CAN LOW
COMPUTER DATA LINES SYSTEM
COURTESY LIGHT
DISPLAY ON
DRIVER'S DOOR BUTTON MODULE
DRIVER'S DOOR CONTROL UNIT
DRIVER'S DOOR MEMORY BUTTON MODULE
FRONT PASSENGER DOOR CONTROL UNIT
FRONT PASSENGER DOOR MEMORY BUTTON MODULE
FUSE 6
FUSE 7
GRN/BLK WIRE
GRN/VIO WIRE
GRY WIRE
GRY/VIO WIRE
GRY/WHT WIRE
HEATING
HOT AT ALL TIMES
IND OFF
LEFT COURTESY LIGHTS MIRROR
LEFT DOOR MIRROR HEATING
LEFT FRONT FUSE BOX (ROW C)
LEFT MEMORY EXTERIOR MIRROR SERVO MOTOR
LEFT MIRROR FOLDING MOTOR
LH CTRL UNIT MIRROR
LH MIRROR FUNCTION
MEMORY OFF BUTTON
MEMORY SET
MIRROR ADJUSTMENT
MIRROR CHANGEOVER
MIRROR POSITION 1
MIRROR POSITION 2
MOTOR 1
MOTOR 1/2
MOTOR 2
MOTOR SPLY
ORG/BRN WIRE
ORG/GRN WIRE
POTENTIOMETER
POTENTIOMETER SPLY
POTI ENGINE 1
POTI ENGINE 2
RED/BLK WIRE
RED/BLU WIRE
RED/GRY WIRE
RED/VIO WIRE
RH CTRL UNIT MIRROR
RH MIRROR FUNCTION
RIGHT COURTESY LIGHTS MIRROR
RIGHT DOOR MIRROR HEATING
RIGHT END OF DASH)
RIGHT FRONT FUSE BOX (ROW C)
RIGHT MEMORY EXTERIOR MIRROR SERVO MOTOR
RIGHT MIRROR FOLDING MOTOR
SEL CTRL SWITCH
SERVO MOTOR X
SERVO MOTOR Y
SET BUTTON
STATUS POS X
STATUS POS Y
SWITCH FOLDING
SWITCH MEMORY SAVE
TERM 30
TERM 31
TERM 31 SET BUTTON
VIO WIRE
VIO/GRY WIRE
VIO/RED WIRE
VIO/YEL WIRE
YEL WIRE
YEL/VIO WIRE
YEL/WHT WIRE
Go to component -> Memory mirrors circuit -> SWITCH FOLDING
