Porsche 911 Targa 4 991 facelift (2015-2019) left lane change assistant Wiring diagrams
This page contains all the electrical diagrams for the component. left lane change assistant, in which he is found in the car Porsche 911 Targa 4 991 facelift (2015-2019). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram left lane change assistant (1 of 4)
ACC CONTROL UNIT
ALARM SIREN
ALL-WHEEL DRIVE CONTROL UNIT
ANTI-DAZZLE INTERIOR MIRROR
BATTERY SENSOR
BLK WIRE
BRN/WHT WIRE
CAN CHASSIS HIGH
CAN CHASSIS LOW
CAN COMFORT HIGH
CAN COMFORT LOW
CAN CRASH HIGH
CAN CRASH LOW
CAN DIAGNOSTICS HIGH
CAN DIAGNOSTICS LOW
CAN DISTRIBUTOR
CAN DRIVE HIGH
CAN DRIVE LOW
CAN EXTENDED HI
CAN EXTENDED LO
CAN HIGH
CAN LOW
CAN MMI HIGH
CAN MMI LOW
CHASSIS HIGH
CHASSIS LOW
CLUSTER SENSOR (UNDER CENTER CONSOLE)
COM
COMFORT HIGH
COMFORT LOW
CONVERTIBLE TOP CONTROL UNIT
DC/DC CONVERTER
DRIVER'S DOOR CONTROL UNIT
DRIVER'S SEAT CONTROL UNIT (UNDER DRIVER'S SEAT)
ELECTRICAL STEERING GEAR
EPB CONTROL UNIT
FRONT CAMERA CONTROL UNIT (TOP CENTER OF WINDSHIELD)
FRONT PASSENGER DOOR CONTROL UNIT
FRONT PASSENGER SEAT CONTROL UNIT (UNDER FRONT PASSENGER'S SEAT)
FUSE 1
FUSE 4
GATEWAY CONTROL UNIT (LEFT SIDE OF DASH)
GENERATOR
HIGH 1
HOT AT ALL TIMES
HOT W/ KL 15 RELAY ENERGIZED
INTERIOR SURVEILLANCE SENSOR
LEFT FRONT FUSE BOX (ROW C)
LEFT FRONT FUSE BOX (ROW D)
LEFT HEADLIGHT
LEFT LANE CHANGE ASSISTANT
LEFT REAR AXLE STEERING ADJUSTER
LEFT REAR DOOR CONTROL UNIT (CONVERTIBLE)
LIFT FUNCTION CONTROL UNIT (UNDER DRIVER SEAT)
LIN MAIN FUSE BOX
LOW 1
MAIN FUSE BOX
NCA WIRE
ORG/BLK WIRE
ORG/BLU WIRE
ORG/BRN WIRE
ORG/GRN WIRE
ORG/RED WIRE
ORG/VIO WIRE
PASM CONTROL UNIT
PDCC SPORT CONTROL UNIT
PSM CONTROL UNIT
REAR BCM (UNDER DRIVER'S SEAT)
RED/YEL WIRE
RIGHT HEADLIGHT
RIGHT LANE CHANGE ASSISTANT
RIGHT REAR AXLE STEERING ADJUSTER
RIGHT REAR DOOR CONTROL UNIT (CONVERTIBLE)
SG HEADLIGHT (W/ LED)
SLIDING ROOF CONTROL UNIT
STEERING COLUMN SWITCHING MODULE
TERM 15
TERM 30
TERM 31
VIO WIRE
VIO/WHT WIRE
VIO/YEL WIRE
W/ LED
W/O LED
Go to component -> Computer data lines circuit (1 of 2) -> LEFT LANE CHANGE ASSISTANT
Wiring diagram left lane change assistant (2 of 4)
A/T
ANTI- DAZZLE INTERIOR MIRROR SHIELD
BACKREST VENTILATION
BACKUP LIGHT SWITCH
BLK WIRE
BRN WIRE
BRN/WHT WIRE
DC/DC CONVERTER
DRIVER SEAT CONTROL UNIT
DRIVER STANDARD 2-WAY SEAT ADJUSTMENT OUTPUT CONTROL UNIT
DRIVER STANDARD 4-WAY SEAT ADJUSTMENT OUTPUT CONTROL UNIT
DRIVER'S SEAT ADJUSTMENT OUTPUT CONTROL UNIT
DRIVER'S SEAT BACKREST HEATING ELEMENT
DRIVER'S SEAT CUSHION HEATING ELEMENT
DRIVER'S SEAT CUSHION HEATING ELEMENT CENTER SPEAKER
DRIVER'S SEAT ESD GROUND
EPB CONTROL UNIT
EXHAUST FLAP VALVE
FRONT/REAR OPEN LID BUTTON MODULE
HEATED BACKREST
LEFT FRONT DOOR SILL LIGHTING
LEFT LANE CHANGE ASSISTANT
LEFT REAR AXLE STEERING ADJUSTER
LEFT REAR INTERIOR LIGHT EMITTING DIODE
LEFT SIDE BACKREST BOLSTER HEATING
LEFT SIDE HEATED BOLSTER
LEFT SIDE SEAT BACKREST BOLSTER HEATING ELEMENT
LIFT FUNCTION CONTROL UNIT
M/T
NCA WIRE
PARK ASSIST CONTROL UNIT
PASM CONTROL UNIT
PDK CONTROL UNIT
RAIN SENSOR
RAIN SENSOR SHIELD
RAIN SENSOR SHIELD GROUND
REAR BCM
RIGHT REAR INTERIOR LIGHT EMITTING DIODE
RIGHT SIDE BACKREST BOLSTER HEATING
RIGHT SIDE HEATED BOLSTER
RIGHT SIDE SEAT BACKREST BOLSTER HEATING ELEMENT
ROOF CONSOLE SHIELD
SEAT CUSHION HEATING
SEAT CUSHION VENTILATION
SG HEADLIGHT
SPOILER EXTENSION ANGLE RELAY SUPPORT 2
SPOILER EXTENSION RELAY
SPOILER RETRACTION ANGLE RELAY SUPPORT 2
SPOILER RETRACTION RELAY
W/ BUCKET SEAT
W/O PASSENGER POWER SEAT
WHT WIRE
YEL/BRN WIRE
Go to component -> Ground distribution circuit (5 of 5) -> LEFT LANE CHANGE ASSISTANT

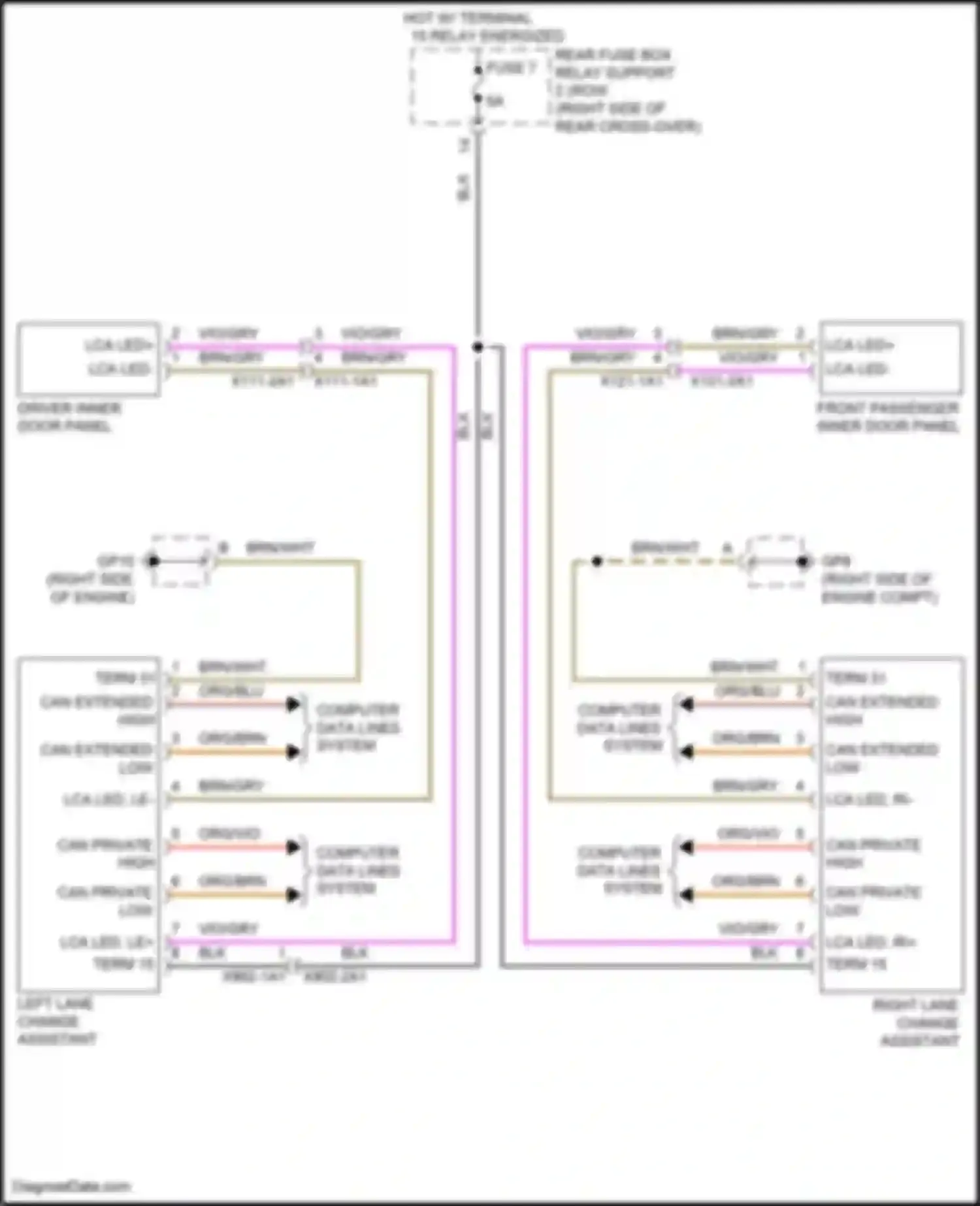

Wiring diagram left lane change assistant (3 of 4)
BLK WIRE
BRN/GRY WIRE
BRN/WHT WIRE
CAN EXTENDED HIGH
CAN EXTENDED LOW
CAN PRIVATE HIGH
CAN PRIVATE LOW
COMPUTER DATA LINES SYSTEM
DRIVER INNER DOOR PANEL
FRONT PASSENGER INNER DOOR PANEL
FUSE 7
HOT W/ TERMINAL 15 RELAY ENERGIZED
LCA LED -
LCA LED LE
LCA LED, RI+
LEFT LANE CHANGE ASSISTANT
ORG/BLU WIRE
ORG/BRN WIRE
ORG/VIO WIRE
REAR FUSE BOX RELAY SUPPORT 2 (ROW C)
RIGHT LANE CHANGE ASSISTANT
TERM 15
TERM 31
VIO/GRY WIRE
Go to component -> Lane change assistance circuit -> LEFT LANE CHANGE ASSISTANT
Wiring diagram left lane change assistant (4 of 4)
BATTERY FUSE BOX
BLK WIRE
BLK/RED WIRE
CONVERTIBLE TOP CONTROL UNIT
COUPE
COUPE CONVERTIBLE W/ SLIDING ROOF W/O SLIDING ROOF
DME CONTROL UNIT
DME RELAY 1
ELECTRICAL STEERING GEAR
ENGINE FLUSH HIGH RELAY
ENGINE FLUSH LOW RELAY
EPB CONTROL UNIT
FROM BATTERY (DIAGRAM 1 OF 5)
FROM MAIN FUSE BOX (DIAGRAM 1 OF 5)
FROM MAIN FUSE BOX (DIAGRAM 3 OF 5)
FROM MAIN FUSE BOX (DIAGRAM 4 OF 5)
FUSE
FUSE 1
FUSE 10
FUSE 2
FUSE 3
FUSE 4
FUSE 5
FUSE 6
FUSE 7
FUSE 8
FUSE 9
FUSE FUSE
LEFT LANE CHANGE ASSISTANT
LEFT REAR AXLE STEERING ADJUSTER
LEFT REAR DOOR CONTROL UNIT
MAXI FUSE RELAY SUPPORT 2
N/A
NCA WIRE
NOT USED
PASM CONTROL UNIT
PDK CONTROL UNIT
REAR ADAPTER 7 (REAR WINDOW HEATED) RELAY
REAR FUSE BOX RELAY SUPPORT 2 (ROW A)
REAR FUSE BOX RELAY SUPPORT 2 (ROW C)
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/GRY WIRE
RED/VIO WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT LANE CHANGE ASSISTANT
RIGHT REAR AXLE STEERING ADJUSTER
SLIDING ROOF CONTROL UNIT
SPOILER EXTENSION ANGLE RELAY
SPOILER EXTENSION RELAY
SPOILER RETRACTION ANGLE RELAY
SPOILER RETRACTION RELAY
Go to component -> Power distribution circuit (5 of 5) -> LEFT LANE CHANGE ASSISTANT
