Wiring diagrams for Porsche 911 GT3 991 (2013-2017)

3.4l, active bodyworks circuit

3.8l, active bodyworks circuit

3.8l turbo, active bodyworks circuit

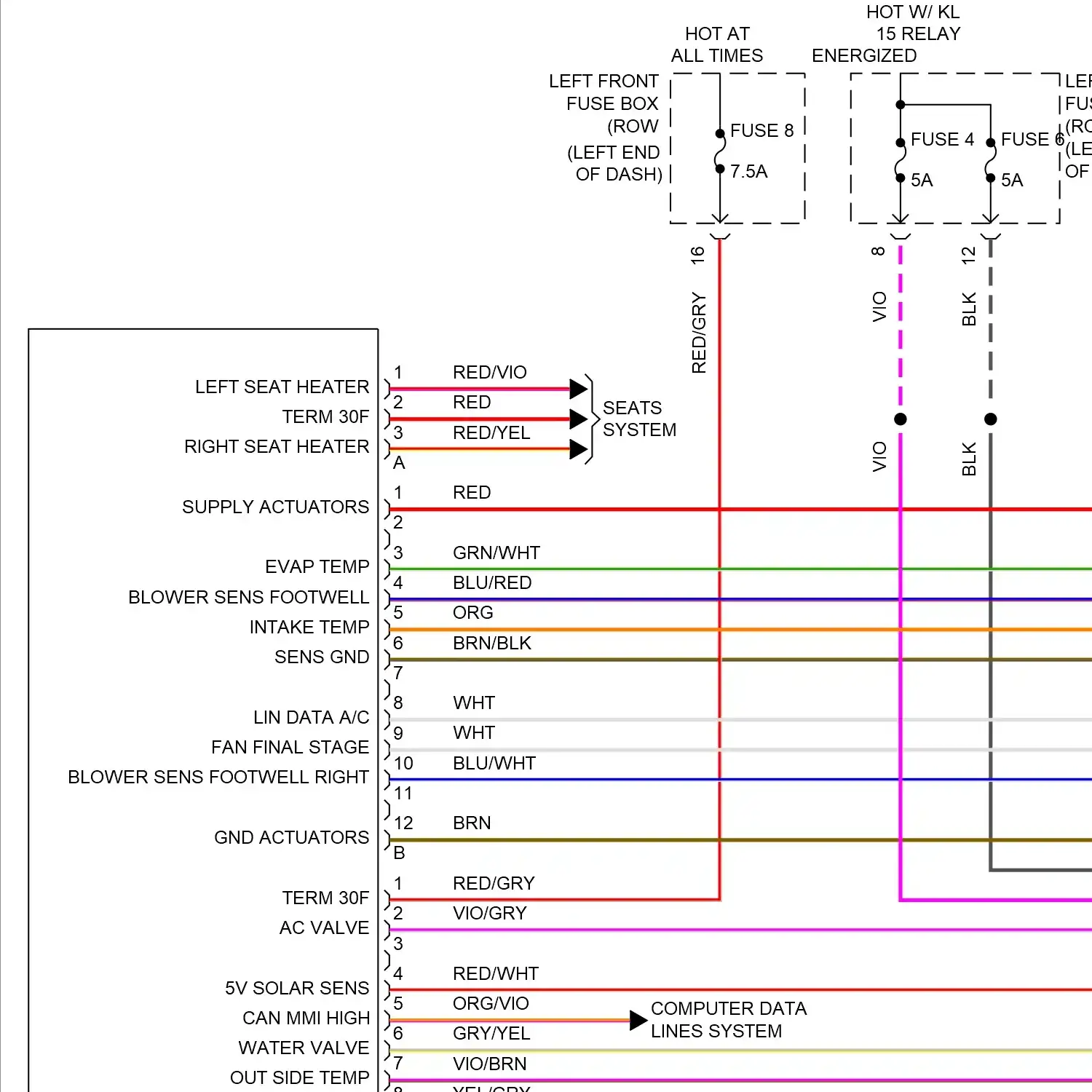

Automatic a/c circuit

Anti-lock brakes circuit

Anti-theft circuit

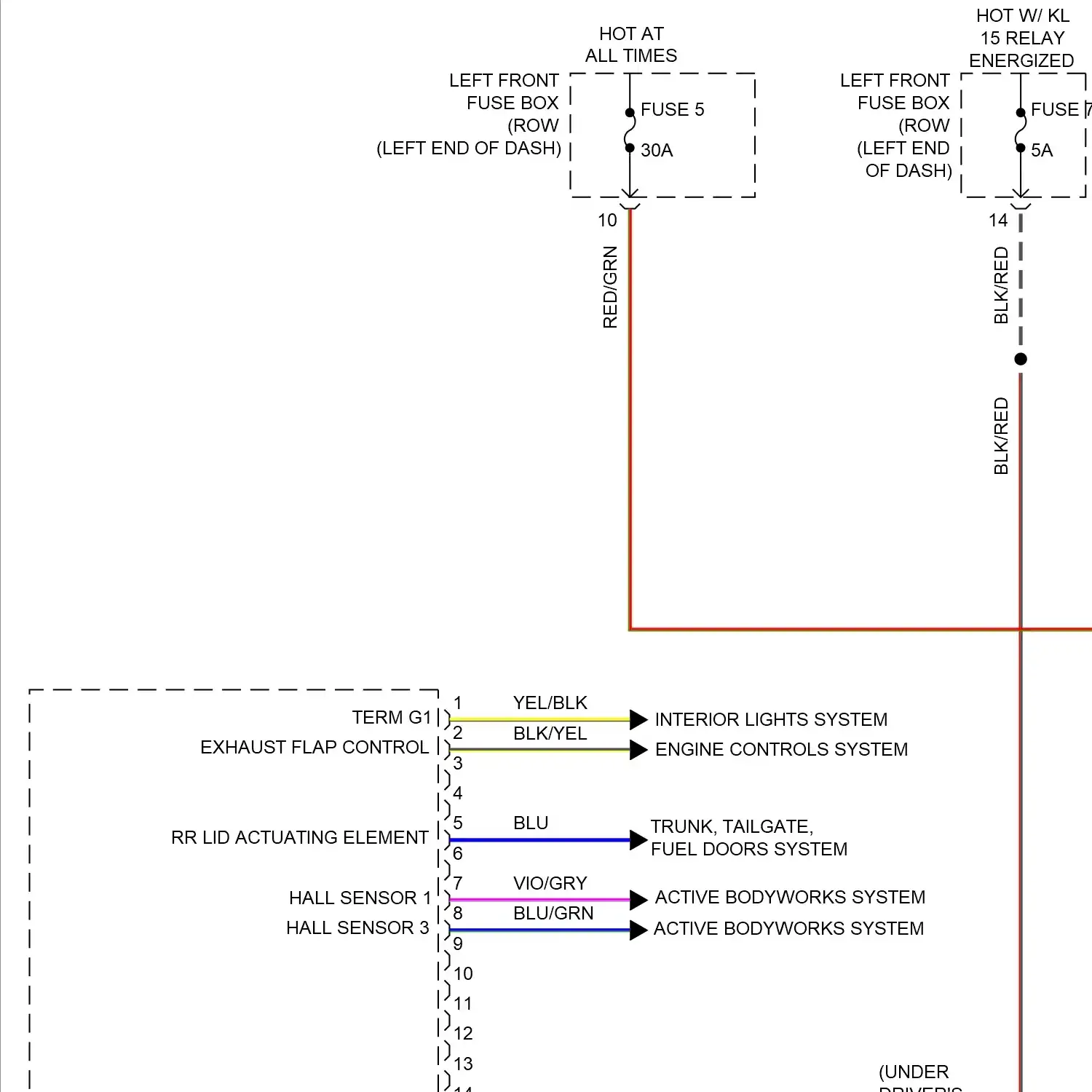

Front controller circuit Rear control unit circuit

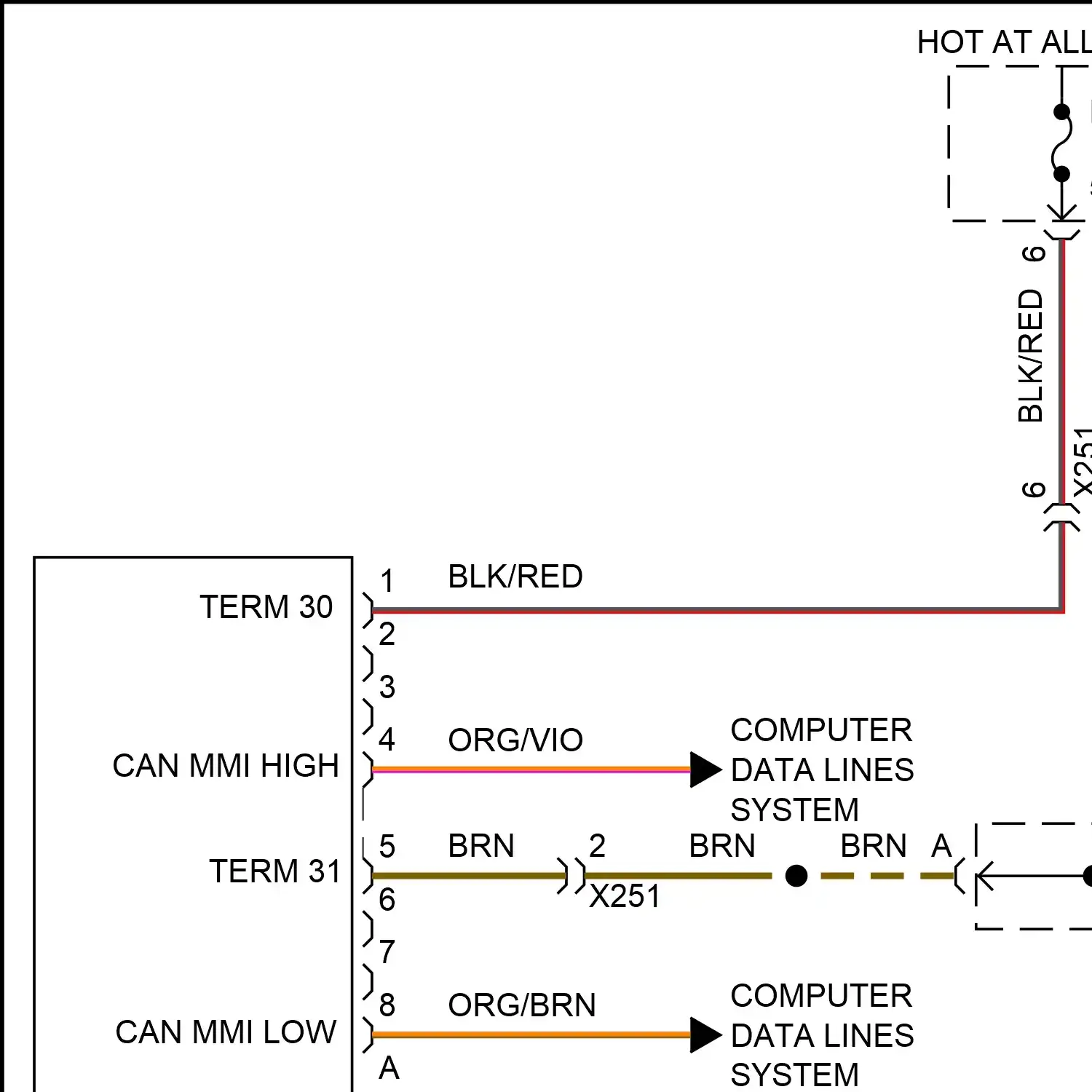

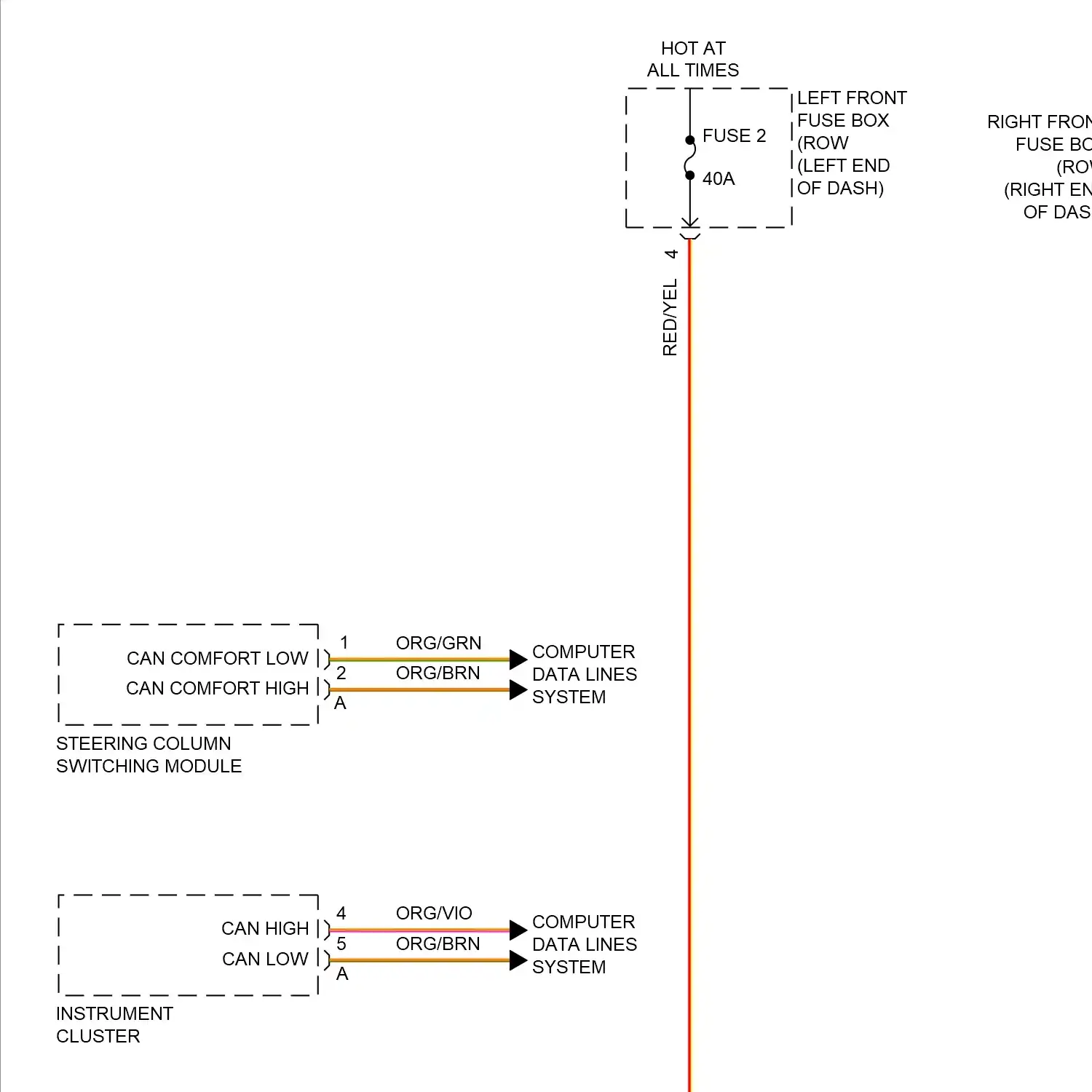

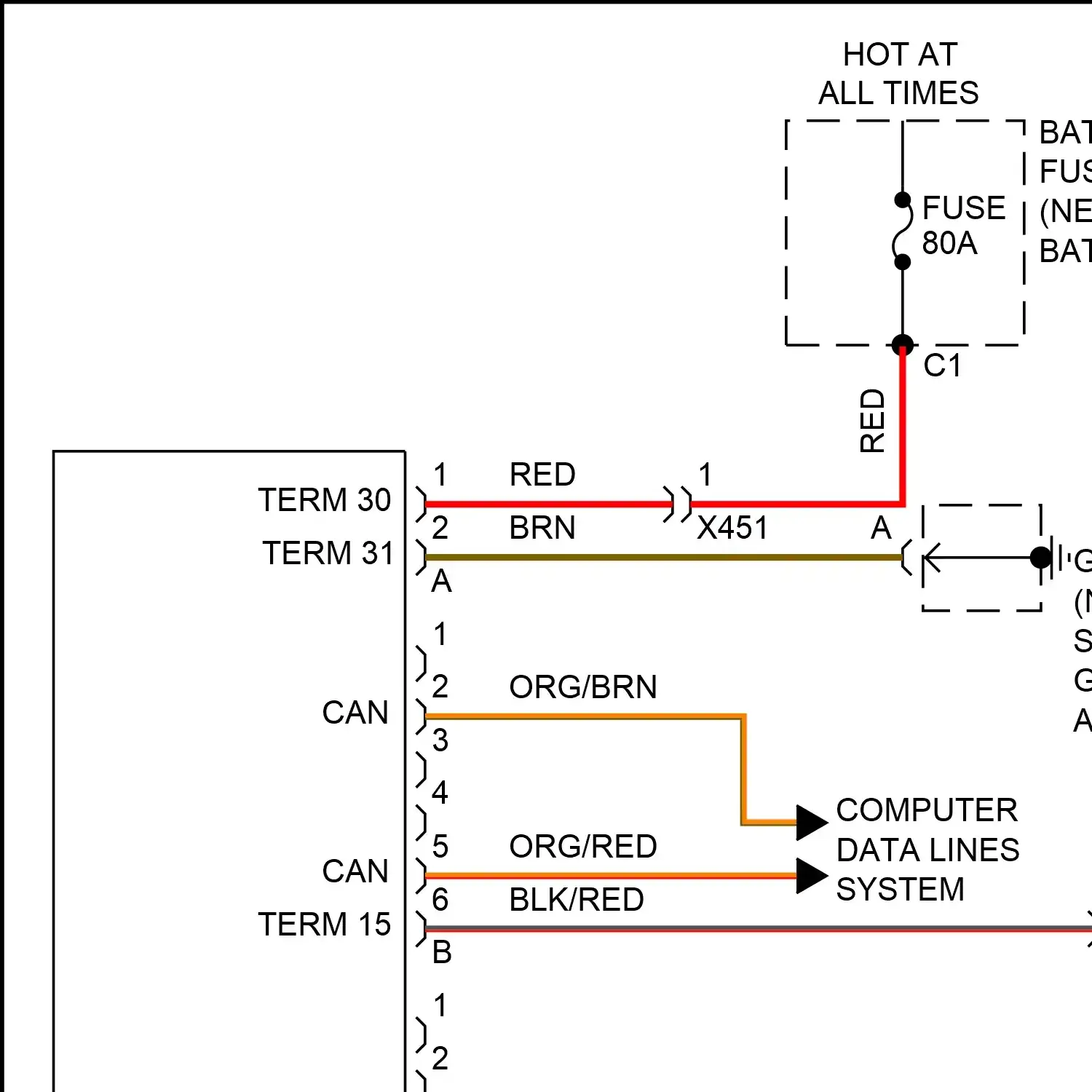

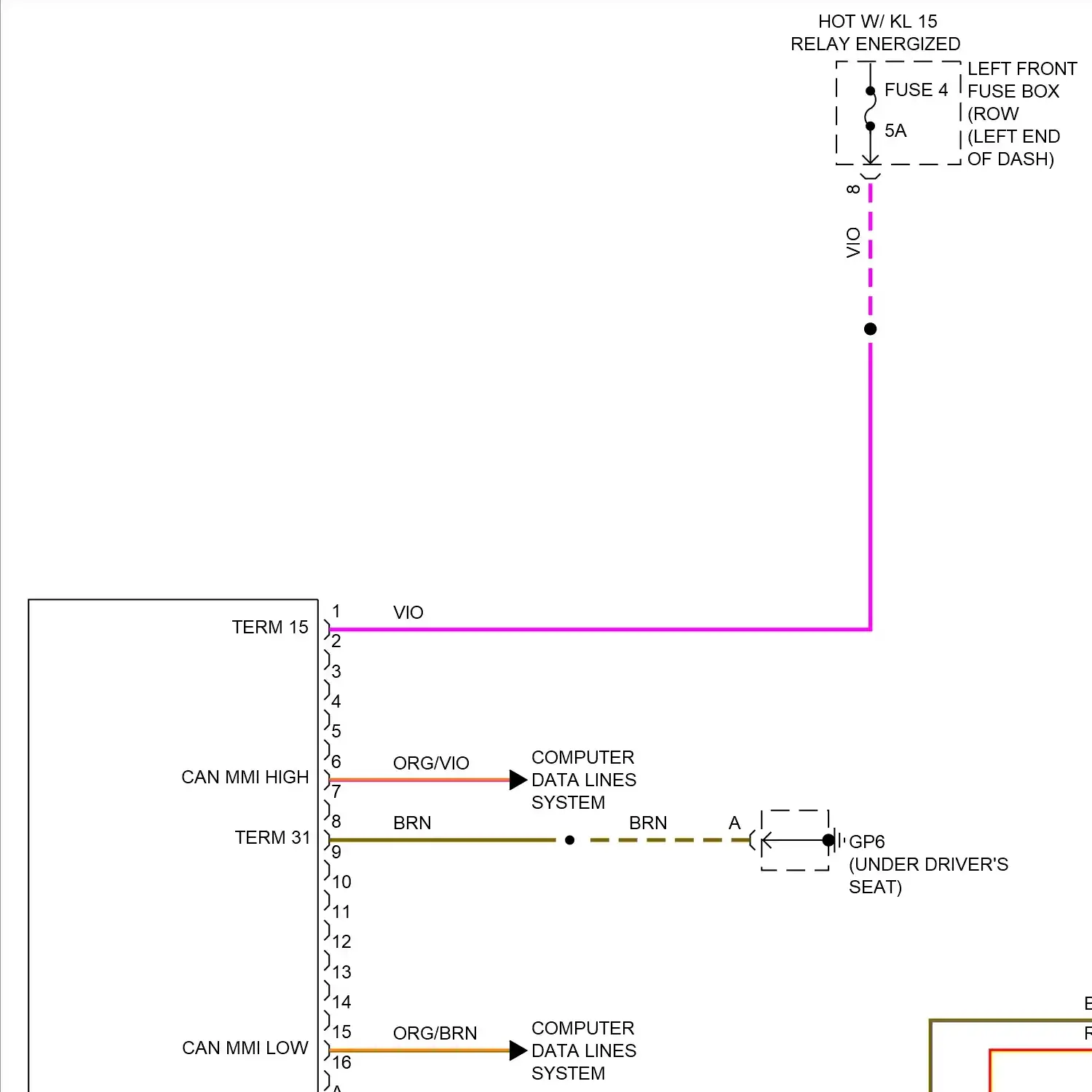

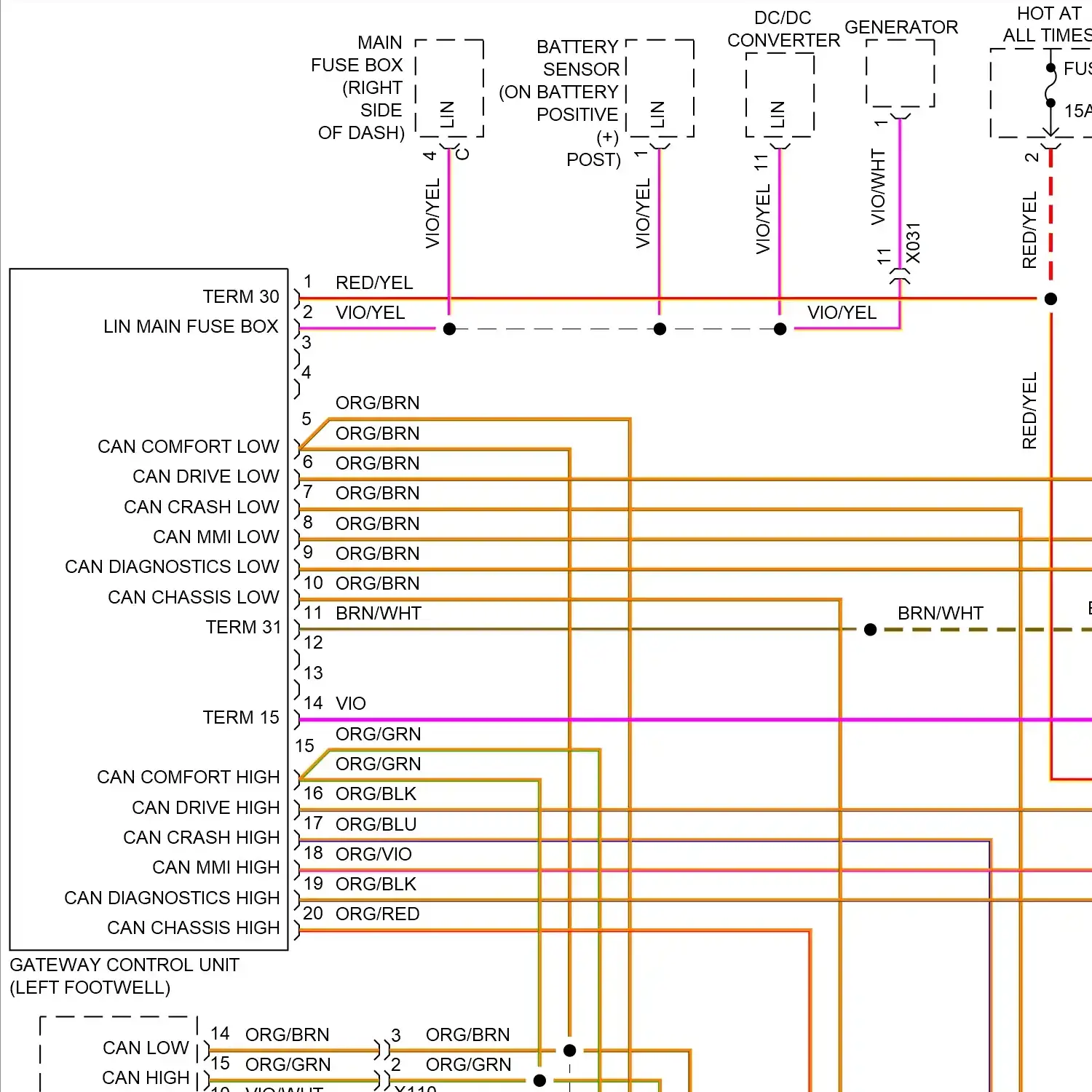

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defogger circuit Heated mirrors circuit

Electronic power steering circuit Power tilt steering column circuit Rear axle steering circuit

Dynamic chassis control circuit Electronic level control circuit

Wiring diagram engine performance 3.4l

Wiring diagram engine performance 3.8l

Wiring diagram engine performance 3.8l turbo

Backup lamps circuit Exterior lamps circuit

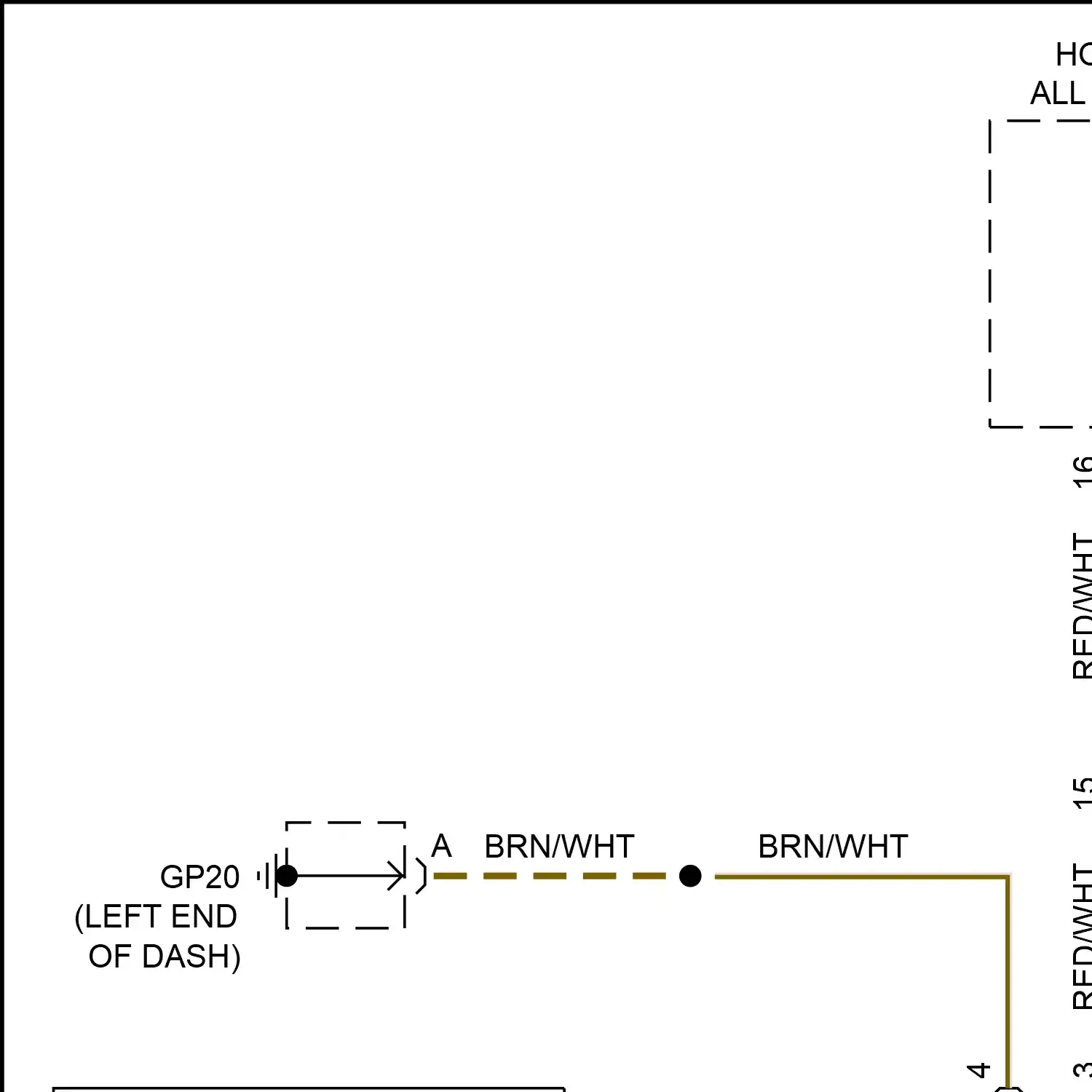

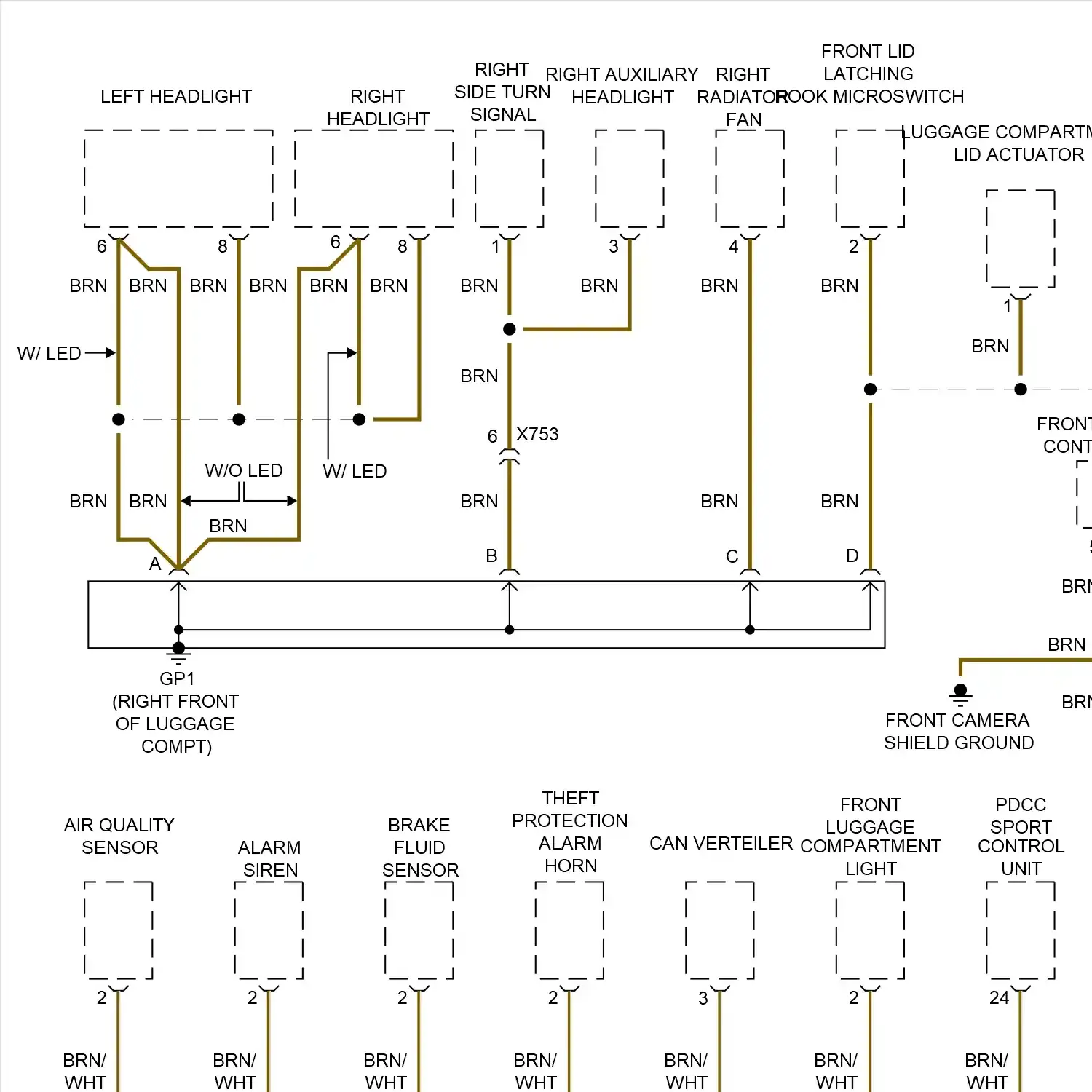

Ground distribution circuit

Headlights circuit, w/ led headlights Headlights circuit, w/o led headlights

Horn circuit

Instrument cluster circuit

Interior lights circuit

Driver"s memory seat circuit Memory mirrors circuit Passenger"s memory seat circuit Steering column memory circuit

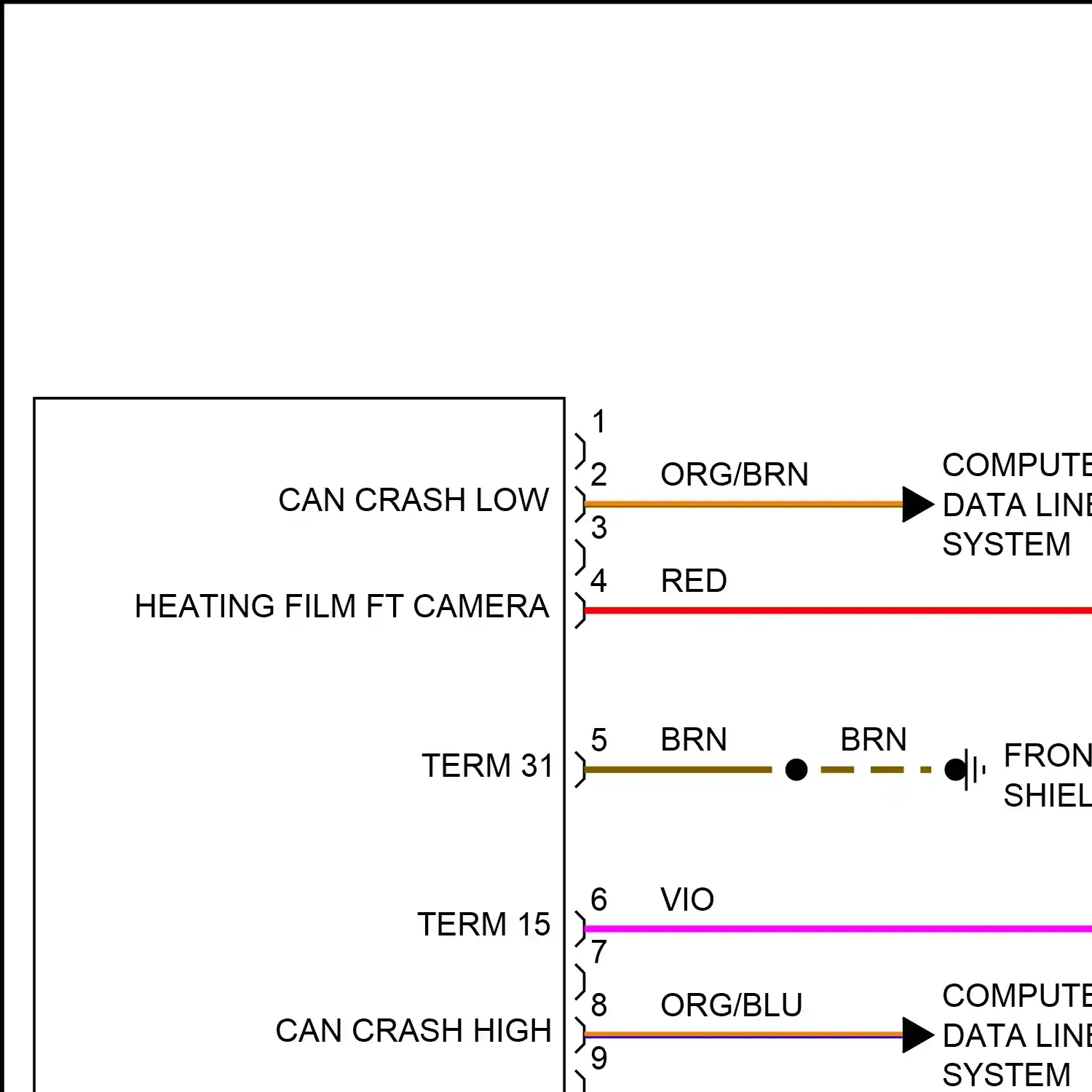

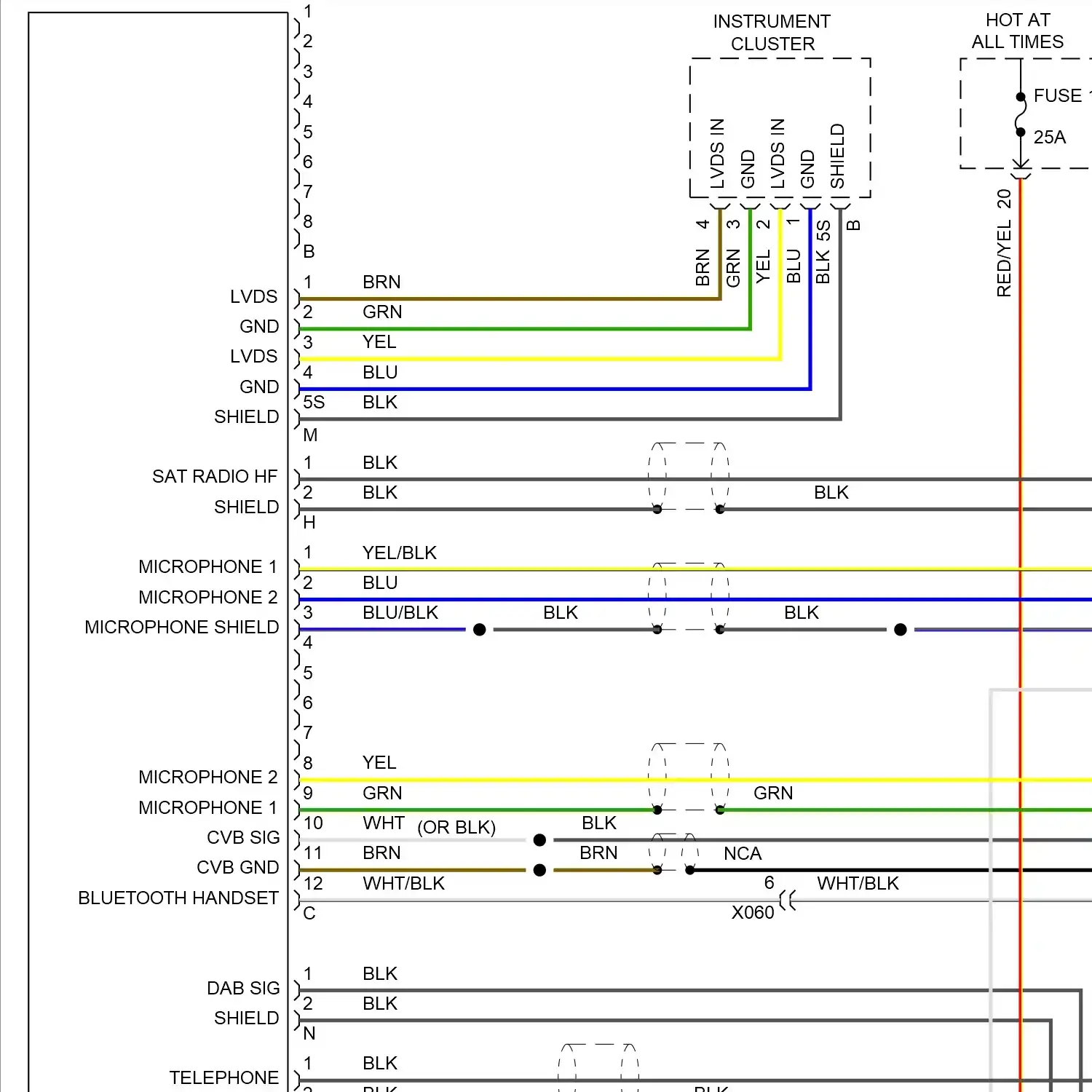

Front camera circuit Navigation circuit, w/ ask Navigation circuit, w/ bose Navigation circuit, w/ burmester Parking assistant circuit Rear camera circuit

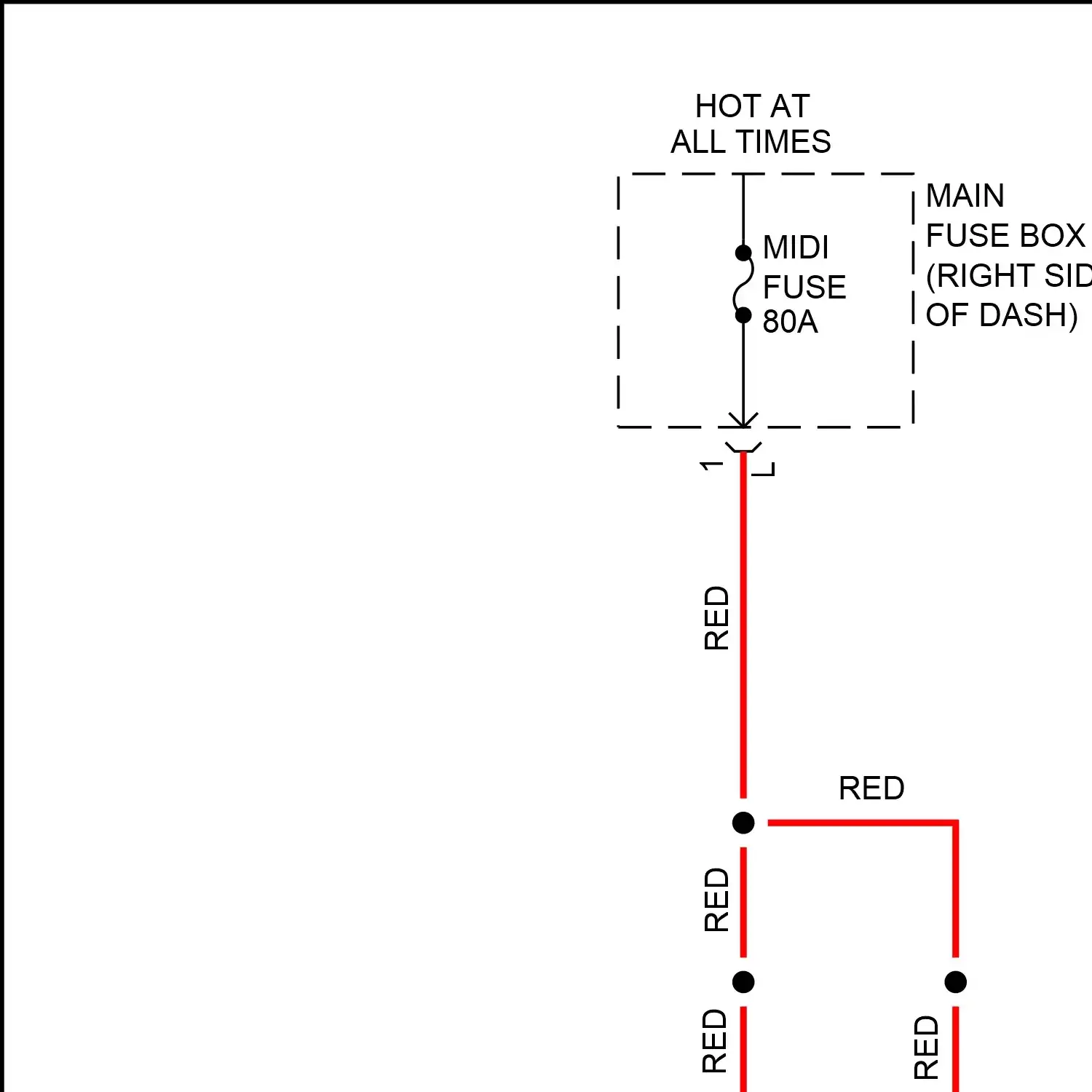

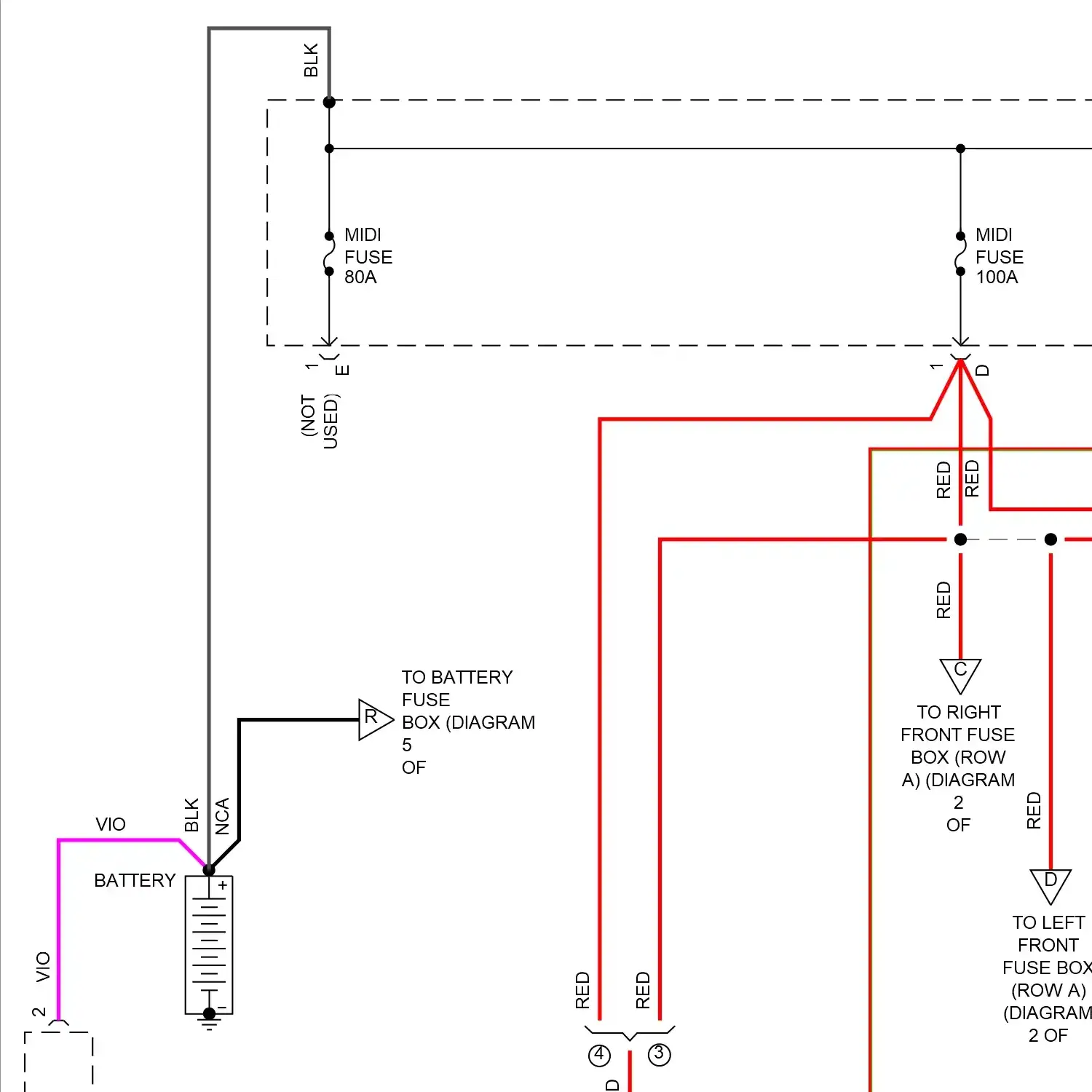

Power distribution circuit

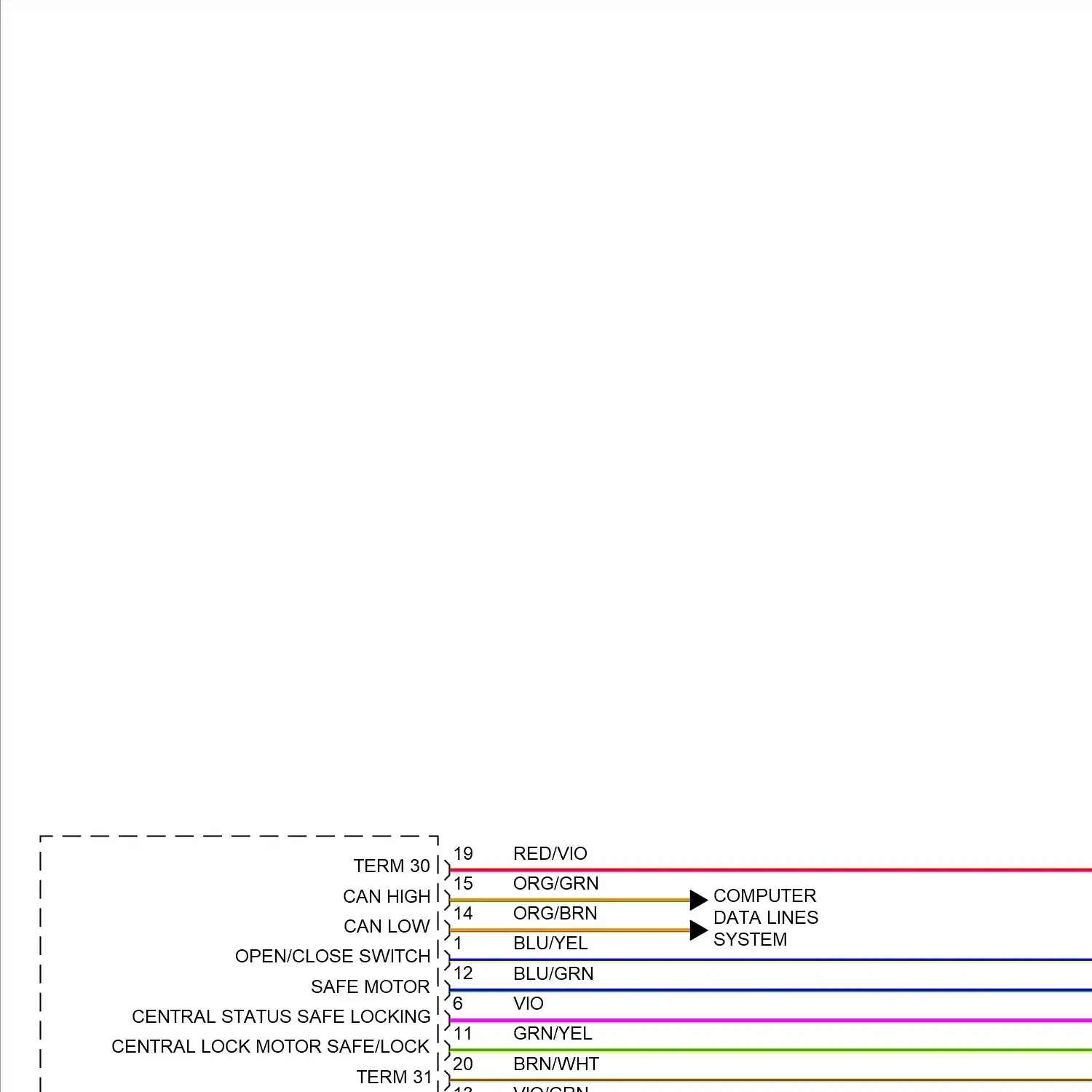

Power door locks circuit

Auto anti-dazzling mirror circuit Power mirrors circuit

Driver heated seat circuit Driver power seat circuit Front passenger heated seat circuit Front passenger power seat circuit Heated steering wheel circuit

Convertible top circuit Sunroof circuit

Power windows circuit

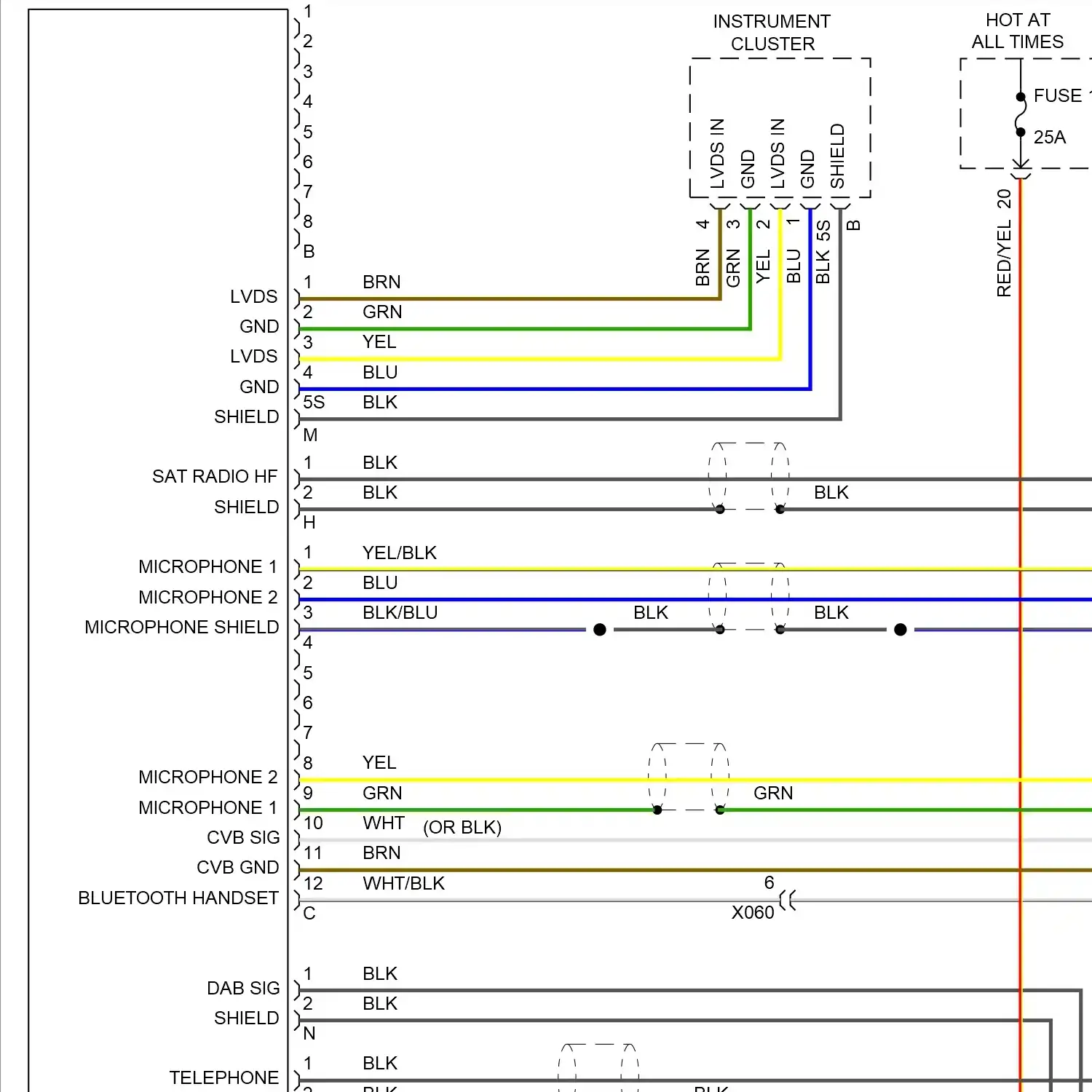

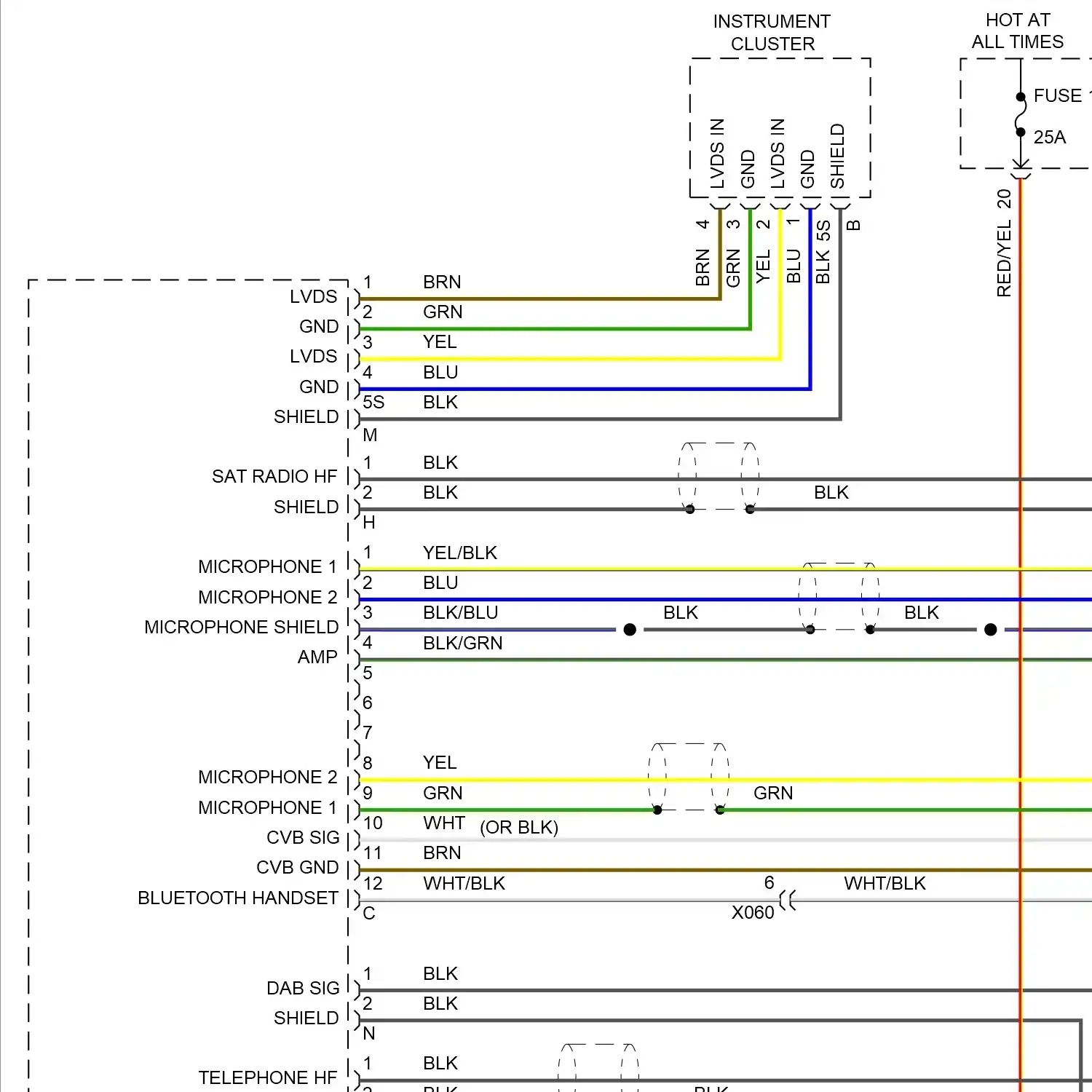

Optical waveguide circuit Premium radio circuit, w/ ask Premium radio circuit, w/ bose Premium radio circuit, w/ burmester

Electronic parking brake circuit Shift interlock circuit

Charging circuit Starting circuit

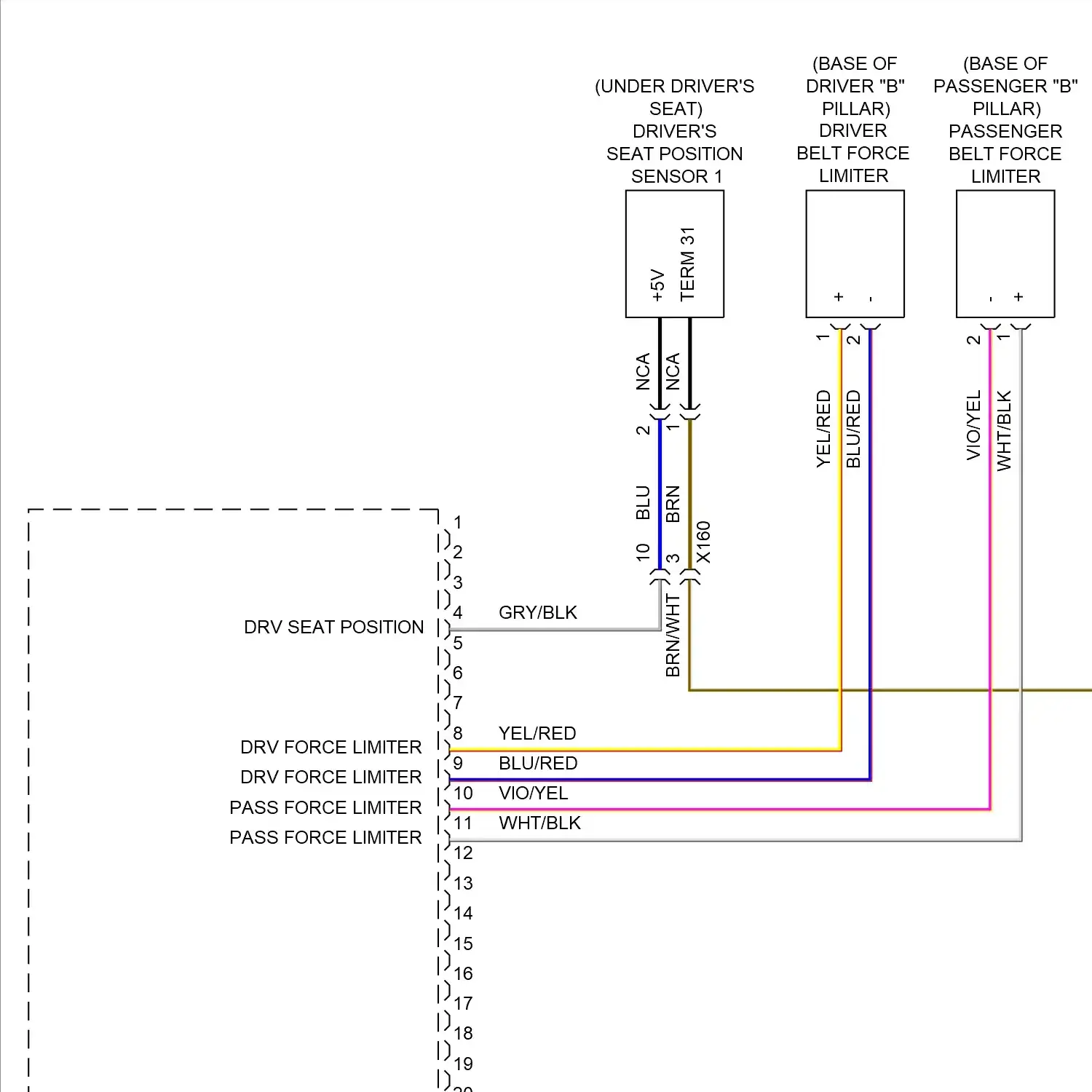

Supplemental restraints circuit

3.4l, awd circuit 3.4l, pdk circuit

3.8l, awd circuit 3.8l, pdk circuit

3.8l turbo, awd circuit 3.8l turbo, pdk circuit

Tailgate & fuel door release circuit

Warning systems circuit

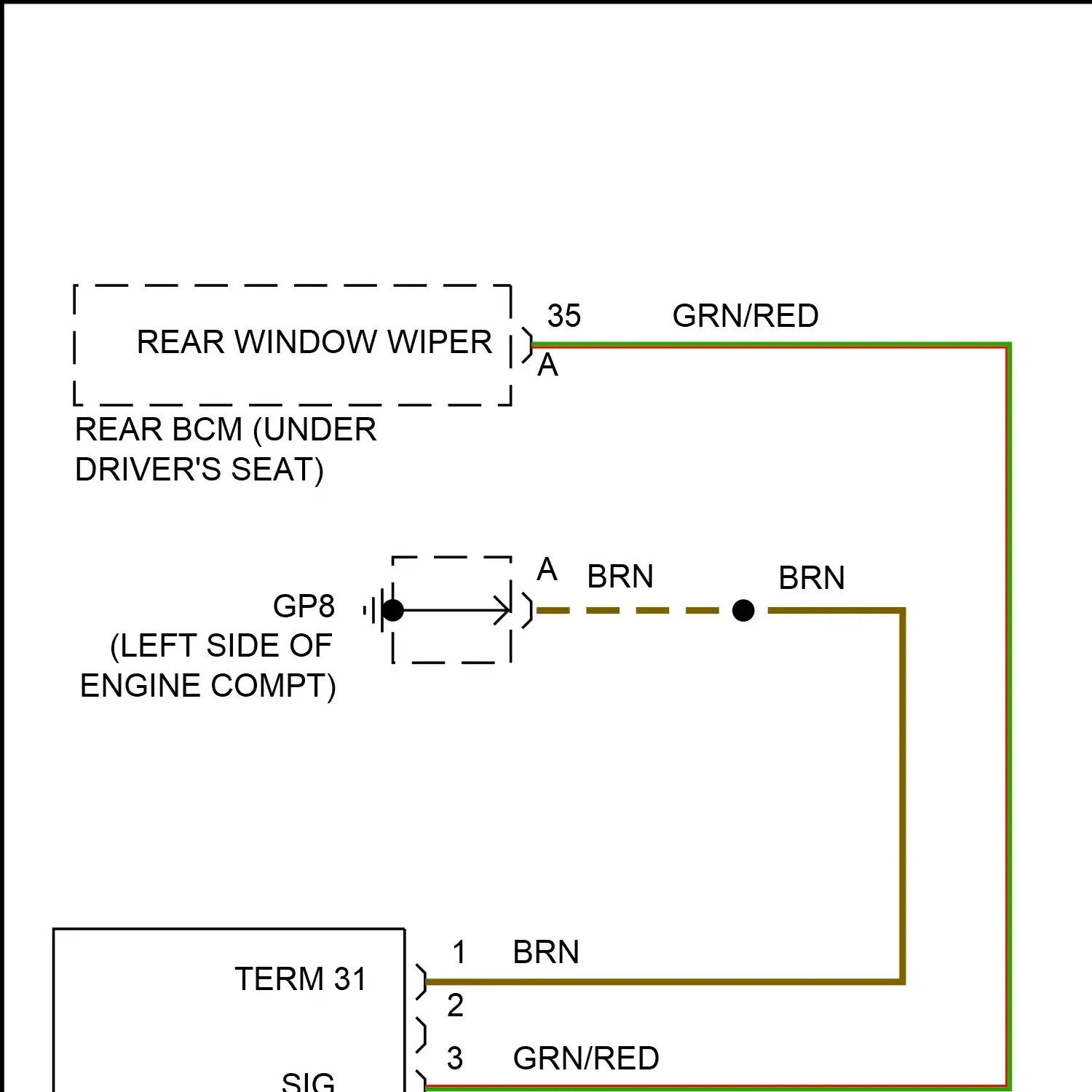

Front wiper/washer circuit Rear wiper circuit

ALARM HORN ALARM SIREN ANTI-LOCK BRAKES SYSTEM ANTI-REMOVAL LOCK ASK AMPLIFIER BATTERY GND BATTERY SIG BOSE AMPLIFIER BURMESTER AMPLIFIER CENTRAL LOCK ANTENNA CENTRAL LOCK OUTER DOOR HANDLE CENTRAL LOCK ROTARY LATCH CENTRAL LOCK SAFE LOCKED STATUS CENTRAL LOCK SHIELDING DRIVER DOOR LOCK DRIVER'S DOOR CENTRAL LOCK SAFE LED DRIVER'S DOOR LOCK ELECTRONIC IGNITION LOCK FRONT PASSENGER DOOR CENTRAL LOCK SAFE LED FRONT PASSENGER DOOR LOCK FRONT PASSENGER DOOR ODDMENTS TRAY LIGHT EMITTING DIODE FRONT PASSENGER DOOR PANEL LIGHT EMITTING DIODE IGNITION LOCK LIGHT IGNITION LOCK SW IGNITION LOCK SW 1 IGNITION LOCK SW 2 IGNITION LOCK SW 3 IGNITION LOCK SW 4 IGNITION LOCK SW 5 IGNITION LOCK SW 6 LEFT DIODE LEFT DOOR LOCK LIGHT LEFT REAR INTERIOR LIGHT EMITTING DIODE LEFT TWEETER TWO-TONE HORN LEFT TWO-TONE HORN TWEETER LOCK MTR CDL P/N START LOCK SIG P/N STARTER LCK SIG PASSENGER SIDE DOOR LOCK LIGHT RIGHT DIODE RIGHT LOW RANGE TWO-TONE HORN RIGHT REAR INTERIOR LIGHT EMITTING DIODE SHIFT LOCK STARTER RLY STARTER TERMINAL 30 STEERING COLUMN LOCK SW 1 IGNITION LOCK SW 3 IGNITION LOCK SW 4 IGNITION LOCK THEFT PROTECTION ALARM HORN W/ BOSE AMPLIFIER, BURMESTER AMPLIFIER W/ BURMESTER AMPLIFIER, BOSE AMPLIFIER, TELEVISION TUNER WITHDRAWAL LOCK

(RIGHT SIDE OF ENGINE ACTUATOR A ACTUATOR B ALL-WHEEL DRIVE OIL PUMP MOTOR CATCH ACTUATOR CENTRAL LOCK MOTOR CENTRAL LOCK MOTOR SAFE/LOCK CENTRAL VALVE SERVO MOTOR CLOSE LATCH MOTOR + DEFROST FLAP SERVO MOTOR DRIVER'S DOOR POWER WINDOW MOTOR DRIVER'S SEAT BACKREST ADJUSTMENT MOTOR DRIVER'S SEAT HEIGHT ADJUSTMENT MOTOR DRIVER'S SEAT SEAT HEIGHT ADJUSTMENT MOTOR ELECTRIC CONVERTIBLE TOP MOTOR ELV MOTOR SUPPLY ENGINE COMPARTMENT PURGE FAN 1 ENGINE COMPARTMENT PURGE FAN 2 ENGINE COMPT TEMP ENGINE COMPT) ENGINE CONTROLS SYSTEM EXTENDED VENT ELEMENT SERVO MOTOR FRESH AIR FAN MOTOR FRESH/ RECIRCULATED AIR FLAP SERVO MOTOR FRONT PASSENGER DOOR POWER WINDOW MOTOR FRONT PASSENGER'S SEAT BACKREST ADJUSTMENT MOTOR FRONT WIPER MOTOR HALL MOTOR + HALL MOTOR GND HOOD LATCHING HOOK MOTOR LEFT EXTERIOR MIRROR SERVO MOTOR LEFT MEMORY EXTERIOR MIRROR SERVO MOTOR LEFT MIRROR FOLDING MOTOR LEFT REAR POWER WINDOW MOTOR LEFT TEMPERATURE VALVE SERVO MOTOR LOCK MOTOR LOCK MOTOR CDL LUGGAGE COMPARTMENT LID ACTUATOR MIRROR ADJUST MOTOR X MIRROR ADJUSTMENT MOTOR X MIRROR ADJUSTMENT MOTOR X MIRROR ADJUSTMENT MOTOR Y MIRROR ADJUSTMENT MOTOR Y MIRROR MOTOR SPLY MOTOR 1 MOTOR 1/2 MOTOR 2 MOTOR + UP MOTOR +FORE/AFT MOTOR A MOTOR B MOTOR SPLY OPEN LATCH MOTOR + PASSENGER'S SEAT HEIGHT ADJUSTMENT MOTOR PASSENGER'S SEAT RECLINE ADJUSTMENT MOTOR POTI ENGINE 1 POTI ENGINE 2 RAM AIR FLAP SERVO MOTOR REAR SIDE FLAP MOTOR RETRACT MOTOR + RIGHT EXTERIOR MIRROR SERVO MOTOR RIGHT FOOTWELL SERVO MOTOR RIGHT MEMORY EXTERIOR MIRROR SERVO MOTOR RIGHT MIRROR FOLDING MOTOR RIGHT REAR POWER WINDOW MOTOR RIGHT TEMPERATURE VALVE SERVO MOTOR ROOF BLIND GLASS MOTOR ROOF MOTOR SAFE MOTOR SEAT ANGLE ADJUSTMENT MOTOR SEAT DEPTH ADJUSTMENT MOTOR SEAT FORE/ AFT ADJUSTMENT MOTOR SEAT FORE/AFT ADJUSTMENT MOTOR SERVO MOTOR X SERVO MOTOR Y STEERING COLUMN FORE/AFT ADJUSTMENT MOTOR STEERING COLUMN HEIGHT ADJUSTMENT MOTOR TAILGATE RELEASE ACTUATOR TANK COVER ACTUATOR THROTTLE VALVE MOTOR + WIND DEFLECTOR MOTOR WIND DFLTR MOTOR LOWER + WIND DFLTR MOTOR RAISE +

ANTENNA SCREEN 1 ANTENNA SCREEN 2 ANTENNA SCREEN 3 ANTENNA SPLY CENTRAL LOCKING ANTENNA CTRL LOCKING ANTENNA GPS ANTENNA GSM ANTENNA LEFT ANTENNA AMPLIFIER LEFT REAR OUTER WHEEL HOUSING PAS ANTENNA LUGGAGE COMPARTMENT 1 PAS ANTENNA PASS ANTENNA CONSOLE+ PASS ANTENNA LUGGAGE COMPT + PASS ANTENNA SEATS+ PASSENGER COMPARTMENT 1 PAS ANTENNA PASSENGER COMPARTMENT 2 PAS ANTENNA RIGHT ANTENNA AMPLIFIER RIGHT REAR OUTER WHEEL HOUSING PAS ANTENNA SDARS ANTENNA

ADJUSTMENT BUTTON GND ADJUSTMENT BUTTON SIG BUTTON LOCAL CENT LOCK BUTTON CENT LOCK BUTTON SIG CENTER CONSOLE BUTTON MODULE CL BUTTON LED CNT LOCK BUTTON SIG DOOR PANEL LED CL BUTTON LED DRIVER DOOR MEMORY BUTTON MODULE DRIVER'S DOOR BUTTON MODULE DRIVER'S DOOR MEMORY BUTTON MODULE EPB BUTTON FRONT LID BUTTON FRONT LID BUTTON TRUNK ENTRAPMENT OPERATING SW FRONT LUGGAGE COMPARTMENT EMERGENCY OPENER BUTTON FRONT PASSENGER DOOR MEMORY BUTTON MODULE FRONT PASSENGER DOOR POWER WINDOW BUTTON FRONT/REAR OPEN LID BUTTON MODULE HAZARD WARNING BUTTON LEFT PWR WINDOW BUTTON LF BUTTON, CLOSE LF CLOSE BUTTON MEMORY OFF BUTTON PRESS REGULATOR 1 PRESS REGULATOR 2 PRESS REGULATOR 3 PRESS REGULATOR 4 PRESS REGULATOR 5 PRESS REGULATOR 6 PRESS REGULATOR 7 PWR WINDOW BUTTON REAR LID BUTTON RF BUTTON, CLOSE RF CLOSED BUTTON RIGHT PWR WINDOW BUTTON RT OK BUTTON SET BUTTON STEERING WHEEL HEATING BUTTON STEERING WHEEL HORN BUTTON TERM 31 SET BUTTON WARNING LIGHT BUTTON

BACKUP CAMERA FRONT CAMERA SHIELD GROUND FRONT CAMERA WINDOW HEATING HEATING FILM FT CAMERA

B+ PLUG SOCKET B+ SOCKET TRANSMISSION DIAGNOSTIC PLUG SOCKET FRONT CENTER CONSOLE PLUG SOCKET FRONT PASSENGER FOOTWELL PLUG SOCKET GLOVE BOX PLUG SOCKET RIGHT FRONT PASSENGER FOOTWELL PLUG SOCKET

DME CONTROL MODULE

A/C CONTROL UNIT ACC CONTROL UNIT AIR BAG CONTROL UNIT ALL-WHEEL DRIVE CONTROL UNIT CONTROL UNIT 2 CONVERTIBLE TOP CONTROL UNIT CTRL UNIT 1 DEACT CTRL UNIT 3 TERM 31 DME CONTROL UNIT DOOR EXIT OP CTRL UNIT DR EXIT OP CTRL UNIT DR PANEL LT OP CTRL UNIT DRIVER SPORT SEAT ADJUSTMENT OUTPUT CONTROL UNIT DRIVER STANDARD 2-WAY SEAT ADJUSTMENT OUTPUT CONTROL UNIT DRIVER STANDARD 4-WAY SEAT ADJUSTMENT OUTPUT CONTROL UNIT DRIVER'S DOOR CONTROL UNIT DRIVER'S SEAT CONTROL UNIT EPB CONTROL UNIT FAN CONTROL UNIT FRONT CAMERA CONTROL UNIT FRONT CAMERA CONTROL UNIT SHIELD FRONT PASSENGER DOOR CONTROL UNIT FRONT PASSENGER SEAT ADJUSTMENT OUTPUT CONTROL UNIT FRONT PASSENGER SEAT CONTROL UNIT FRONT PASSENGER STANDARD 2-WAY SEAT ADJUSTMENT OUTPUT CONTROL UNIT FRONT PASSENGER STANDARD 4-WAY SEAT ADJUSTMENT OUTPUT CONTROL UNIT FRONT PASSENGER'S DOOR CONTROL UNIT FRONT SPOILER CONTROL UNIT FUEL PUMP SYSTEM CONTROL UNIT GATEWAY CONTROL UNIT HOME LINK CONTROL UNIT LEAKAGE DIAGNOSIS UNIT LEFT REAR DOOR CONTROL UNIT LH CTRL UNIT MIRROR MOUNT UNIT 1 MOUNT UNIT 2 PARK ASSIST CONTROL UNIT PASM CONTROL UNIT PDCC CONTROL UNIT PDCC SPORT CONTROL UNIT PDK CONTROL UNIT PSM CONTROL UNIT RDK CONTROL UNIT RH CTRL UNIT MIRROR RIGHT REAR DOOR CONTROL UNIT SEAT OCCUPANCY DETECTION CONTROL UNIT SELECTOR LEVER CONTROL UNIT SLIDING ROOF CONTROL UNIT STEERING COLUMN ADJUSTMENT CONTROL UNIT STEERING WHEEL ELECTRONICS CONTROL UNIT STEERING WHEEL ELECTRONICS CONTROL UNIT SPIRAL SPRING TERM 30 UNIT MOUNT THROTTLE VALVE ADJUSTMENT UNIT UNIT MOUNT 1 HIGH UNIT MOUNT 1 LOW UNIT MOUNT 2 HIGH UNIT MOUNT 2 LOW WIND DEFLECTOR CONTROL UNIT

BATTERY FUSE BOX FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE N/A LIN MAIN FUSE BOX MAIN FUSE BOX MAXI FUSE MID 1 FUSE MIDI FUSE

HEADLIGHT WASHER HEADLIGHT WASHER FLUID PUMP LEFT AUXILIARY HEADLIGHT LEFT HEADLIGHT RIGHT AUXILIARY HEADLIGHT RIGHT HEADLIGHT SG HEADLIGHT TERM 30 HEADLIGHT WASHER SYSTEM

HEATING ELEMENT THERMOSTAT MAP LEFT DOOR HEATING MIRROR LEFT DOOR MIRROR HEATING LEFT SEAT HEATER LEFT SIDE BACKREST BOLSTER HEATING REAR WINDOW HEATER RIGHT DOOR HEATING MIRROR RIGHT DOOR MIRROR HEATING RIGHT SEAT HEATER RIGHT SIDE BACKREST BOLSTER HEATING SEAT CUSHION HEATING STEERING WHEEL HEATING

RIGHT REAR BRAKE PAD WEAR INDICATOR

DAYTIME RUNNING LIGHTS INTERIOR LIGHTS SYSTEM STARTING/CHARGING SYSTEM LEFT COURTESY LIGHTS MIRROR RIGHT COURTESY LIGHTS MIRROR

CLOSE HD+ HYDRAULIC PUMP DUAL WASHING PUMP ELECTRICAL AFTER-RUN COOLANT PUMP FRONT AXLE COOLING WATER PUMP FRONT DUAL WASHER PUMP FRONT PUMP FUEL PUMP HYDRAULIC PUMP 1 OPEN HOOD + HYDRAULIC PUMP 2 CLOSE HOOD + OPEN HD+ HYDRAULIC PUMP PUMP GROUND REAR DUAL WASHER PUMP REAR PUMP RUN-ON PUMP SECONDARY AIR PUMP TANK FLANGE FUEL PUMP TERM 15 WAKE UP TEMPERATURE WATER PUMP TEMP SENS WATER PUMP

CAN HIGH REAR WINDOW HEATED RELAY DME RELAY DME RELAY 1 DME RELAY 1 RELAY SUPPORT 2 EMERGENCY VOLT SUPPLY 1 RELAY EMERGENCY VOLTAGE SUPPLY 1 RELAY ENGINE FLUSH HIGH RELAY ENGINE FLUSH LOW RELAY FUEL PUMP RELAY FUEL PUMP RELAY #1 HEATED REAR WINDOW RELAY HIGH ENGINE FLUSH RELAY HIGH ENGINE FLUSH RELAY 2 HOT W/ DME 1 RELAY ENERGIZED HOT W/ DME RELAY 1 ENERGIZED HOT W/ EMERGENCY VOLTAGE SUPPLY 1 RELAY ENERGIZED HOT W/ KL 15 RELAY ENERGIZED KL 15 RELAY LEFT FAN RELAY LEFT FAN RELAY SUPPORT 1 LOW ENGINE FLUSH RELAY 2 REAR FUSE BOX RELAY SUPPORT 2 LOW ENGINE FLUSH RELAY RELAY SUPPORT 2 MAXI FUSE RELAY SUPPORT 2 REAR ADAPTER 7 RELAY RELAY KL 15 RELAY TERM 30 RELAY TERM 50 HS RELAY TWO-TONE HORNS RIGHT FAN RELAY RIGHT FAN RELAY SUPPORT 1 SECONDARY AIR PUMP RELAY SPOILER EXTENSION ANGLE RELAY SPOILER EXTENSION ANGLE RELAY SUPPORT 2 SPOILER EXTENSION RELAY SPOILER EXTENSION RELAY SUPPORT 2 SPOILER RETRACTION ANGLE RELAY SPOILER RETRACTION ANGLE RELAY SUPPORT 2 SPOILER RETRACTION RELAY SPOILER RETRACTION RELAY SUPPORT 2 STARTER RELAY TWO- TONE HORNS RELAY RELAY SUPPORT 1 TWO-TONE HORNS RELAY

AIR QUALITY SENSOR ALL-WHEEL OIL PRESSURE SENSOR ALL-WHEEL TEMPERATURE SENSOR AXLE SENSOR GND AXLE SENSOR SPLY BATTERY SENSOR BOOST PRESSURE SENSOR BRAKE FLUID SENSOR BRAKE VACUUM SENSOR CAMSHAFT SENSOR BANK 1 CAMSHAFT SENSOR BANK 2 CENTER REAR ACCELERATION SENSOR CENTRAL LOCK PROXY SENSOR COOLANT CYLINDER HEAD TEMPERATURE SENSOR COOLANT RETURN TEMPERATURE SENSOR COOLANT TEMPERATURE CYLINDER HEAD SENSOR CRANKSHAFT SPEED SENSOR CYLINDER HEAD COOLANT TEMPERATURE SENSOR DRIVER DOOR INNER HANDLE SENSOR DRIVER SIDE A-PILLAR SENSOR DRIVER UPFRONT SENSOR DRIVER'S DOOR INNER HANDLE SENSOR DRIVER'S DOOR OUTER HANDLE SENSOR DRIVER'S DOOR PRESSURE SENSOR DRIVER'S SEAT POSITION SENSOR 1 ENGINE COMPARTMENT TEMPERATURE SENSOR ENGINE SENSOR FRONT PASSENGER DOOR INNER HANDLE SENSOR FRONT PASSENGER DOOR OUTER HANDLE SENSOR FRONT PASSENGER OUTER DOOR HANDLE SENSOR FRONT PASSENGER SIDE A-PILLAR SENSOR FRONT PASSENGER UPFRONT SENSOR FRONT PASSENGER'S DOOR PRESSURE SENSOR FRONT PROXIMITY SENSOR GND SENSOR GROUND SENSOR HALL SENSOR HALL SENSOR 1 HALL SENSOR 2 HALL SENSOR 3 HALL SENSOR 4 HALL SENSOR WIND DEFL LOWERED HALL SENSOR WIND DEFLECTOR RAISED HALL SENSOR, BACKREST ANGLE ADJUSTMENT HALL SENSOR, SEAT ANGLE ADJUSTMENT HALL SENSOR, SEAT BACKREST ADJUSTMENT HALL SENSOR, SEAT DEPTH ADJUSTMENT HALL SENSOR, SEAT HEIGHT ADJUSTMENT HIGH RAIL PRESSURE SENSOR HOOD TORQUE ANGLE SENSOR INTAKE AIR SENSOR INTAKE-MANIFOLD PRESSURE SENSOR INTERIOR SURVEILLANCE SENSOR KNOCK SENSOR 1 KNOCK SENSOR #2 LEAKAGE DIAGNOSIS UNIT TEMPERATURE SENSOR LEAKAGE TEMPERATURE SENSOR DIAGNOSIS UNIT LEFT BLOWER SENSOR LEFT FOOTWELL BLOWER SENSOR LEFT FRONT ACCELERATION SENSOR LEFT FRONT HEIGHT SENSOR LEFT FRONT INSIDE PDC SENSOR LEFT FRONT OUTSIDE PDC SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT REAR HEIGHT SENSOR LEFT REAR INSIDE PDC SENSOR LEFT REAR OUTSIDE PDC SENSOR LEFT REAR WHEEL SPEED SENSOR LEVEL SENSOR LF ACC SENSOR GND LF ACC SENSOR SIG LF ACC SENSOR SUPPLY LF HEIGHT SENSOR GND LF HEIGHT SENSOR SIG LF HEIGHT SENSOR SUPPLY LF SPEED SENSOR SUPPLY LF SPLY PROXIMITY SENSOR LF TERM 31 PROXIMITY SENSOR LOW/START ENABLE P/N PEDAL VALUE SENSOR 2 LR HEIGHT SENSOR GND LR HEIGHT SENSOR SIG LR HEIGHT SENSOR SUPPLY LR SENSOR GROUND LR SENSOR SIGNAL LR SPEED SENSOR SUPPLY LR VCC SENSOR MAT PRESSURE SENSOR OIL LEVEL SENSOR OIL LEVEL SENSOR SHIELD OIL PRESSURE/ TEMPERATURE SENSOR OIL TEMPERATURE SENSOR GEAR WHEEL SET PDK 991 OUT SIDE TEMPERATURE SENSOR OXYGEN SENSOR OXYGEN SENSOR DOWNSTREAM OF CATALYTIC BANK 1 OXYGEN SENSOR DOWNSTREAM OF CATALYTIC BANK 2 OXYGEN SENSOR UPSTREAM OF CATALYTIC BANK 1 OXYGEN SENSOR UPSTREAM OF CATALYTIC BANK 2 PASSENGER COMPARTMENT TEMPERATURE SENSOR PASSENGER SEAT POSITION SENSOR PEDAL VALUE SENSOR PEDAL VALUE SENSOR 1 PEDAL VALUE SENSOR 1 GROUND POTENTIOMETER PEDAL VALUE SENSOR 2 GROUND POTENTIOMETER PEDAL VALVE SENSOR PEDAL VALVE SENSOR 2 PROXIMITY SENSOR RAIN SENSOR RAIN SENSOR SHIELD GROUND REAR ACC SENSOR GND REAR ACC SENSOR SIG REAR ACC SENSOR SUPPLY REAR SIDE FLAP HALL SENSOR 1 REAR SIDE FLAP HALL SENSOR 2 REFRIGERANT PRESSURE SENSOR RF ACC SENSOR GND RF ACC SENSOR SIG RF ACC SENSOR SUPPLY RF HEIGHT SENSOR GND RF HEIGHT SENSOR SIG RF HEIGHT SENSOR SUPPLY RF SPEED SENSOR INPUT RF SPEED SENSOR SUPPLY RF SPLY PROXIMITY SENSOR RF TERM 31 PROXIMITY SENSOR RIGHT BLOWER SENSOR RIGHT FOOTWELL BLOWER SENSOR RIGHT FRONT ACCELERATION SENSOR RIGHT FRONT HEIGHT SENSOR RIGHT FRONT INSIDE PDC SENSOR RIGHT FRONT OUTSIDE PDC SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT LINEAR SENSOR RIGHT REAR HEIGHT SENSOR RIGHT REAR INSIDE PDC SENSOR RIGHT REAR OUTSIDE PDC SENSOR RIGHT REAR WHEEL SPEED SENSOR RR HEIGHT SENSOR GND RR HEIGHT SENSOR SIG RR HEIGHT SENSOR SUPPLY RR SPEED SENSOR SUPPLY RTN TEMP SENSOR SENSOR CLUSTER SENSOR GND SENSOR GROUND SENSOR SIG SPOILER HALL SENSOR SUN SENSOR TEMP SENSOR TEMPERATURE SENSOR LEAKAGE DIAGNOSIS UNIT TERM 31 PROXIMITY SENSOR TORQUE SENSOR UNIT MOUNT 1 SENSOR GND UNIT MOUNT 1 SENSOR SIG UNIT MOUNT 1 SENSOR SUPPLY UNIT MOUNT 2 SENSOR GND UNIT MOUNT 2 SENSOR SIG UNIT MOUNT 2 SENSOR SUPPLY VEHICLE SENSOR GND 1 WASHER FLUID LEVEL SENSOR WEAR SENSOR WIND DEFLECTOR SENSOR

BURMESTER SUBWOOFER AMPLIFIER CEN SPEAKER - CENTER DASH BOARD SPEAKER CENTER DASH BOARD TWEETER SPEAKER CENTER SPEAKER DRIVER DOOR MID-RANGE SPEAKER DRIVER'S DOOR MID-RANGE SPEAKER FRONT PASSENGER DOOR MID-RANGE SPEAKER HIGH END SUBWOOFER HIGH END SUBWOOFER AMPLIFIER LEFT DASH BOARD TWEETER SPEAKER LEFT REAR MID-RANGE SPEAKER LF MID RANGE SPEAKER - LR MID-RANGE SPEAKER + REMOTE SUBWOOFER RF MID RANGE SPEAKER + RIGHT DASH BOARD TWEETER SPEAKER RIGHT REAR MID-RANGE SPEAKER RIGHT TWEETER SPEAKER RR MID-RANGE SPEAKER + SUBWOOFER SIG - SUBWOOFER SW IN

ADJ CTRL SWITCH BELT BUCKLE QUERY SWITCH BRAKE PEDAL SWITCH CONTROL SWITCH COOLANT LEVEL SWITCH CTRL SWITCH DRIVER'S SEAT BELT BUCKLE QUERY SWITCH GLOVE COMPARTMENT SWITCH HOOD LATCHING HOOK SWITCH IGNITION SWITCH INTAKE MANIFOLD SWITCH-OVER VALVE LATCHING HK MICRO SWITCH LEFT SWITCH PANEL LIGHT SWITCH MEMORY SAVE SWITCH MIRROR ADJUSTMENT CTRL SWITCH MIRROR SEL CTRL SWITCH OPEN/CLOSE SWITCH PASSENGER SIDE SEAT BELT BUCKLE QUERY SWITCH PASSENGER'S AIR BAG OFF SWITCH REAR LID LOCK SWITCH REED SWITCH A REED SWITCH B REVERSING LIGHT SWITCH RIGHT SWITCH PANEL ROTARY LIGHT SWITCH SEL CTRL SWITCH STEERING COLUMN ADJUSTMENT SWITCH STEERING COLUMN SWITCH MODULE STOP LIGHT SWITCH STOPLIGHT SWITCH SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 SWITCH 5 SWITCH 6 SWITCH FOLDING SWITCH MEMORY SAVE TRUNK OPERATING SWITCH

A/C COMPRESSOR VALVE + AC VALVE ADJUSTMENT VALVE 1 ADJUSTMENT VALVE 2 ADJUSTMENT VALVE 2 BLEED ADJUSTMENT VALVE 2 VENTILATE ADJUSTMENT VALVE 3 BLEED AIR CLEANER FLAP VALVE STANDARD BACKREST WIDTH ADJUSTMENT VALVE 1 BLEED BACKREST WIDTH ADJUSTMENT VALVE 2 VENT CLOSE CTRL VALVE 2 CLOSE CTRL VALVE- COOLANT BYPASS VALVE COOLANT SHUT-OFF VALVE 1 COOLANT SHUT-OFF VALVE 2 GEAR WHEEL SET PDK COOLANT SHUT-OFF VALVE 5 DIVERTER VALVE EXHAUST FLAP VALVE FLOW CONTROL VALVE FRONT PDCC VALVE BLOCK HYDRAULIC PUMP 1 OPEN CTRL VALVE+ INT THROTTLE PDCC VALVE LEFT FRONT SHOCK ABSORBERS VALVE LEFT REAR SHOCK ABSORBERS VALVE LF SHOCK ABS VALVE HIGH LF SHOCK ABS VALVE LOW LR SHOCK ABS VALVE HIGH LR SHOCK ABS VALVE LOW LUMBAR BOTTOM VALVE 3 LUMBAR BOTTOM VALVE 3 VENT LUMBAR BOTTOM VALVE 3 VENTILATE LUMBAR BOTTOM VALVE 4 LUMBAR BOTTOM VALVE 4 BLEED LUMBAR TOP VALVE 1 LUMBAR TOP VALVE 1 VENT LUMBAR TOP VALVE 1 VENTILATE LUMBAR TOP VALVE 2 LUMBAR TOP VALVE 2 BLEED OIL PRESS VALVE OIL PRESSURE REGULATING VALVE OPEN CTRL VALVE 1 OPEN CTRL VALVE- PLUS VALVE REAR PDCC VALVE BLOCK RF SHOCK ABS VALVE HIGH RF SHOCK ABS VALVE LOW RIGHT FRONT SHOCK ABSORBERS VALVE RIGHT REAR SHOCK ABSORBERS VALVE RR SHOCK ABS VALVE HIGH RR SHOCK ABS VALVE LOW SEAT WIDTH ADJUSTMENT VALVE 3 BLEED SEAT WIDTH ADJUSTMENT VALVE 4 VENT SENS VALVE 1 SENS VALVE 2 SHUT-OFF VALVE SHUT-OFF VALVE PDK COOLANT SOLENOID VALVE HIS SOUND SYMPOSER VALVE TANK VENT VALVE THROTTLE VALVE THROTTLE VALVE ACTVAL 1 THROTTLE VALVE ACTVAL 2 THROTTLE VALVE GROUND VALVE 1 VALVE 1 VENTILATE VALVE 2 VALVE 2 BLEED VALVE 3 VALVE 3 BLEED VALVE 3 VENTILATE VALVE 4 VALVE 4 BLEED VALVE 4 VENTILATE VALVE BLOCK GROUND VALVE FOR TUNING FLAP 1 VALVE HS VALVE LS VALVE PUMP HS VALVE PUMP LS WATER VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/RED WIRE ORG/VIO WIRE PNK AUX L + WIRE PNK WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VALVE BLACK GROUND VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

1, 2, OFF 3 4 LIN 2 3.4L 3.8L 3.8L 3.4L 3.8L TURBO 3.4L, 3.8L 3.8L TURBO 3.8L, 3.4L 12 V (NOT ACCUMUL FLAP ACTIVE BODYWORKS SYSTEM ADJUSTER 1 ADJUSTER 2 ADJUSTMENT BTN GND ADJUSTMENT BTN SIG ADJUSTMENT CODED AIR BAG 1- AIR BAG 2+ AIR BAG GND AIR BAG GROUND AIR BAG STEERING COLUMN 1 AIR BAG STEERING COLUMN 2 AIR BAG TERM 31 AIR BAG TRIGGERING AIR BAG TRIGGERING DIAGNOSTIC AIR CLEANER ALL-WHEEL TEMP SENS AM/FM 1+2 AMBIENT LIGHT AMP ON ANGLE ADJUSTMENT ANTI- DAZZLE INTERIOR MIRROR SHIELD ANTI-DAZZLE INTERIOR MIRROR AREA LIGHTING AUX 1 IN L + AUX 1 IN R + AUX 1 R+ AUX 1 RTN AUX L + AUX L IN L+ AUX R + AUX RTN AUX SHIELD AWD W/ PARKING ASSIST AWD W/O PARKING ASSIST AXLE SENS GND AXLE SENS SPLY BACK SIG BACKREST ADJUSTMENT BACKREST ANGLE BACKREST ANGLE ADJUSTMENT BACKREST ANGLE ADJUSTMENT 1 BACKREST ANGLE ADJUSTMENT 2 BACKREST BACK BACKREST FORWARD BACKREST VENTILATION BACKREST WIDTH BACKREST WIDTH ADJUSTMENT BACKUP LIGHT BAR IGNITION CYLINDER 1 MODULE BAR IGNITION CYLINDER 2 MODULE BAR IGNITION CYLINDER 3 MODULE BAR IGNITION CYLINDER 4 MODULE BAR IGNITION CYLINDER 5 MODULE BAR IGNITION CYLINDER 6 MODULE BAR IGNITION MODULE CYLINDER 1 BAR IGNITION MODULE CYLINDER 2 BAR IGNITION MODULE CYLINDER 3 BAR IGNITION MODULE CYLINDER 4 BAR IGNITION MODULE CYLINDER 5 BAR IGNITION MODULE CYLINDER 6 BLIND SHUTTER BLOWER SENS FOOTWELL BLOWER SENS FOOTWELL RIGHT BLUETOOTH HANDSET BOOST PRESSURE ADJUSTER 1 BOOST PRESSURE ADJUSTER 2 BRAKE BOOSTER BRAKE FLUID LEVEL BRAKE PAD WEAR BRK PEDAL SW CAMSHAFT SENS CAN CHASSIS HIGH CAN CHASSIS LOW CAN COMFORT CAN COMFORT HIGH CAN COMFORT LOW CAN CRASH HIGH CAN CRASH HIGH CAN PRIVATE LOW CAN PRIVATE HIGH CAN CRASH LOW CAN DIAGNOSTICS HIGH CAN DIAGNOSTICS LOW CAN DRIVE HIGH CAN DRIVE LOW CAN DRV HI CAN DRV LO CAN HI CAN HIGH CAN HIGH 1 CAN HIGH 2 CAN LOW 2 CAN L CAN LO CAN LOW CAN LOW 1 CAN MMI CAN MMI HI CAN MMI HIGH CAN MMI LO CAN MMI LOW CAN PRIVATE HIGH CAN PRIVATE LOW CAN VERTEILER CENTER AIR VENT LIGHTING COCKPIT CENTER COCKPIT AIR VENT LIGHTING CENTRAL LOCKED STATUS CENTRAL STATUS SAFE LOCKING CHARGE AIR TEMP CHARGING CRADLE SUPPRESSOR CHOKE CHASIS HIGH CHASIS LOW CIGAR LIGHTER CLOSE MTR 1 CLOSE MTR 2 CLOSE MTR + CLUTCH SW CLUTCH SW UP CODING 1 CODING 2 COM TX COMFORT HIGH COMFORT LOW COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONTACT 1 CONTACT 2 CONTROL LEFT SPLY CONTROL LINE CONTROL RIGHT SPLY CONVERTIBLE COUPE COOLING FANS SYSTEM COOLING WATER COOLING WATER LEVEL COUPE CONVERTIBLE COURTESY LIGHT CRASH OUTPUT CRASH SIG CRASH SIGNAL CTRL LINE CTRL SW, TERM 31 CVB GND CVB SIG CVB SIGNAL CVB SIGNAL GND CVBS VIDEO CYL 1 HS CYL 1 LS CYL 2 HS CYL 2 LS CYL 3 HS CYL 3 LS CYL 4 HS CYL 4 LS CYL 5 HS CYL 5 LS CYL 6 HS CYL 6 LS DAB SIG DC OUT DC/DC CONVERTER DEFOGGER SYSTEM DIAGNOSIS MSG DISPLAY ON DISTANCE SENS 1 DISTANCE SENS 2 DISTANCE SENS 3 DISTANCE SENS 4 DOOR CONTACT DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS TRUNK, TAILGATE, FUEL DOORS SYSTEM DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DOOR PANEL LED DOOR SILL LIGHTING DRIVER AIR BAG ESD GROUND DRIVER BELT FORCE LIMITER DRIVER BELT TENSIONER DRIVER KNEE AIR BAG DRIVER ROLL-OVER BAR DRIVER SEAT BELT BUCKLE ASSEMBLY) DRIVER THORAX AIR BAG - DRIVER'S DOOR ODDMENTS TRAY LIGHT DRIVER'S DOOR PANEL LIGHT DRIVER'S DOOR WOOFER DRIVER'S HEAD AIR BAG DRIVER'S SEAT ESD GROUND DRIVER'S SEAT LUMBAR SUPPORT DRV AIR BAG STAGE 1 - DRV AIR BAG STAGE 2 - DRV BUCKLE SW DRV FORCE LIMITER - DRV IGN CKT BELT TENS + DRV IGN CKT R/O PROT - DRV SEAT POSITION DRV SIDE HEAD AIR BAG - DRV SIDE KNEE AIR BAG + DRV SIDE SENS FOR C-PILLAR + DRV SIDE THORAX AIR BAG - DRV UPFRONT SENS + DRV/PASS CODING EC MIRROR EISS ILL EISS ILLUMINATION ELECTRICAL STEERING GEAR ELV DRIVE LINK SPLY ELV DRIVE LINK SUPPLY ELV ENABLE ELV SPLY ENABLE ELV ENABLE TERM 15 ENCODER PIN GROUND ENG GND EVAP TEMP EXHAUST FLAP CONTROL EXHAUST TEMPERATURE 1 + EXHAUST TEMPERATURE 2 EXT SENS - EXTEND MTR + FAN CTRL FAN CTRL 1 FAN CTRL 2 FAN FINAL STAGE FL TWEETER + FLOW CTRL VLV 1 FM 3+4 FOLDING MIRROR CHANGE-OVER SW FOOTWELL LIGHT FORE-AND-AFT FR PASS IGN CKT BELT TENS - FR PASS IGN CKT R/O PROT + FR PASS SIDE HEAD AIR BAG + FR PASS SIDE THORAX AIR BAG + FR TWEETER + FRONT AXLE SENS GND FRONT AXLE SENS SIG FRONT AXLE SENS SPLY FRONT BCM FRONT BLUETOOTH CHARGING TRAY FRONT EVAPORATOR TEMPERATURE FRONT LID FRONT LID ACTUATING ELEMENT FRONT LID LATCHING HOOK MICROSWITCH FRONT LID LIGHT FRONT LID MICROSWITCH FRONT LUGGAGE COMPARTMENT EMERGENCY POWER PIN FRONT LUGGAGE COMPARTMENT LIGHT FRONT PASSENGER DOOR WOOFER FRONT PASSENGER ROLL-OVER BAR FRONT PASSENGER SEAT ESD GROUND FRONT PASSENGER SEAT THORAX AIR BAG FRONT SENS SIG FT LID MICRO SW FT LID PROX SENS FT LID PROX SENS SPLY FUEL FILLER NECK GROUND FUEL INJECTOR CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR CYLINDER 5 FUEL INJECTOR CYLINDER 6 FUEL LEVEL SENS GND FUEL LVL SENS FUN IND FUN IND 2 FZV SIG GLOVE BOX LIGHT GLOVE BOX MICRO SW GND ACTUATORS GND DIPPED BEAM GND HI BEAM GND POTENTIOMETER 1 GND POTENTIOMETER 2 GND POWER GND PWR GND SENS GP AIR BAG GPS HF IN GROUND DISTRIBUTION SYSTEM GROUND POTI GROUND, SENSORS HALL CLOSED HALL MTR GND HALL OPEN HALL SENS HALL SENS 1 - HALL SENS 2 HALL SENS CLOSED HALL SENS FORE/AFT + HALL SENS HEIGHT + HALL SENS SUPPLY 2+ HEAD AIR BAG DS ESD GROUND HEAD AIR BAG PS ESD GROUND HEADLIGHTS SYSTEM HEATED BACKREST HEIGHT ADJUSTMENT HI PRESS SENS HIGH 1 HIGH BEAM HIGH MOUNTED STOP LIGHT HIGH MOUNTED STOP LIGHT BODY HIGH-MOUNTED STOP LIGHT SPOILER HIS SPLY HOOD COMP LID CLOSED/OPEN HALL SENS HOOD TORQUE ANGLE SENS+ HOOD LATCH SENSORS HOOD ROT ANGLE SENS HALL HOOD TORQUE ANGLE SENS- HORNS SYSTEM HOT AT ALL TIMES HT GND SENS HT SENS GND HT SENS SIG HT SENS SPLY HT SIG SENS HT SPLY SENS IGNITION CYL 1 IGNITION CYL 2 IGNITION CYL 3 IGNITION CYL 4 IGNITION CYL 5 IGNITION CYL 6 IND 2 IND OFF INNER DOOR HANDLE SIG INNER DOOR HANDLE SIGNAL INNER DR HANDLE SIG INNER TEMP COMP INNER TEMP SURFACE INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INTAKE PRESS INTAKE TEMP IPN GROUND IPOD CHARGING VOLT + IPOD VOLTAGE + KL 31 KNEE AIR BAG DS ESD GROUND KNEE AIR BAG PS ESD GROUND LAMBDA CTRL LATCHING MICROS WITCH GND LE LSP- WOOFER LED DOOR PANEL LED MEMORY OFF LED MEMORY SET LEFT AIR VENT LIGHTING COCKPIT LEFT BRAKE LIGHT LEFT COCKPIT AIR VENT LIGHTING LEFT DAYTIME RUNNING LIGHT LEFT ELECTROCHROMIC HEATED MIRROR LEFT FRONT LEFT FRONT BRAKE PAD WEAR IND LEFT FRONT DOOR SILL LIGHTING LEFT FRONT FOOTWELL LIGHT LEFT FRONT HEATED SPRAY JET LEFT FRONT TPM TRIGGER MODULE LEFT FRONT TURN SIG LEFT HIGH BEAM LEFT HOOD COMP LID CLOSED HALL SENS LEFT HOOD COMP LID OPEN HALL SENS MS LATCH LOCKED LEFT LOW BEAM LEFT MAKE-UP LIGHT LEFT MIRROR FUNCTION DISPLAY LEFT NUMBER PLATE LIGHT LEFT RADIATOR FAN LEFT REAR LEFT REAR AXLE STEERING ADJUSTER LEFT REAR BRAKE PAD WEAR IND LEFT REAR TPM TRIGGER MODULE LEFT REAR TWEETER LEFT REVERSING LIGHT LEFT SEAT TEMP LEFT SEAT VENTILATION LEFT SIDE HEATED BOLSTER LEFT SIDE MARKER LIGHT LEFT SIDE TURN SIGNAL LEFT SIDE VENT BLOWER LEFT TAILLIGHT LEVEL SENS LF DAYTIME RUNNING LIGHT LF LOW WOOFER - LF PROX SENS SPLY LF SIDE DIRECTION IND LF SIDE MARKER LIGHT LF SPEED SENS SIG INPUT GROUND LF TRIGGER MOD SUPPLY LF TURN SIG LF TURN SIGNAL LF TWEETER+ LH HIGH BEAM LH LOW BEAM LH MIRROR FUNCTION LH MIRROR LED SELECTION LH MTR A LH MTR B LID ACT ELEMENT LID OPEN LID SHUT LIGHT FRONT TURN SIG LIGHT REDUNDANT LIGHT SW LIGHT SW POSITION 0 LIN 1 LIN 2 LIN 3 LIN DATA A/C LIN DATA VEHICLE LIN INPUT LIN OUTPUT LINES SYSTEM LK SIG LOCKING SOL - LOW 1 LOW BEAM LOW/START ENABLE PIN LOWER SEAT LR FOG LIGHT LR FOG LT LR IND LR OUTER WHEEL+ LR SPEED SENS SIG INPUT LR TRIGGER MOD SUPPLY LR TWEETER + LSP + LSP+ WOOFER LE LSP- CENTER LUMBAR FWD/BACK LUMBAR GROUND LUMBAR HIGH LOW LUMBAR PRESSURE BOTTOM LUMBAR PRESSURE TOP LUMBAR SW FORWARD/BACK LUMBAR SW HIGH/LOW LUMINOUS ROW LVDS IN + MEMORY SET MEMORY SYSTEMS MICROPHONE 1 - MICROPHONE 2 + MICROPHONE GND MICROPHONE SHIELD MICROSWITCH 18 MICROSWITCH 19 MICROSWITCH A MICROSWITCH B MIRROR ADJUSTMENT MIRROR CHANGEOVER MIRROR EC GLASS MIRROR EC GLASS GND MIRROR POS 1 MIRROR POS 2 MIRROR POSITION 1 MIRROR POSITION 2 MOUNTING HIGH SIDE MOUNTING LOW SIDE MS LATCH RELEASED MTR 1 - MTR 2 - N/A N/A NAVIGATION SYSTEM NTC- NUMBER PLATE LIGHT + OIL PRESS SENS OIL PRESSURE OIL TEMP + OIL TEMP GND OIL TEMP SENS OPEN MTR 1 OPERATING SW OUT PUT OUT SIDE TEMP OUTER DOOR OXYGEN SENS OXYGEN SENS GND OXYGEN SENS SIG P/N STR P/N SW PARKING BRAKE FUNCTION PASS AIR BAG OFF INPUT REDUNDANT PASS AIR BAG OFF SW INPUT PASS AIR BAG STAGE 1 - PASS AIR BAG STAGE 2 - PASS BUCKLE SW PASS FORCE LIMITER + PASS SEAT POSITION PASS SIDE KNEE AIR BAG + PASS SIDE SENS FOR C-PILLAR + PASS UPFRONT SENS - PASSENGER AIR BAG ESD GROUND PASSENGER AIR BAG STAGE 1 PASSENGER AIR BAG STAGE 2 PASSENGER BELT FORCE LIMITER PASSENGER BELT TENSIONER PASSENGER HEAD AIR BAG PASSENGER KNEE AIR BAG PASSENGER'S SIDE LUMBAR SUPPORT SEAT PDK TRANSMISSION 1 PDK TRANSMISSION 2 PEDAL SENS PEDAL VALUE PEDAL VALUE SENS PHASE A 1 PHASE A 2 PHASE B 1 PHASE B 2 PHASE U PHASE V PHASE W PICK UP TELEPHONE PMP CURRENT POTENTIOMETER SPLY POWER DISTRIBUTION SYSTEM PRESS SENS PRESS SENS 1 PRESS SENS 2 PRESS SENS GND PRESSURE SENS + PRESSURE SENS DRV DOOR PRESSURE SENS PASS DOOR + PRESSURE SENS SIG PRK BRK FUN PSW/NEUTRAL SW PWM SIG PWR GROUND PWR WINDOW MTR 1 PWR WINDOW MTR 2 RADIATOR FAN CTRL 1 RADIATOR FAN CTRL 2 RADIO HF IN RAISE SEAT RB DIAG REAR AXLE SENS GND REAR AXLE SENS SIG REAR AXLE SENS SPLY REAR BCM REAR FOG LIGHT REAR LID REAR LID MICROSWITCH REAR PWR WIND REAR SENS SIG REAR SIDE CLOSE FLAP MTR + REAR SIDE FLAPS CLOSED HALL SENS LATCHING HOOK READY REAR SIDE FLAPS OPEN HALL SENS REAR SIDE OPEN FLAP MTR + REAR WDW REAR WINDOW MODULE REAR WINDOW WIPER REFRIGERANT PRESS SENS RESONANCE FLAP RF DAYTIME RUNNING LIGHT RF LOW BEAM RF LOW WOOFER - RF PROXY SENS SUPPLY RF SIDE DIRECTION IND RF SIDE MARKER LIGHT RF TRIGGER MOD SUPPLY RF TURN SIG RF TURN SIGNAL RF TWEETER - RH HIGH BEAM RH MIRROR FUNCTION RH MIRROR LED SELECTION RH MTR A RH MTR B RH SENS + RH SIDE MARKER LIGHT RI LSP- WOOFER RIGHT AIR VENT LIGHTING COCKPIT RIGHT BRAKE LIGHT RIGHT COCKPIT AIR VENT LIGHTING RIGHT DAYTIME RUNNING LIGHT RIGHT ELECTROCHROMIC HEATED MIRROR RIGHT END OF DASH) RIGHT FRONT RIGHT FRONT BLUETOOTH CHARGING TRAY RIGHT FRONT BRAKE PAD WEAR IND RIGHT FRONT DOOR SILL LIGHTING RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT HEATED SPRAY JET RIGHT FRONT TPM TRIGGER MODULE RIGHT FRONT TURN SIG RIGHT HIGH BEAM RIGHT LOW BEAM RIGHT MAKE-UP LIGHT RIGHT MIRROR FUNCTION DISPLAY RIGHT NUMBER PLATE LIGHT RIGHT RADIATOR FAN RIGHT REAR RIGHT REAR AXLE STEERING ADJUSTER RIGHT REAR BRAKE PAD WEAR IND RIGHT REAR TPM TRIGGER MODULE RIGHT REAR TWEETER RIGHT REVERSING LIGHT RIGHT SEAT TEMP RIGHT SEAT VENTILATION RIGHT SIDE HEATED BOLSTER RIGHT SIDE MARKER LIGHT RIGHT SIDE TURN SIGNAL RIGHT SIDE VENT BLOWER RIGHT TAILLIGHT RIGHT/LEFT SHUTTER LID RING BRAKE DIAGNOSIS RING BRK DIAGNOSIS RL OUTER WHEEL - RLY TERM 50 ROOF CONSOLE ROOF CONSOLE SHIELD ROTARY LATCH RR DIR IND RR FOG LIGHT RR FOG LT RR LID ACTUATING ELEMENT RR LID MICROSWITCH RR OUTER WHEEL+ RR SPEED SENS SIG INPUT RR TRIGGER MOD SUPPLY RR TWEETER - SAT RADIO HF IN SCROLL WHEEL LT SCROLL WHEEL RT SEAT ADJUSTMENT SW ANGLE ADJUSTMENT SEAT ADJUSTMENT SW BACKREST ADJUSTMENT SEAT ADJUSTMENT SW BACKREST ANGLE ADJUSTMENT SEAT ADJUSTMENT SW GROUND SEAT ADJUSTMENT SW HEIGHT ADJUSTMENT SEAT ANGLE ADJUSTMENT SEAT ANGLE ADJUSTMENT 1 SEAT ANGLE ADJUSTMENT 2 SEAT BACKREST ADJUSTMENT SEAT BACKREST ADJUSTMENT 1 SEAT BACKREST ADJUSTMENT 2 SEAT BACKREST ADJUSTMENT SW SEAT BACKREST BOLSTER SEAT CUSHION BOLSTER SEAT CUSHION DEPTH SEAT CUSHION SW SEAT CUSHION VENTILATION SEAT DEPTH ADJUSTMENT SEAT DEPTH ADJUSTMENT 1 SEAT DEPTH ADJUSTMENT 2 SEAT DEPTH ADJUSTMENT SW SEAT HEIGHT ADJUSTMENT SEAT HEIGHT ADJUSTMENT 1 SEAT HEIGHT ADJUSTMENT 2 SEAT WIDTH ADJUSTMENT SEATS SYSTEM SECAIRPMP 1 CTRL SELECTOR LEVER POS SELECTOR LEVER POSITION SELECTOR LEVER SPLY SELECTOR LEVER SUPPLY SENS 1 GND SENS 2 SPLY SENS 3 GND SENS 4 GND SENS GND SENS GND TRANS SENS GROUND SENS R- SENS SIG SENS SIG FA SENS SIG RA SENS SPLY SENSORS 1 GND SENSORS 2 GND SENSORS 2 GND VLV SERIAL INTER FACE SERIAL INTERFACE SHIFT INTERLOCK SYSTEM SHIFTLOCK - SHIFTLOCK SPLY SHUT-OFF VLV SHUTTER LID RH/LH SIDE MARKER LIGHT SIGNAL FLI SIGNAL FLO SIGNAL FRI SIGNAL FRO SIGNAL RLI SIGNAL RLO SIGNAL RRI SIGNAL RRO SNS GND SNSR GND SOL VLV 1 SOL VLV 2 SOLAR LEFT SOLAR RIGHT SOUND SYMPOSER - SOUND SYSTEMS SPEED SENDER SPLY ACTUATORS 1 SPLY ACTUATORS 2 SPLY ACTUATORS 3 SPLY ACTUATORS 4 SPLY POTENTIOMETER STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STATUS POS X STATUS POS Y STEERING COLUMN ADJUSTMENT STEERING COLUMN SWITCHING MODULE STEERING WHEEL REMOTE CONTROL STEERING WHEEL) STOP LIGHT STOP LIGHT SW STOPLIGHT SW SUNROOF DIAGNOSIS SUP PROX SENS SUPPLEMENTAL RESTRAINTS SUPPLEMENTAL RESTRAINTS SYSTEM SUPPLY ACTUATORS SUPPLY VOLTAGE SW 1 SW 2 SW 3 SW 4 SW 5 SW 6 SW IN SW NVLD - SW OUT A SW OUT B SW OUT C SW OUT D SW OVER SWITCHING IN TAILGATE) TANK LEAK DIAGN TANK LID OPEN TANK LID SHUT TANK VENT VLV TELEPHONE HF IN TELEVISION TUNER TEMP BANK 1 TEMP BANK 2 TEMP COMPT TEMP RADIATOR TEMP SURFACE TEMP/OIL PRESS TERM 15 TERM 15 HEATED SPRAY JETS TERM 15 IN DIAGNOSIS TERM 30 TERM 30 1 TERM 30 4 TERM 30 DAMPER TERM 30 ELECTRONICS TERM 30 F TERM 30 LOAD TERM 30 SUN BLIND TERM 30 SUNROOF TERM 30-2 TERM 30-3 TERM 31 TERM 31 CTRL SW TERM 31 POWER MIRROR TERM 31 REAR LID ACTUATING ELEMENT TERM 50 TERM 50 DIAGNOSIS TERM 58 TERM 58 D TERM 87 TERMINAL 15 TERMINAL 30 TERMINAL 31 TERMINAL 31 PROX SENS TERMINAL 87 THERMOSTAT MAP THRO VLV GND THROT VLV THROT VLV 1 THROT VLV GND THROT VLV MTR - TIP-DOWN TIP-UP TRANS OIL TEMP + TRANSM OIL TEMP+ TRANSMISSION ASSEMBLY TRIGGER MODULE GND TRIGGER MODULE SIGNAL TRUNK ENTRAPMENT CLOSED TRUNK ENTRAPMENT OPEN TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN SIG TV 2 TV 3 USB GND USED) VALUE SENS VERTICAL ADJUSTMENT VIDEO 2 VIDEO 2 GROUND VIDEO GND W/ 475/352/030/031/477 W/ 475/352/477/ 030/031 W/ 475/352/ 477/030/031 W/ ASK W/ BURMESTER W/ DIGITAL AUDIO BROADCASTING RADIO RECEPTION W/ KEYLESS ENTRY W/ KEYLESS ENTRY W/O KEYLESS ENTRY W/ LED W/ LED HEADLAMPS W/ MEMORY W/ PASSENGER POWER SEAT W/ RADIO PREPARATION W/ RADIO PREPARATION W/O RADIO PREPARATION W/ MEMORY W/O MEMORY W/ RADIO PREPERATION W/O RADIO PREPERATION W/ REAR SPOILER W/ START/STOP FUNCTION W/ TELEVISION TUNER W/O 475/352/030/031/477 W/O 475/352/477/ 030/031 W/O 475/352/ 477/030/031 W/O DIGITAL AUDIO BROADCASTING RADIO RECEPTION W/O KEYLESS ENTRY W/O LED W/O LED 3.8L TURBO W/O LED HEADLAMPS W/O MEMORY W/O PASSENGER POWER SEAT W/O RADIO PREPARATION W/O TV TUNER WAKE-UP WAKE-UP LINE WASHER FLUID LEVEL WATER TEMP WDW DISPLAY REAR OVER WIND DEFL LOWERED HALL SENS RIGHT HOOD COMP LID CLOSED HALL SENS WIND DFLTR RAISD HALL SENS WINDOW CODED WINDOW LE WINDOW RI WIPER/WASHER SYSTEM ZV FUNCTION IND
