Pontiac Vibe II (2008-2010) left tail lamp left backup lamp Wiring diagram
This page shows the only wiring diagram for the component.left tail lamp left backup lamp, which is found in the car Pontiac Vibe II (2008-2010). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

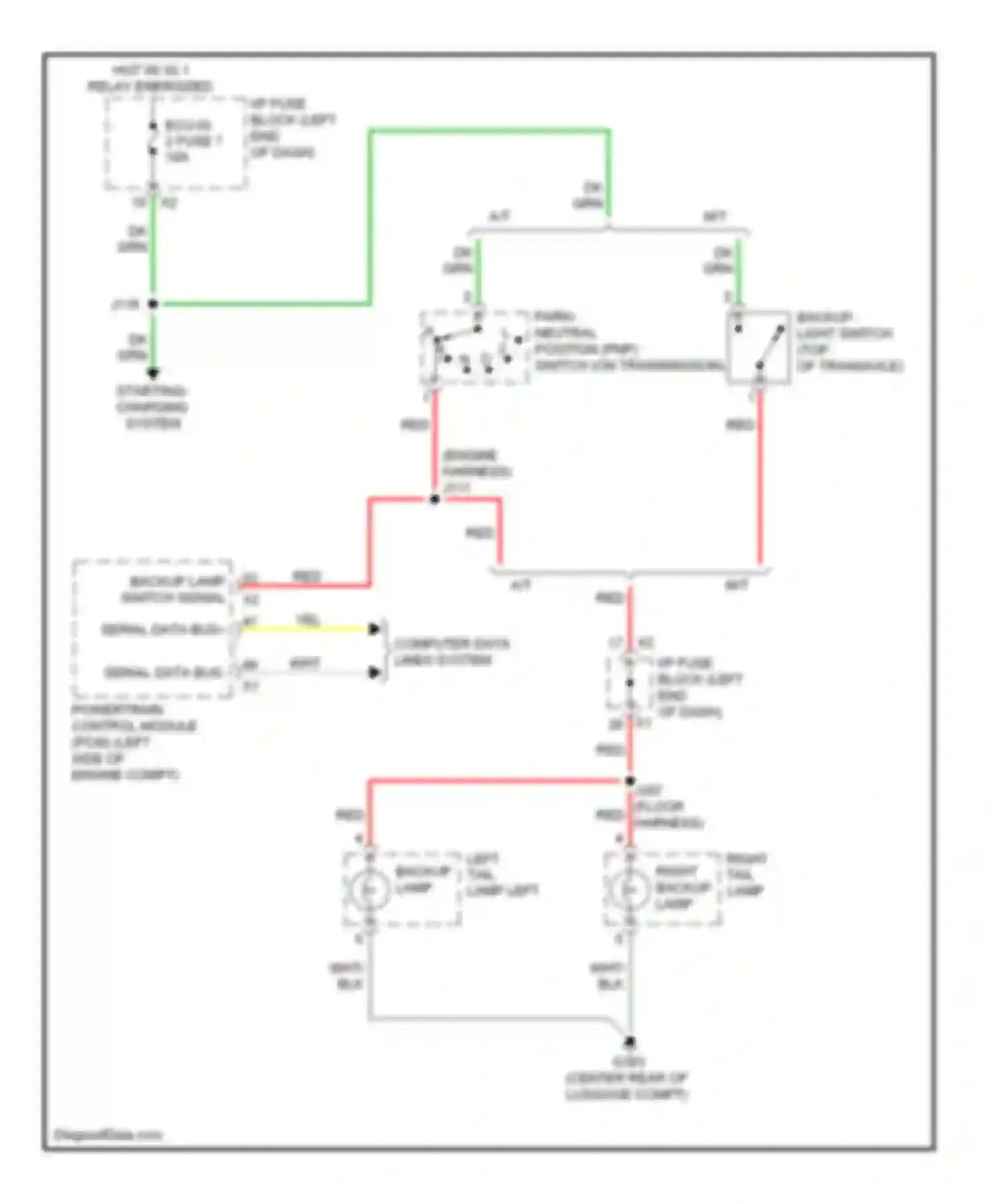

Wiring diagram left tail lamp left backup lamp (1 of 1)
A/T
BACKUP LAMP SWITCH SIGNAL
BACKUP LIGHT SWITCH (TOP OF TRANSAXLE)
BLK WIRE
CENTER REAR OF LUGGAGE COMPT)
COMPUTER DATA LINES SYSTEM
ECU-IG 2 FUSE 7
GRN WIRE
HOT W/ IG 1 RELAY ENERGIZED
I/P FUSE BLOCK (LEFT END OF DASH)
LAMP
LEFT TAIL LAMP LEFT BACKUP LAMP
M/T
PARK/NEUTRAL POSITION (PNP) SWITCH (ON TRANSMISSION)
POWERTRAIN CONTROL MODULE (PCM) (LEFT SIDE OF ENGINE COMPT)
RED WIRE
RIGHT BACKUP LAMP
RIGHT TAIL/
SERIAL DATA BUS-
STARTING/ CHARGING SYSTEM
WHT WIRE
YEL WIRE
