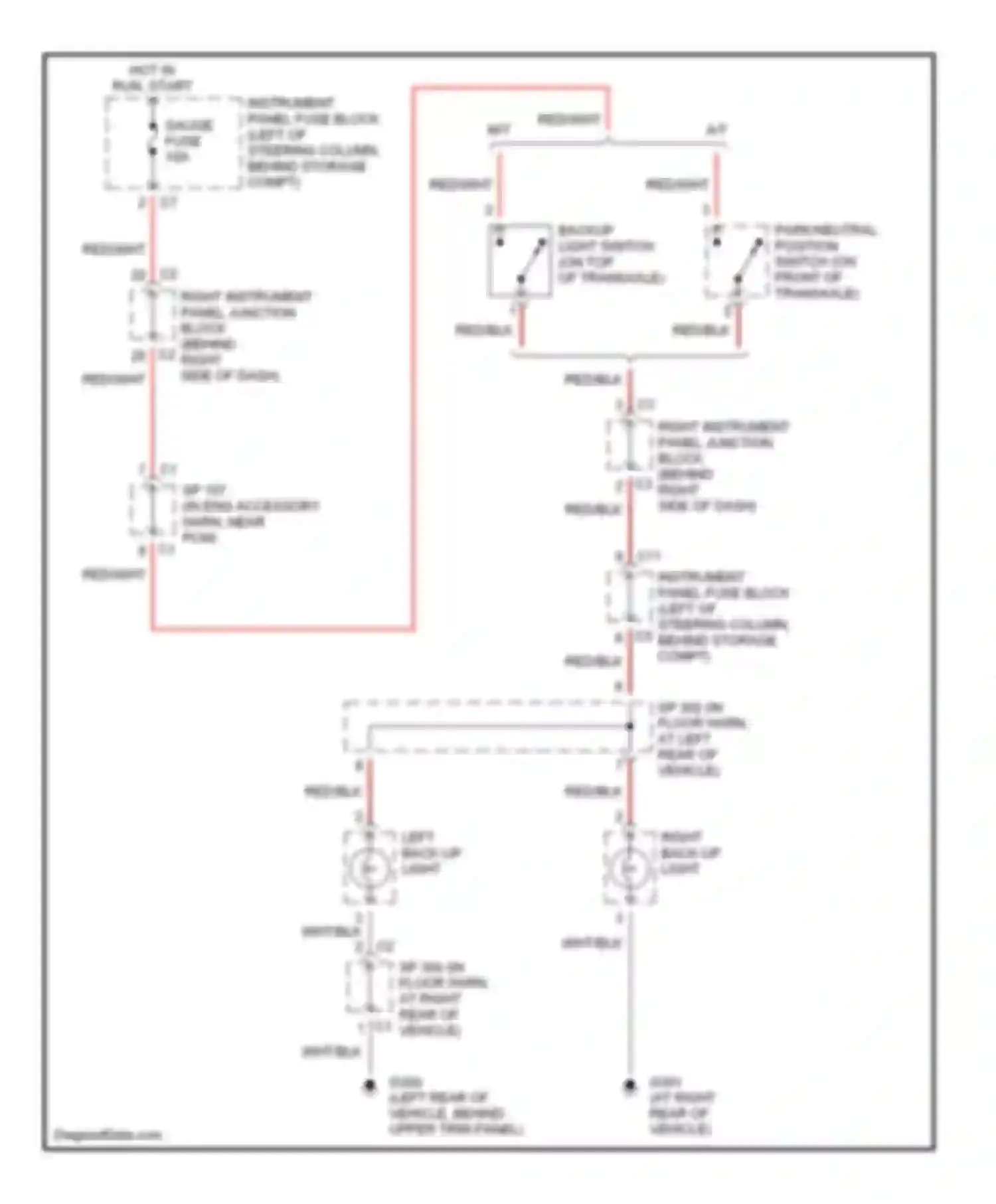

Back-up lamps circuit for Pontiac Vibe I (2002-2004)
Back-up lamps circuit
A/T
BACKUP LIGHT SWITCH (ON TOP OF TRANSAXLE)
GAUGE FUSE
HOT IN RUN, START
INSTRUMENT PANEL FUSE BLOCK (LEFT OF STEERING COLUMN, BEHIND STORAGE COMPT)
LEFT BACK-UP LIGHT
M/T
PARK/NEUTRAL POSITION SWITCH (ON FRONT OF TRANSAXLE)
RED/BLK WIRE
RED/WHT WIRE
RIGHT BACK-UP LIGHT
RIGHT INSTRUMENT PANEL JUNCTION BLOCK (BEHIND RIGHT SIDE OF DASH)
SP 107 (IN ENG ACCESSORY HARN, NEAR PCM)
SP 300 (IN FLOOR HARN, AT RIGHT REAR OF VEHICLE)
SP 302 (IN FLOOR HARN, AT LEFT REAR OF VEHICLE)
WHT/BLK WIRE
