Liftgate release circuit for Pontiac Torrent I (2005-2009)

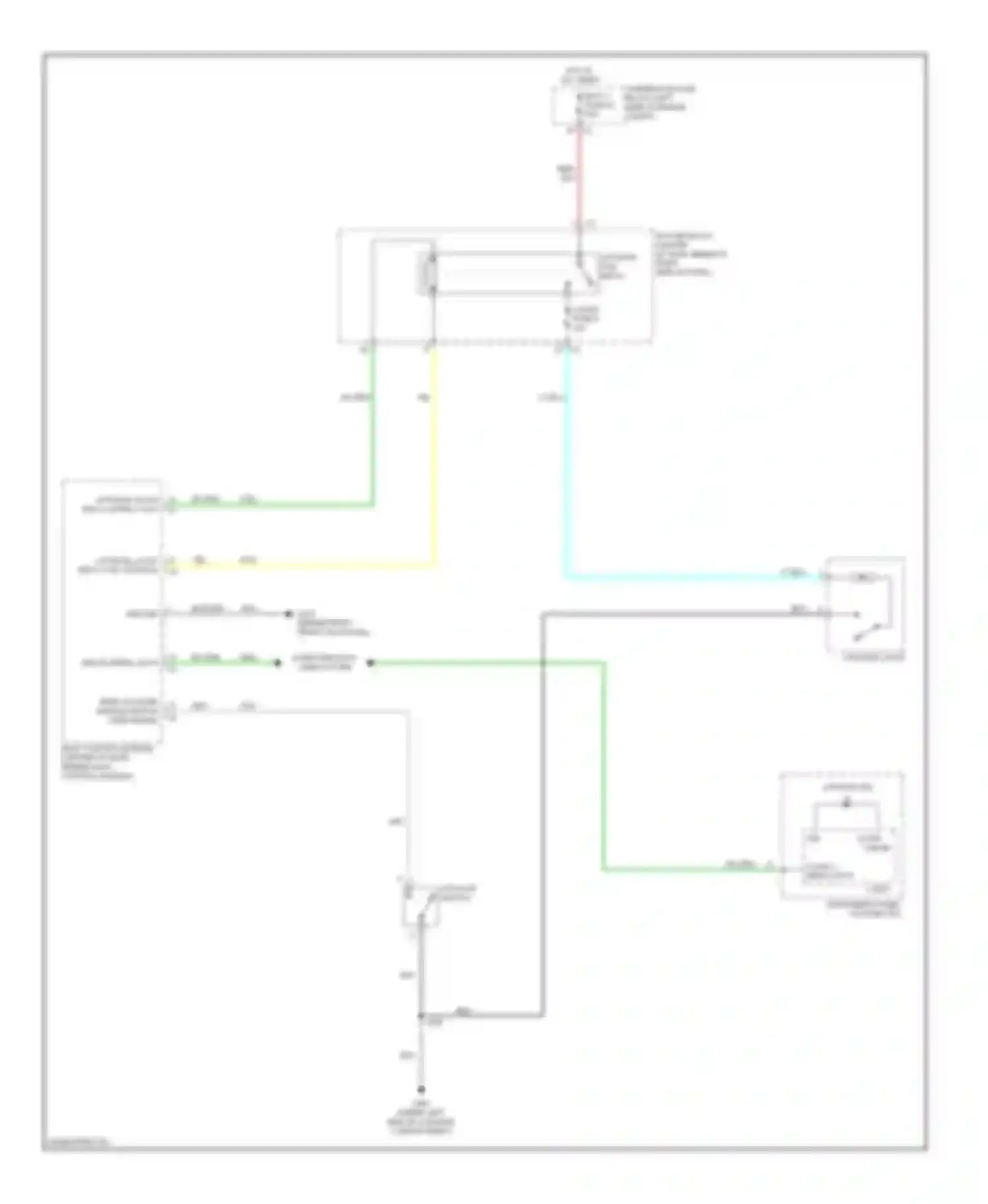

Liftgate release circuit
BATT 2 FUSE 50
BLK WIRE
BLK/WHT WIRE
BODY CONTROL MODULE (CENTER OF DASH, BEHIND HVAC CONTROL MODULE)
CLASS 2 (BCM)
CLASS 2 SERIAL DATA
COMPUTER DATA LINES SYSTEM
DK GRN WIRE
GMLAN SERIAL DATA
GROUND
GRY WIRE
HOT AT ALL TIMES
I/P FUSE BLOCK (CENTER OF DASH, BENEATH RIGHT
IGN
INSTRUMENT PANEL CLUSTER (IPC)
L/GATE FUSE 4
LIFTGATE IND
LIFTGATE LATCH
LIFTGATE LATCH RELAY COIL CONTROL
LIFTGATE LATCH RELAY SUPPLY VOLT
LIFTGATE PCB RELAY
LIFTGATE SWITCH
LOGIC
LT BLU WIRE
REAR CLOSURE HANDLE SWITCH OPEN SIGNAL
RED WIRE
SIDE OF RADIO)
UNDERHOOD FUSE BLOCK (LEFT SIDE OF ENGINE COMPT)
YEL WIRE
