Pontiac Solstice I (2005-2009) sensor sig data bus + data bus - Wiring diagram
This page shows the only wiring diagram for the component.sensor sig data bus + data bus -, which is found in the car Pontiac Solstice I (2005-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

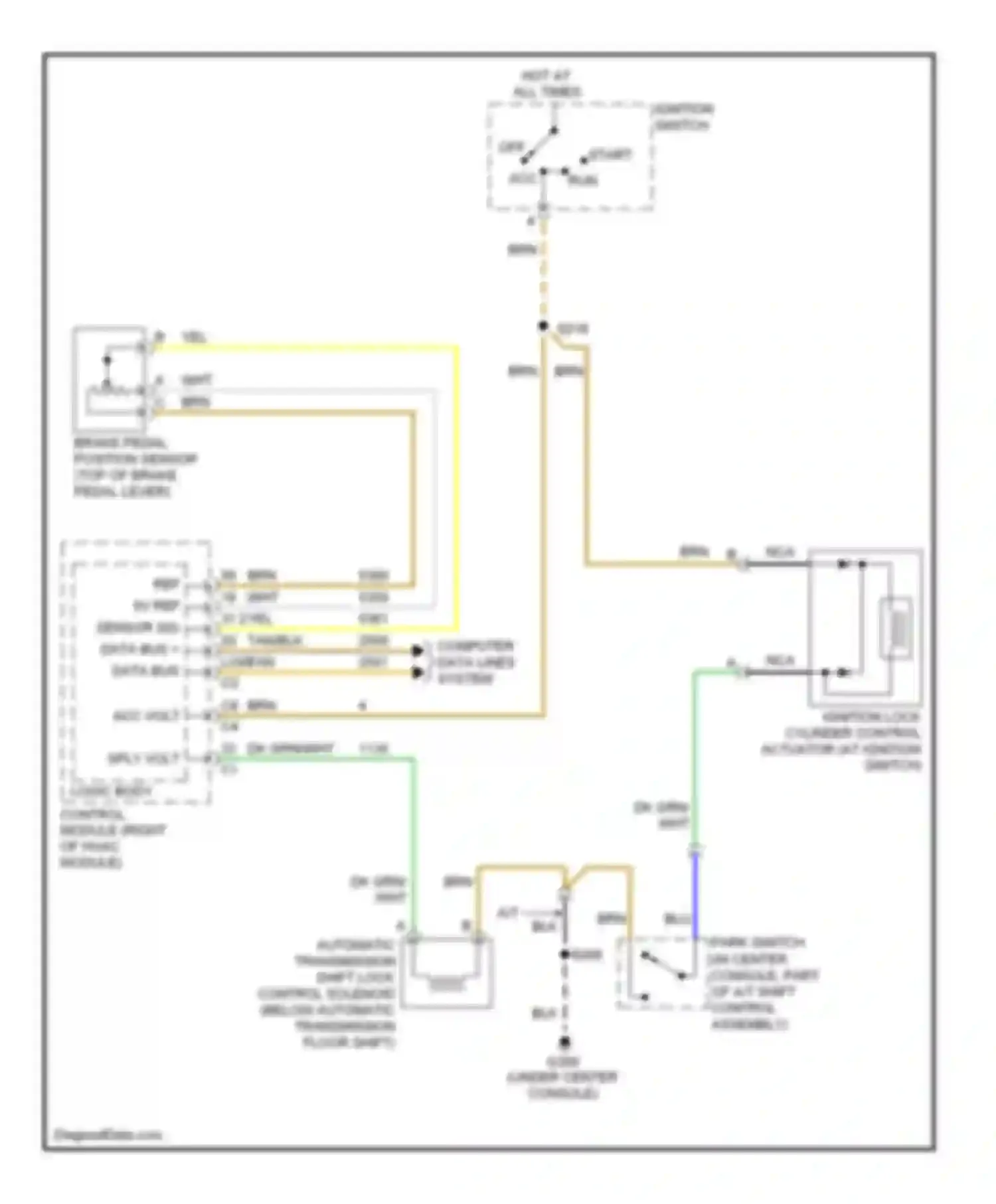

Wiring diagram sensor sig data bus + data bus - (1 of 1)
59 18 31 2 20 LOW REF
A/T
ACC VOLT
BLK WIRE
BLU WIRE
BRAKE PEDAL POSITION SENSOR (TOP OF BRAKE PEDAL LEVER)
BRN WIRE
COMPUTER DATA LINES SYSTEM
DK GRN WIRE
DK GRN/WHT WIRE
HOT AT ALL TIMES
IGNITION LOCK CYLINDER CONTROL ACTUATOR (AT IGNITION SWITCH)
IGNITION SWITCH
LOGIC BODY CONTROL MODULE (RIGHT OF HVAC MODULE)
NCA WIRE
OFF
PARK SWITCH (IN CENTER CONSOLE, PART OF A/T SHIFT CONTROL ASSEMBLY)
RUN WIRE
SENSOR SIG DATA BUS + DATA BUS -
SPLY VOLT
TAN WIRE
TAN/BLK WIRE
WHT WIRE
YEL WIRE
Go to component -> Shift interlock circuit -> SENSOR SIG DATA BUS + DATA BUS -
