Pontiac Firebird IV (1993-2002) mirror position switches Wiring diagram
This page shows the only wiring diagram for the component.mirror position switches, which is found in the car Pontiac Firebird IV (1993-2002). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

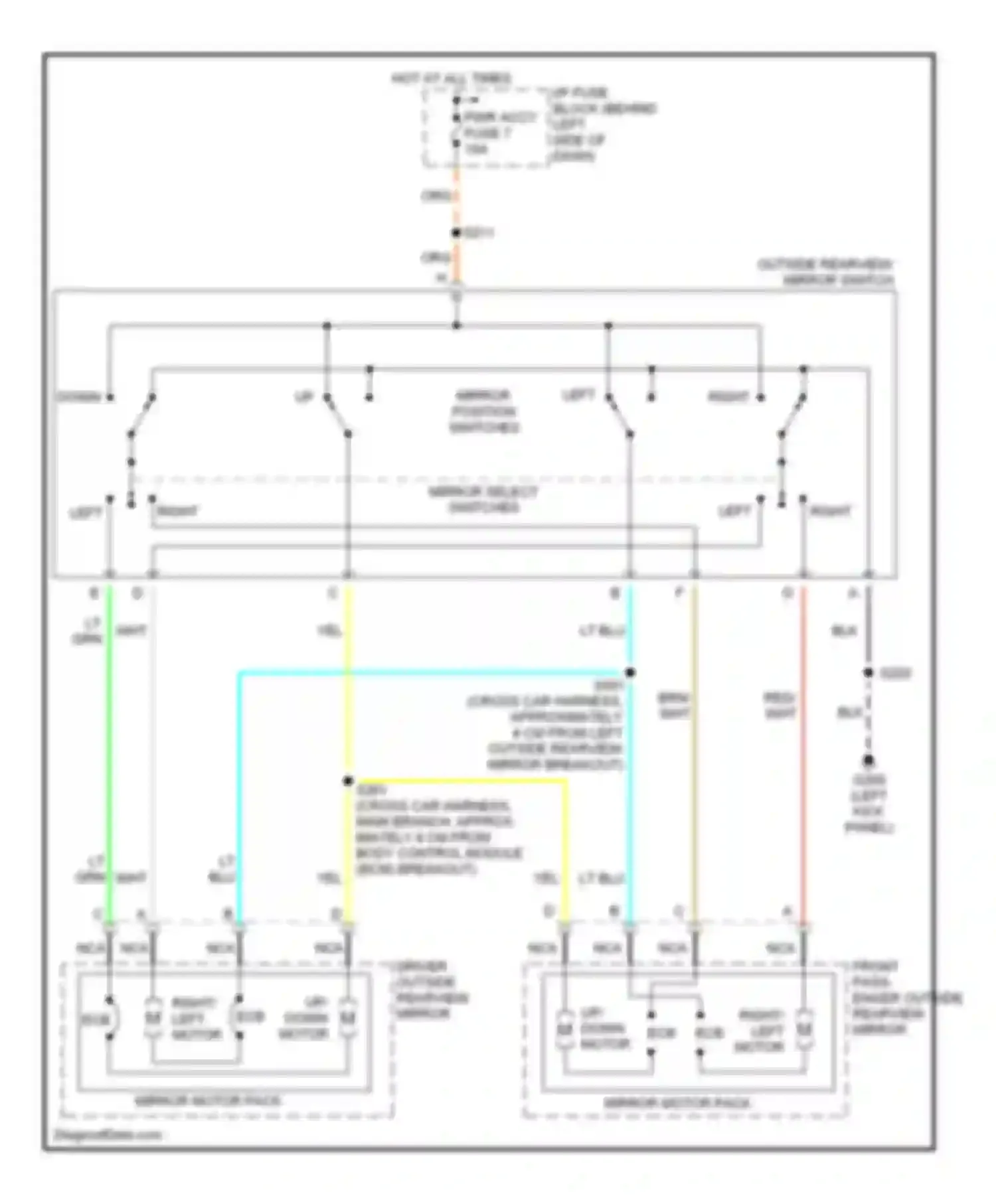

Wiring diagram mirror position switches (1 of 1)
BLK WIRE
BLU WIRE
BRN WIRE
DOWN
DRIVER OUTSIDE REARVIEW MIRROR
FRONT PASS- ENGER OUTSIDE REARVIEW MIRROR
GRN WIRE
HOT AT ALL TIMES
I/P FUSE BLOCK (BEHIND LEFT SIDE OF DASH)
LEFT
LEFT RIGHT
LT BLU WIRE
MIRROR MOTOR PACK
MIRROR POSITION SWITCHES
MIRROR SELECT SWITCHES
NCA WIRE
ORG/ WIRE
OUTSIDE REARVIEW MIRROR SWITCH
PWR ACCY FUSE 7
RED WIRE
RIGHT
RIGHT LEFT
RIGHT/ LEFT MOTOR ECB
RIGHT/ LEFT MOTOR ECB ECB
UP/ DOWN MOTOR
UP/ DOWN MOTOR ECB
WHT WIRE
YEL WIRE
Go to component -> Power mirror circuit -> MIRROR POSITION SWITCHES
