Pontiac Aztek I (2001-2005) eng controls fuse 4 abs fuse 6 Wiring diagram
This page shows the only wiring diagram for the component.eng controls fuse 4 abs fuse 6, which is found in the car Pontiac Aztek I (2001-2005). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

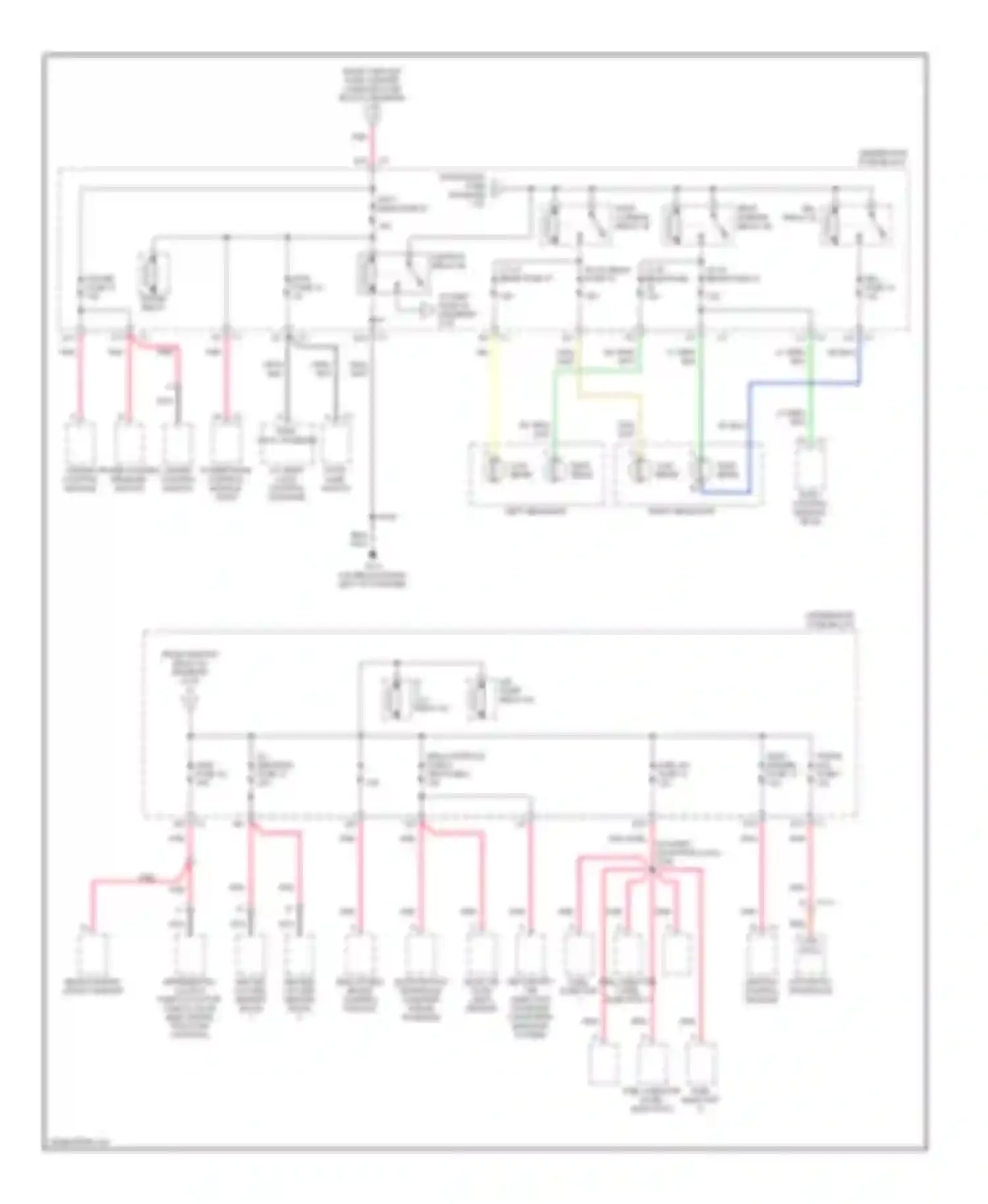

Wiring diagram eng controls fuse 4 abs fuse 6 (1 of 1)
A/C CLU RELAY 52
A/T SHIFT LOCK CONTROL SOLENOID
AIR PUMP RELAY 63
AUTOMATIC TRANSAXLE
AWD FUSE 30
BLK WIRE
BODY CONTROL MODULE (BCM)
BTSI FUSE 33
CRANK RELAY
CRUISE CONTROL MODULE
CRUISE CONTROL SWITCH CRUISE CONTROL RELEASE SWITCH
CRUISE FUSE 31
CTRL SOLS
DIFFERENTIAL CLUTCH PUMP ACTUATOR CHECK VALVE (ELECTRONIC TRACTION CONTROL)
DK BLU WIRE
DK GRN WIRE
DRL FUSE 14
DRL RELAY 53
ELEC ENGINE FUSE 13
ENG CONTROLS FUSE 4 ABS FUSE 6
FROM HORN FUSE (DIAGRAM 1 OF 4)
FROM IGNITION RELAY 60 DIAGRAM (2 OF 4)
FROM TURN SIG FUSE (CENTER CONSOLE FUSE BLOCK) (DIAGRAM 3 OF 4)
FUEL INJ FUSE 11
FUEL INJECTOR 1 FUEL INJECTOR 3 FUEL INJECTOR 5
FUEL INJECTOR 6 FUEL INJECTOR 4 FUEL INJECTOR 2
HDLP HI BEAM RELAY 58
HDLP LO BEAM RELAY 54
HEATED OXYGEN SENSOR
HIGH BEAM
IGN 1 MAIN FUSE 27
IGNITION CONTROL MODULE
IGNITION RELAY 60
LEFT HEADLIGHT
LOW BEAM
LOW BEAM HIGH BEAM
LT GRN WIRE
LT HI BEAM FUSE 18 RT LO BEAM FUSE 15
LT LO BEAM FUSE 17
NCA WIRE
ORG/ WIRE
PARK LOCK SOLENOID
PNK (FUEL INJ HARN, WIRE
PNK PNK PNK WIRE
PNK PNK WIRE
PNK WIRE
POWERTRAIN CONTROL MODULE (PCM)
REAR PARKING ASSIST MODULE
RED WIRE
RIGHT HEADLIGHT
RT HI BEAM FUSE 23
SENSORS FUSE 10
STOP LAMP SWITCH
TAN WIRE
TO AWD FUSE 30 (DIAGRAM 2 OF 4)
TRANS SOL FUSE 7
UNDERHOOD FUSE BLOCK
WHT WIRE
YEL WIRE
Go to component -> Power distribution circuit (2 of 4) -> ENG CONTROLS FUSE 4 ABS FUSE 6
