Door lock circuit for Oldsmobile Silhouette I (1989-1996)

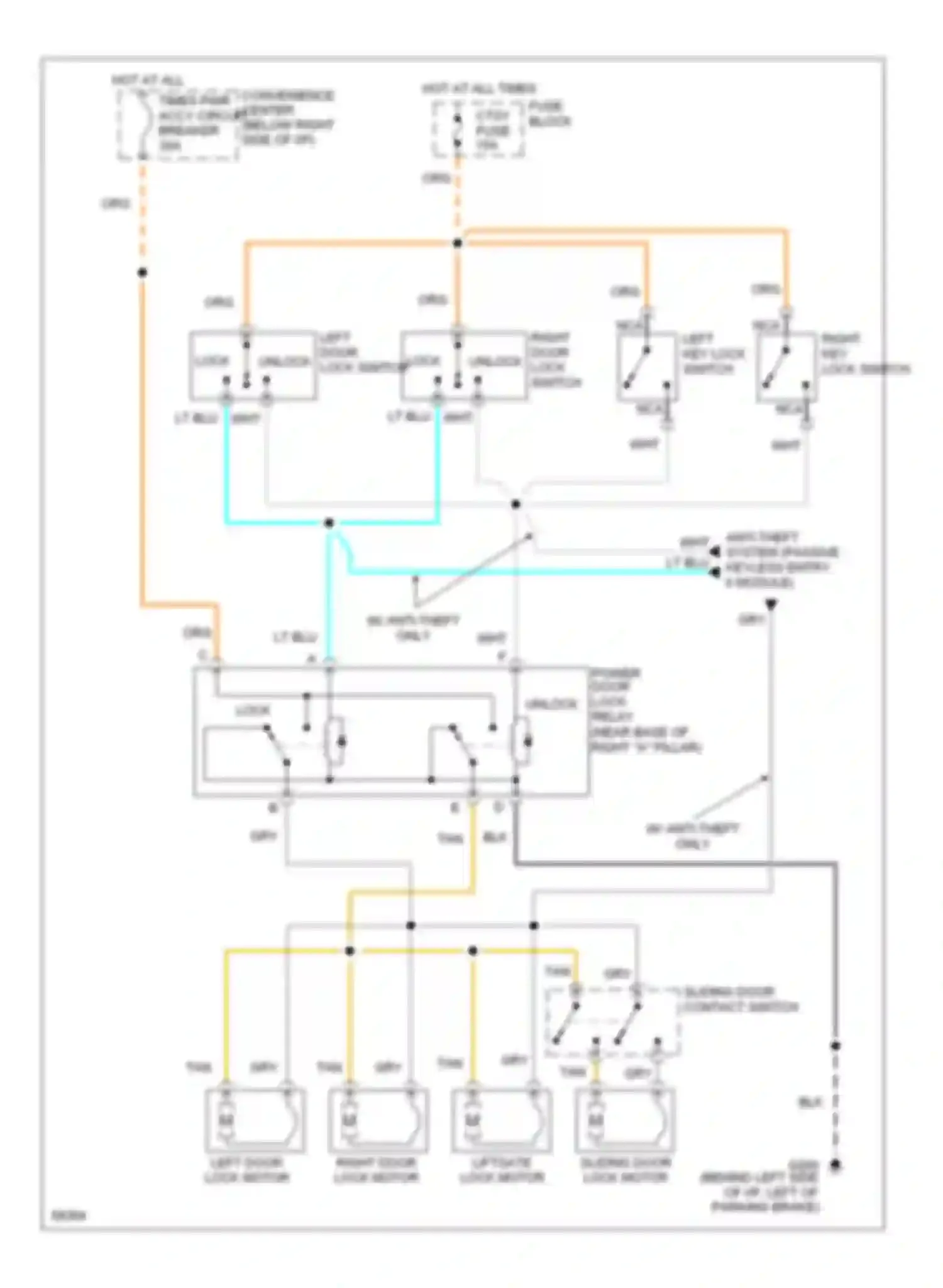

Door lock circuit
ANTI-THEFT SYSTEM (PASSIVE KEYLESS ENTRY II MODULE)
BLK WIRE
CONVENIENCE CENTER
CTSY FUSE
FUSE BLOCK
GRY WIRE
HOT AT ALL TIMES
HOT AT ALL TIMES PWR ACCY CIRCUIT BREAKER
LEFT DOOR LOCK MOTOR
LEFT DOOR LOCK SWITCH
LEFT KEY LOCK SWITCH
LOCK
LT BLU WIRE
NCA WIRE
ORG/ WIRE
POWER DOOR LOCK RELAY
RIGHT DOOR LOCK SWITCH LOCK UNLOCK
RIGHT KEY LOCK SWITCH
SLIDING DOOR CONTACT SWITCH
SLIDING DOOR LOCK MOTOR RIGHT DOOR LOCK MOTOR LIFTGATE LOCK MOTOR
TAN WIRE
UNLOCK
W/ ANTI-THEFT ONLY
WHT WIRE
