Headlight circuit, without lamp monitor & without twilight sentinel for Oldsmobile Ninety-Eight XI (1991-1996)

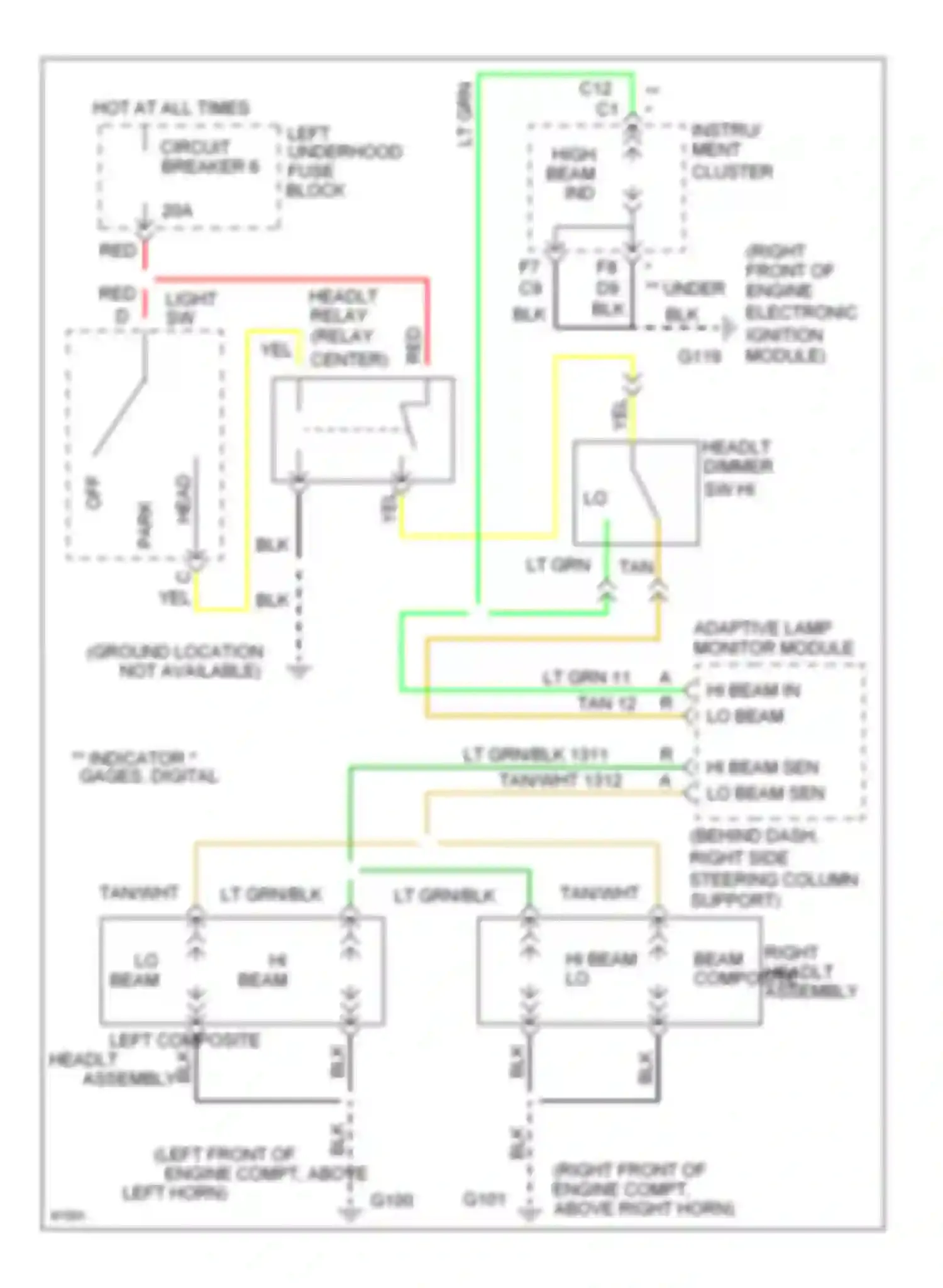

Headlight circuit, without lamp monitor & without twilight sentinel
** INDICATOR * GAGES, DIGITAL
** UNDER ELECTRONIC IGNITION MODULE)
ADAPTIVE LAMP MONITOR MODULE)
BLK WIRE
CIRCUIT BREAKER 6
HEAD
HEADLT DIMMER SW HI LO
HEADLT RELAY (RELAY CENTER)
HI BEAM IN LO BEAM IN
HI BEAM SEN LO BEAM SEN
HIGH BEAM
HOT AT ALL TIMES
IND
INSTRU- MENT CLUSTER
LEFT COMPOSITE HEADLT ASSEMBLY
LEFT UNDERHOOD FUSE BLOCK
LIGHT SW
LO BEAM BEAM
LT GRN 11 WIRE
LT GRN WIRE
LT GRN/BLK 1311 WIRE
LT GRN/BLK WIRE
OFF
PARK
RED WIRE
RIGHT HI BEAM LO BEAM COMPOSITE HEADLT ASSEMBLY
STEERING COLUMN SUPPORT)
TAN 12 WIRE
TAN WIRE
TAN/WHT 1312 WIRE
TAN/WHT WIRE
YEL WIRE
