Oldsmobile Eighty-Eight X (1992-1999) right seat Wiring diagram
This page shows the only wiring diagram for the component.right seat, which is found in the car Oldsmobile Eighty-Eight X (1992-1999). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

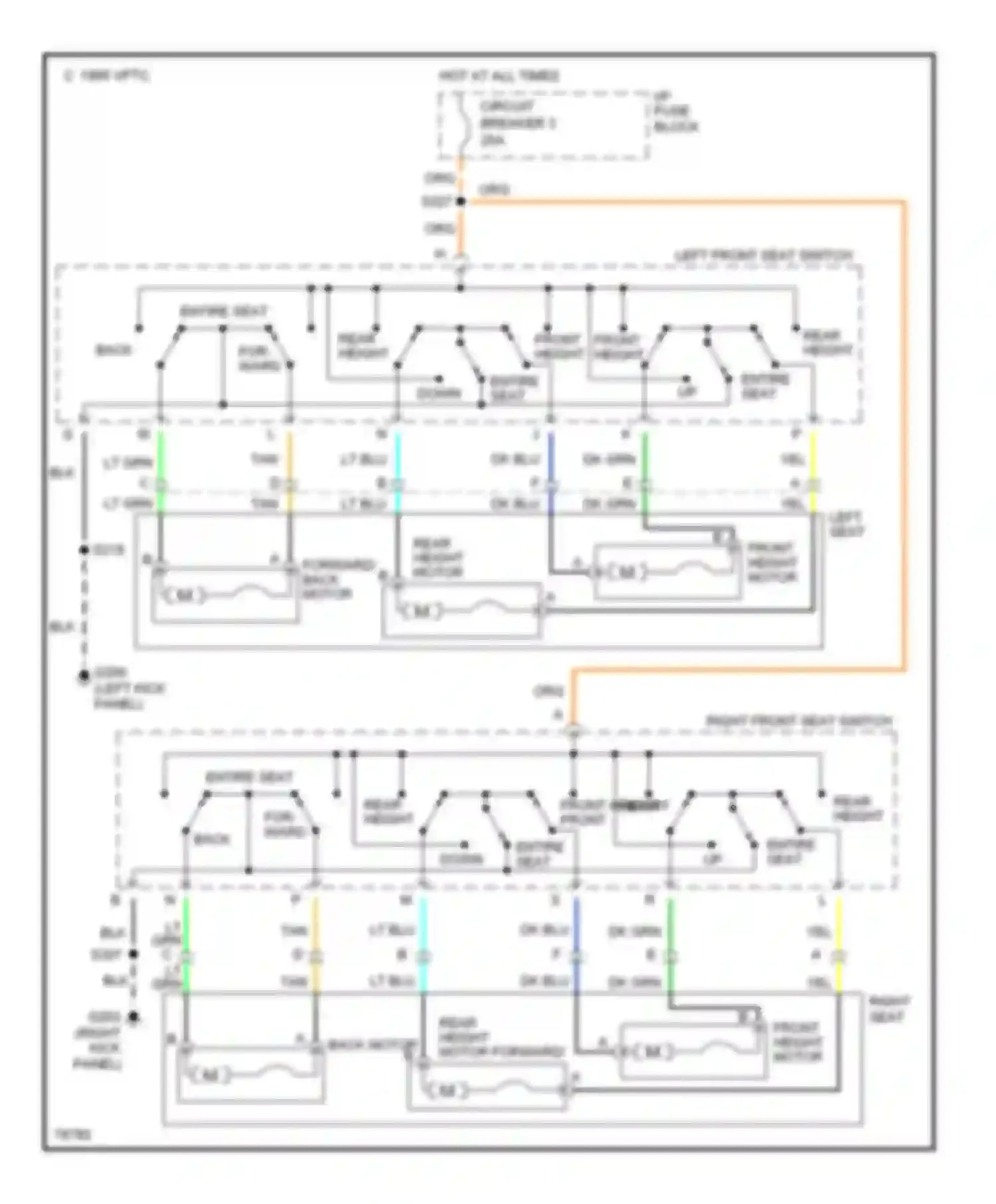

Wiring diagram right seat (1 of 1)
1995 VFTC
BACK
BLK WIRE
CIRCUIT BREAKER 3
DK BLU WIRE
DK GRN WIRE
ENTIRE SEAT
ENTIRE SEAT DOWN
FOR- WARD
FOR- WARD BACK
FORWARD/ BACK MOTOR
FRONT HEIGHT FRONT HEIGHT
FRONT HEIGHT MOTOR
GRN WIRE
HOT AT ALL TIMES
I/P FUSE BLOCK
LEFT FRONT SEAT SWITCH
LEFT SEAT
LT BLU WIRE
LT GRN WIRE
ORG/ WIRE
REAR HEIGHT
REAR HEIGHT FRONT HEIGHT FRONT HEIGHT
REAR HEIGHT MOTOR
REAR HEIGHT MOTOR FORWARD/ BACK MOTOR
RIGHT FRONT SEAT SWITCH
RIGHT SEAT
TAN WIRE
YEL WIRE
Go to component -> 6-way power seat circuit -> RIGHT SEAT
