Oldsmobile Aurora II (1999-2003) battery motor down motor up ground wiring diagram
This page shows the only wiring diagram for the component.battery motor down motor up ground, which is found in the car Oldsmobile Aurora II (1999-2003). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

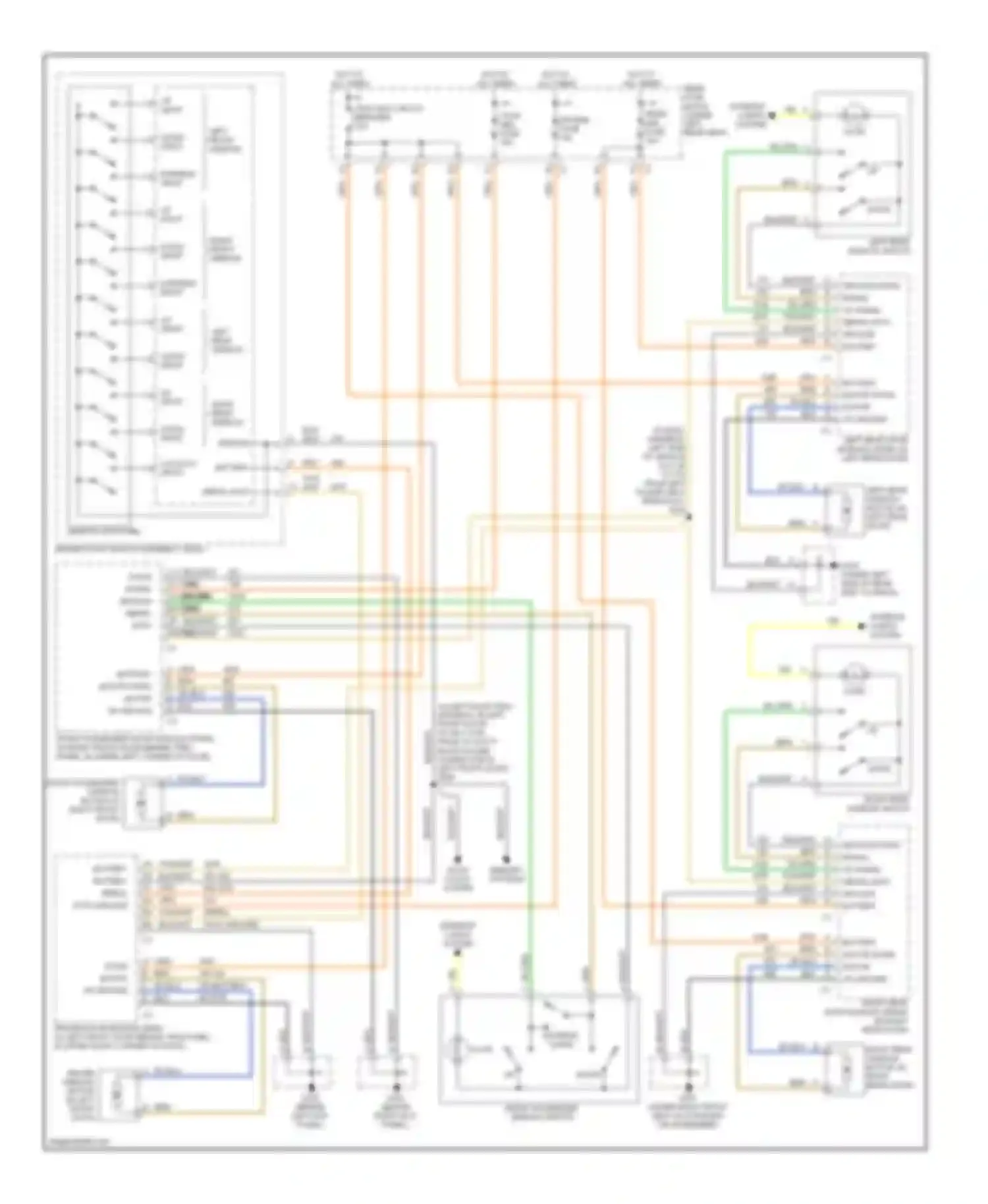

battery motor down motor up ground wiring diagram (1 of 1)
1040 165 164 350 BATTERY MOTOR DOWN MOTOR UP GROUND
2076 351 640 640 2076 351 SERIAL DATA GROUND BATTERY BATTERY SERIAL DATA GROUND
4 11 12 13 14 15 GROUND BATTERY UP SIGNAL DOWN SIGNAL GROUND SERIAL DATA
BATTERY
BATTERY MOTOR DOWN MOTOR UP GROUND
BLK WIRE
BLK/WHT WIRE
BRN WIRE
DK BLU WIRE
DK GRN WIRE
DOOR LOCKS SYSTEM
DOWN
DOWN INPUT
DRIVER DOOR SWITCH ASSEMBLY (DDSA)
DRIVER WINDOW MOTOR (IN LEFT FRONT DOOR)
DRVMDL FUSE
EXPRESS DOWN
EXPRESS INPUT
FRONT PASSENGER WINDOW MOTOR (IN RIGHT FRONT DOOR)
FRONT PASSENGER WINDOW SWITCH
GROUND
GROUND DOWN SIGNAL UP SIGNAL SERIAL DATA GROUND BATTERY
HOT AT ALL TIMES
ILLUM
LEFT FRONT WINDOW
LEFT REAR DOOR MODULE (LRDM) (IN LEFT REAR DOOR)
LEFT REAR WINDOW
LEFT REAR WINDOW MOTOR (IN LEFT REAR DOOR)
LEFT REAR WINDOW SWITCH
LOCKOUT INPUT
MEMORY SYSTEMS
ORG/ WIRE
PASS MDL FUSE
PWR WDO CIRCUIT BREAKER
REAR FUSE BLOCK (UNDER LEFT REAR SEAT)
RIGHT FRONT WINDOW
RIGHT REAR DOOR MODULE (RRDM) (IN RIGHT REAR DOOR)
RIGHT REAR WINDOW
RIGHT REAR WINDOW MOTOR (IN RIGHT REAR DOOR)
RIGHT REAR WINDOW SWITCH
RRDR MDL FUSE
SERIAL DATA
TAN WIRE
TAN/WHT WIRE
UP INPUT
WHT WIRE
WINDOW SWITCHES
YEL WIRE
Go to component -> Power window circuit -> BATTERY MOTOR DOWN MOTOR UP GROUND
