Cooling fan circuit for Oldsmobile Aurora I (1994-1999)

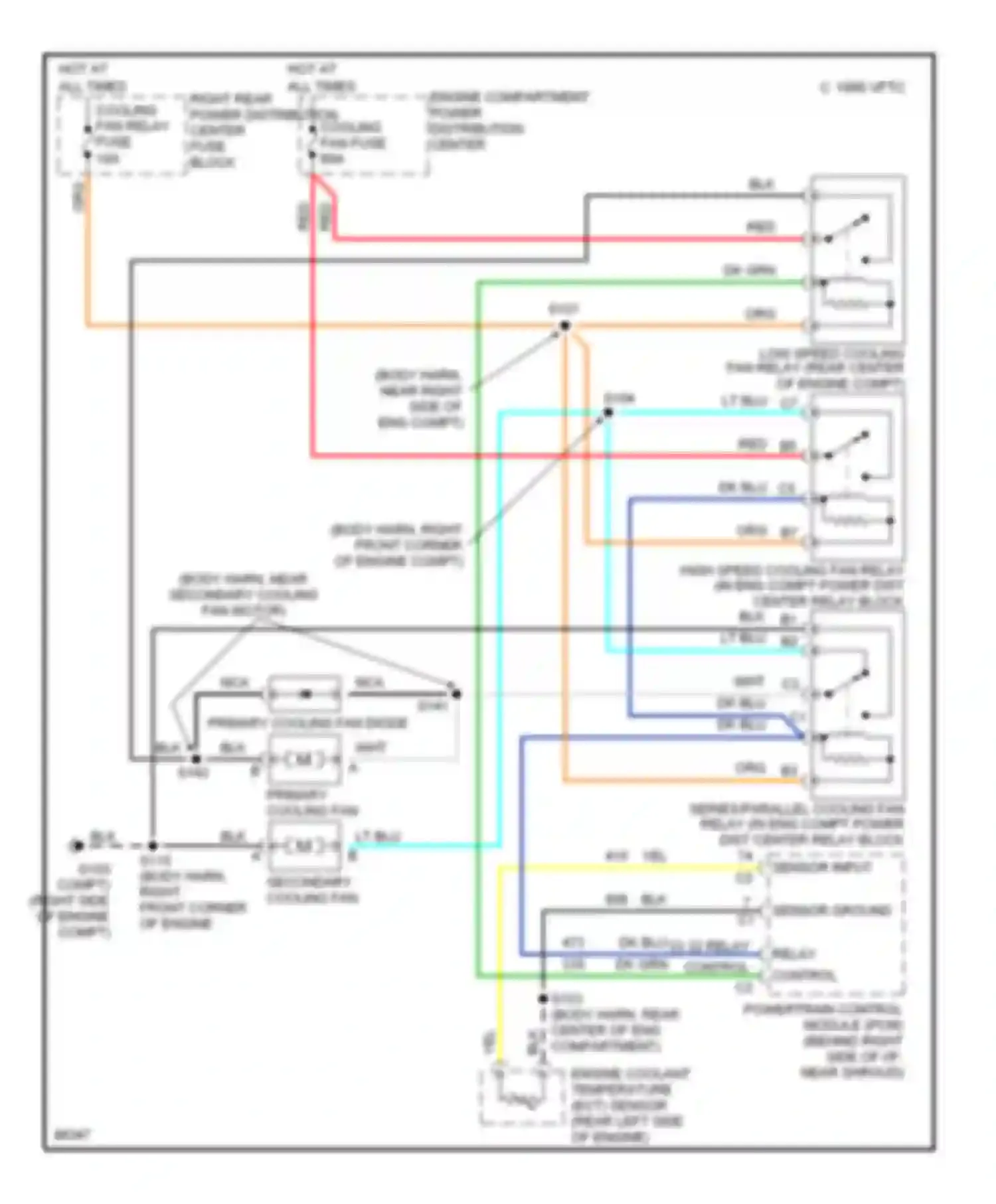

Cooling fan circuit
1995 VFTC
33 32 RELAY CONTROL RELAY CONTROL
BLK WIRE
COOLING FAN FUSE
COOLING FAN RELAY FUSE
DK BLU WIRE
DK GRN WIRE
ENGINE COMPARTMENT POWER DISTRIBUTION CENTER
ENGINE COOLANT TEMPERATURE (ECT) SENSOR (REAR LEFT SIDE OF ENGINE)
HIGH SPEED COOLING FAN RELAY (IN ENG COMPT POWER DIST CENTER RELAY BLOCK 1)
HOT AT ALL TIMES
LOW SPEED COOLING FAN RELAY (REAR CENTER OF ENGINE COMPT)
LT BLU WIRE
NCA WIRE
ORG/ WIRE
POWERTRAIN CONTROL MODULE (PCM) (BEHIND RIGHT SIDE OF I/P, NEAR SHROUD)
PRIMARY COOLING FAN
PRIMARY COOLING FAN DIODE
RED WIRE
RIGHT REAR POWER DISTRIBUTION CENTER FUSE BLOCK 1
SECONDARY COOLING FAN
SENSOR GROUND
SENSOR INPUT
SERIES/PARALLEL COOLING FAN RELAY (IN ENG COMPT POWER DIST CENTER RELAY BLOCK 1)
WHT WIRE
YEL WIRE
