Oldsmobile Alero I (1999-2004) trunk rel/ radio amp fuse b Wiring diagram
This page shows the only wiring diagram for the component.trunk rel/ radio amp fuse b, which is found in the car Oldsmobile Alero I (1999-2004). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

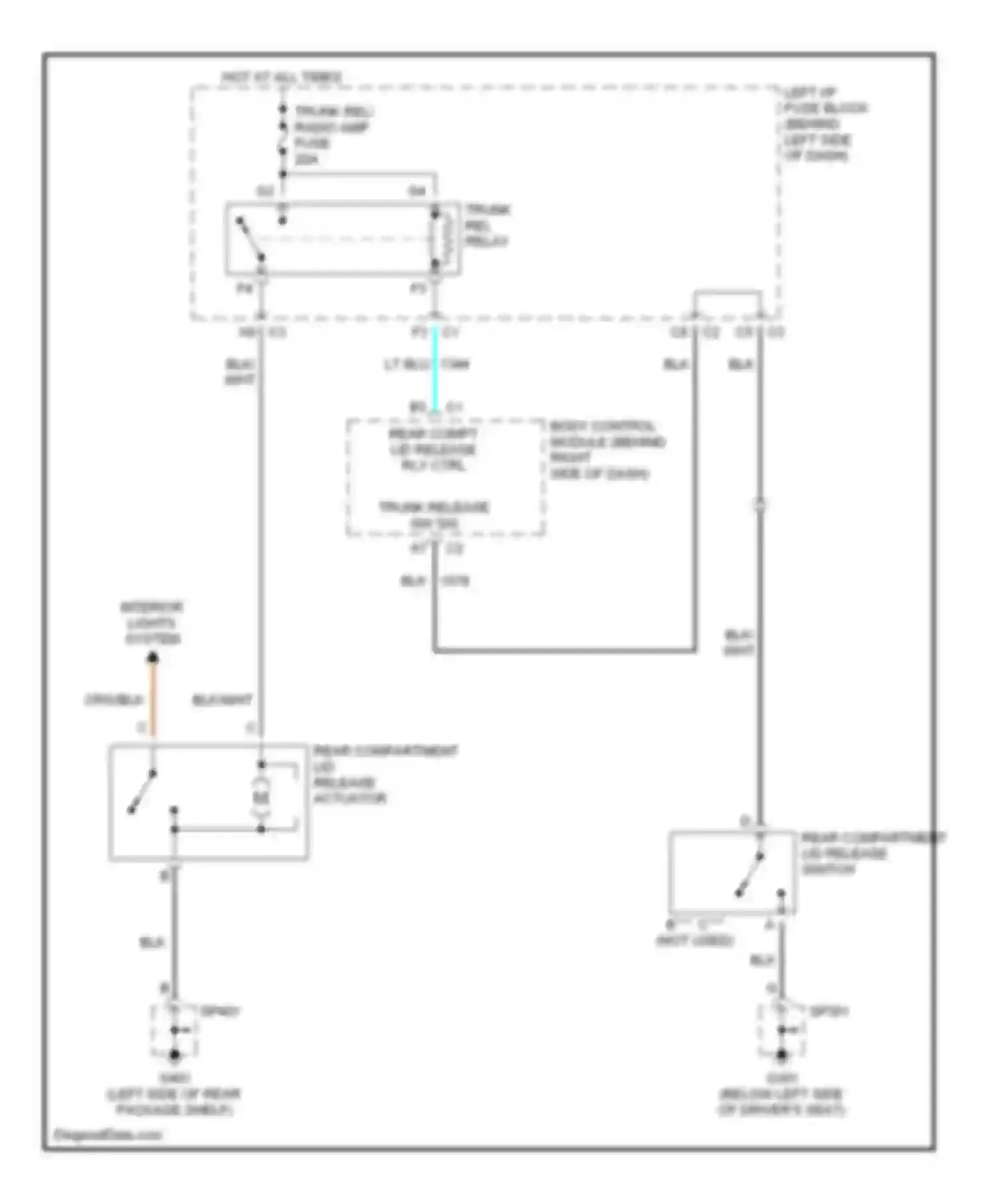

Wiring diagram trunk rel/ radio amp fuse b (1 of 1)
BLK WIRE
BLK/WHT WIRE
BODY CONTROL MODULE (BEHIND RIGHT SIDE OF DASH)
HOT AT ALL TIMES
LEFT I/P FUSE BLOCK (BEHIND LEFT SIDE OF DASH)
LT BLU WIRE
ORG/BLK WIRE
REAR COMPARTMENT LID RELEASE ACTUATOR
REAR COMPARTMENT LID RELEASE SWITCH
REAR COMPT LID RELEASE RLY CTRL
TRUNK REL RELAY
TRUNK REL/ RADIO AMP FUSE B
TRUNK RELEASE SW SIG
WHT WIRE
Go to component -> Trunk release circuit -> TRUNK REL/ RADIO AMP FUSE B
