Oldsmobile Alero I (1999-2004) cool fan mode relay Wiring diagrams
This page contains all the electrical diagrams for the component. cool fan mode relay, in which he is found in the car Oldsmobile Alero I (1999-2004). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

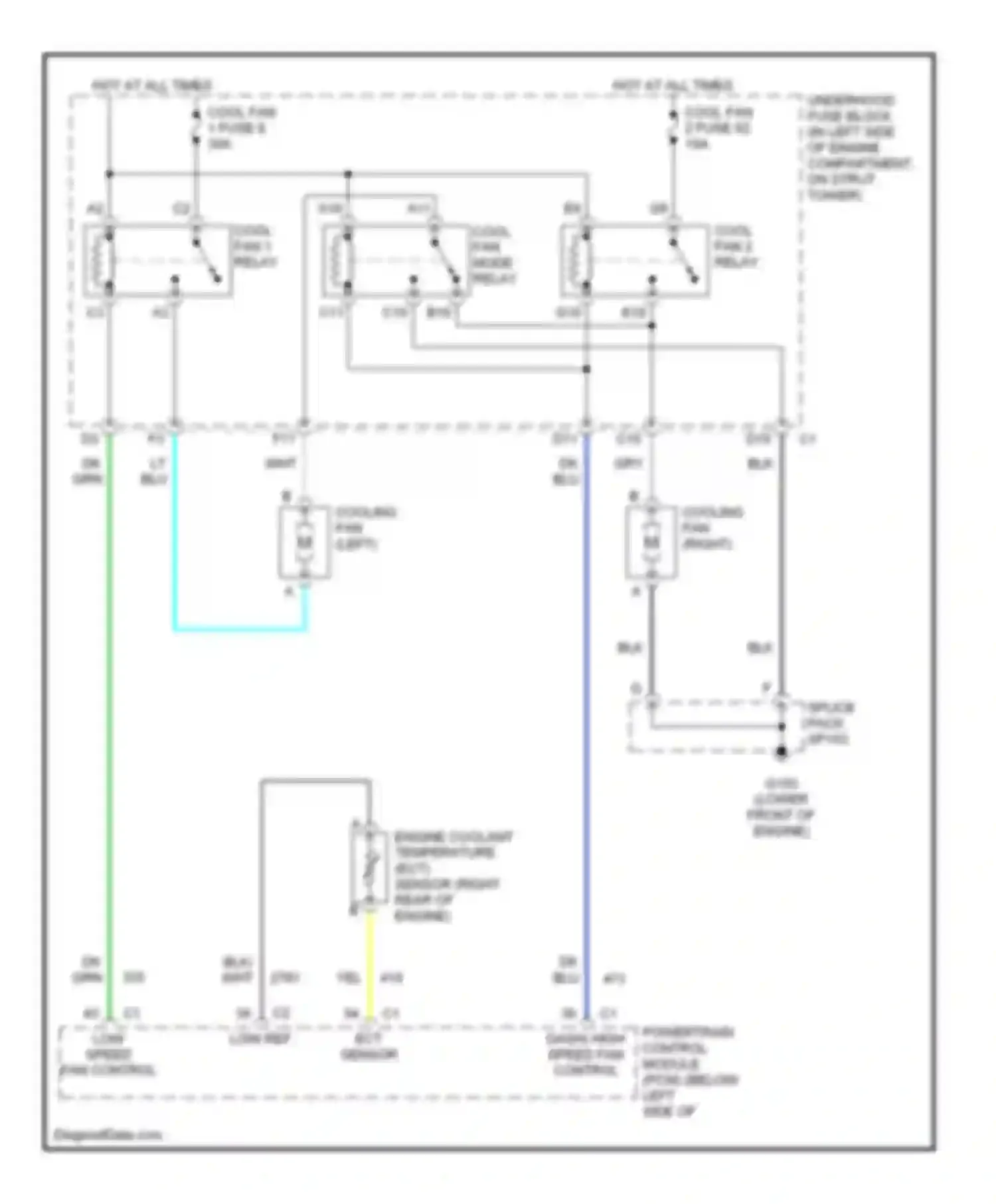

Wiring diagram cool fan mode relay (1 of 2)
BLK WIRE
BLU WIRE
COOL FAN 1 FUSE 8
COOL FAN 1 RELAY
COOL FAN 2 FUSE 52
COOL FAN 2 RELAY
COOL FAN MODE RELAY
COOLING FAN (LEFT)
COOLING FAN (RIGHT)
ECT SENSOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR (RIGHT REAR OF ENGINE)
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
LOW SPEED FAN CONTROL LOW REF
LT DK
POWERTRAIN CONTROL MODULE (PCM) (BELOW LEFT SIDE OF DASH) HIGH SPEED FAN CONTROL
SPLICE PACK
UNDERHOOD FUSE BLOCK (IN LEFT SIDE OF ENGINE COMPARTMENT, ON STRUT TOWER)
WHT WIRE
YEL WIRE
Go to component -> 2.2l vin f, cooling fan circuit -> COOL FAN MODE RELAY

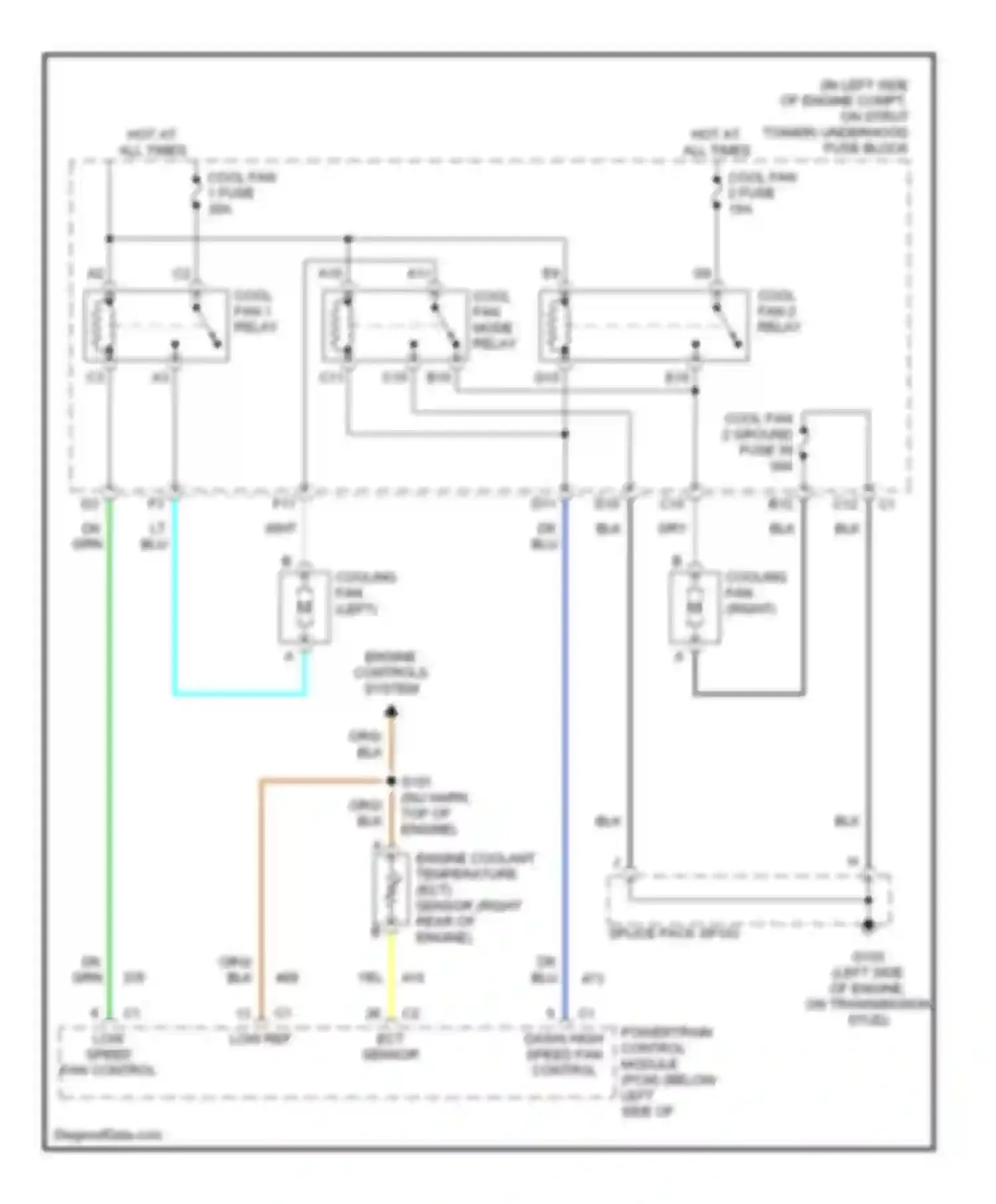

Wiring diagram cool fan mode relay (2 of 2)
BLK WIRE
BLU WIRE
COOL FAN 1 FUSE
COOL FAN 1 RELAY
COOL FAN 2 FUSE
COOL FAN 2 GROUND FUSE 55
COOL FAN 2 RELAY
COOL FAN MODE RELAY
COOLING FAN (LEFT)
COOLING FAN (RIGHT)
ECT SENSOR
ENGINE CONTROLS SYSTEM
ENGINE COOLANT TEMPERATURE (ECT) SENSOR (RIGHT REAR OF ENGINE)
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
LOW SPEED FAN CONTROL LOW REF
LT DK
ORG/ WIRE
POWERTRAIN CONTROL MODULE (PCM) (BELOW LEFT SIDE OF DASH) HIGH SPEED FAN CONTROL
WHT WIRE
YEL WIRE
Go to component -> 3.4l vin e, cooling fan circuit -> COOL FAN MODE RELAY
