Wiring Diagrams for Nissan Versa III (2019-2022)

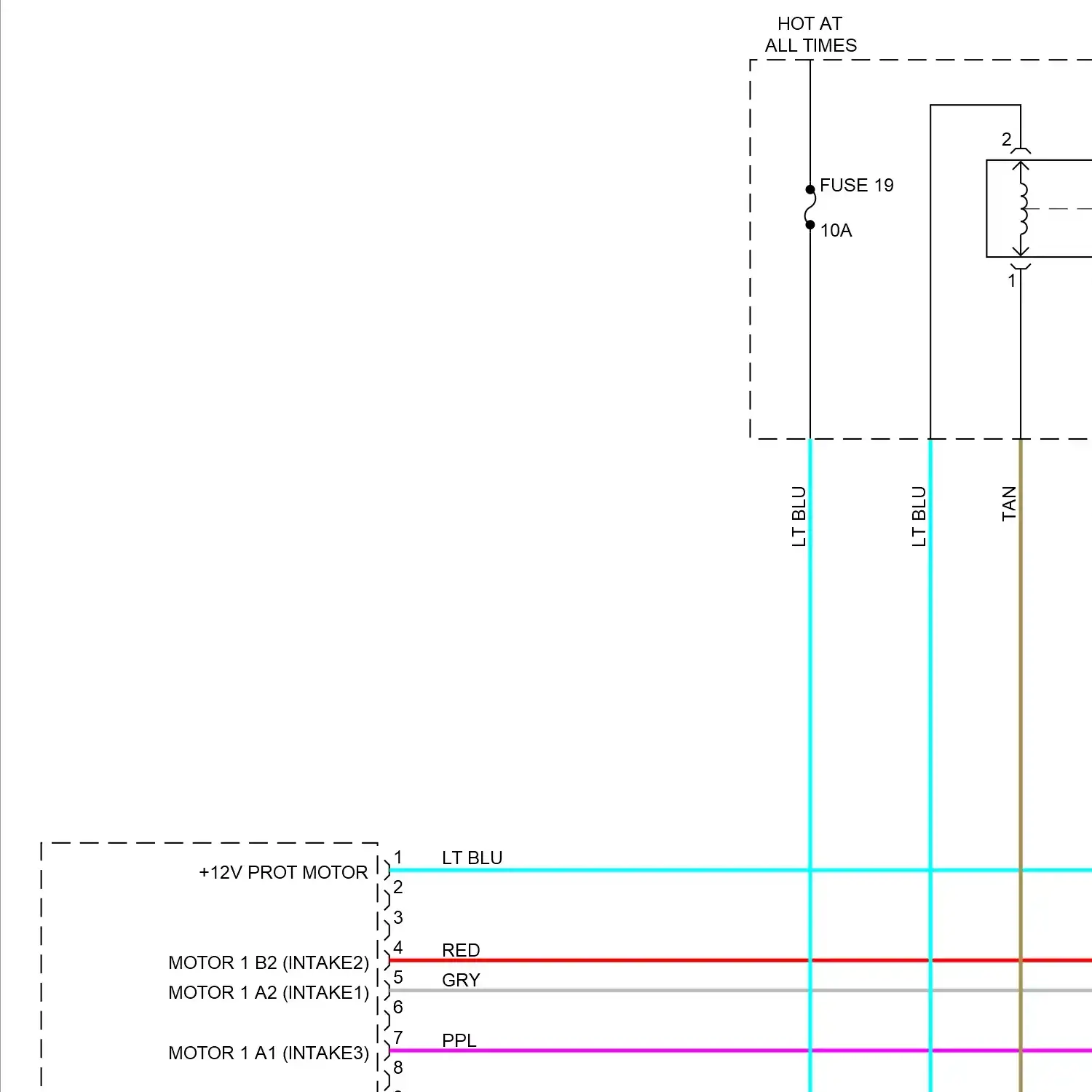

Automatic a/c circuit Manual a/c circuit

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit, w/ intelligent key unit Immobilizer circuit, w/o intelligent key unit

Body control modules circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Wiring diagram engine performance 1.6l

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit, w/ halogen headlamps Headlights circuit, w/ led headlamps

Horn circuit

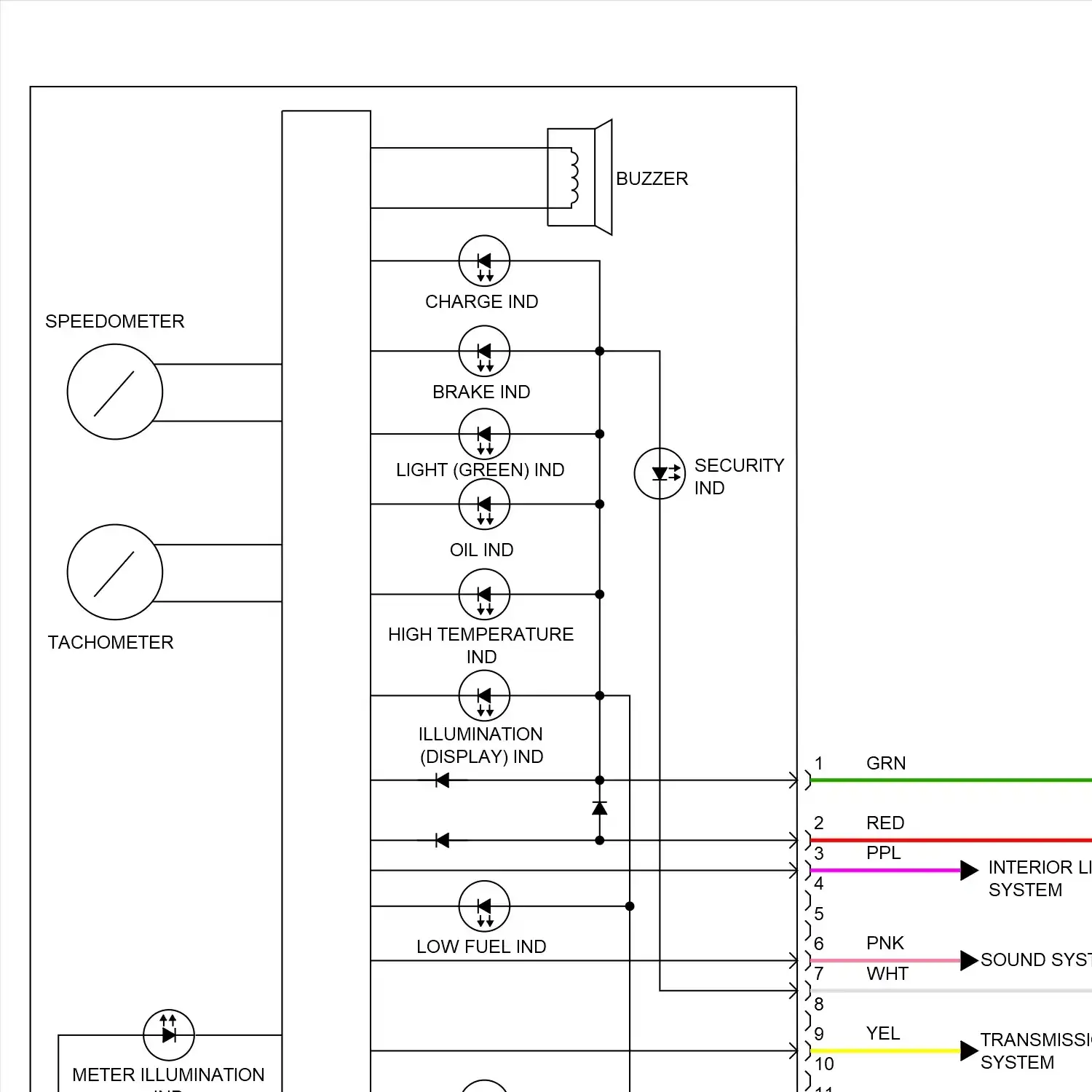

Instrument cluster circuit, early production Instrument cluster circuit, late production

Courtesy lamps circuit Instrument illumination circuit

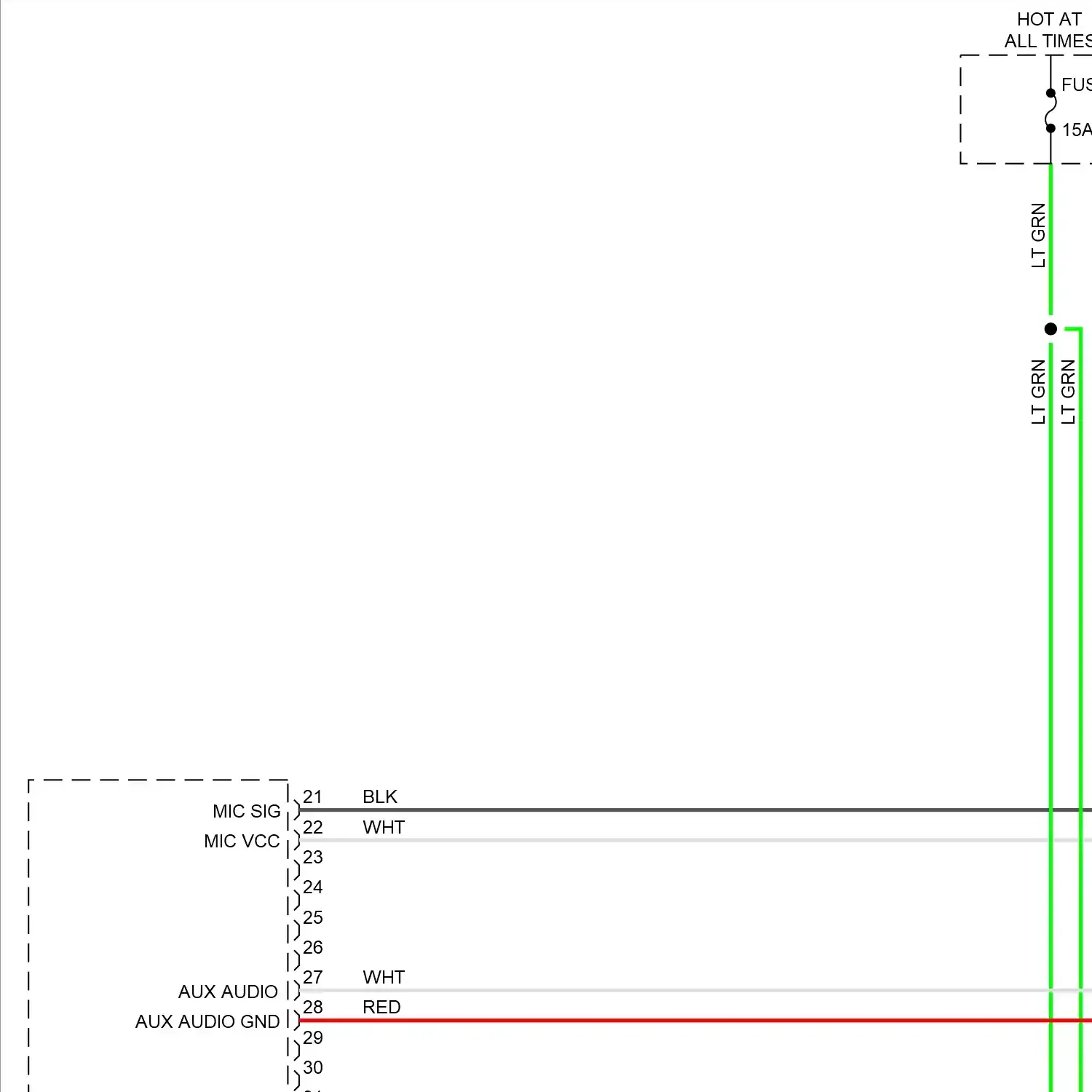

Driver assistance system circuit Navigation circuit Rear view camera circuit Sonar circuit

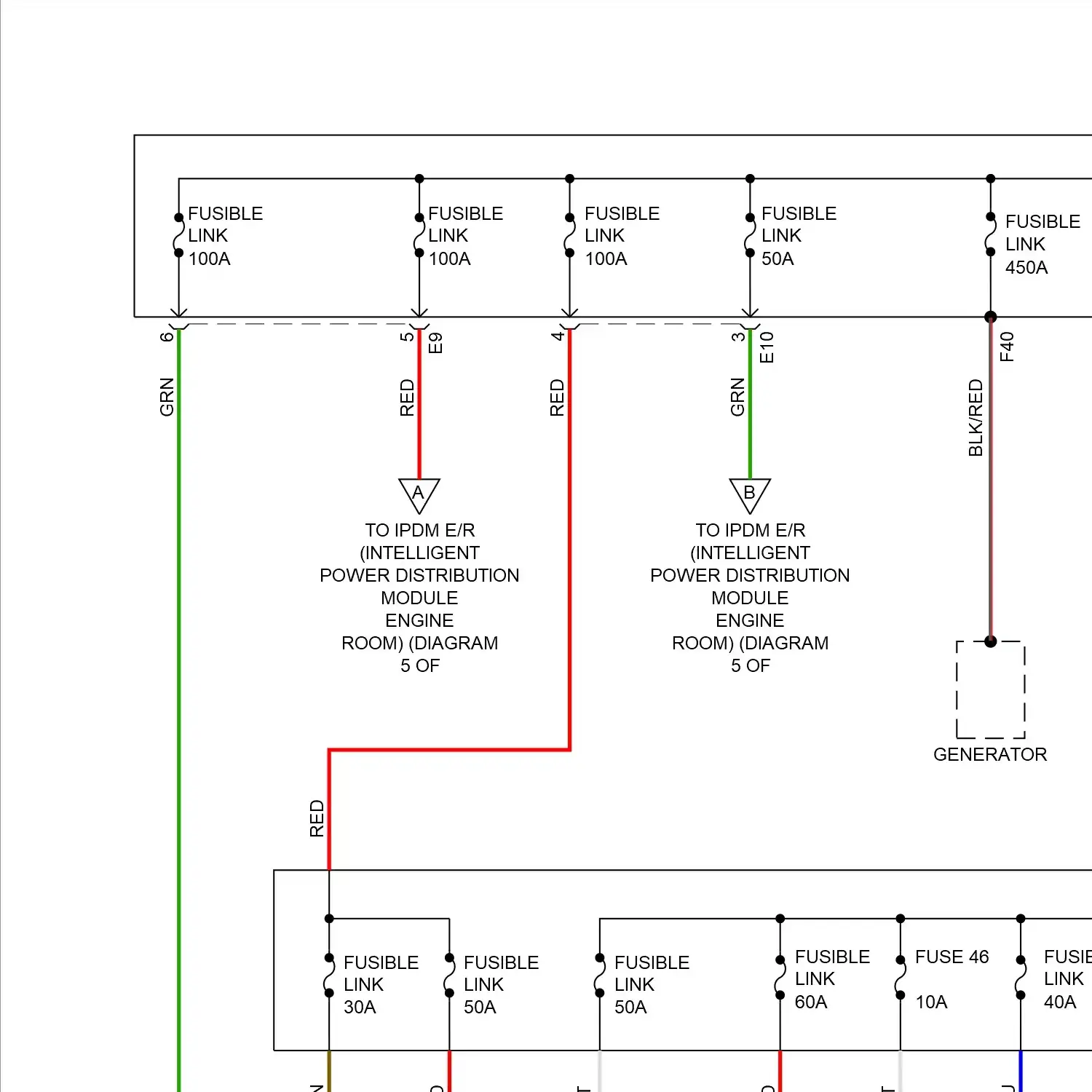

Power distribution circuit

Power door locks circuit

Power mirrors circuit

Power seats circuit

Power windows circuit

Base radio circuit Premium radio circuit

Shift interlock circuit

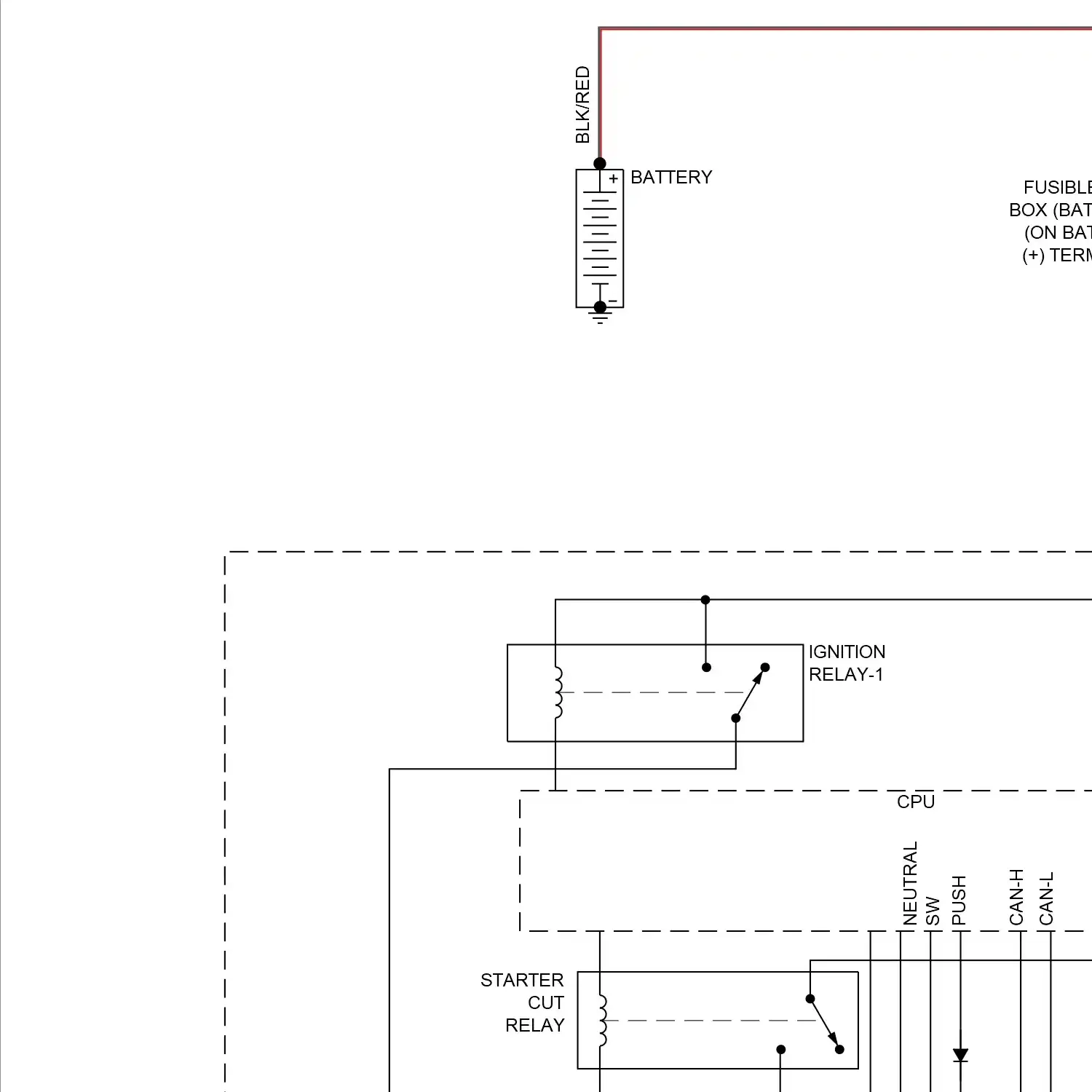

Charging circuit Starting circuit, w/ intelligent key Starting circuit, w/o intelligent key

Supplemental restraints circuit

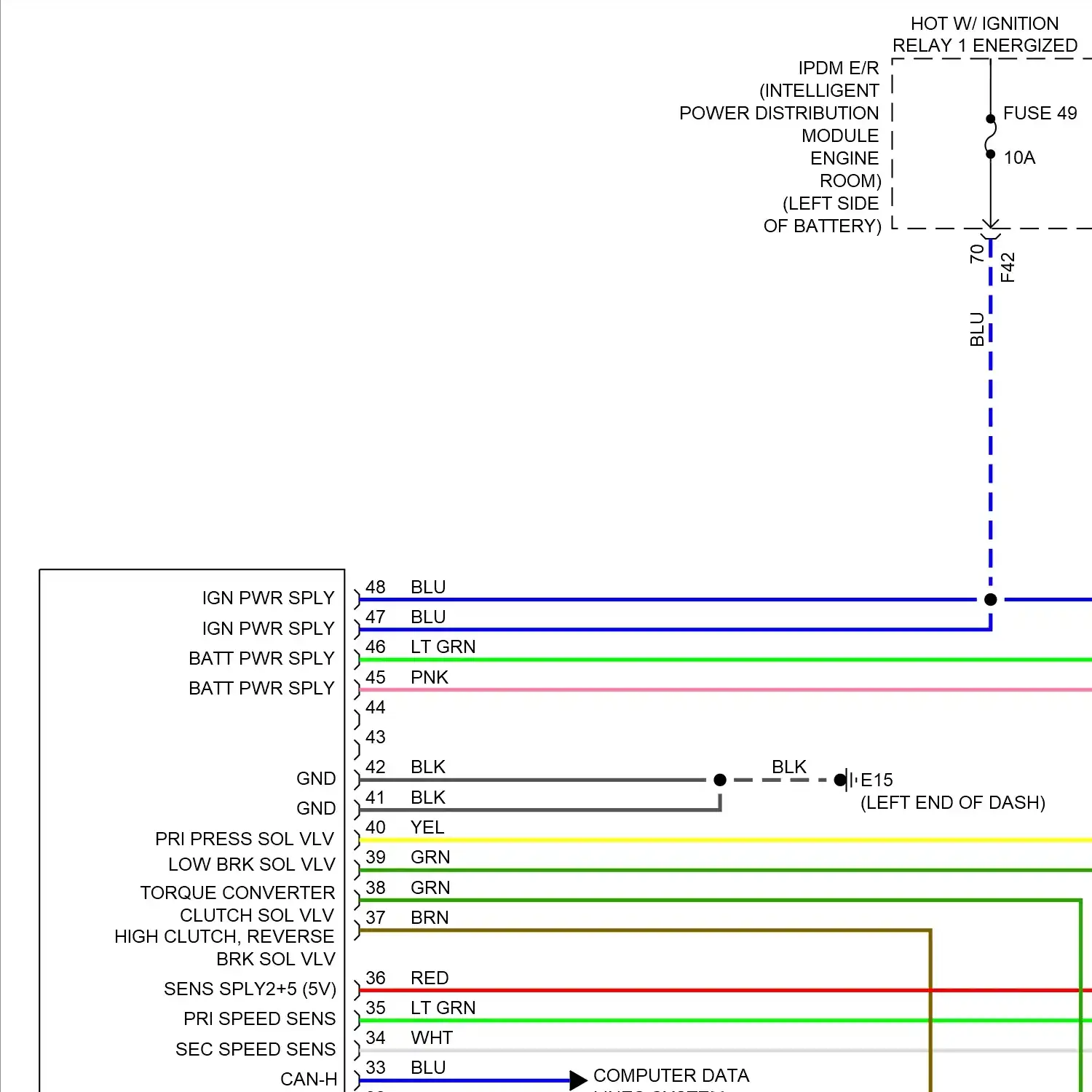

Transmission circuit

Trunk release circuit

Warning systems circuit

Wiper/washer circuit

A/C AUTO AMPLIFIER ANTI-LOCK BRAKES, EXTERIOR LIGHTS SYSTEMS CONN LOCK DETCT A CONN LOCK DETCT B DOOR LOCK SW DOOR LOCK SW TRUNK LUGGAGE LAMP HORN SW KEY CYLINDER LOCK SW LEFT FRONT DOOR LOCK ASSEMBLY LOCK DOORS LOCK SW PWR DOOR LOCK ROOM LAMP BATTERY SAVER RR LOCK DOORS RL STARTER RL STARTER RLY TRUNK LID LOCK ASSEMBLY UN LOCK SW

COOLING FAN MOTOR ELECTRIC INTAKE VALVE TIMING CONTROL ACTUATOR ELECTRIC INTAKE VALVE TIMING CONTROL MOTOR ELECTRIC THROTTLE CONTROL ACTUATOR ENGINE COOLANT TEMP SENS ENGINE OIL ENGINE OIL PRESS SENS ENGINE OIL PRESS SENS SENS GND FRONT BLOWER MOTOR FRONT BLOWER MOTOR RESISTOR FRONT WASHER MOTOR FRONT WIPER MOTOR INTAKE DOOR MOTOR INTAKE MANIFOLD RUNNER CONTROL VALVE MOTOR INTAKE MANIFOLD TUNING VALVE ACTUATOR LEFT FRONT POWER WINDOW MOTOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW MOTOR MODE DOOR MOTOR RIGHT FRONT DOOR LOCK ACTUATOR RIGHT FRONT POWER WINDOW MOTOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR POWER WINDOW MOTOR SENS GND ENGINE OIL PRESS SENS STARTER MOTOR STEERING VIB MOTOR SIG STEERING VIBRATION MOTOR THROTTLE CONTROL MOTOR TRUNK LID OPENER ACTUATOR W/ REMOTE ENGINE START WARNING BUZZER SIG GND STEERING VIB MOTOR SIG

ANTENNA AMP ANTENNA MAIN NATS ANTENNA AMP NATS ANTENNA AMPLIFIER SATELLITE ANTENNA

PUSH BUTTON IGNITION SWITCH

CAMERA COMP + CAMERA GND CAMERA GND SHIELD CAMERA SHIELD CAMERA ON CAMERA SHIELD CAMERA V + REAR VIEW CAMERA REAR VIEW CAMERA CIRCUIT

DATA LINK CONNECTOR FRONT CONSOLE POWER SOCKET

ELECTRIC INTAKE VALVE TIMING CONTROL MODULE ELECTRIC INTAKE VALVE TIMING CONTROL MODULE SHIELD LED HEADLAMP CONTROL MODULE

ABS/TCS/VDC CONTROL UNIT ADAS CONTROL UNIT AUDIO UNIT AV CONTROL UNIT CONTROL UNIT) EPS CONTROL UNIT FRONT CAMERA UNIT INTELLIGENT KEY UNIT OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT PWR ECU RELAY UNIT SONAR CONTROL UNIT UNIFIED METER CONTROL UNIT

FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 32 FUSE 35 FUSE 37 FUSE 38 FUSE 41 FUSE 42 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 49 FUSE 51 FUSE 52 FUSE 53 FUSE 55 FUSE 56 FUSE 58 FUSE 60 FUSE 61

FRONT LEFT SEAT HEATER HIGH FRONT LEFT SEAT HEATER LOW FRONT RIGHT SEAT HEATER HIGH FRONT RIGHT SEAT HEATER LOW HEATER HIGH HEATER LOW LEFT SEAT HEATER LF SEAT HEATER HIGH LF SEAT HEATER LOW RF SEAT HEATER HIGH RF SEAT HEATER LOW RIGHT SEAT HEATER

BLIND SPOT WARNING INDICATOR FRONT PASSENGER AIR BAG OFF INDICATOR OFF INDICATOR

COMBINATION LAMP DEFOGGER, EXTERIOR LIGHTS SYSTEMS FRONT ROOM/MAP LAMP ASSEMBLY GLOVE BOX LAMP) HEAD LAMP LH HI HEAD LAMP LH LO HEAD LAMP RH HI HEAD LAMP RH LO HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH MOUNTED STOP LAMP INTERIOR ROOM LAMP LAMP 1 LEFT FRONT COMBINATION LAMP LEFT FRONT FOG LAMP LEFT LICENSE PLATE LAMP LIGHTS) PWM ROOM LAMP 1 PWR ROOM LAMP RIGHT FRONT COMBINATION LAMP RIGHT FRONT FOG LAMP RIGHT LICENSE PLATE LAMP ROOM LAMP ROOM LAMP BATT SAVER START BACKLIGHT STARTING/CHARGING, INTERIOR LIGHTS SYSTEMS STOP LAMP 1 STOP LAMP 2 TELLTALE LAMP OFF TRUNK LUGGAGE LAMP TRUNK ROOM LAMP WIPER/WASHER, HEADLIGHTS, EXTERIOR LIGHTS, INTERIOR LIGHTS SYSTEMS

FUEL PUMP FUEL PUMP RLY

ACCESSORY RELAY 1 ACCESSORY RELAY 2 ECM RELAY FRONT BLOWER MOTOR RELAY FRONT WIPER HIGH RELAY FRONT WIPER RELAY FUEL PUMP RELAY FUSE, FUSIBLE LINK, RELAY BOX HORN RELAY HOT W/ ACCESSORY RELAY-1 ENERGIZED HOT W/ ECM RELAY ENERGIZED HOT W/ IGNITION RELAY 1 ENERGIZED HOT W/ IGNITION RELAY-2 ENERGIZED IGNITION RELAY 1 IGNITION RELAY 2 LEFT HEATED SEAT HIGH RELAY LEFT HEATED SEAT LOW RELAY MOTOR RELAY POWER WINDOW RELAY REAR DOOR LOCK ACTUATOR RELAY REAR WINDOW DEFOGGER RELAY 1 REAR WINDOW DEFOGGER RELAY 2 RIGHT HEATED SEAT HIGH RELAY RIGHT HEATED SEAT LOW RELAY SOLENOID VALVE RELAY STARTER CUT RELAY STARTER RELAY THROTTLE CONTROL MOTOR RELAY

A/F SENSOR 1 HEATER ACCELERATOR PEDAL POSITION SENSOR AIR BAG DIAGNOSIS SENSOR UNIT ANA LIGHT SENSOR ANA LT SENSOR BATTERY CURRENT SENSOR BATTERY TEMPERATURE SENSOR CRASH ZONE SENSOR CVT FLUID TEMPERATURE SENSOR DISTANCE SENSOR DOOR UNLOCK SENSOR ELECTRIC INTAKE VALVE TIMING CONTROL POSITION SENSOR ENGINE COOLANT TEMP SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL PRESSURE SENSOR ENGINE OIL TEMPERATURE SENSOR EVAP CONTROL SYSTEM PRESSURE SENSOR FRONT INNER OCCUPANT CLASSIFICATION SYSTEM SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR UNIT, FUEL PUMP FUEL TANK TEMPERATURE SENSOR G SENSOR H/C PRESSURE SENSOR HEATED OXYGEN SENSOR 2 IN-VEHICLE SENSOR INTAKE AIR TEMPERATURE SENSOR INTAKE MANIFOLD RUNNER CONTROL VALVE POSITION SENSOR INTAKE SENSOR INTAKE SENSOR GND KNOCK SENSOR LEFT FRONT DOOR SATELLITE SENSOR LEFT FRONT WHEEL SENSOR LEFT INNER REAR SONAR SENSOR LEFT OUTER REAR SONAR SENSOR LEFT REAR SIDE AIR BAG SATELLITE SENSOR LEFT REAR SIDE AIR BAG SATELLITE SENSOR SHIELD LEFT REAR WHEEL SENSOR LEFT SIDE AIR BAG SATELLITE SENSOR LIGHT SENSOR GND LIGHT SENSOR POWER LOAD SENSOR FRONT INNER GND LOAD SENSOR FRONT INNER GND K-LINE LOAD SENSOR FRONT INNER SIGNAL LOAD SENSOR FRONT INNER SIGNAL LOAD SENSOR REAR INNER GND LOAD SENSOR FRONT INNER VCC LOAD SENSOR REAR INNER GND LOAD SENSOR REAR INNER SIGNAL LOAD SENSOR REAR INNER VCC LOW BRAKE PRESSURE SENSOR LT SENSOR GND LT SENSOR PWR OPTICAL SENSOR OUTPUT SPEED SENSOR PRESSURE SENSOR PRIMARY PRESSURE SENSOR PRIMARY SPEED SENSOR REAR INNER OCCUPANT CLASSIFICATION SYSTEM SENSOR REFRIGERANT PRESS SENSOR REFRIGERANT PRESS SENSOR SIGNAL REFRIGERANT PRESSURE SENSOR RIGHT FRONT DOOR SATELLITE SENSOR RIGHT FRONT WHEEL SENSOR RIGHT INNER REAR SONAR SENSOR RIGHT OUTER REAR SONAR SENSOR RIGHT REAR SIDE AIR BAG SATELLITE SENSOR RIGHT REAR SIDE AIR BAG SATELLITE SENSOR SHIELD RIGHT REAR WHEEL SENSOR RIGHT SIDE AIR BAG SATELLITE SENSOR SECONDARY PRESSURE SENSOR SECONDARY SPEED SENSOR SENSOR 1 SENSOR 2 SENSOR GND SENSOR INCAR TEMP SENSOR PWR SENSOR PWR SUPPLY SENSOR SUPPLY PWR STEERING ANGLE SENSOR SUNLOAD SENSOR THROTTLE POSITION SENSOR TORQUE SENSOR VACUUM SENSOR

LEFT FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER

A/C SWITCH ASSEMBLY A/C SWITCH ASSEMBLY SHIELD ACCEL/ RES SWITCH AEB OFF SWITCH ASCD/ICC STEERING SWITCH BRAKE FLUID LEVEL SWITCH BRAKE PEDAL POSITION SWITCH CANCEL SWITCH CLUTCH INTERLOCK SWITCH CLUTCH PEDAL POSITION SWITCH COAST/ SET SWITCH COMBINATION SWITCH CRUISE ON/OFF SWITCH DISTANCE SWITCH DOOR MIRROR REMOTE CONTROL SWITCH DRIVE SPORT MODE SWITCH END CLUTCH SWITCH EXTENDED STORAGE SWITCH FRONT BLOWER SWITCH HAZARD SWITCH HOOD SWITCH HORN SWITCH IGNITION SWITCH INTERIOR SWITCH RIGHT MAP LAMP SWITCH KEY CYLINDER LOCK SWITCH KEY CYLINDER SWITCH KEY CYLINDER UNLOCK SWITCH KEY SWITCH LDW SWITCH LEFT FRONT DOOR REQUEST SWITCH LEFT FRONT DOOR SWITCH LEFT MAP LAMP SWITCH LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR SWITCH LEFT SEAT BELT BUCKLE SWITCH LOCK SWITCH MAIN POWER WINDOW, DOOR LOCK/ UNLOCK SWITCH MAIN POWER WINDOW, DOOR LOCK/UNLOCK SWITCH METER CONTROL SWITCH MIRROR SWITCH OFF SWITCH OPENER SWITCH TRUNK LID OPENER SWITCH PARK POSITION SWITCH PARKING BRAKE SWITCH POWER WINDOW LOCK SWITCH PUSH SWITCH RAB OFF SWITCH RIGHT FRONT DOOR REQUEST SWITCH RIGHT FRONT DOOR SWITCH RIGHT FRONT SWITCH RIGHT POWER WINDOW, DOOR LOCK/ UNLOCK SWITCH RIGHT POWER WINDOW, DOOR LOCK/UNLOCK SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR SWITCH RIGHT SEAT BELT BUCKLE SWITCH SELECT SWITCH SONAR SYSTEM OFF SWITCH STOP LAMP SWITCH TRANSMISSION RANGE SWITCH TRUNK LID AJAR SWITCH TRUNK LID OPENER SWITCH VDC OFF SWITCH

BRK SW BRK PEDAL POS SW EVAP CANISTER VENT CTRL VALVE SENS PWR SPLY CTRL SOLENOID VALVE EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE EVAP CANISTER VENT CONTROL VALVE EXHAUST VALVE TIMING EXHAUST VALVE TIMING CONTROL SOLENOID VALVE HIGH CLUTCH, REVERSE BRAKE SOLENOID VALVE LINE PRESSURE SOLENOID VALVE LOW BRAKE SOLENOID VALVE PRIMARY PRESSURE SOLENOID VALVE SECONDARY PRESSURE SOLENOID VALVE SENS PWR SPLY INTAKE MANIFOLD RUNNER CTRL VALVE POS SENS SHIFT LOCK SOLENOID TORQUE CONVERTER CLUTCH SOLENOID VALVE VALVE POS SENS VOLUME CTRL SOLENOID VALVE

(OR RED/ WIRE BLK WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/GRN WIRE BLU/YEL WIRE BRN WIRE BRN/WHT WIRE GRN WIRE GRY WIRE LEFT ACCESSORY PRE-WIRE LOOP WIRE LT BLU WIRE LT GRN WIRE NCA WIRE ORG/ WIRE ORG/BLU WIRE PNK CAN-L WIRE PNK WIRE PNK/ SEATS SYSTEM WIRE PPL/BLU WIRE PPL/BRN WIRE PPL/RED WIRE PPL/WHT WIRE RED WIRE RED/BLK WIRE RIGHT ACCESSORY PRE-WIRE RL DOOR SW PPL DR DOOR SW PNK CAN-L WIRE TAN WIRE WHT WIRE WHT/BLU WIRE YEL WIRE

& N (OR (W/ INFORMATION A/C AUTO AMP A/C COMPRESSOR A/F SENS 1 A/F SENS 1 HTR ABS IND. ACC PEDAL POS SENS 1 ACC PEDAL POS SENS 2 ACT VENT- ACU COMM AEB IND AEB OFF SW SIG AEB SW SIG AIR BAG IND AIR CONDITIONING SYSTEM ANA LT ANALOG INPUT 10 ANT B+ ANT MAIN ANT-A ANTI-THEFT SYSTEM AS DOOR SW AS DOWN AS UNLOCK DOORS AS UP ASCD STEERING SW ASCD STR SW ASCD STR SW GND AT LOCKED IN PARK AT LOCKED IN PARK SW AT LOCKED IN PARK SW POWER AUDIO GND AUDIO L+ AUDIO R- AUTO ACC AUTO ACC 2 AUTO ACC RL AUTO-STOP AUTOMATIC A/C AUX AUDIO GND AUX AUDIO L+ AUX AUDIO R+ AUX SHIELD AUX SHIELD 57 58 BACKUP LAMPS CIRCUIT BAT SAVER BATT PWR SPLY BELT IND BELT SHOULDER BLOWER FEEDBACK BLOWER PWM BLS SW BPP SW BRAKE IND BRAKE SW BS SW BSW IND SIG BUCKLE SW LH+ BUCKLE SW RH+ BUZZER SIG BUZZER SIG GND CAM SIG CAMSHAFT POS CAN L CAN-H CHARGE IND CIRCUIT BREAKER 1 CLK IMMO CLK IMMOBILIZER CLUTCH L CLUTCH SW COMBINATION METER COMPUTER DATA COMPUTER DATA LINES SYSTEM CONDENSER 1 COOLING FAN MODULE CRANK SIG CRANK SIGNAL CRUISE CONTROL SYSTEM CTRL RLY CURRENT SENS CURRENT SENS GND CURRENT SENS SPLY CVT FLUID TEMP SENS CVT M/T CVT SHIFT SELECTOR D RANGE SW DATA IMMO DATA IMMO CLK IMMO DATA IMMOBILIZER DEFOGGER SYSTEM DEFROSTER RL DI LEFT B DI RIGHT B DIAGNOSTIC CAN COMM H DIAGNOSTIC CAN COMM L DISPLAY BACK DISPLAY FWD DOOR IND DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR UNLOCK SW DR BUCKLE SW DR DOOR DR DOOR SW DR DOWN DR KNOB SW DR UNLOCK DOOR DR UP DRIVER AIR BAG MODULE EARLY PRODUCTION EARLY PRODUCTION LATE PRODUCTION ECM GND ELR LH+ ELR RH- ELR RR LH+ ENCODER GND END CLUTCH SW EPS IND EVAP CANISTER PURGE EVAP CTRL SYSTEM EVAP CTRL SYSTEM PRESS SENS EXHAUST CAM EXHAUST CAM POS SENS FAN CONNECTION FAN GND FAN HI FAN LO FAN MH FAN ML FAN SW FAN SW IN FL BAT 1 FL IN FL OUT FL RR IN FOG LIGHT IND FR DOOR FR DOOR SW LH FR IN FR LH POW FR OUT FR RH POW FR RH SIG FR-RL IN FRONT AIR CONTROL FRONT AUXILIARY INPUT JACKS FRONT FOG LIGHT IND FUEL TANK TEMP SENS FULL STROKE FUSIBLE LINK A FUSIBLE LINK C FUSIBLE LINK D FUSIBLE LINK E FUSIBLE LINK F FUSIBLE LINK G FUSIBLE LINK H FUSIBLE LINK J FUSIBLE LINK M FUSIBLE LINK O FUSIBLE LINK P FUSIBLE LINK Q FUSIBLE LINK T FUSIBLE LINK U G SENS GND 2 GND BATT GND WARNING BUZZER SIG GROUND 1 GROUND 2 HALL A HALL B HALL C SPLY HAZARD SW HEATED OXYGEN SENS 2 HF/VR MODE CHANGE HIGH BEAM HIGH SPEED DRIVE HIGH TEMPERATURE IND HOOD CLOSED OPEN HORNS SYSTEM HOT AT ALL TIMES HTD OXY SENS 2 HTD OXYGEN SENS 2 HTR I CSW 1 I CSW 2 I CSW 3 I CSW 4 I CSW 4 PPL I CSW 5 I CSW 5 I CSW 6 I CSW 6 O CSW 1 IC CAN H IC CAN H PPL IC CAN L IC CAN L IGN 2 SW IGN POW IGN PWR SPLY IGN SW IGNITION SIG NO. 1 IGNITION SIG NO. 2 IGNITION SIG NO. 3 IGNITION SIGNAL NO. 4 IKEY FL SW IKEY FR SW IKEY TRUNK SW ILL CONT ILLUMI OUT INF CURTAIN RR LH- INF CURTAIN RR RH+ INSTRUMENT CLUSTER SYSTEM INTAKE AIR TEMP SENS INTELLIGENT KEY WARNING BUZZER IT CAN COMM H IT CAN COMM L ITS CAN-H ITS CAN-L K LINE KEY CYLINDER UNLOCK SW KEY SW KEY TRUNK SW KN LH- KN RH- L RANGE SW L/R SW SIG LAP BELT LATE PRODUCTION LATE PRODUCTION EARLY PRODUCTION LDW IND LDW SW SIG LED DETECTION 1 LED DETECTION 2 LEFT "C" PILLAR) LEFT ANT A LEFT ANT B LEFT DOOR MIRROR LEFT FRONT LEFT FRONT SEAT BELT PRE-TENSIONER LEFT FRONT SIDE AIR BAG MODULE LEFT FRONT TWEETER LEFT KNEE AIR BAG MODULE LEFT REAR SEAT BELT PRE-TENSIONER LEFT REAR SIDE AIR BAG MODULE LEFT SIDE CURTAIN AIR BAG MODULE LEFT SIDE CURTAIN AIR BAG MODULE SHIELD LEFT SIDE RADAR LEFT TURN IND LIGHT DTRL LH LIGHT DTRL RH LIGHT HBEAM LH LIGHT HBEAM RH LIGHT LBEAM LH LIGHT LBEAM RH LIGHT PARKING FR LH LIGHT PARKING FR RH LIN VEH 2 LINE PRESS SOL VLV LINES SYSTEM LOW BEAM LOW FUEL IND LOW SPEED DRIVE LT FR FOG LAMPS LH LT FR FOG LAMPS RH LT SENS LWD SW SIG M CAN-H M CAN-L M/T CVT MANUAL A/C MASS AIR FLOW SENS MASTER WARNING IND MENU DOWN MENU OK MENU UP METER ILLUMINATION METER ILLUMINATION IND MIC GND MIC MODE CHANGE MIC SIG MIC VCC MR OUTPUT MTR OPEN N RANGE SW NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS O CSW 1 O CSW 2 O CSW 3 O CSW 4 O CSW 5 O CSW 6 ODS INPUT OIL IND OUT SPEED SENS OUTPUT SIG OUTPUT SPEED SENS P RANGE SW P-SHIFT PARK/NEUTRAL POS SIG PKB SW POS SIG POWER DISTRIBUTION SYSTEM POWER SUPPLY POWER WINDOWS SYSTEM PPL I CSW 1 PPL IGN PPL O CSW 1 PPL O CSW 5 PREMIUM BASE PRESS SENS PRI PRESS SOL VLV LOW BRK SOL VLV PRI SPEED SENS PRIVATE CAN H PRIVATE CAN L PS DOOR SW PUSH SW PWM ROOM PWR FLASHERS PWR GND PWR SPLY PWR SPLY FOR ECM PWR STOP LAMPS PWR SUPPLY PWR SUPPLY DRIVE R RANGE SW RAB OFF SW SIG RAB SW SIG REAR ANT A REAR ANT B REAR WINDOW DEFOGGER REB OFF IND REFRIGERANT PRESS SENS RIGHT ANT A RIGHT ANT B RIGHT DOOR MIRROR RIGHT END OF DASH) RIGHT FRONT SEAT BELT PRE-TENSIONER RIGHT FRONT SIDE AIR BAG MODULE RIGHT FRONT TWEETER RIGHT KNEE AIR BAG MODULE RIGHT REAR SEAT BELT PRE-TENSIONER RIGHT REAR SIDE AIR BAG MODULE RIGHT SIDE CURTAIN AIR BAG MODULE RIGHT SIDE CURTAIN AIR BAG MODULE SHIELD RIGHT SIDE RADAR RIGHT TURN IND RIL SENS SIG RIR SENS SIG RL DOOR SW RL DOWN RL IN RL OUT RL UP ROL SENS SIG ROM ASSY ROR SENS SIG RR DOOR SW RR DOWN RR IN RR LH POW RR LH SIG RR OUT RR RH POW RR RH SIG RR SATELLITE SENS LH- RR SATELLITE SENS RH+ RR UNLOCK DOORS RL RR UP RUNNER CTRL SAT ANT SAT SHIELD SEATS SYSTEM SEC LED SEC PRESS SENS SEC PRESS SOL VLV SEC SPEED SENS SECURITY IND SECURITY LED SEEK DOWN SEEK UP SENS GND SENS PWR SENS PWR SPLY SENS SPLY SENS TEMP SET IND SHIFT INTERLOCK SYSTEM SHOULDER BELT SIDE INF LH- SIDE INF RH- SIDE INF RR LH- SIDE INF RR RH+ SIDE MARKER SIDE SENS LH- SIDE SENS RH- SIG GND SIGNAL 1 SLIP IND SMART FET SOL GND SOUND SYSTEMS SPARK PLUG SPEED SIGNAL SPKR PWR SPKR RR SIG SPORT IND START CLUTCH SW START SW STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STATUS LED STEERING SWITCHES STRG SW A STRG SW B STRG SW GND SUPPLEMENTAL RESTRAINTS SYSTEM SW INPUT SW LH SW POWER SW SIG TEL ON TEL VR TEMP SENS THROTTLE CTRL MTR OPEN THROTTLE CTRL MTR PWR SPLY THROTTLE CTRL MTR RLY THROTTLE POS SENS 1 THROTTLE POS SENS 2 TIRE PRESSURE IND TORQUE CONVERTER CLUTCH SOL VLV HIGH CLUTCH, REVERSE BRK SOL VLV TRANSMISSIONS SYSTEM TRUNK OPENER TRUNK STAT TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN SIGNAL UNIFIED METER UP DOWN USB CHARGE PORT V CAN-H V CAN-L V-BUS VAC GND VAC SIG VARIABLE BLOWER CONTROL VBUS SHIELD SHIELD VDC OFF VDC OFF IND VOLUME DOWN VOLUME DOWN UP VOLUME UP VOLUME- VTC CAN-H VTC CAN-L W/ BASE AUDIO SYSTEM W/ CVT W/ HALOGEN HEADLAMPS W/ HALOGEN HEADLAMPS W/ LED HEADLAMPS W/ HEATED MIRRORS W/ INTELLIGENT KEY SYSTEM W/ INTELLIGENT KEY SYSTEM W/O INTELLIGENT KEY SYSTEM W/ LED HEADLAMPS W/ LED W/O LED W/O INTELLIGENT KEY SYSTEM WASH MTR WL AUTHORIZATION RL
