Nissan Rogue III (2020-2024) pnk lin-comm ppl close sw Wiring diagram
This page shows the only wiring diagram for the component.pnk lin-comm ppl close sw, which is found in the car Nissan Rogue III (2020-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

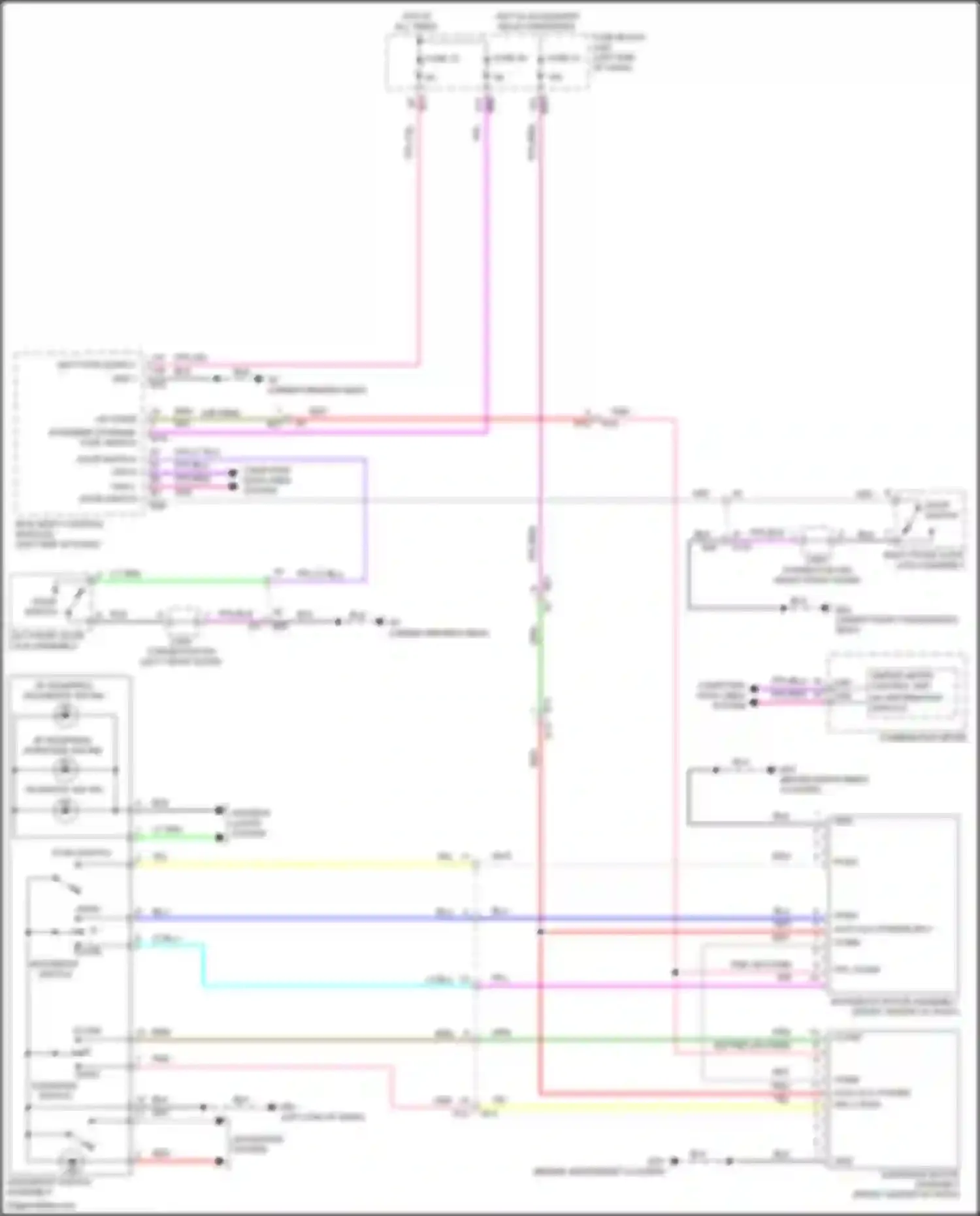

Wiring diagram pnk lin-comm ppl close sw (1 of 1)
AUTO ACC POWER SPLY
AUTO ACC POWER SPLY OPEN SW
BATT POW SUPPLY
BCM (BODY CONTROL MODULE)
BLK WIRE
BLU WIRE
BRN WIRE
CAN L
CAN-H
CLOSE
CLOSE SW PNK LIN-COMM WIRE
COMBINATION METER
COMM
COMPUTER DATA LINES SYSTEM
DOOR SWITCH
EXTENDED STORAGE FUSE SWITCH
FUSE 15
FUSE 30
FUSE 31
FUSE BLOCK (J/B)
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
HOT W/ ACCESSORY RELAY ENERGIZED
LEFT FRONT DOOR LOCK ASSEMBLY
LIN-COMM
LT BLU WIRE
LT GRN WIRE
MOONROOF MOTOR ASSEMBLY (FRONT CENTER OF ROOF)
MOONROOF SWITCH
MOONROOF SWITCH ASSEMBLY
NAVIGATION SYSTEM
OPEN SW
PNK LIN-COMM PPL CLOSE SW WIRE
PNK WIRE
PPL
PPL/BLK WIRE
PPL/BLU WIRE
PPL/BRN WIRE
PPL/LT BLU WIRE
PPL/RED WIRE
PPL/YEL WIRE
PUSH SW
PUSH SWITCH
RED WIRE
RIGHT FRONT DOOR LOCK ASSEMBLY
SUNSHADE MOTOR ASSEMBLY
SUNSHADE SWITCH
TELEMATIC SW IND
UNIFIED METER CONTROL UNIT (W/ INFORMATION DISPLAY)
WHT WIRE
YEL WIRE
Go to component -> Power top/sunroof circuit -> PNK LIN-COMM PPL CLOSE SW WIRE
