Nissan Quest II (1999-2002) fuse 9 Wiring diagrams
This page contains all the electrical diagrams for the component. fuse 9, in which he is found in the car Nissan Quest II (1999-2002). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram fuse 9 (1 of 2)
BLK WIRE
BLK/YEL WIRE
BLU WIRE
BLU/YEL WIRE
FUSE 2
FUSE 9
FUSE BLOCK (BEHIND DASH, LEFT OF STEERING COLUMN)
GLASS HATCH LATCH SWITCH (CENTER OF LIFTGATE)
HOT AT ALL TIMES
HOT IN ACC OR ON
PNK WIRE
PNK/BLK WIRE
PPL
REAR WASHER MOTOR (IN WASHER FLUID RESERVOIR)
REAR WIPER AMPLIFIER
REAR WIPER MOTOR
REAR WIPER SWITCH
WASHER SWITCH
WIPER SWITCH
YEL/BLK WIRE
Go to component -> Rear wiper/washer circuit, with moveable liftgate glass -> FUSE 9

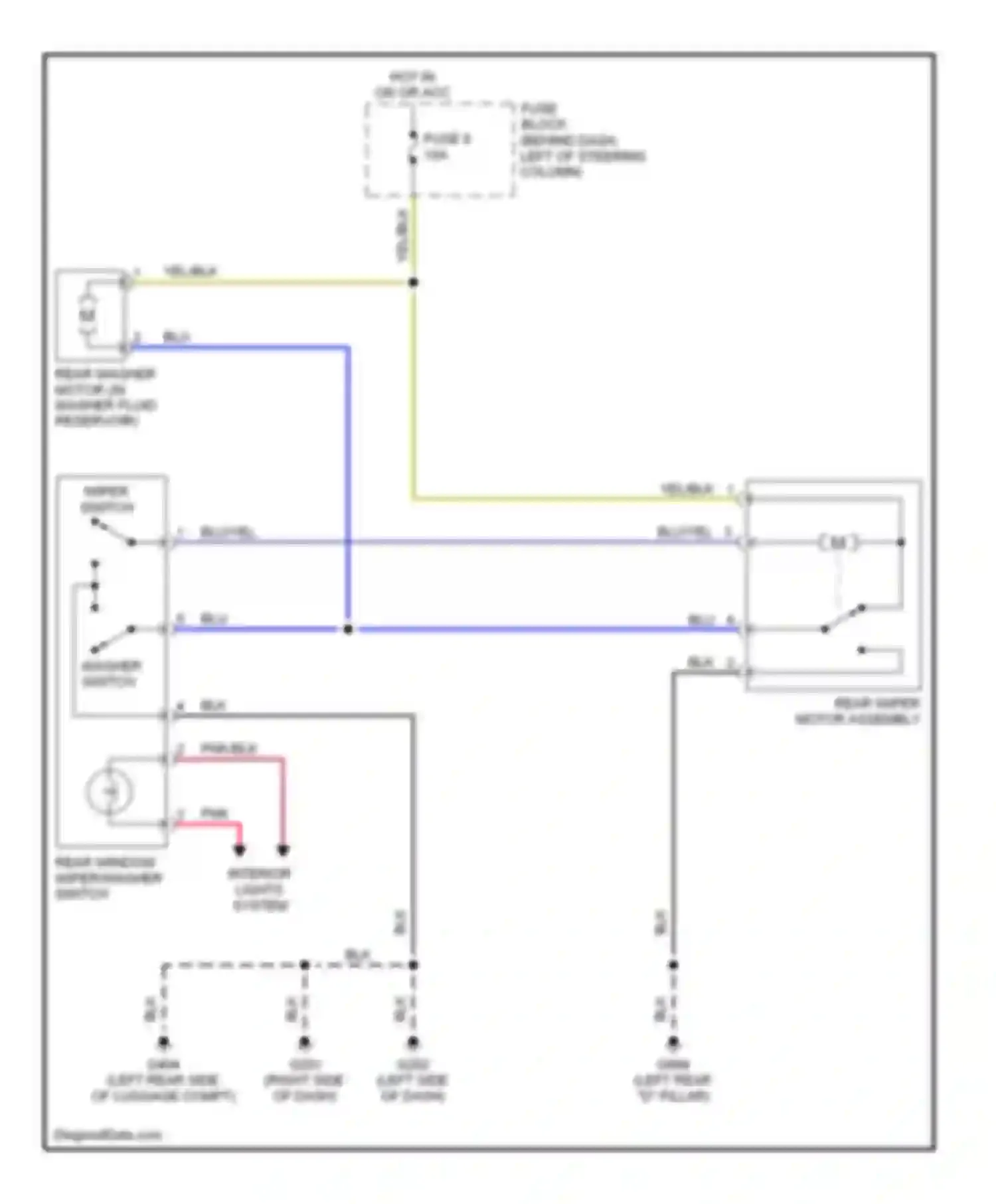

Wiring diagram fuse 9 (2 of 2)
Go to component -> Rear wiper/washer circuit, without moveable liftgate glass -> FUSE 9
