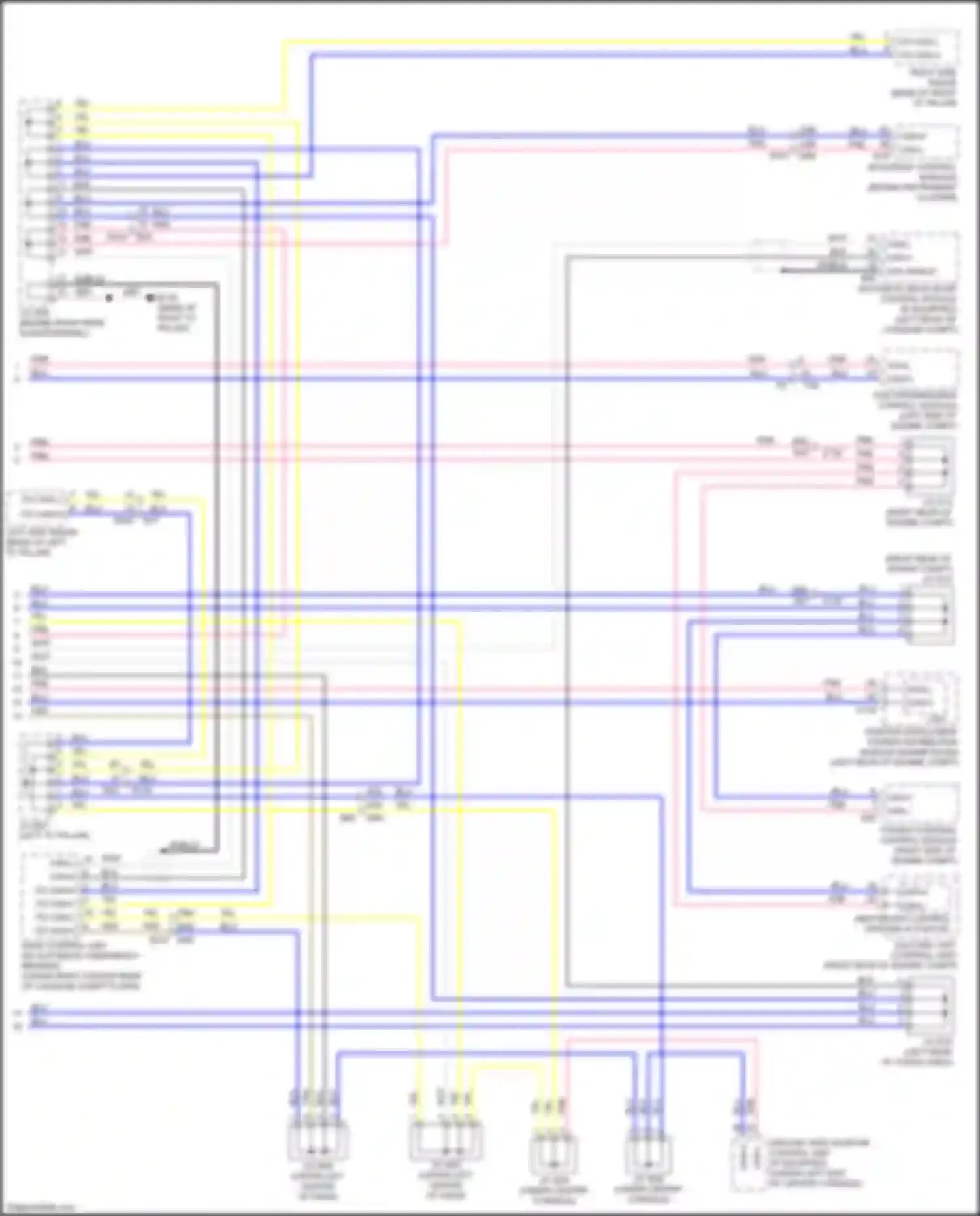

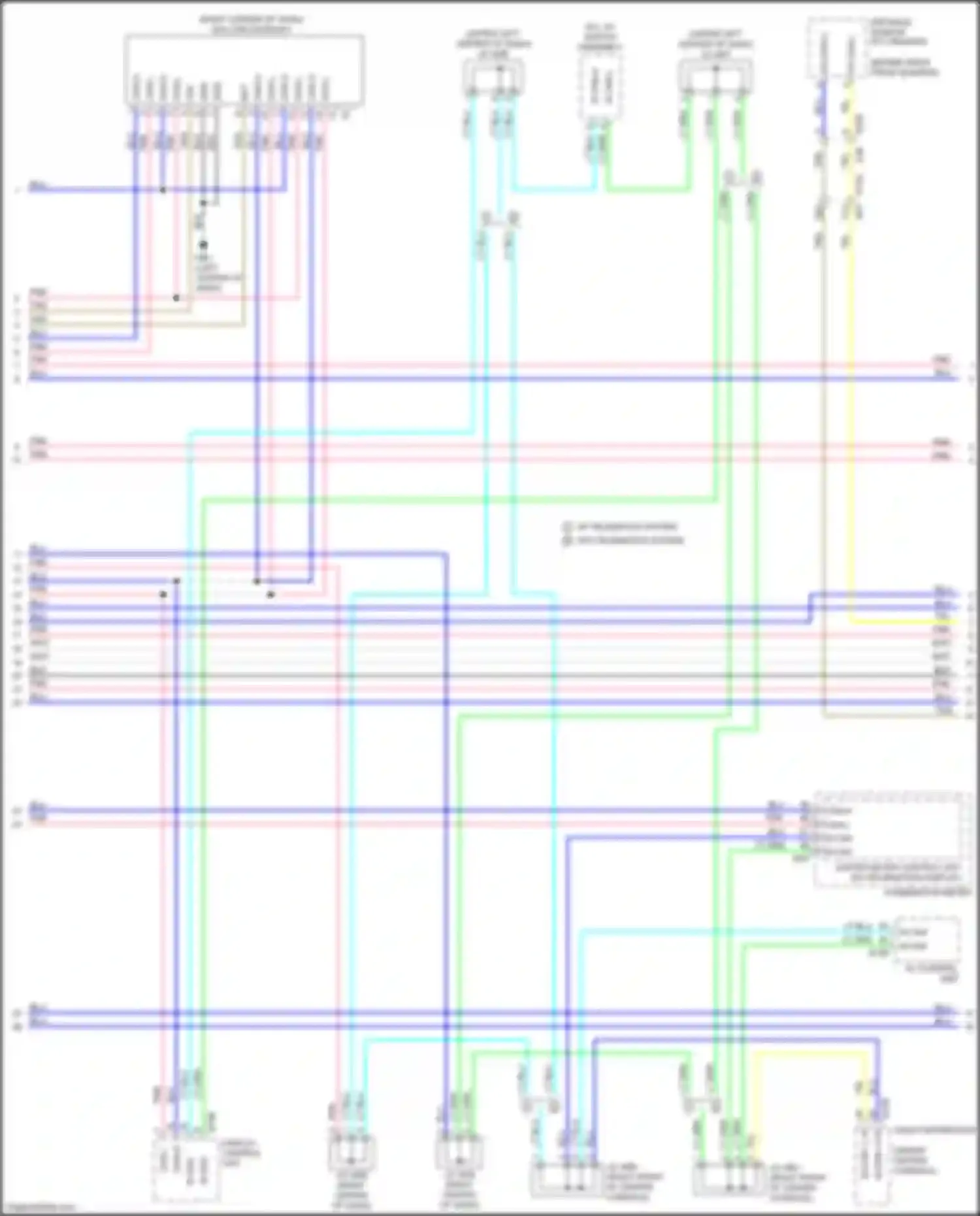

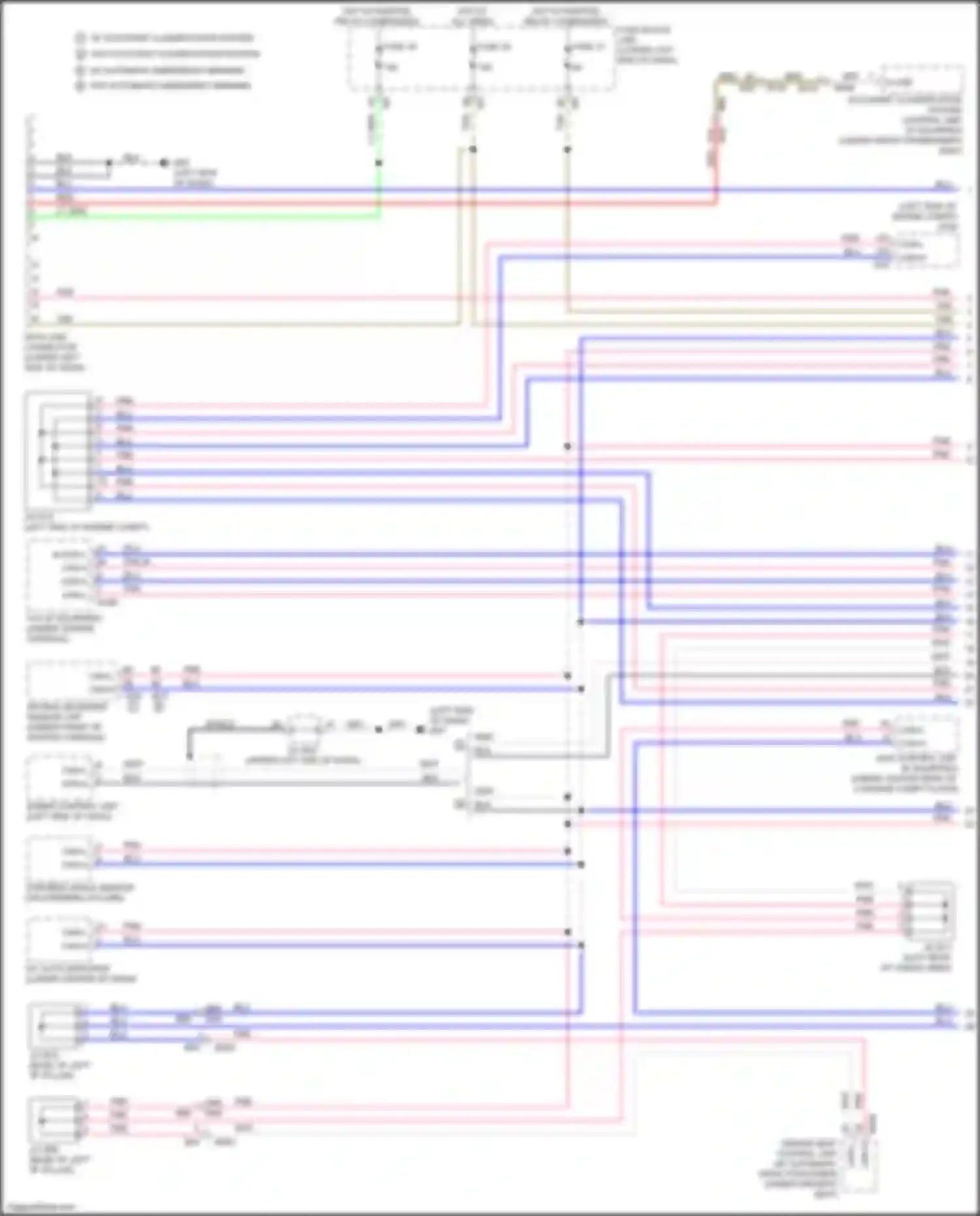

Computer data lines circuit for Nissan Pathfinder IV facelift (2016-2020)

A/C AUTO AMPLIFIER (LOWER CENTER OF DASH) AIR BAG DIAGNOSIS SENSOR UNIT BLK WIRE BLU WIRE BRN WIRE CAN L CAN-H CAN-H PNK CAN-L WIRE DATA LINK CONNECTOR DRIVER SEAT CONTROL UNIT FUSE 25 FUSE 30 FUSE 31 FUSE BLOCK (J/B) GRY WIRE HOT AT ALL TIMES HOT W/ IGNITION RELAY-2 ENERGIZED K LINE LT GRN WIRE M CAN-L PNK M CAN-H WIRE OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT PNK CAN-L WIRE PNK WIRE RED WIRE SHIELD SONAR CONTROL UNIT (LEFT SIDE OF DASH) STEERING ANGLE SENSOR (ON STEERING COLUMN) TAN WIRE TCU (IF EQUIPPED) (UNDER CENTER CONSOLE) WHT WIRE

A/C, AV SWITCH ASSEMBLY AV CONTROL UNIT BLK WIRE BLU WIRE CAN L CAN-H COMBINATION METER DISPLAY CONTROL UNIT DISTANCE SENSOR (ICC SENSOR) IGN ITS CAN-H ITS CAN-L LT BLU WIRE LT GRN WIRE M CAN-H M CAN-L PNK WIRE TAN WIRE UNIFIED METER CONTROL UNIT (W/ INFORMATION DISPLAY) VIDEO DISTRIBUTOR W/ TELEMATICS SYSTEM W/O TELEMATICS SYSTEM WHT WIRE YEL WIRE

ABS/TCS/VDC CONTROL UNIT ABS ACTUATOR, ELECTRIC UNIT (CONTROL UNIT) ADAS CONTROL UNIT AROUND VIEW MONITOR CONTROL UNIT AUTOMATIC BACK DOOR CONTROL MODULE BCM (BODY CONTROL MODULE) BLK WIRE BLU WIRE CAN L CAN SHIELD CAN-H CAN-H PNK CAN-L WIRE GRY WIRE IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) ITS CAN-H ITS CAN-L LEFT SIDE RADAR PNK WIRE POWER STEERING CONTROL MODULE RIGHT SIDE RADAR SHIELD TAN WIRE TCM (TRANSMISSION CONTROL MODULE) WHT WIRE YEL WIRE
