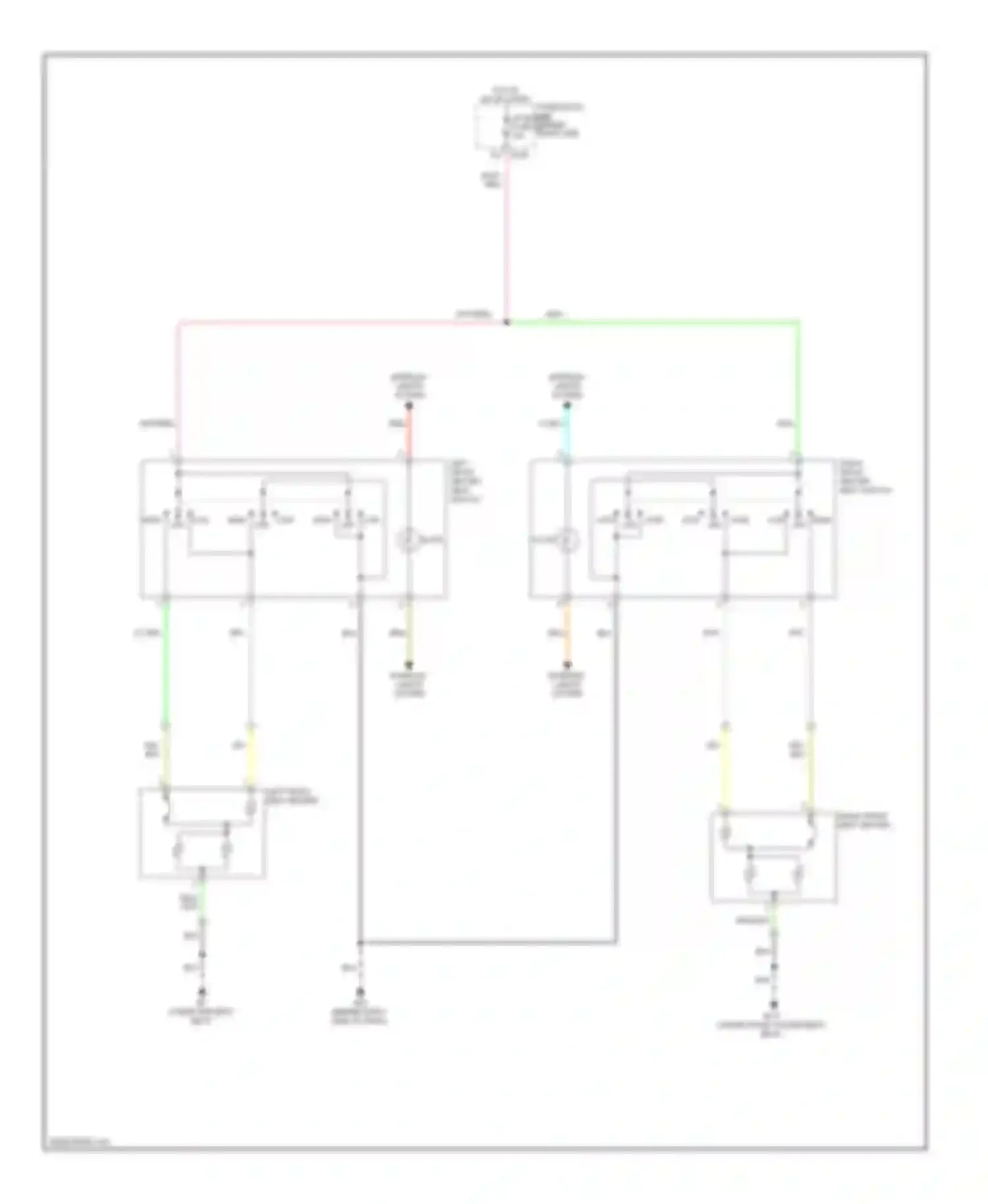

Car Wiring Diagrams for Heated seats circuit for Nissan Pathfinder III (2004-2010)

BLK WIRE BRN WIRE GRN WIRE GRN/WHT WIRE GRY WIRE HIGH LOW OFF HOT IN ON OR START FUSE BLOCK (J/B) (UNDER RIGHT SIDE OF DASH) FUSE 16 ILLUM LEFT FRONT HEATED SEAT SWITCH LEFT FRONT SEAT HEATER LOW HIGH OFF LT BLU WIRE LT GRN WIRE ORG/ WIRE RED WIRE RIGHT FRONT HEATED SEAT SWITCH RIGHT FRONT SEAT HEATER WHT WIRE WHT/RED WIRE YEL WIRE
