Heated seats circuit, with rear heated seats for Nissan Maxima A34 (2003-2008)

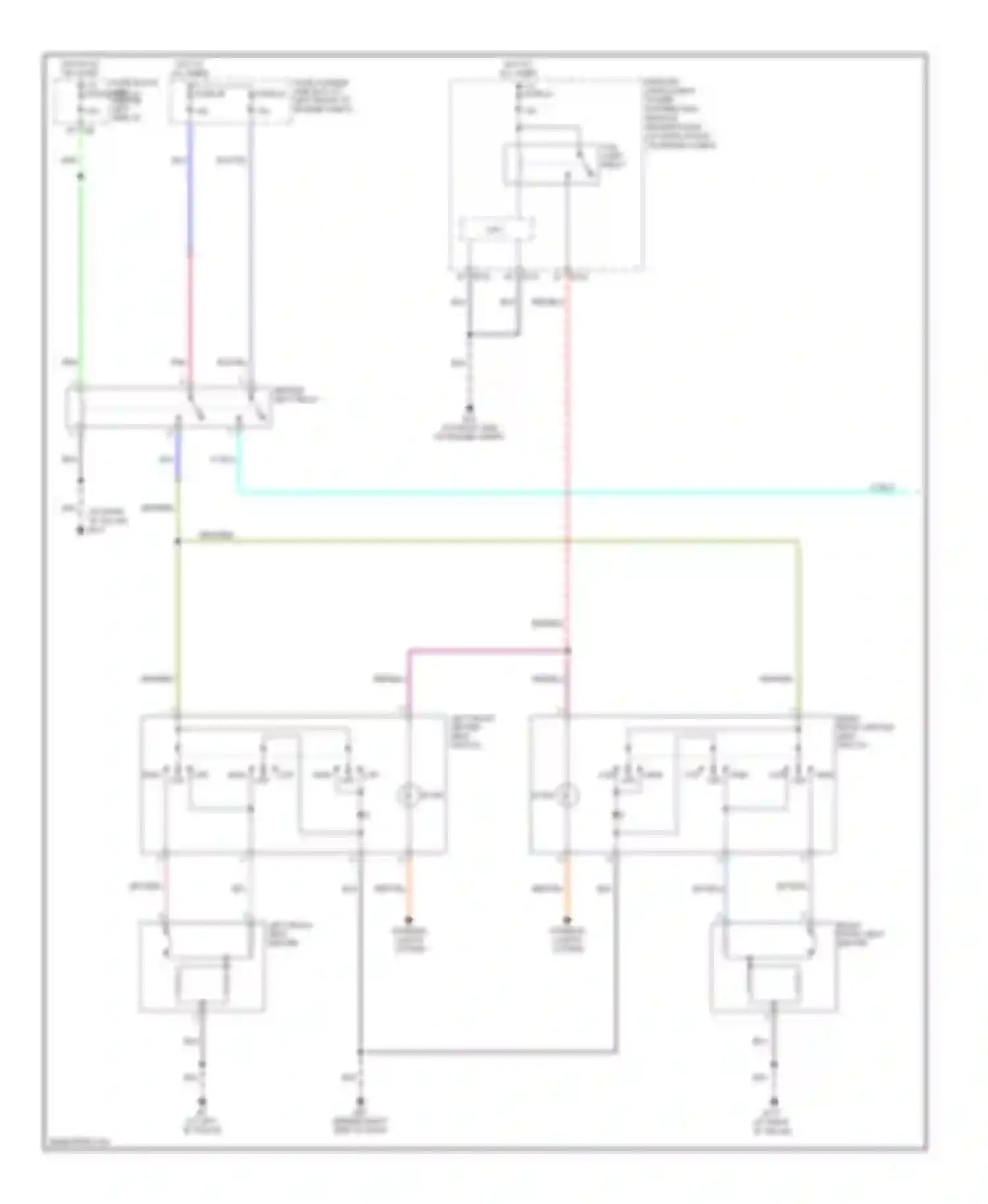

BLK WIRE BLU WIRE BLU/YEL WIRE FUSE 24 FUSE 29 FUSE 41 FUSE BLOCK (J/B) (BEHIND LEFT SIDE OF DASH) FUSE 12 FUSE, FUSIBLE LINK BOX (AT LEFT FRONT OF ENGINE COMPT) GRN WIRE GRN/RED WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/RED WIRE HEATED SEAT RELAY HIGH OFF HOT AT ALL TIMES HOT IN ON OR START ILLUM ILLUM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS LEFT FRONT HEATED SEAT SWITCH LEFT FRONT SEAT HEATER LOW HIGH OFF LOW OFF LT BLU WIRE PNK WIRE RED/BLU WIRE RED/YEL WIRE RIGHT FRONT HEATED SEAT SWITCH RIGHT FRONT SEAT HEATER SYSTEM TAIL LAMP RELAY

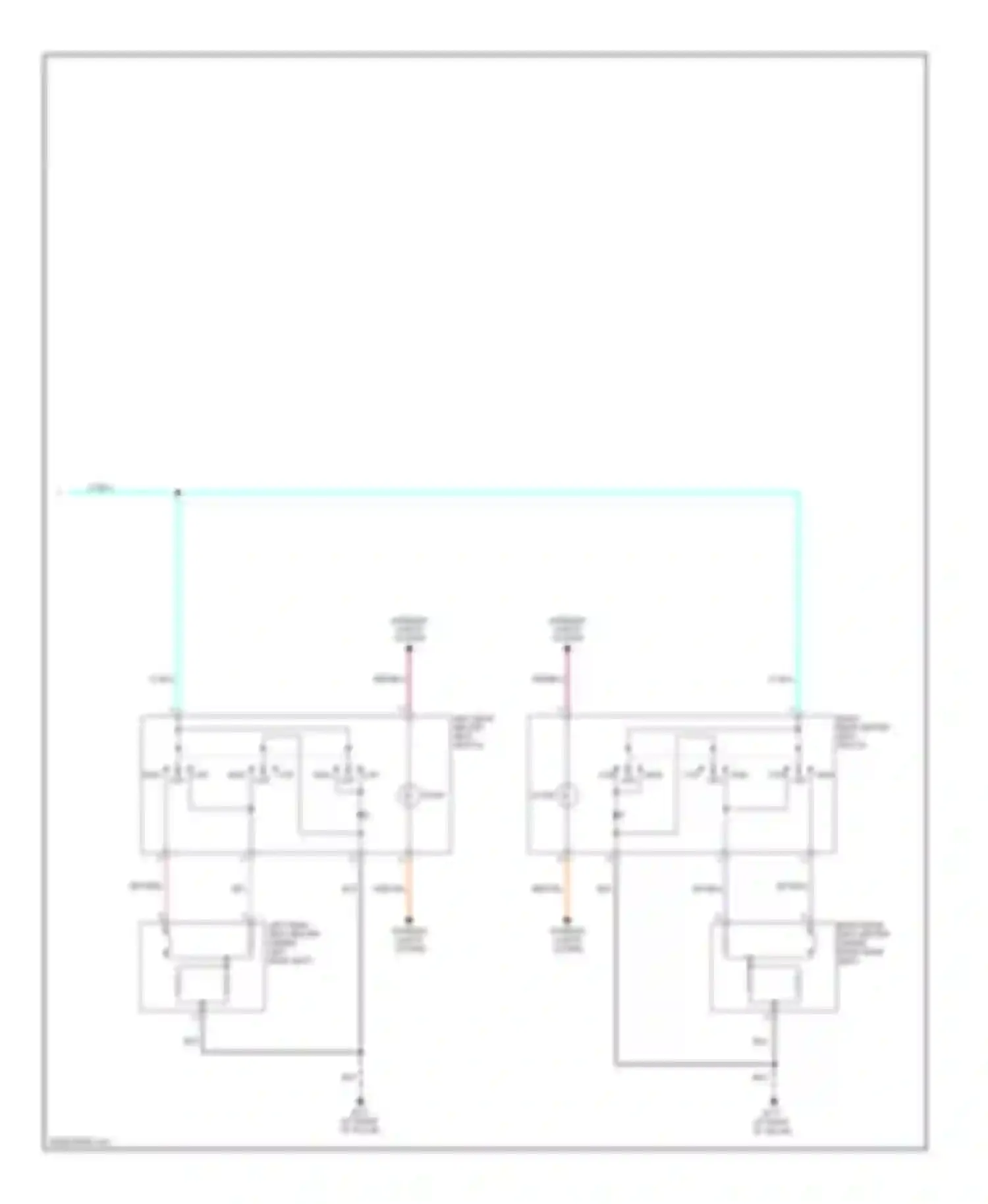

BLK WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/RED WIRE ILLUM INTERIOR LIGHTS LEFT REAR HEATED SEAT SWITCH LEFT REAR SEAT HEATER (UNDER LEFT REAR SEAT) LOW HIGH OFF LOW OFF ILLUM LT BLU WIRE RED/BLU WIRE RED/YEL WIRE RIGHT REAR HEATED SEAT SWITCH RIGHT REAR SEAT HEATER (UNDER RIGHT REAR SEAT) SYSTEM
