Nissan Leaf II (2017-2024) side sens lh- Wiring diagram
This page shows the only wiring diagram for the component.side sens lh-, which is found in the car Nissan Leaf II (2017-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

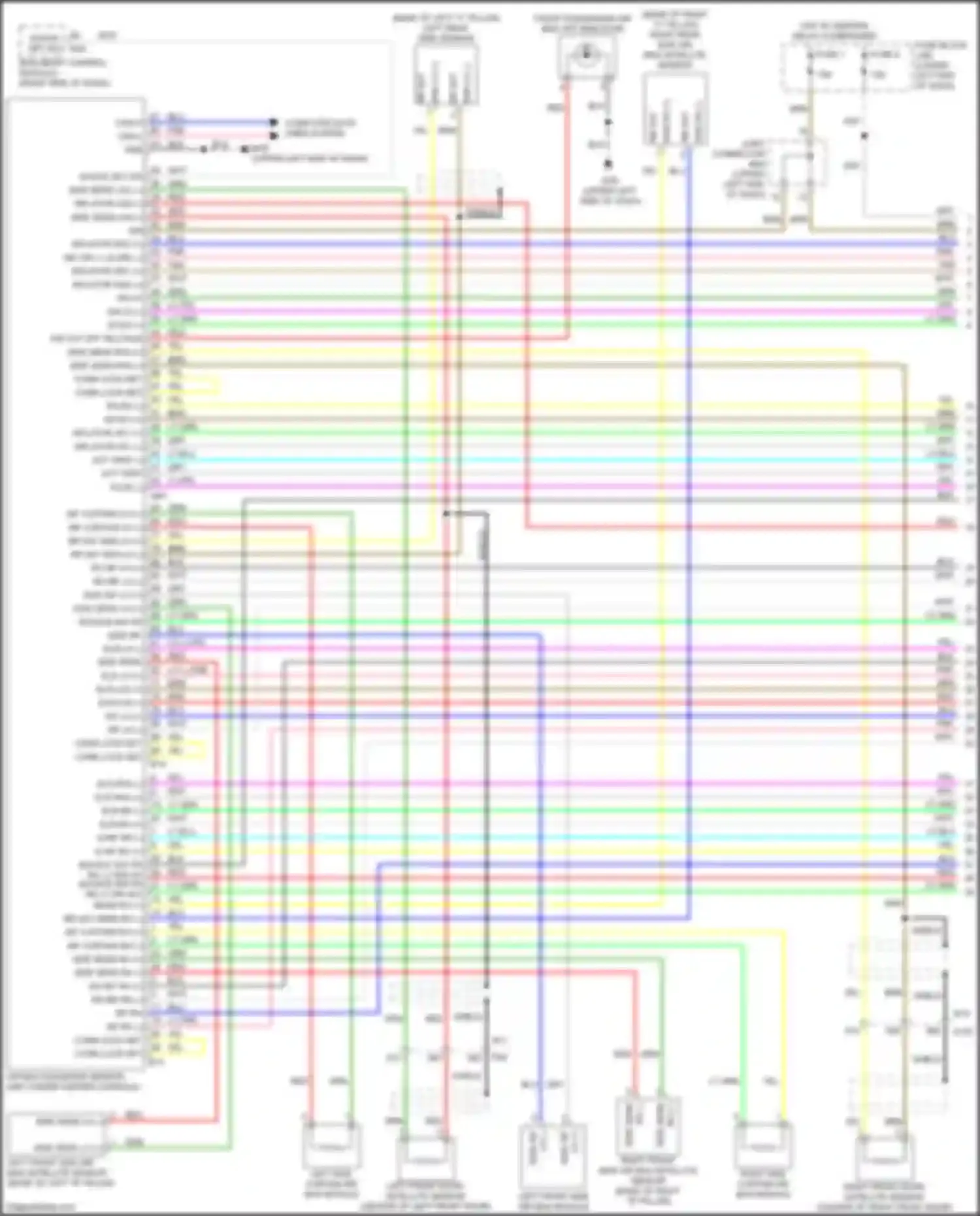

Wiring diagram side sens lh- (1 of 1)
A/B CUT OFF TELLTALE
ACT VENT (+) PPL ECZS (-)
ACT VENT-
AIR BAG DIAGNOSIS SENSOR UNIT (UNDER CENTER CONSOLE)
BCM (BODY CONTROL MODULE)
BLK WIRE
BLU WIRE
BRN WIRE
BUCKLE SW FR LH
BUCKLE SW FR RH (-) ODS I/P BUCKLE SW FR RH (+) RR SAT SENS RH (+)
CAN-H PNK CAN-L WIRE
COMPUTER DATA LINES SYSTEM
CONN LOCK DET A
CONN LOCK DET B
ECZS (-)
ELR RH-
FRONT PASSENGER AIR BAG OFF INDICATOR
FUSE 1
FUSE 5
FUSE BLOCK (J/B)
GRN WIRE
GRY WIRE
HOT W/ IGNITION RELAY-2 ENERGIZED
IGN
INF CURTAIN LH (-)
INF CURTAIN RH (-)
KN LH (+) PPL KN LH (-)
KN RH-
LEFT FRONT DOOR SATELLITE SENSOR
LEFT FRONT SIDE AIR BAG MODULE
LEFT FRONT SIDE AIR BAG SATELLITE SENSOR
LEFT REAR SIDE SENSOR
LEFT SIDE CURTAIN AIR BAG MODULE
LH -
LT BLU WIRE
LT GRN WIRE
PNK WIRE
PPL
RED WIRE
RH-
RIGHT FRONT DOOR SATELLITE SENSOR
RIGHT FRONT SIDE AIR BAG SATELLITE SENSOR
RIGHT REAR SIDE AIR BAG SATELLITE SENSOR
RIGHT SIDE CURTAIN AIR BAG MODULE
RP LH+
RP RH (+) PNK RP RH (-) WIRE
RR SAT
RR SAT SEN LH (-)
RR SAT SENS RH (-)
RS INF LH-
RS INF RH+
S-INF RH (+)
SHIELD
SHOCK DET SIG
SIDE INF
SIDE INF LH (-) PPL ELR-LH (-)
SIDE INF LH-
SIDE SENS
SIDE SENS LH (-) PNK ELR LH (+) WIRE
SIDE SENS LH-
SIDE SENS RH-
SNS LH (+)
SNS RH (+)
TAN WIRE
WHT WIRE
YEL WIRE
Go to component -> Supplemental restraints circuit (1 of 3) -> SIDE SENS LH-
