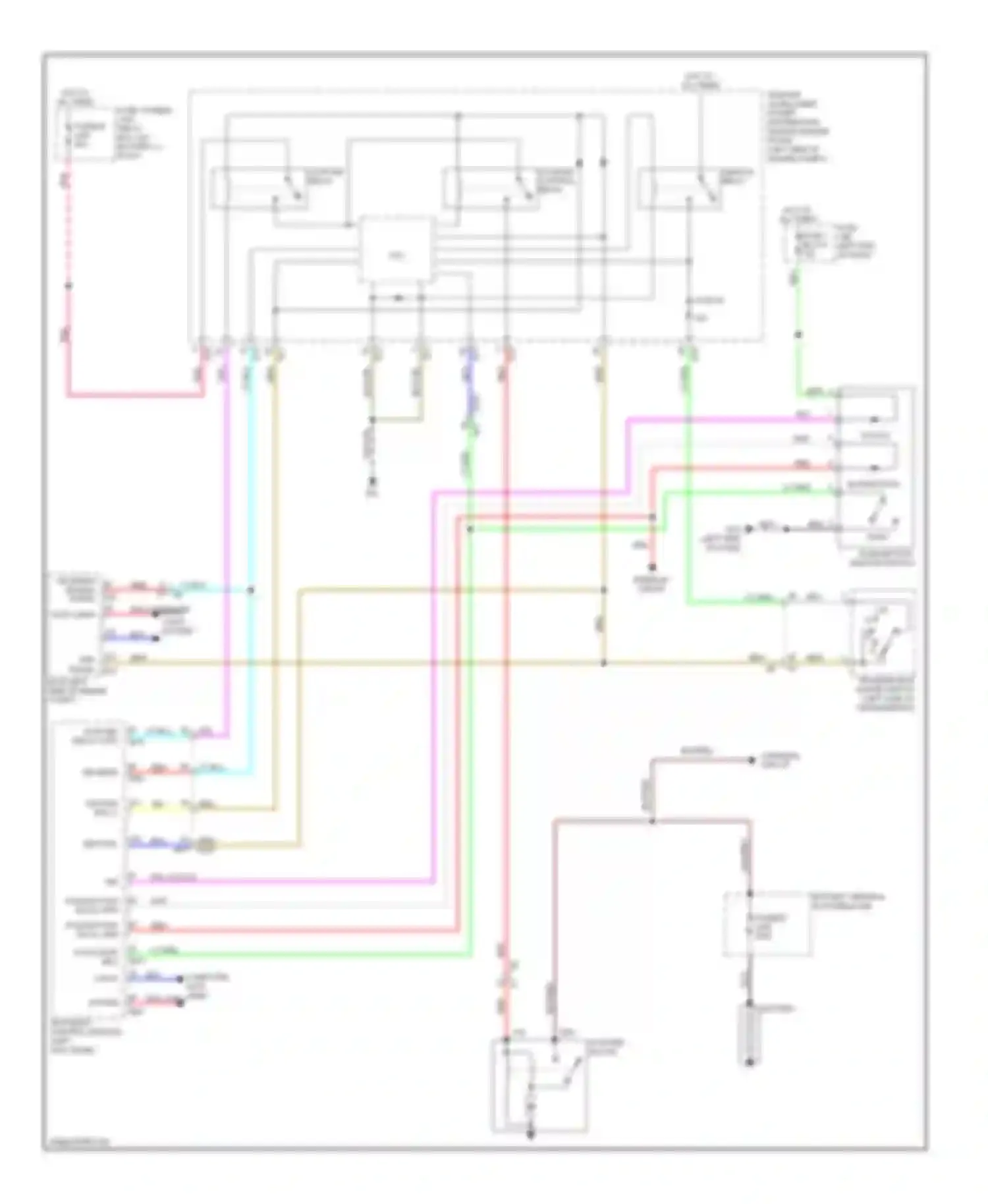

Nissan Juke I (2010-2014) computer can-h data lines pnk can-l system Wiring diagram

ACC/ON BATTERY BATTERY TERMINAL W/ FUSIBLE LINK BCM (BODY CONTROL MODULE) (LEFT KICK PANEL) BLK WIRE BLK/RED WIRE BLK/YEL WIRE BLU WIRE BRN WIRE CHARGING CIRCUIT COMPUTER CAN-H DATA LINES PNK CAN-L SYSTEM WIRE CRANKING ENABLE SIGNAL ECM (LEFT SIDE OF ENGINE COMPT) FUSE FUSE 56 FUSE 7 BLOCK (J/B) (LEFT END OF DASH) FUSE, FUSIBLE LINK, RELAY BOX (ON BATTERY (+) POST) FUSIBLE LINK A FUSIBLE LINK H GRN WIRE GRY WIRE HOT AT ALL TIMES IGN PWR SPLY 2 IGNITION RELAY ILLUMINATION INTERIOR LIGHTS LT BLU WIRE LT GRN WIRE NCA WIRE NEUTRAL SW PASS DOOR REQ SW PNK COMPUTER CAN-L DATA LINES CAN-H SYSTEM WIRE PNK WIRE PNP SIGNAL PPL PPL ACC/ON IND PUSH BUTTON IGNITION SWITCH PUSH SW PUSS-BTN IGN SW ILL GND PUSS-BTN IGN SW ILL PWR RED WIRE REVERSE SW STARTER CONTROL RELAY STARTER MOTOR STARTER RELAY STARTER RELAY CONT TRANSMISSION RANGE SWITCH (LEFT SIDE OF TRANSMISSION) WHT WIRE YEL WIRE
