Wiring Diagrams for Nissan GT-R I facelift 3 (2016-2020)

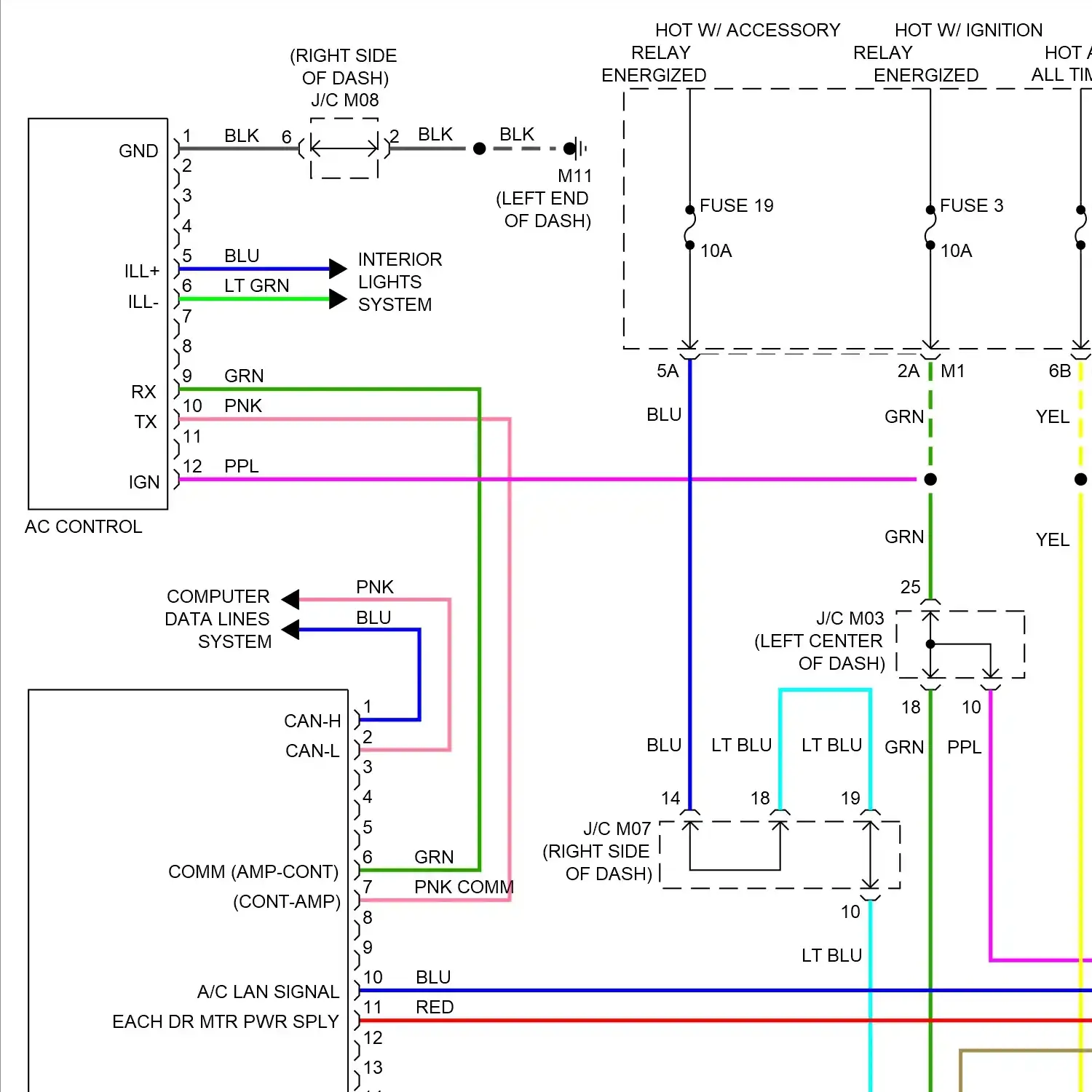

Automatic a/c circuit

Anti-lock brakes circuit

Anti-theft circuit

Body control modules circuit

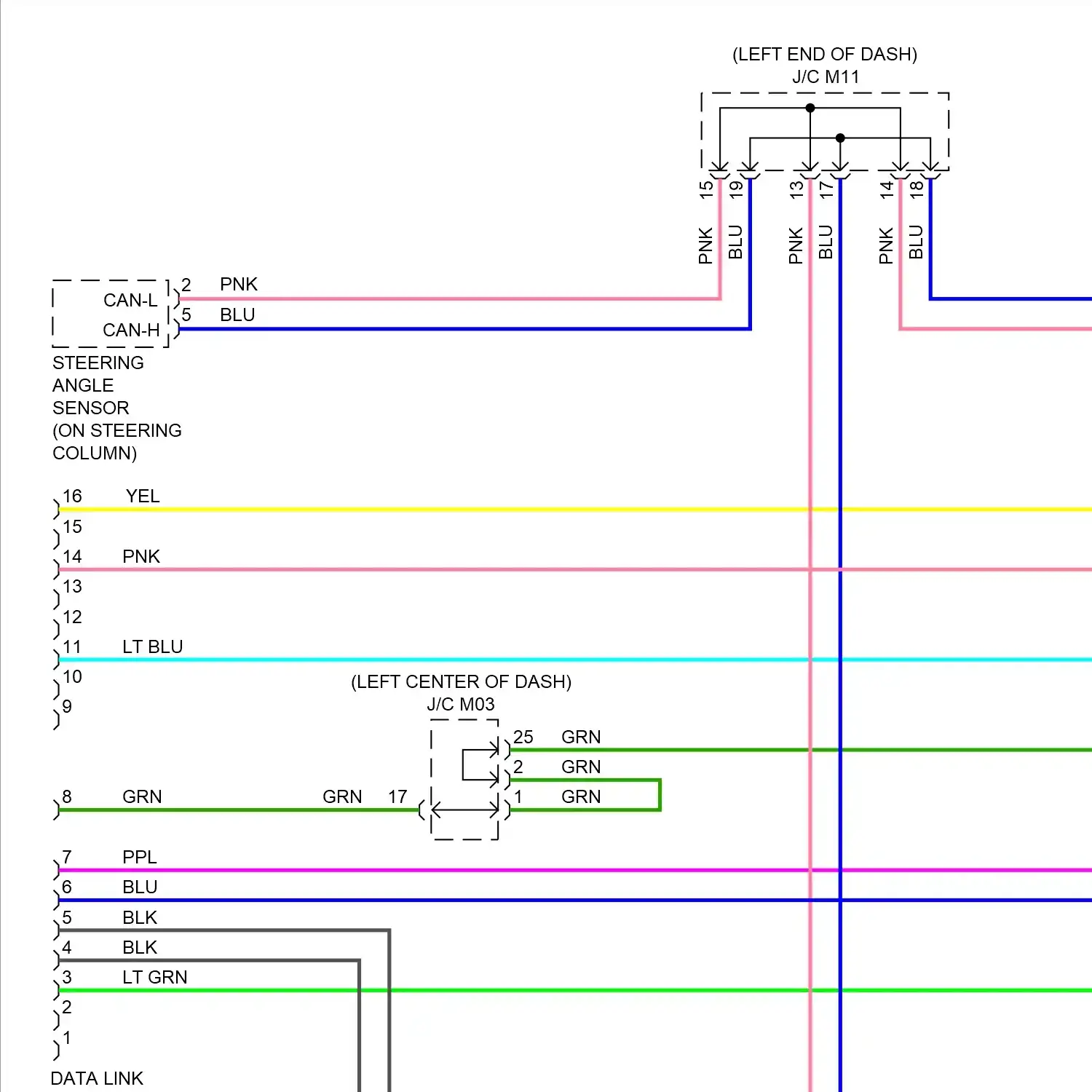

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 3.8l turbo

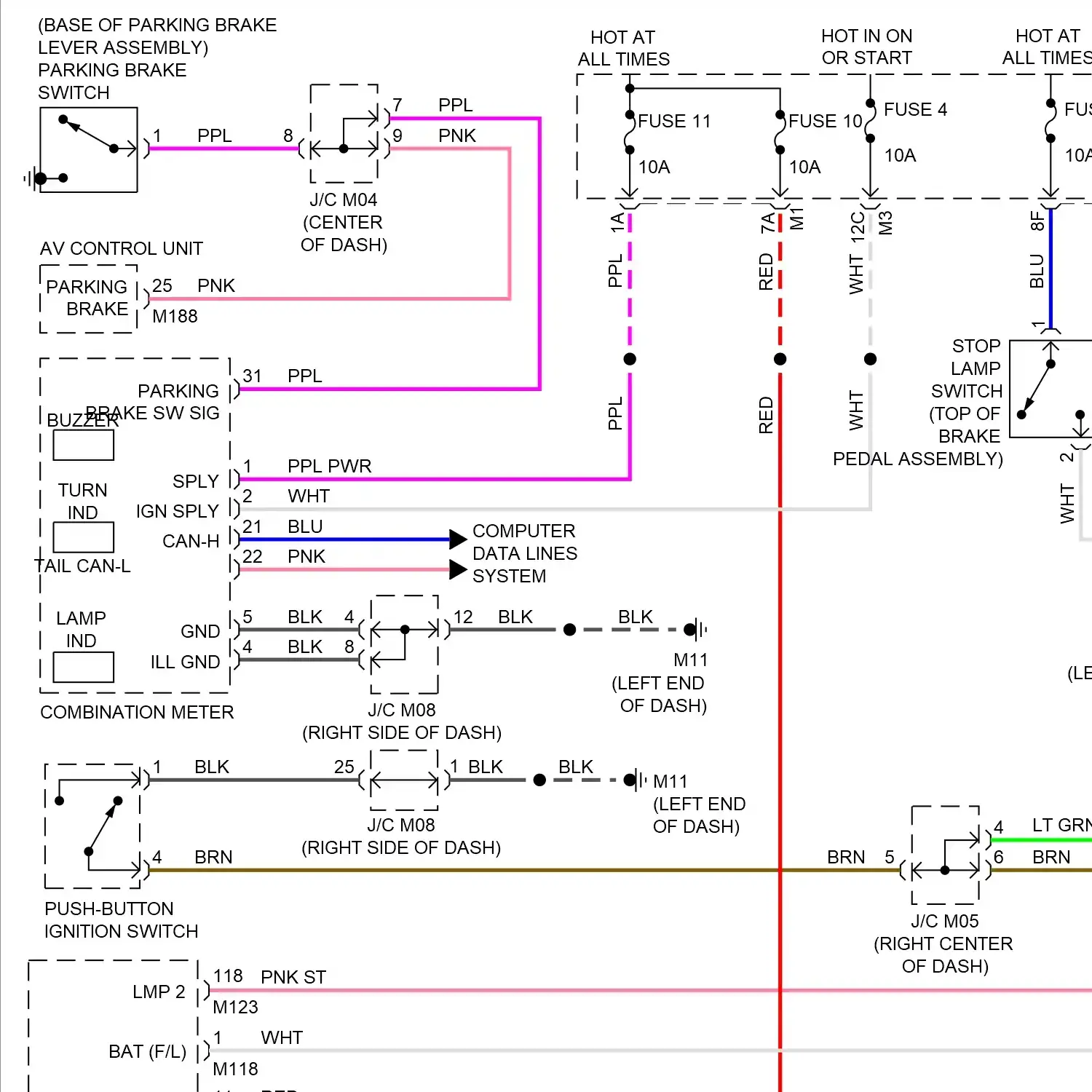

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit

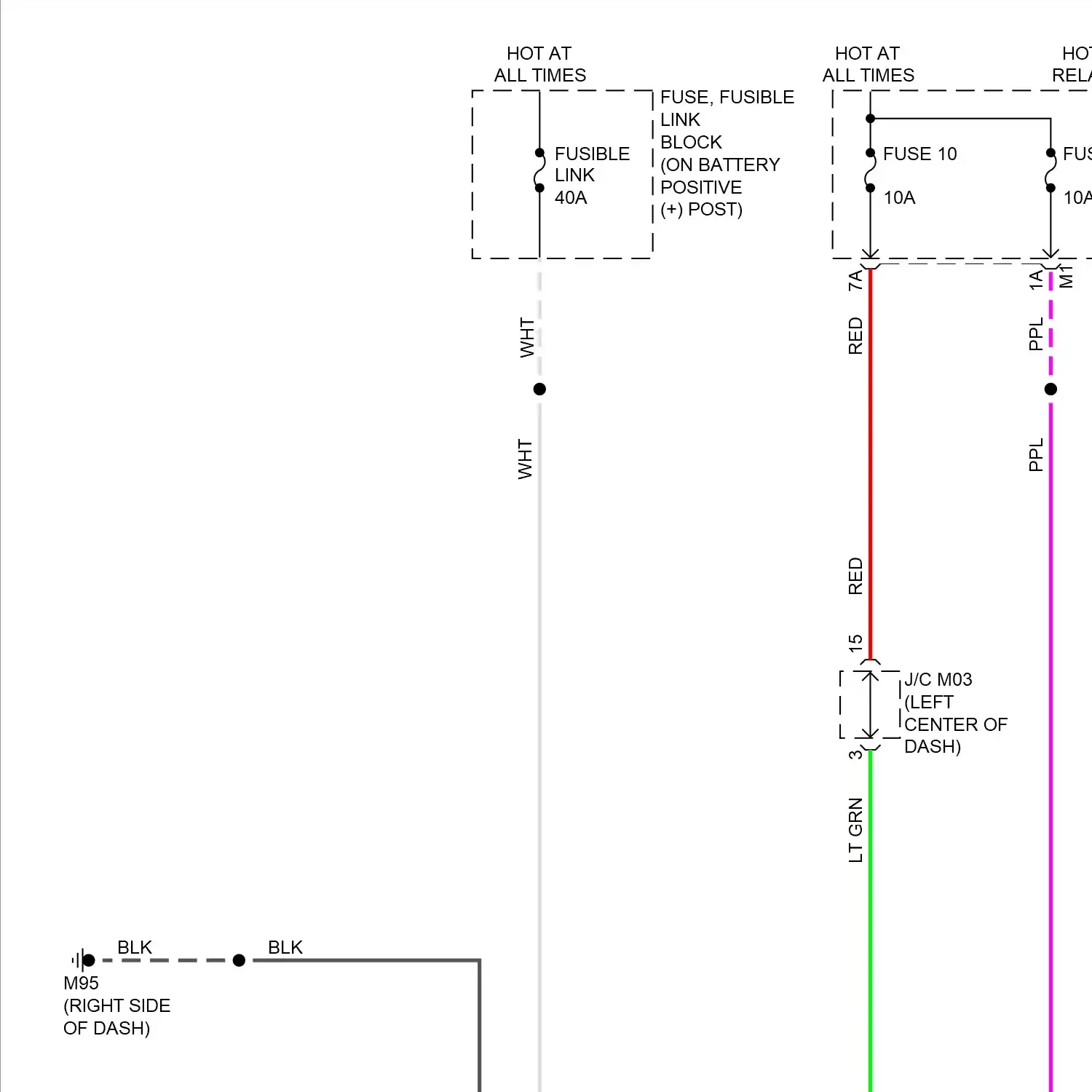

Courtesy lamps circuit Instrument illumination circuit

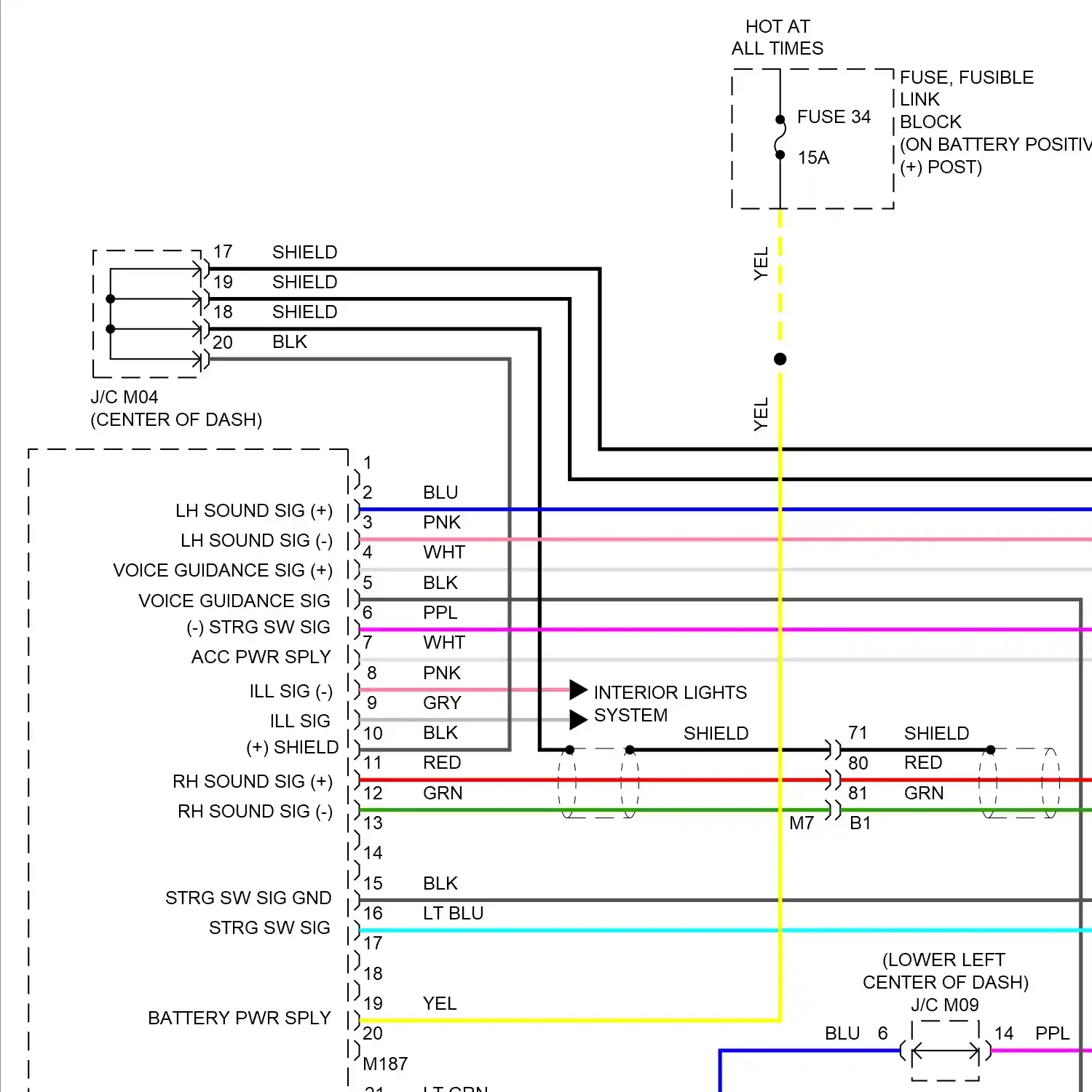

Navigation circuit, w/ bose Navigation circuit, w/o bose Rear view camera circuit Sonar circuit Telematics circuit

Power distribution circuit

Power door locks circuit, w/ intelligent key unit Power door locks circuit, w/o intelligent key unit

Auto anti-dazzling inside mirror circuit Power mirrors circuit

Driver power seat circuit Heated seats circuit Passenger power seat circuit

Power windows circuit

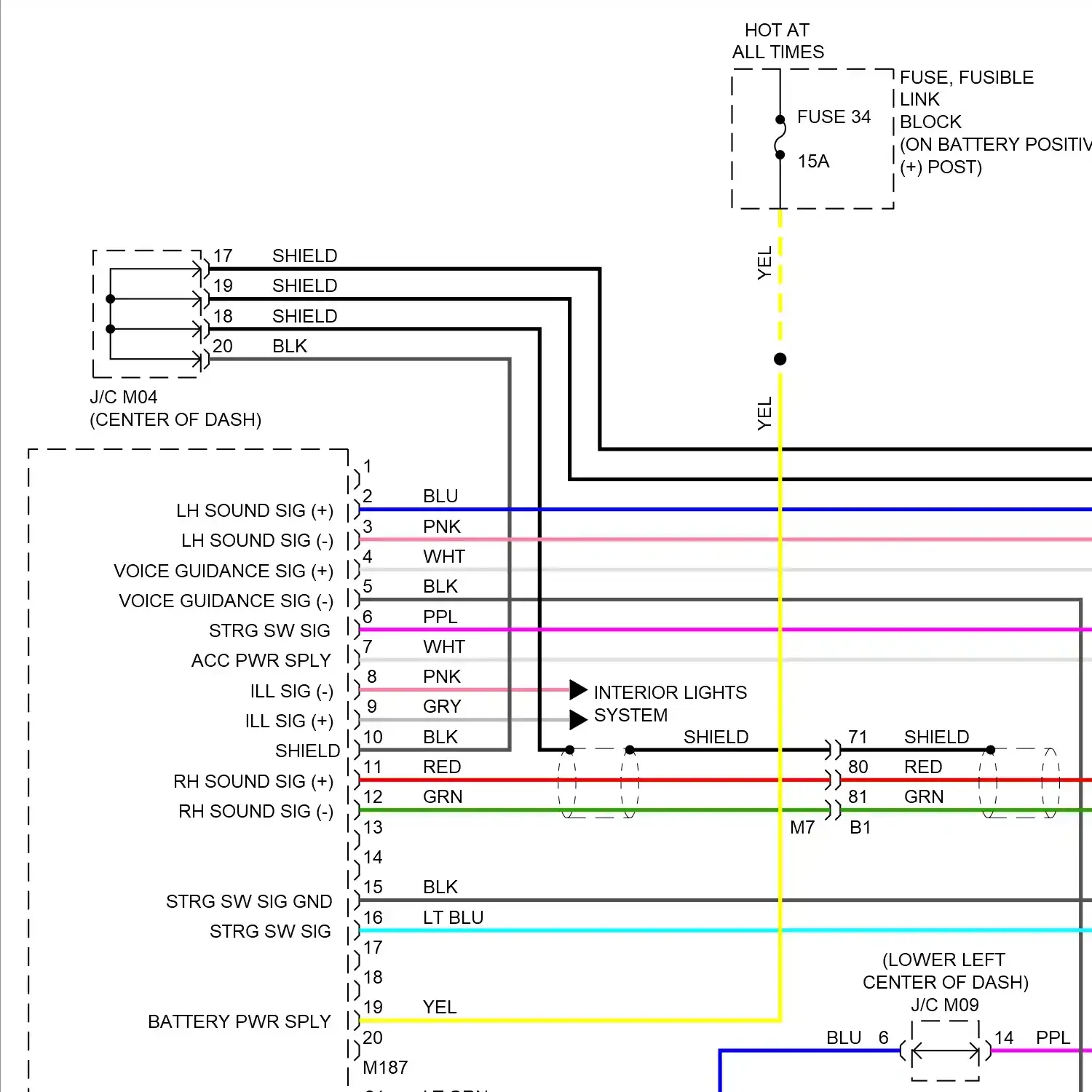

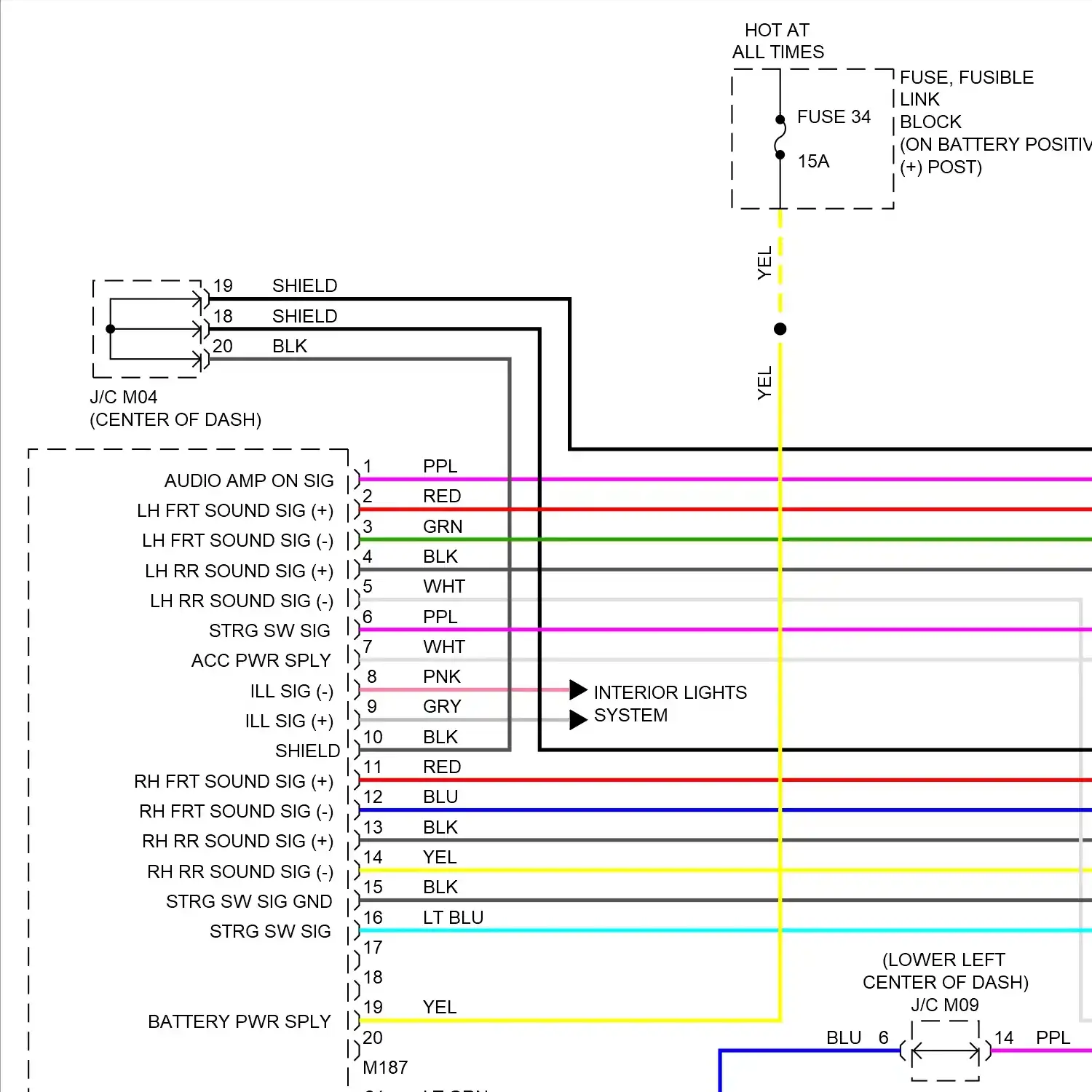

Radio circuit, w/ bose Radio circuit, w/o bose

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

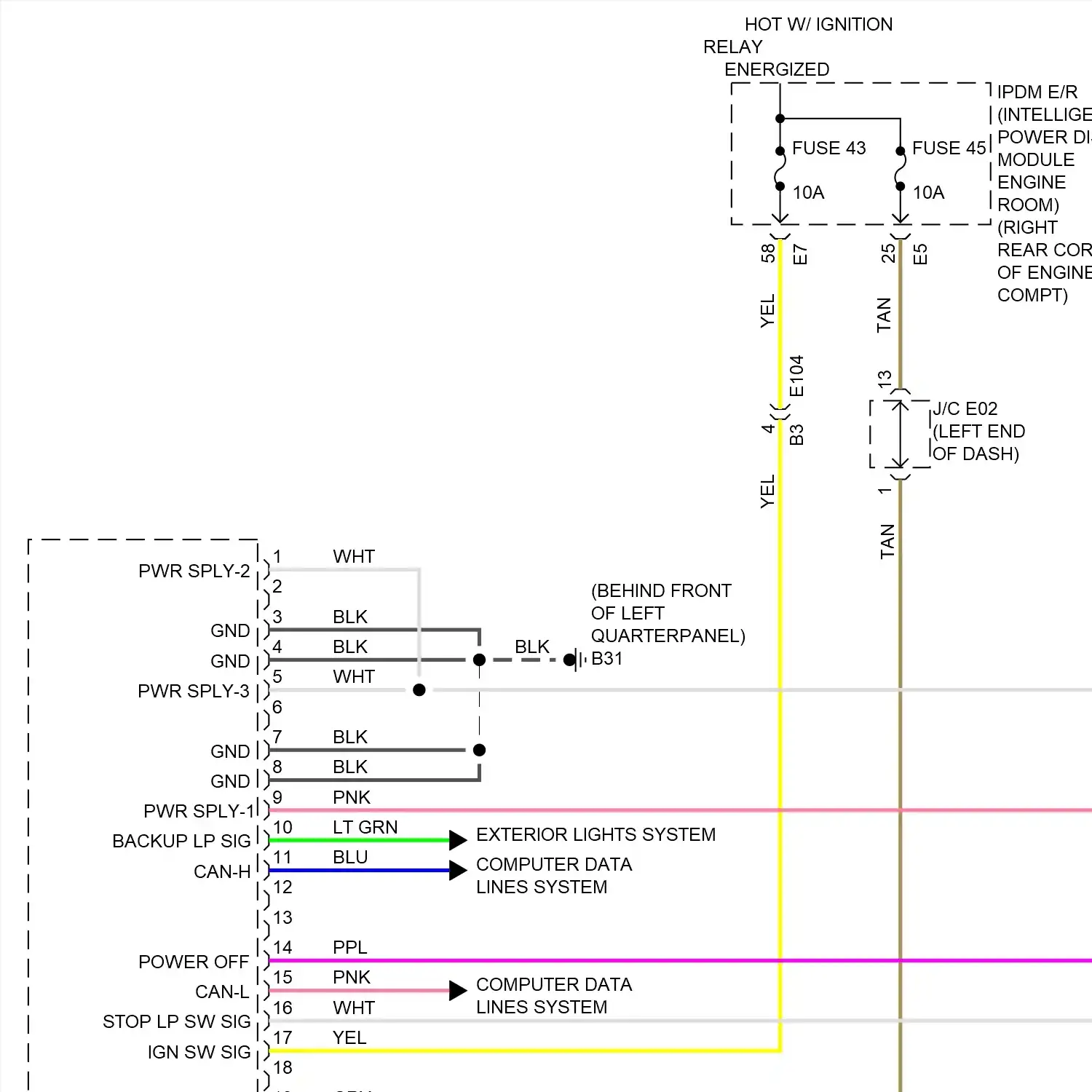

4wd circuit A/t circuit

Trunk release circuit

Chime circuit Tire pressure monitoring circuit

Wiper/washer circuit

A/C AUTO AMPLIFIER ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, EXTERIOR LIGHTS SYSTEMS BATTERY PWR SPLY DIODE 1 DIODE 2 DIODE 3 DIODE 4 LOCK IND LOCK/UNLOCK SW STARTER RLY CONT STARTER RLY SIG TRUNK LID LOCK ASSEMBLY UN- LOCK LOCK VEHICLE SECURITY HORN W/ BOSE AMPLIFIER

BLOWER MOTOR COOLING FAN MOTOR 1 COOLING FAN MOTOR 2 DOOR LOCK ACTUATOR DRIVER SIDE DOOR LOCK ACTUATOR DRIVER SIDE POWER WINDOW MOTOR ENGINE CONTROLS SYSTEM ENGINE SPEED SIG FRONT WIPER MOTOR FUEL LID LOCK ACTUATOR INTAKE DOOR MOTOR LEFT AIR MIX DOOR MOTOR LEFT FRONT SHOCK ABSORBER ACTUATOR LEFT REAR SHOCK ABSORBER ACTUATOR MODE DOOR MOTOR MOTOR RLY CONT PASSENGER SIDE DOOR LOCK ACTUATOR PASSENGER SIDE POWER WINDOW MOTOR REAR LIFTING MOTOR RECLINING MOTOR RIGHT AIR MIX DOOR MOTOR RIGHT FRONT SHOCK ABSORBER ACTUATOR RIGHT REAR SHOCK ABSORBER ACTUATOR SLIDING MOTOR STARTER MOTOR THIGH SUPPORT MOTOR THROTTLE CONTROL MOTOR TRUNK LID OPENER ACTUATOR

AM/FM MAIN ANTENNA ANTENNA AMP GPS ANTENNA GPS ANTENNA SIG ON SIG ANTENNA AMP SATELLITE ANTENNA SIG SATELLITE RADIO ANTENNA TEL ANTENNA TELEMATICS ANTENNA

PUSH BUTTON IGNITION SWITCH PUSH BUTTON SW

CAMERA GND CAMERA IMAGE SIG CAMERA IMG SIG CAMERA PWR SPLY SHIELD CAMERA IMAGE SIG

CONSOLE POWER SOCKET DATA LINK CONNECTOR INSTRUMENT POWER SOCKET USB CONNECTOR USB CONNECTOR, AUX JACK

ACTUATOR CONTROL MODULE COOLING FAN CONTROL MODULE 1 COOLING FAN CONTROL MODULE 2 FRONT CONTROL MODULE LED HEADLAMP CONTROL MODULE

AV CONTROL UNIT AWD CONTROL UNIT E-SUS CONTROL UNIT HEATED SEAT CONTROL UNIT LOW TIRE PRESSURE WARNING CONTROL UNIT OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT POWER STEERING CONTROL UNIT S/L UNIT COMM S/L UNIT PWR S/L UNIT PWR SPLY SONAR CONTROL UNIT SONAR CONTROL UNIT SHIELD TRANSMISSION UNIT UNIFIED METER CONTROL UNIT

BAT FUSE BATT FUSE FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 15 FUSE 16 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 41 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 50 FUSE 51 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 57 FUSE 58 FUSE 59 FUSE 60 FUSE, FUSIBLE LINK BLOCK

HEADLIGHT SYSTEM

MAIN HEATER SEAT BACK HEATER SEAT CUSHION HEATER SUB HEATER

FRONT PASSENGER AIR BAG OFF INDICATOR SECURITY INDICATOR LAMP

BACKUP LAMP SIG COMF MODE LAMP SIG DRIVER SIDE STEP LAMP EXTERIOR LIGHTS, INTERIOR LIGHTS SYSTEMS EXTERIOR LIGHTS, TRANSMISSIONS SYSTEMS GLOVE BOX LAMP) HEADLIGHTS, INTERIOR LIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH MOUNTED STOP LAMP INSTRUMENT CLUSTER, DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS LAMP IND LEFT FRONT COMBINATION LAMP LEFT FRONT SIDE MARKER LAMP LEFT LICENSE PLATE LAMP LEFT REAR COMBINATION LAMP LEFT REAR SIDE MARKER LAMP LEFT VANITY MIRROR LAMP MAP LAMP PASSENGER SIDE STEP LAMP R MODE LAMP R MODE LAMP SIG RIGHT FRONT COMBINATION LAMP RIGHT FRONT SIDE MARKER LAMP RIGHT LICENSE PLATE LAMP RIGHT REAR COMBINATION LAMP RIGHT REAR SIDE MARKER LAMP RIGHT VANITY MIRROR LAMP ROOM LAMP PWR SPLY ROOM LAMP TIMER CTRL SAVE MODE LAMP STEP LAMP STOP LAMP SW STOP LAMP SW 1 STOP LAMP SW 2 TRUNK LAMP OUT TRUNK ROOM LAMP TRUNK ROOM LAMP SW

AIR PUMP AIR PUMP RLY FUEL PUMP CTRL FUEL PUMP RLY WASHER PUMP

A/C RELAY ACCESSORY RELAY AIR CUT SOLENOID VALVE RELAY AIR PUMP RELAY BACKUP LAMP RELAY BLOWER RELAY COOLING FAN RELAY 1 COOLING FAN RELAY 2 DAYTIME RUNNING LIGHT RELAY ECM RELAY FRONT FOG LAMP RELAY FRONT WIPER HIGH RELAY FRONT WIPER RELAY FUEL PUMP RELAY HEADLAMP HIGH RELAY HEADLAMP LOW RELAY HEATED SEAT RELAY HORN RELAY 1 HORN RELAY 2 HOT W/ ACCESSORY RELAY ENERGIZED HOT W/ IGNITION RELAY ENERGIZED IGN RELAY IGNITION RELAY REAR WINDOW DEFOGGER RELAY STARTER CONTROL RELAY STARTER RELAY STARTER RELAY CTRL STEERING LOCK RELAY SUB FUEL PUMP RELAY TAIL LAMP RELAY TCM RELAY THROTTLE CONTROL MOTOR RELAY

A/C AUTO AMP CONN REC SIGNAL AMBIENT SENSOR SIGNAL PNK WIRE ACCELERATOR PEDAL POSITION SENSOR AIR BAG DIAGNOSIS SENSOR UNIT AMBIENT SENSOR AMBIENT SENSOR GROUND AMBIENT SENSOR SIGNAL BATTERY CURRENT SENSOR CLUTCH A PRESSURE SENSOR CLUTCH A SPEED SENSOR CLUTCH B PRESSURE SENSOR CLUTCH B SPEED SENSOR CRASH ZONE SENSOR CRASH ZONE SENSOR SHIELD ECT SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL TEMPERATURE SENSOR EVAP CONTROL SYSTEM PRESSURE SENSOR FLUID TEMPERATURE SENSOR FRONT VERTICAL G SENSOR FUEL TANK TEMPERATURE SENSOR HEAT SENSOR IN-VEHICLE SENSOR IN-VEHICLE SENSOR SIGNAL INTAKE AIR TEMPERATURE SENSOR INTAKE SENSOR INTAKE SENSOR SIGNAL KNOCK SENSOR BANK 1 KNOCK SENSOR BANK 2 LEFT DOOR SATELLITE SENSOR LEFT FRONT CENTER SENSOR LEFT FRONT CORNER SENSOR LEFT FRONT WHEEL SENSOR LEFT REAR CENTER SENSOR LEFT REAR CORNER SENSOR LEFT REAR WHEEL SENSOR LEFT SATELLITE SENSOR LEFT SATELLITE SENSOR SHIELD LINE PRESSURE SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR OIL PRESSURE SENSOR OPTICAL SENSOR OUTPUT SHAFT SPEED SENSOR POSITION SENSOR POSITION SENSOR 1 POSITION SENSOR 2 POWER STEERING PRESSURE SENSOR RANGE SENSOR RANGE SENSOR 0 RANGE SENSOR 1 RANGE SENSOR 2 RANGE SENSOR 3 RANGE SENSOR 4 REAR VERTICAL G SENSOR REFRIGERANT PRESSURE SENSOR RIGHT DOOR SATELLITE SENSOR RIGHT FRONT CENTER SENSOR RIGHT FRONT CORNER SENSOR RIGHT FRONT WHEEL SENSOR RIGHT REAR CENTER SENSOR RIGHT REAR CORNER SENSOR RIGHT REAR WHEEL SENSOR RIGHT SATELLITE SENSOR RIGHT SATELLITE SENSOR SHIELD SECONDARY AIR INJECTION SYSTEM MASS AIR FLOW SENSOR SECONDARY AIR INJECTION SYSTEM MASS AIR FLOW SENSOR SHIELD, SENSOR 1 SENSOR 2 SENSOR 5 SENSOR GROUND SONAR SENSOR STEERING ANGLE SENSOR SUNLOAD SENSOR SUNLOAD SENSOR SIGNAL THROTTLE POSITION SENSOR UNLOCK SENSOR

CENTER SPEAKER LEFT FRONT DOOR SPEAKER LEFT REAR SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR SPEAKER

ASCD BRAKE SWITCH ASCD STEERING SWITCH AUTO/ MANUAL RANGE CHANGE SWITCH BRAKE FLUID LEVEL SWITCH CANCEL SWITCH COMBINATION SWITCH COMF MODE SWITCH DETECTION SWITCH DETENTION SWITCH DOOR MIRROR REMOTE CONTROL SWITCH DRIVER DOOR SWITCH DRIVER SIDE DOOR SWITCH DRIVER SIDE SEAT BELT BUCKLE SWITCH DRIVER'S DOOR SWITCH ELECTRIC CONTROL MUFFLER SWITCH HEATED SEAT SWITCH HOOD SWITCH HORN SWITCH ILLUMINATION CONTROL SWITCH LOCK SWITCH METER CONTROL SWITCH MIRROR SWITCH MULTI- FUNCTION SWITCH OPEN/CLOSE SWITCH PARK POSITION SWITCH PARKING BRAKE SWITCH PASSENGER DOOR SWITCH PASSENGER SIDE DOOR SWITCH PASSENGER SIDE SEAT BELT BUCKLE SWITCH POWER SEAT SWITCH POWER WINDOW MAIN SWITCH POWER WINDOW SUB-SWITCH PUSH SWITCH R MODE SWITCH REAR LIFTING SWITCH RECLINING SWITCH RESUME/ ACCELERATE SWITCH SAVE MODE SWITCH SET-UP SWITCH SET/COAST SWITCH SLIDING LIMIT SWITCH SLIDING SWITCH SONAR CANCEL SWITCH STEERING SWITCH STOP LAMP SWITCH TELEMATICS SWITCH THIGH SUPPORT SWITCH TIRE PRESSURE WARNING CHECK SWITCH TRIP A/B RESET SWITCH TRIP COMPUTER SWITCH TRUNK LID OPENER CANCEL SWITCH TRUNK LID OPENER REQUEST SWITCH TRUNK LID OPENER SWITCH TRUNK ROOM LAMP SWITCH WASHER LEVEL SWITCH

AXIS A FEED PRESSURE SOLENOID VALVE AXIS B FEED PRESSURE SOLENOID VALVE CLUTCH A SOLENOID VALVE CLUTCH B SOLENOID VALVE EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE EVAP CANISTER VENT CONTROL VALVE LINE PRESSURE SOLENOID VALVE LUBRICATING FLOW SOLENOID VALVE POWER STEERING SOLENOID VALVE SEQUENCE SOLENOID VALVE SHIFT LOCK SOLENOID SHIFT SOLENOID VALVE 1 SHIFT SOLENOID VALVE 2 SHIFT SOLENOID VALVE 3 SHIFT SOLENOID VALVE 4 SHIFT VALVE 1 SHIFT VALVE 2 + TURBOCHARGER BOOST CONTROL SOLENOID VALVE

(OR RED/ WIRE AMBIENT SENS GND PNK AMBIENT SENS SIG WIRE BLK WIRE BLK/GRN WIRE BLK/ORG WIRE BLK/PNK WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE CAN-H PNK CAN-L WIRE CAN-H PNK TAIL CAN-L WIRE GRN WIRE GRY WIRE HAZARD SW PNK CAN-L WIRE LR TUNER PWR PNK RF TUNER PWR WIRE LR TUNER RSSI PNK RF TUNER RSSI WIRE LT BLU WIRE LT GRN WIRE MIC GND PNK MIC SIG WIRE NCA WIRE ORG/ WIRE OUTPUT 2 PNK OUTPUT 1 WIRE OUTPUT 3 PNK OUTPUT 1 WIRE PNK ACC POWER SPLY WIRE PNK CAN-L WIRE PNK CUTOFF TELLTALE WIRE PNK PARKING BRAKE SIG WIRE PNK PARKING BRAKE WIRE PNK ST LMP 2 WIRE PNK WIRE RED WIRE RED/BLU WIRE RED/WHT WIRE RX PNK TX WIRE SELECT SW SIG PNK ALTERNATOR WIRE SHIELD MIC SHIELD PNK MIC SIG WIRE SHIELD MICROPHONE GND PNK MICROPHONE SIG WIRE TAN WIRE WHT WIRE WHT/BLK WIRE WHT/RED WIRE YEL WIRE

& RECEIVER (OR A/C AUTO AMP A/C CONTROL A/C LAN SIGNAL A/T SHIFT SELE- CTOR PWR SPLY S/L CONDITION 1 A/T SHIFT SELECTOR A/T SHIFT SELECTOR PWR SPLY ABS, BRAKE, VDC, VDC OFF INDICATORS ACC IND ACC OUT ACC OUTPUT ACC POWER SPLY ACC PWR SPLY ACC RLY CONT AIR BAG AIR BAG IND AIR BAG ON SIG AIR CONDITIONING SYSTEM AIR CONDITIONING, DOOR LOCKS, ANTI-THEFT, COMPUTER DATA LINES, MIRRORS SYSTEMS AIR CONDITIONING, MIRRORS, NAVIGATION, SOUND SYSTEMS ALL DR, FUEL LID LK O/P AM-FM MAIN ASCD BRAKE SW ASCD STEERING SW ASCD SW AU AD AUDIO AMP ON SIG AUDIO GND AUDIO L+ AUDIO R- AUTO ANTI-DAZZLING INSIDE MIRROR AUX AUDIO SIG GND AUX CHECK AUX PLUG DETECTION SIG AV COMMUNICATION BACKUP LAMPS CIRCUIT BACKUP LP SIG BATT CURRENT SENS BATT POWER SPLY BATT PWR SPLY BATT PWR SPLY GND CAN-H BK FD BLWR FAN MTR RLY CTRL BLWR MTR CTRL SIGNAL BODY COMPUTER SYSTEM BRK FLUID LVL SW BRK SW CAMSHAFT PHASE BANK 1 CAMSHAFT PHASE BANK 2 CAN CAN ENG COMM COMM SPD LINE LINE O/P SIG CAN COMM LINE CAN GATEWAY CAN I/F CAN L CAN-H CAN-H PPL BRK FLUID LVL SW CANCEL SW LED SIG CANCEL SW SIG CANL CANH CANL PUSH CHARGE IND CIRCUIT BREAKER CLH - CLUSTER SYSTEM CLUTCH A SENS SIG CLUTCH B SENS SIG COMB SW INPUT 1 COMB SW INPUT 2 COMB SW INPUT 3 COMB SW INPUT 4 COMB SW INPUT 5 COMB SW OUTPUT 1 COMB SW OUTPUT 2 COMB SW OUTPUT 3 COMB SW OUTPUT 4 COMB SW OUTPUT 5 COMBI IN 1 COMBI IN 2 COMBI IN 3 COMBI IN 4 COMBI IN 5 COMBI OUT 1 COMBI OUT 2 COMBI OUT 3 COMBI OUT 4 COMBI OUT 5 COMBI SW INPUT 1 COMBI SW INPUT 2 COMBI SW INPUT 3 COMBI SW INPUT 4 COMBI SW INPUT 5 COMBI SW OUTPUT 1 COMBI SW OUTPUT 2 COMBI SW OUTPUT 3 COMBI SW OUTPUT 4 COMBI SW OUTPUT 5 COMBINATION METER COMF MODE IND COMF MODE SW SIG COMM LINE COMPRESSOR) COMPUTER DATA LINES SYSTEM CONN REC SIGNAL COOLING FANS SYSTEM CRANKSHAFT POS CRUISE CONTROL SYSTEM CRUISE IND DATA LINK DEFOGGER SYSTEM DEPLOYMENT INFORMATION OUTPUT DEVELOPMENT INFORMATION OUTPUT DIAG K DIAG SIG DIMMER SIG DOOR DOOR DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, HORNS SYSTEMS DOOR LOCKS, ANTI-THEFT, HORNS, BODY COMPUTER SYSTEMS DOOR LOCKS, HEADLIGHTS, ANTI-THEFT SYSTEMS DOOR MIRROR DEFOGGER DP FL DP FR DP RL DP RR DR DOOR ANT+ DR LK/UNLK SW LK DR LK/UNLK SW UNLK DR REQ SW DR UNLOCK SENS DRIVER DOOR REQUEST SW DRIVER DOOR SW DRIVER POWER SEAT CIRCUIT DRIVER SIDE DRIVER SIDE DOOR MIRROR DRIVER SIDE FRONT SEAT DRV DOOR REQUEST SW DRV DOOR SW DRV DOOR UNLOCK SENS DRV DR ANT+ DRV DR REQUEST SW DRV DR SW DRV DR UNLK SENS DRV DR, FUEL LID UNLK O/P DRV SEAT BELT SIG PPL PARK BRK SW SIG PPL BRK FLUID SW SIG DS FL DS FR DS RL DS RR EACH DR MTR PWR SPLY ECM GND ECT SENS ECV SIGNAL ELECTRIC CTRL MUFFLER ELECTRONIC POWER STEERING SYSTEM ELECTRONIC SUSPENSION SYSTEM ENG COOLANT TEMP SENS ENG OIL TEMP SENS ENG SPD OUT SIG ENTER SW SIG EVAP CANISTER VENT CTRL VLV EVAP CANISTER PURGE VOLUME CTRL SOL VLV IGN SIG 2 FL ACT HI SIG FL ACT LOW SIG FLASHER SIG FM SUB FPC SIG FPCM CHECK FR ACT HI SIG FR ACT LOW SIG FRONT PASSENGER AIR BAG MODULE FRONT SENS GND FRT G SENS SIG FRT G SENS+ FRT MICROPHONE SIG FRT MICROPHONE SIG GND FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL LVL SENS GND FUEL LVL SENS SIG FUEL TANK TEMP SENS FUSIBLE LINK A FUSIBLE LINK B FUSIBLE LINK C FUSIBLE LINK D FUSIBLE LINK E FUSIBLE LINK F FUSIBLE LINK G FUSIBLE LINK H FUSIBLE LINK HOLDER FUSIBLE LINK I FUSIBLE LINK K FUSIBLE LINK M FWD BWD G SENS GND G SENS PWR GPS ANT SIG HAZ SW HAZARD SW HEADLAMP HIGH HEADLAMP LOW HEADLAMP WARNING IND HEADLIGHTS SYSTEM HI SIG HIGH BEAM IND HOT AT ALL TIMES HOT IN ON OR ACC HOT IN ON OR START IGN F/B IGN PWR SPLY IGN PWR SUPPLY IGN RLY IGN RLY CONT IGN SIG 1 IGN SIG 3 IGN SIG 4 IGN SIG 5 IGN SIG 6 IGN SIG SHIELD MIC OUTPUT SHIELD IGN SPLY IGN SW IGN SW ILL PWR IGN SW SIG IGNITION PWR SPLY IGNITION SIG ILL BATT ILL CONT ILL CTRL ILL SIG ILL+ GND IMMO ANT CTRL IMMO ANT SIG [+] INPUT 1 INPUT 1 PPL INPUT 3 INPUT 2 INPUT 4 INPUT 5 INPUT 5 PPL INPUT 3 INTAKE AIR TEMP SENS INTERIOR ROOM LP PWR SPLY KEY IND KEY SLOT KEY SLOT ILL KEY SLOT ILL O/P KEY SLOT ILL OUTPUT KEY SLOT SW KEY SW SIG KEYLESS ENTRY RECEIVER COMM KEYLESS ENTRY RECEIVER POWER SPLY KEYLESS ENTRY RECEIVER PWR SPLY LEFT DAYTIME RUNNING LIGHT LEFT FRONT DOOR SQUAWKER LEFT FRONT SEAT BELT PRE-TENSIONER LEFT FRONT SIDE AIR BAG MODULE LEFT FRONT TIRE PRESSURE RECEIVER LEFT FRONT TURN SIG LEFT REAR TIRE PRESSURE RECEIVER LEFT REAR TURN SIG LEFT SIDE CURTAIN AIR BAG MODULE LEFT TWEETER LF CENTER SENS SIG LF CORNER SENS SIG LF TUNER GND LF TUNER PWR LF TUNER RSSI LF TURN SIG LH AUDIO AUX SIG LH BUCKLE SW IN LH BUCKLE SW INPUT LH HEADLAMP WARNING SIG LH LED HEADLAMP LINE PRESS SENS LINE PRESS SENS SIG LOW SIG LR CENTER SENS SIG LR CORNER SENS SIG LR TUNER SIG LR TURN SIG LT LT MAGNET CLUTCH MASS AIR FLOW SENS MASS AIR FLOW SENS MANIFOLD ABSOLUTE PRESS SENS MENU DOWN MENU UP METER CTRL SW GND METER ILLUMINATION MIC GND MIC ON MIC OUTPUT SIG MIC POWER SPLY MIC SIG MIC VCC MICROPHONE GND MICROPHONE OUT SHIELD MICROPHONE OUT SIG MICROPHONE PWR SPLY MICROPHONE SHIELD MICROPHONE SIG MICROPHONE VCC MTR CLS MUFFLER SW NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS ODS IN OFF ON DOOR OIL LVL SENS GND OIL LVL SENS SIG OIL PRESS SENS GND OIL PRESS SENS PWR OIL PRESS SENS SIG ON IND. ON SIG AUDIO AMP ON SIG WFR AMP OPERATION SIG OPTICAL SENS OUT PUT OUT SPD SENS OUT SPD SENS SIG OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 P R N A PARK POS SW SIG PARKING BRAKE PARKING BRAKE SIG PARKING BRAKE SW SIG PARKING BRAKE SW SIG BUZZER PAS REQ SW PPL DRV REQ SW PASS DOOR ANT+ PASS DOOR REQUEST SW PASS DOOR SW PASS DR ANT+ PASS DR REQUEST SW PASS DR SW PASS DR UNLK O/P PASS REQ SW PASS SEAT BELT SW SIG PASSENGER DOOR REQUEST SW PASSENGER SIDE PASSENGER SIDE DOOR MIRROR PASSENGER SIDE FRONT SEAT PNP SIG POWER DISTRIBUTION SYSTEM POWER OFF POWER SOURCE 1 POWER SOURCE 2 POWER SUPPLY POWER WINDOWS SYSTEM PPL BATT PWR SPLY PPL BRAKE FLUID LVL SW SIG PPL IGN PPL LOW PPL PARKING BRAKE SW SIG PPL PPL PPL PWR OFF PPL PWR SPLY PRH - PRK POSITION SW SIG PUSH IGN SW ILL GND PUSH SW PWR SPLY PWR SPLY 1 PWR SPLY 2 PWR SPLY BACKUP-2 PWR SPLY BACKUP-3 PWR SPLY FOR ECM PWR SPLY-3 PWR STEERING PRESS SENS R MODE IND R MODE LP SIG R MODE SW SIG RANGE SEN 1 SIG RANGE SEN SIG RANGE SENS 2 SIG RANGE SENS 3 SIG REAR BUMPER ANT+ REAR DEF RLY REAR SENS GND REAR WINDOW DEFOGGER RECEIVER COMM RECEIVER GND RECEIVER PWR RECEIVER RSSI RECEIVER RSSI PPL RECEIVER - RECEIVER SIG RECEIVER SIG PPL RECEIVER + REFR PRESS SENS REFRIGERENT PRESS SENS REMOTE KEYLESS ENTRY RECEIVER RF CENTER SENS SIG RF CORNER SENS SIG RF TUNER GND RF TUNER SIG PPL LF TUNER SIG RF TURN SIG RH AUDIO AUX SIG RH BUCKLE SW IN RH BUCKLE SW INPUT RH HEADLAMP WARNING SIG RH LED HEADLAMP RIGHT DAYTIME RUNNING LIGHT RIGHT END OF DASH) RIGHT FRONT DOOR SQUAWKER RIGHT FRONT SEAT BELT PRE-TENSIONER RIGHT FRONT SIDE AIR BAG MODULE RIGHT FRONT TIRE PRESSURE RECEIVER RIGHT FRONT TURN SIG RIGHT REAR TIRE PRESSURE RECEIVER RIGHT REAR TURN SIG RIGHT SIDE CURTAIN AIR BAG MODULE RIGHT TWEETER RL ACT HI SIG RL ACT LOW SIG RLY SIG ROOM LP PWR SUPPLY ROOM LP TIMER CTRL RR ACT HI SIG RR ACT LOW SIG RR CENTER SENS SIG RR CORNER SENS SIG RR DEF RLY RR DEF SW RR G SENS SIG RR G SENS+ RR MICROPHONE SIG RR MICROPHONE SIG GND RR TUNER GND PPL LR TUNER GND RR TUNER PWR RR TUNER RSSI RR TUNER SIG RR TURN SIG RR WIND DEF F/B RR WIND DEF SW RR WINDOW DEF F/B RR WINDOW DEF SW S/L CONDITION 1 S/L CONDITION 2 SAVE MODE LP SIG SAVE MODE SW SIG SEAT BELT SEAT BELT IND SEATS SYSTEM SECURITY IND SENS 4 SIG SENS 5 SIG SENS GND SENS GND ACCELERATOR PDL POSITION SENS 2 AIR CUT SOL VLV RLY SENS GND SECONDARY AIR INJ SYS MASS AIR FLOW SENS SENS PWR SPLY SENS SIG SET IND SHIELD SHIELD SHIFT LK SOL CTRL SIG SHIFT N/P SHIFT P SHIFT P/N SHIFT-DOWN SW SIG SHIFT-UP SW SIG SIG OUT SIG OUTPUT SLD VLV BANK 1 SLD VLV BANK 2 SOL + SOL CTRL SIG SOL GND SOS CALL SW SIG SOS SW LED SIG SOUND SYSTEMS SPARK PLUG SPD OUT SIG SPEED SIG ST LMP SW START STOP STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STOP LP SW STOP LP SW SIG STP LP SW SIG STR RLY SIG STRG SW SIG A STRG SW SIG B STRG SW SIG GND SUPPLEMENTAL RESTRAINTS SYSTEM SW 1 SIG SW 2 SIG SW SIG TEL ANT SIG TEMP SENS THR CTRL MTR RLY TRANSMISSIONS SYSTEM TRUNK ANT+ TRUNK CANCEL TRUNK CANCEL SW TRUNK LID OPEN OUT TRUNK LID OPEN SW TRUNK LID REQ SW TRUNK LID REQUEST SW TRUNK LID SW TRUNK OPENER OUT TRUNK ROOM ANT+ TRUNK ROOM LMP SW TRUNK ROOM LP OUTPUT TRUNK SW TRUNK, TAILGATE, FUEL DOORS SYSTEM TURBOCHARGER BOOST CTRL SOL VAV SENS GND TURN IND TURN SIG TURN SIG LF TURN SIG RF TURN SIG RR PPL TURN SIG LR UNLOCK SW USB D+ SIG USB GND V BUS SIG VDC OFF SW VDC TOP POS LED VDC UP SW VEH SPD SENS SIG PPL VEH SPD SENS SIG VEHICLE SPD SIG VOLUME DOWN VOLUME UP W/ BOSE AUDIO W/O BOSE AUDIO W/ ELECTRIC CONTROL MUFFLER WARNING SYSTEMS WASHER LVL SW SIG WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM
