Power mirrors circuit for Nissan Armada I facelift (2007-2016)

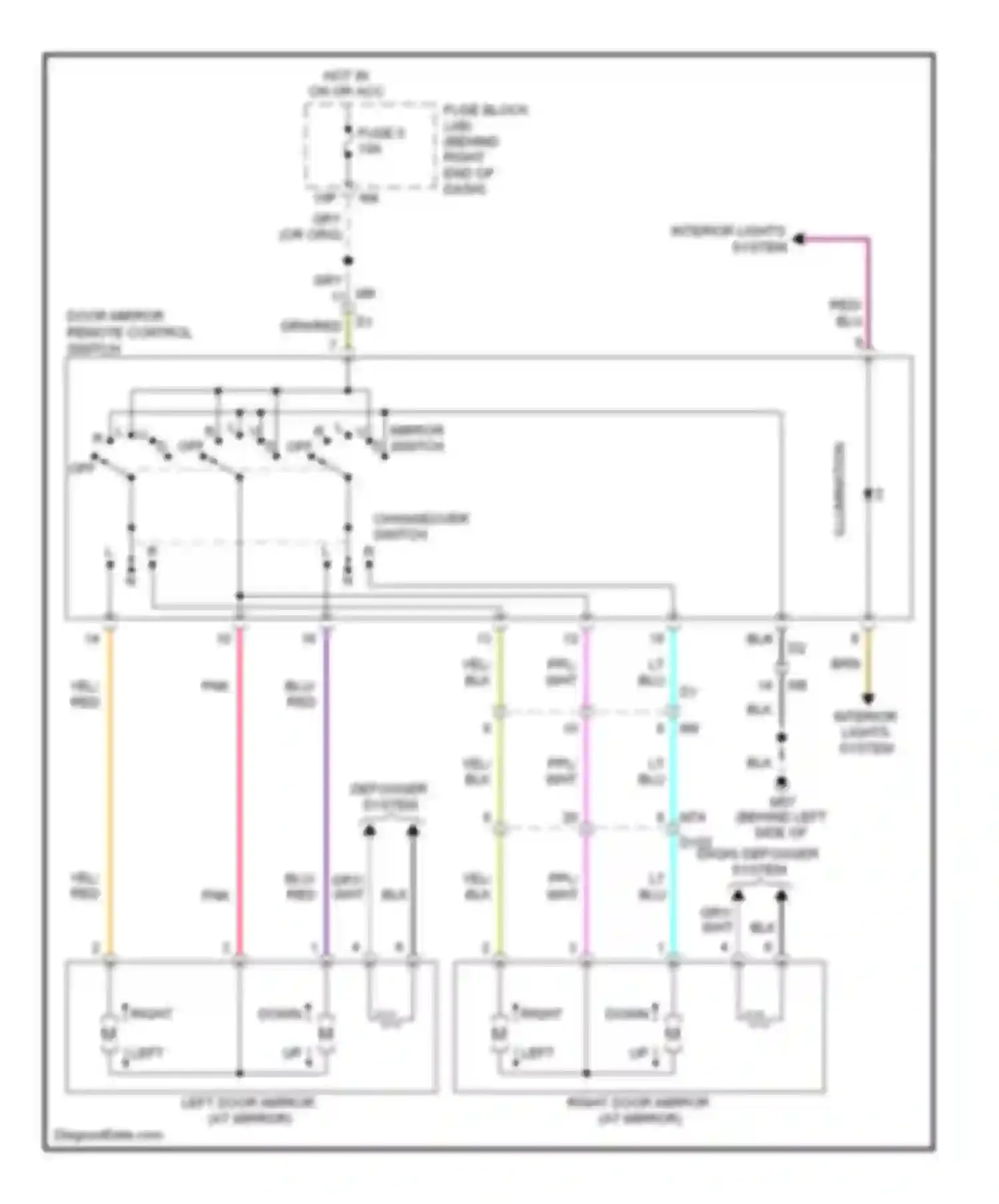

Power mirrors circuit
BLK WIRE
BLU WIRE
BRN WIRE
CHANGEOVER SWITCH
DEFOGGER SYSTEM
DOOR MIRROR REMOTE CONTROL SWITCH
DOWN
FUSE 5
FUSE BLOCK (J/B) (BEHIND RIGHT END OF DASH)
GRN/RED WIRE
GRY WIRE
HOT IN ON OR ACC
ILLUMINATION
LEFT
LEFT DOOR MIRROR (AT MIRROR)
MIRROR SWITCH OFF
OFF
PNK WIRE
PPL
RED WIRE
RIGHT
RIGHT DOOR MIRROR (AT MIRROR)
WHT WIRE
YEL WIRE
