Nissan Altima L32 facelift (2009-2013) up dn rear lifting switch Wiring diagram
This page shows the only wiring diagram for the component.up dn rear lifting switch, which is found in the car Nissan Altima L32 facelift (2009-2013). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

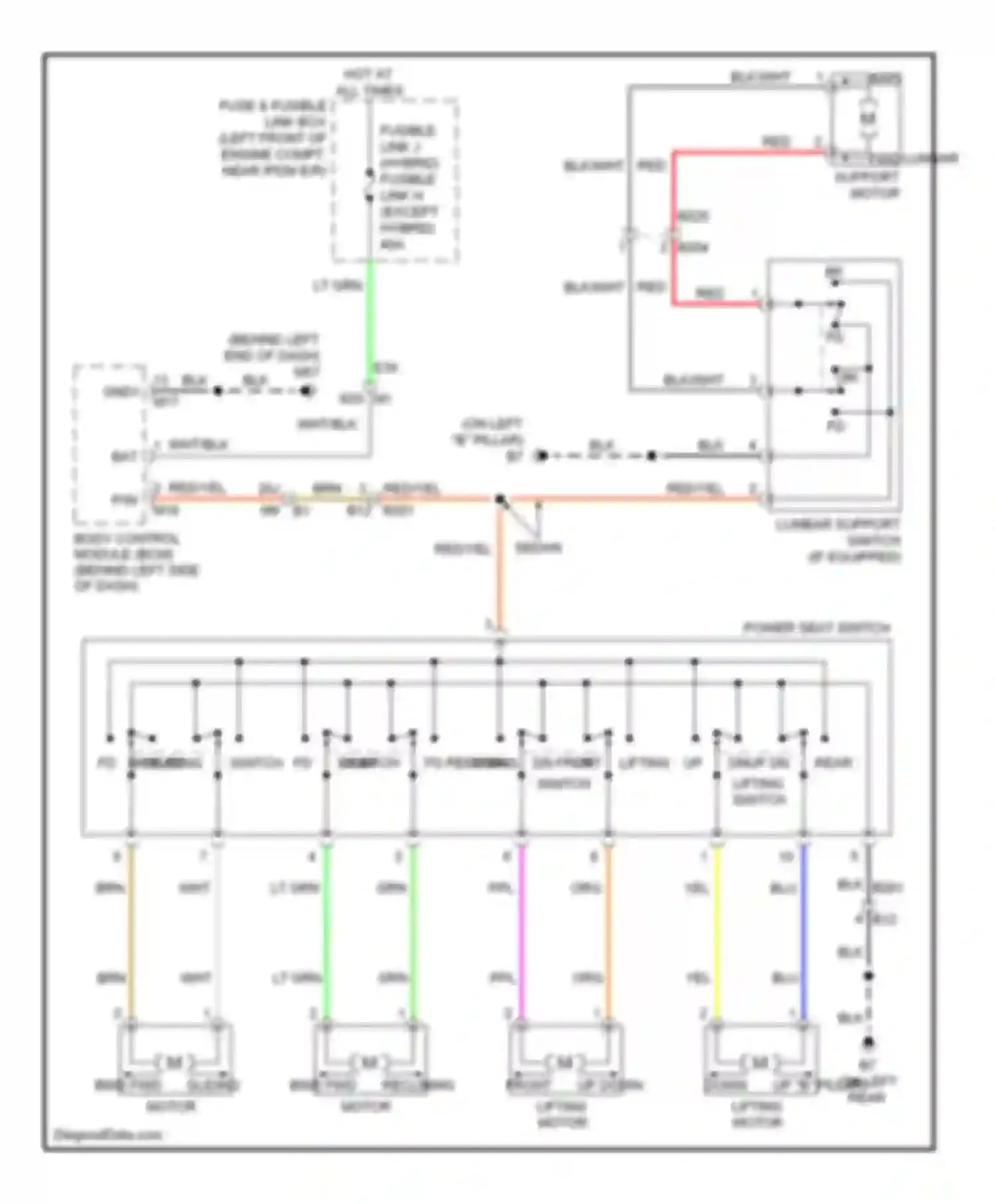

Wiring diagram up dn rear lifting switch (1 of 1)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BODY CONTROL MODULE (BCM) (BEHIND LEFT SIDE OF DASH)
BRN WIRE
BWD
BWD FWD RECLINING MOTOR
BWD FWD SLIDING MOTOR
FD BK BK FD RECLINING SWITCH
FD BK FD BK SLIDING SWITCH
FWD LUMBAR SUPPORT MOTOR
GRN WIRE
LT GRN WIRE
LUMBAR SUPPORT SWITCH (IF EQUIPPED)
ORG/ WIRE
P/W
POWER SEAT SWITCH
PPL
RED WIRE
RED/YEL WIRE
SEDAN
UP DN
UP DN REAR LIFTING SWITCH
UP DOWN FRONT LIFTING MOTOR
UP UP DN DN FRONT LIFTING SWITCH
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Driver power seat circuit -> UP DN REAR LIFTING SWITCH
