Nissan Altima L30 (1997-1999) ign washer sw wiper motor int vr pnk Wiring diagram
This page shows the only wiring diagram for the component.ign washer sw wiper motor int vr pnk, which is found in the car Nissan Altima L30 (1997-1999). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

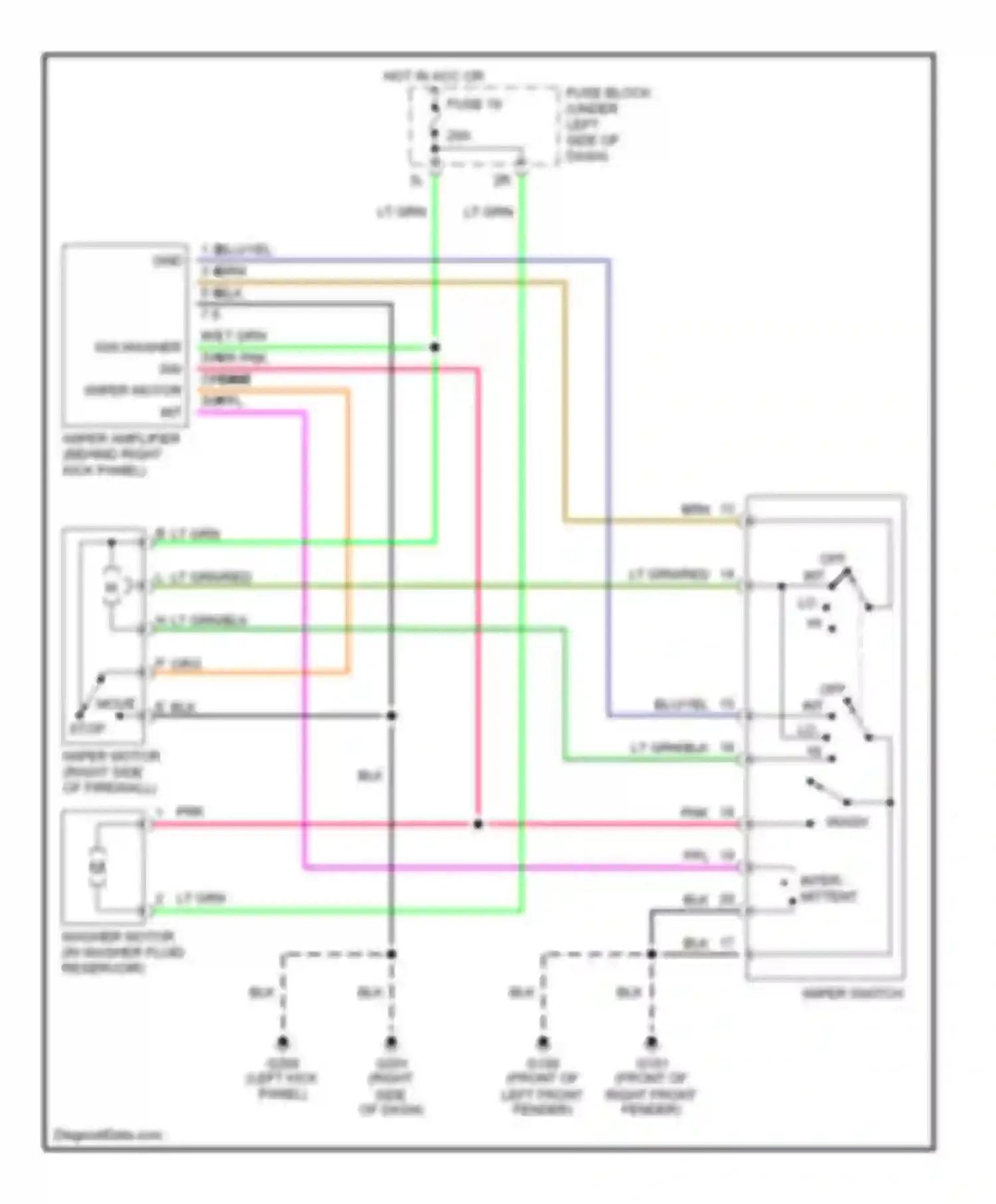

Wiring diagram ign washer sw wiper motor int vr pnk (1 of 1)
1 2 3 4 5 6 7 8 INT SW OFF/INT SW GND
BLK WIRE
BLU/YEL WIRE
BRN WIRE
FUSE 19
FUSE BLOCK (UNDER LEFT SIDE OF DASH)
HOT IN ACC OR ON
IGN WASHER SW WIPER MOTOR INT VR PNK WIRE
INTER- MITTENT
LO HI
LT GRN WIRE
LT GRN/BLK WIRE
LT GRN/RED WIRE
MOVE STOP
OFF INT
OFF INT LO HI
ORG/ WIRE
PNK WIRE
PPL
WASH
WASHER MOTOR (IN WASHER FLUID RESERVOIR)
WIPER AMPLIFIER (BEHIND RIGHT KICK PANEL)
WIPER MOTOR (RIGHT SIDE OF FIREWALL)
WIPER SWITCH
Go to component -> Wiper/washer circuit -> IGN WASHER SW WIPER MOTOR INT VR PNK WIRE
