Mitsubishi Outlander III facelift 3 (2018-2024) unfold/fold motor Wiring diagrams
This page contains all the electrical diagrams for the component. unfold/fold motor, in which he is found in the car Mitsubishi Outlander III facelift 3 (2018-2024). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

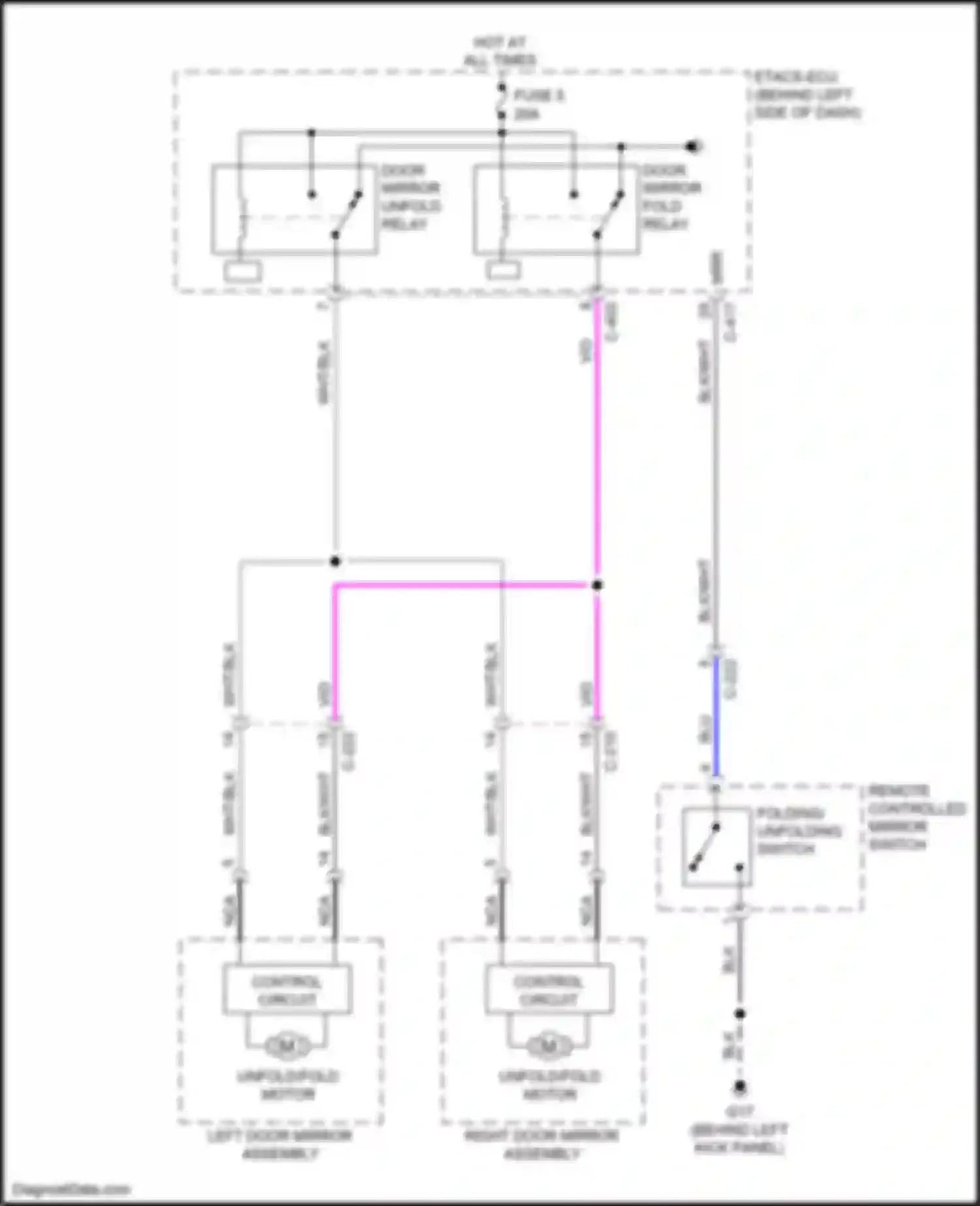

unfold/fold motor wiring diagram (1 of 2)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
C-210
C-222
C-403
C-417
CONTROL CIRCUIT
DOOR MIRROR FOLD RELAY
DOOR MIRROR UNFOLD RELAY
ETACS-ECU
FOLDING UNFOLDING SWITCH
FUSE 5
HOT AT ALL TIMES
LEFT DOOR MIRROR ASSEMBLY
MRR
NCA WIRE
REMOTE CONTROLLED MIRROR SWITCH
RIGHT DOOR MIRROR ASSEMBLY
UNFOLD/FOLD MOTOR
VIO WIRE
WHT/BLK WIRE
Go to component -> Fold-back mirrors circuit -> UNFOLD/FOLD MOTOR
unfold/fold motor wiring diagram (2 of 2)
BLIND SPOT WARNING LIGHT
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BRN WIRE
BRN/YEL WIRE
C-210
C-222
C-417
C-420
CONTROL CIRCUIT
DEFOGGER SYSTEM
DOWN
ETACS-ECU
FOLD-BACK MIRRORS CIRCUIT
FOLDING UNFOLDING SWITCH
FUSE 22
GRN WIRE
GRY WIRE
HEATER
HORIZONTAL
HOT W/ ACC RELAY 2 ENERGIZED
J/C 5 (C-01)
LEFT
LEFT DOOR MIRROR ASSEMBLY
LEFT OFF
LT GRN WIRE
MOTOR
MOVEMENT
MRR
NAVIGATION SYSTEM
NCA WIRE
PNK WIRE
RED WIRE
REMOTE CONTROLLED MIRROR SWITCH
RIGHT
RIGHT DOOR MIRROR ASSEMBLY
SIDE TURN- SIGNAL LIGHT ASSEMBLY
UNFOLD/FOLD MOTOR
VERTICAL
VIO WIRE
VIO/GRN WIRE
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Power mirrors circuit -> UNFOLD/FOLD MOTOR
