Mitsubishi Outlander III facelift (2014-2015) inside rearview mirror assembly Wiring diagrams
This page contains all the electrical diagrams for the component. inside rearview mirror assembly, in which he is found in the car Mitsubishi Outlander III facelift (2014-2015). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram inside rearview mirror assembly (1 of 2)
Go to component -> Automatic day/night mirror circuit -> INSIDE REARVIEW MIRROR ASSEMBLY

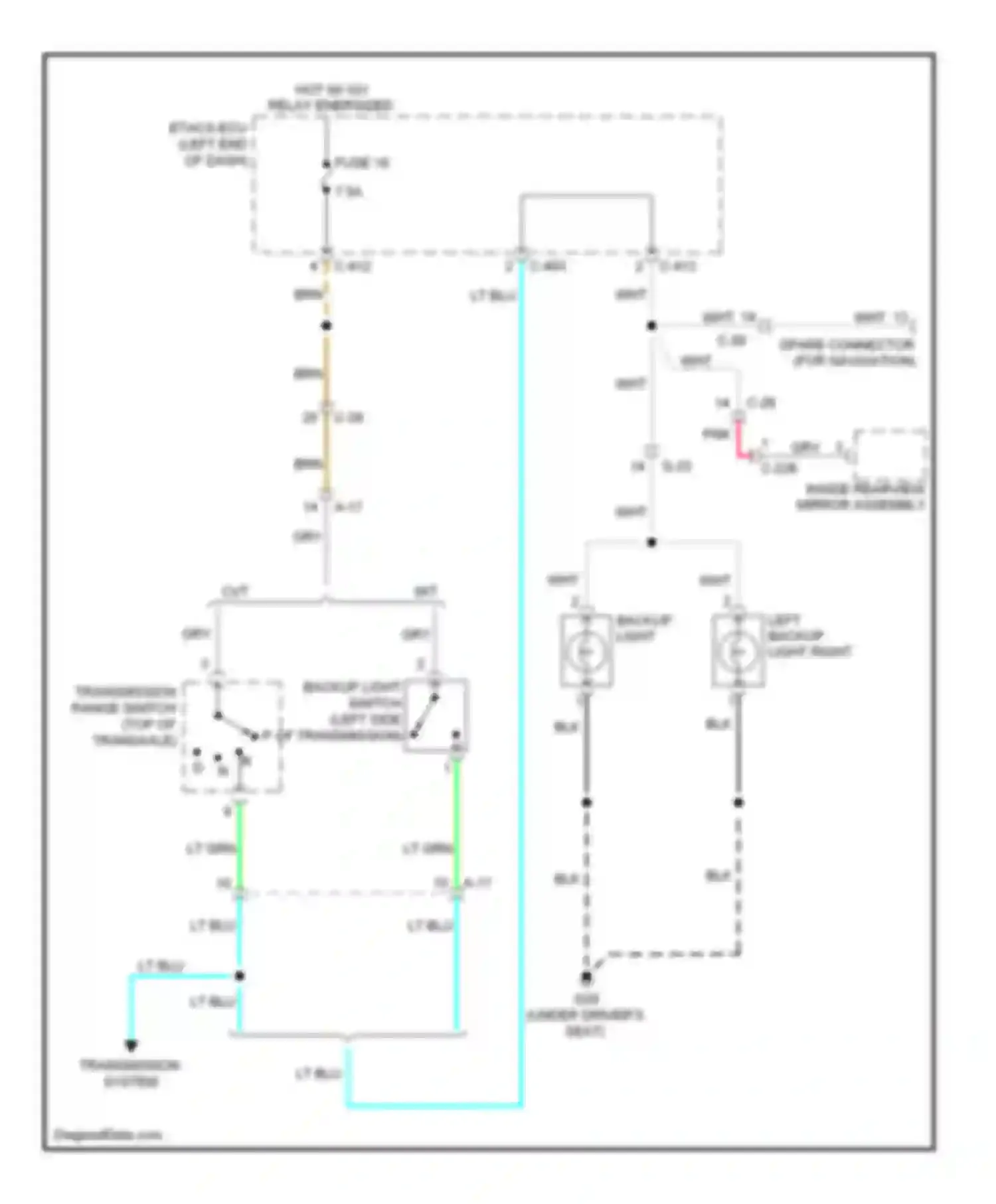

Wiring diagram inside rearview mirror assembly (2 of 2)
A-17
BACKUP LIGHT SWITCH (LEFT SIDE OF TRANSMISSION)
BLK WIRE
BRN WIRE
C-26
C-28
C-403
C-412
C-413
CVT
ETACS-ECU (LEFT END OF DASH)
FUSE 18
G-23 C-226
GRY WIRE
INSIDE REARVIEW MIRROR ASSEMBLY
LEFT BACKUP LIGHT RIGHT BACKUP LIGHT
LT BLU WIRE
LT GRN WIRE
M/T
PNK WIRE
RELAY ENERGIZED
SPARE CONNECTOR (FOR NAVIGATION)
TRANSMISSION RANGE SWITCH (TOP OF TRANSAXLE)
TRANSMISSION SYSTEM
WHT WIRE
Go to component -> Backup lamps circuit -> INSIDE REARVIEW MIRROR ASSEMBLY
