Mitsubishi Outlander III facelift 2 (2015-2018) turbine speed sensor Wiring diagram
This page shows the only wiring diagram for the component.turbine speed sensor, which is found in the car Mitsubishi Outlander III facelift 2 (2015-2018). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

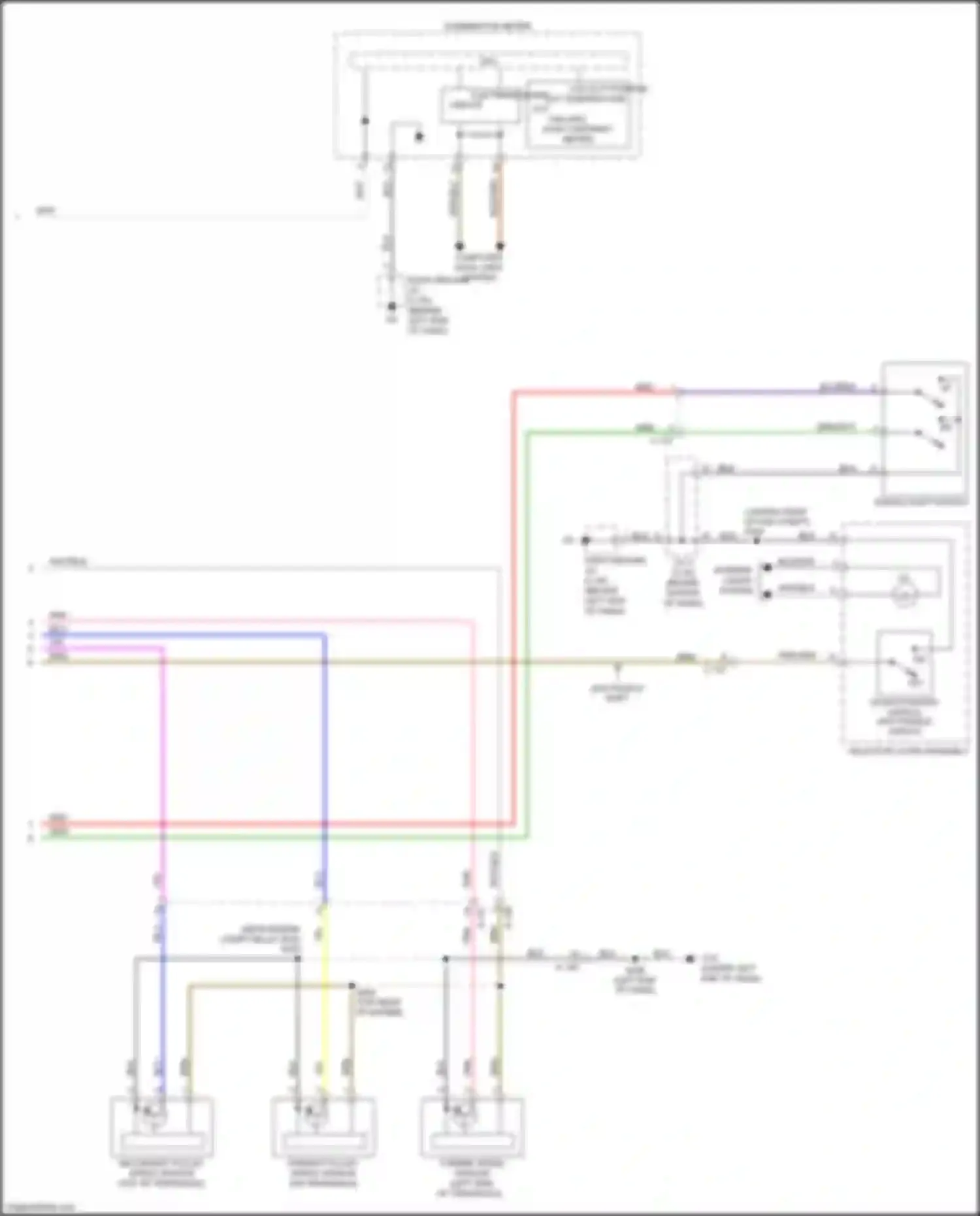

Wiring diagram turbine speed sensor (1 of 1)
A-106
A-107
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/RED WIRE
BRN WIRE
BRN/BLK WIRE
C-127
CAN TRANSCEIVER CIRCUIT
COMBINATION METER
COMPUTER DATA LINES SYSTEM
DASH GROUND J/C (C-30)
DOWN POSITION SWITCH
GRN WIRE
GRN/WHT WIRE
HIGH CONTRAST METER
ILL
J/C 4 (C-05)
LCD (CVT POSITION, CVT TEMPERATURE, CVT FAILURE)
OFF
PADDLE SHIFT SWITCH
PNK WIRE
PNK/GRN WIRE
PRIMARY PULLEY SPEED SENSOR
RED WIRE
RED/GRN WIRE
SECONDARY PULLEY SPEED SENSOR
SELECTOR LEVER ASSEMBLY
TURBINE SPEED SENSOR
VIO WIRE
W/O PADDLE SHIFT
W/O PADDLE SWITCH
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Cvt circuit (2 of 2) -> TURBINE SPEED SENSOR
