Mitsubishi Montero III (1999-2006) left right off Wiring diagram
This page shows the only wiring diagram for the component.left right off, which is found in the car Mitsubishi Montero III (1999-2006). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

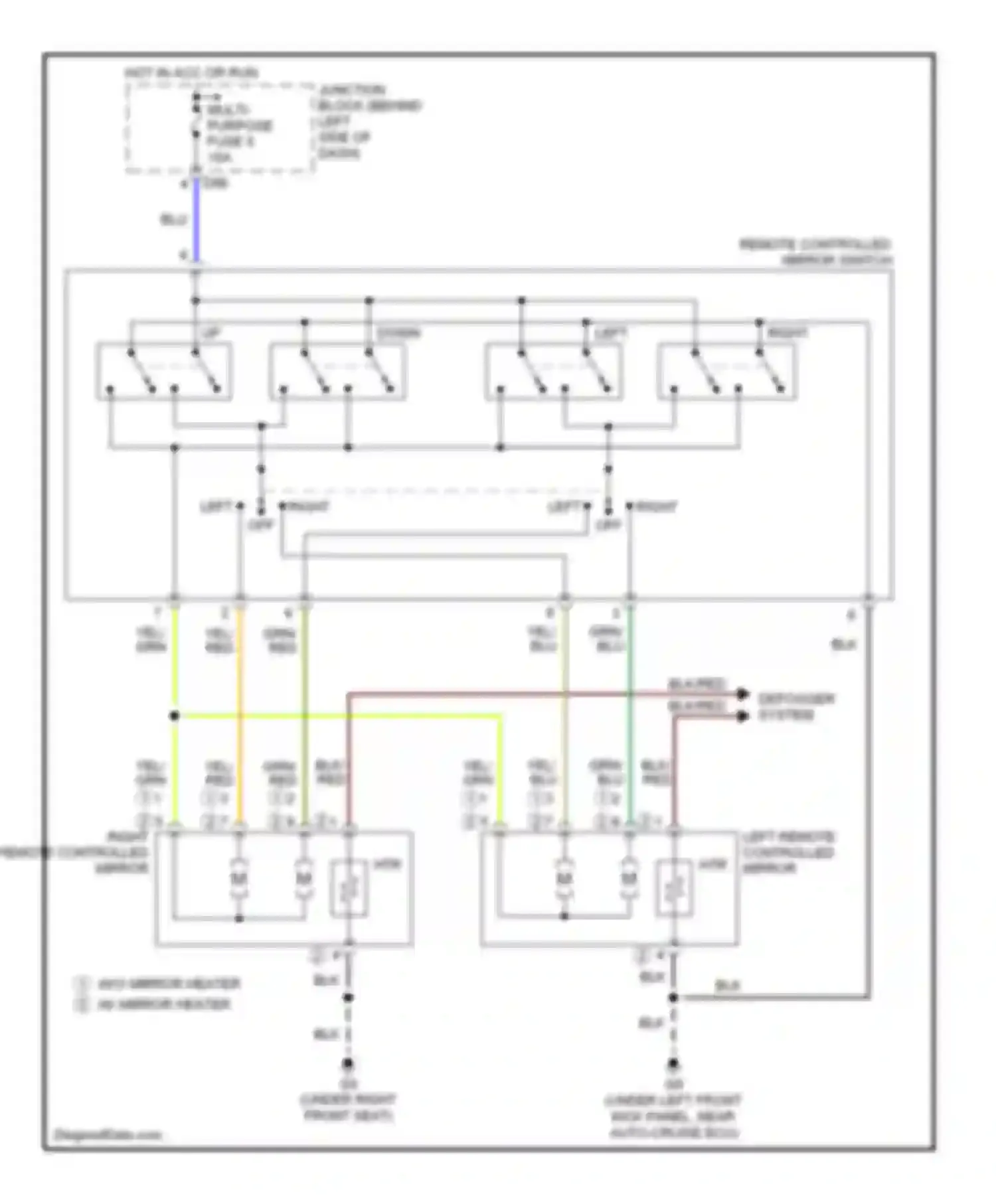

Wiring diagram left right off (1 of 1)
BLK WIRE
BLK/RED WIRE
BLU WIRE
DEFOGGER SYSTEM
DOWN
GRN WIRE
HOT IN ACC OR RUN
HTR
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
LEFT
LEFT REMOTE CONTROLLED MIRROR
LEFT RIGHT OFF
MULTI- PURPOSE FUSE 5
RED WIRE
REMOTE CONTROLLED MIRROR SWITCH
RIGHT
RIGHT OFF
RIGHT REMOTE CONTROLLED MIRROR
W/O MIRROR HEATER W/ MIRROR HEATER
YEL WIRE
Go to component -> Power mirrors circuit -> LEFT RIGHT OFF
