Mitsubishi Montero III (1999-2006) hot in run multi- purpose Wiring diagram
This page shows the only wiring diagram for the component.hot in run multi- purpose, which is found in the car Mitsubishi Montero III (1999-2006). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

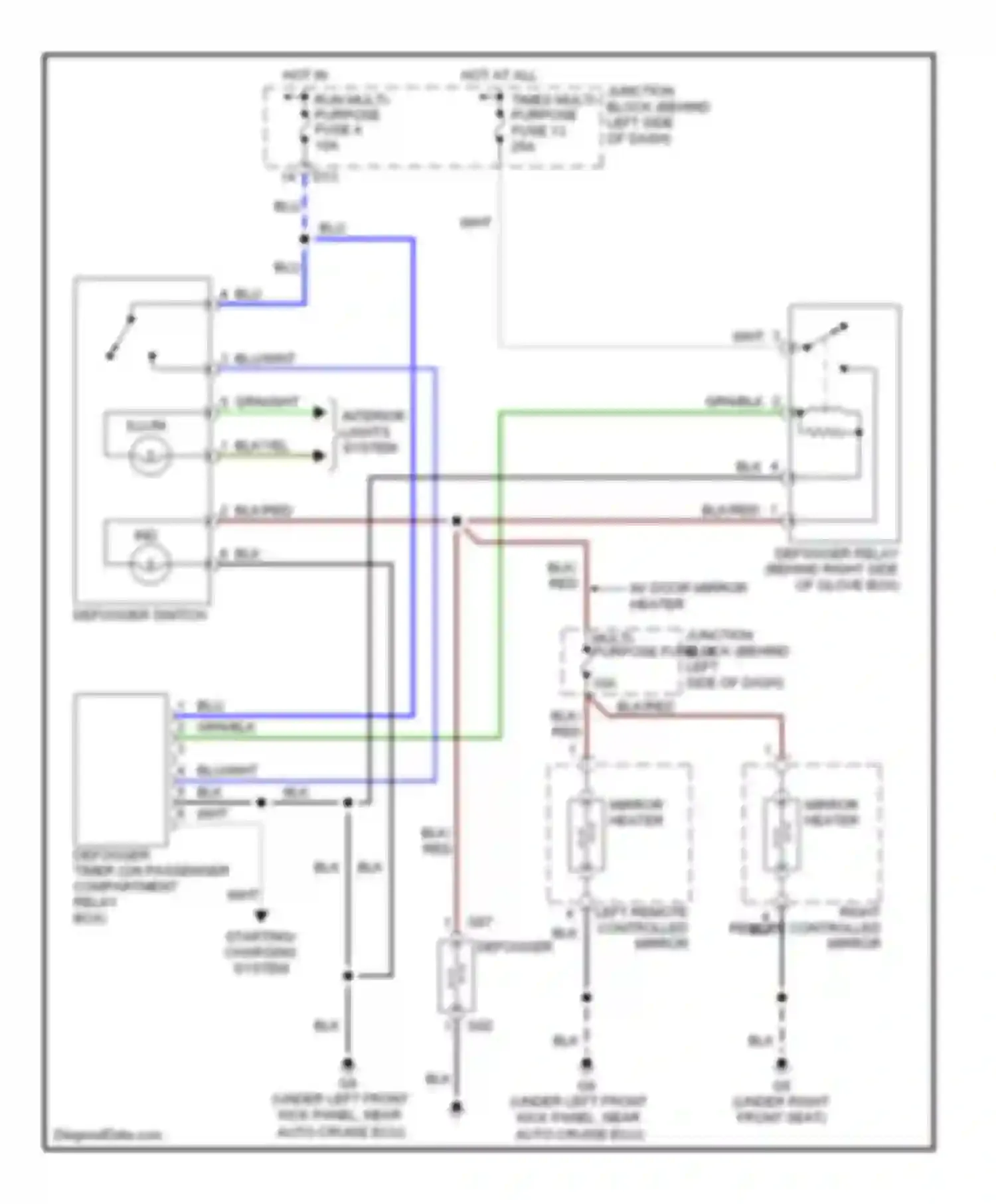

Wiring diagram hot in run multi- purpose (1 of 1)
BLK WIRE
BLK/RED WIRE
BLK/YEL WIRE
BLU WIRE
BLU/WHT WIRE
DEFOGGER
DEFOGGER RELAY (BEHIND RIGHT SIDE OF GLOVE BOX)
DEFOGGER SWITCH
DEFOGGER TIMER (ON PASSENGER COMPARTMENT RELAY BOX)
FUSE 4
GRN/BLK WIRE
GRN/WHT WIRE
HOT AT ALL TIMES MULTI- PURPOSE FUSE 13
HOT IN RUN MULTI- PURPOSE
ILLUM
IND
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH) MULTI- PURPOSE FUSE 18
LEFT REMOTE CONTROLLED MIRROR
MIRROR HEATER
RED WIRE
RIGHT REMOTE CONTROLLED MIRROR
STARTING/ CHARGING SYSTEM
W/ DOOR MIRROR HEATER
WHT WIRE
