Mitsubishi Montero III (1999-2006) hot in run Wiring diagrams

"G", YAW RATE SENSOR (IN CENTER CONSOLE, REAR OF PARKING BRAKE LEVER) 1 2 BUZZER BLK WIRE BLK/WHT WIRE BLU WIRE BLU/GRN WIRE BLU/ORG WIRE BLU/RED WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/GRN WIRE BRN/YEL WIRE DATA LINK CONNECTOR (LOWER LEFT SIDE OF DASH, RIGHT OF STEERING COLUMN) ENGINE COMPARTMENT RELAY BOX (LEFT SIDE OF ENGINE COMPT) FUSE 5 FUSE 6 FUSE 8 FUSIBLE LINK 31 FUSIBLE LINK 32 GRN WIRE GRN/BLK WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY/BLU WIRE HOT AT ALL TIMES HOT IN RUN HOT IN RUN OR START JOINT CONNECTOR 4 JOINT CONNECTOR 5 (BEHIND LEFT END OF DASH) JOINT CONNECTOR 6 (BEHIND LEFT SIDE OF DASH) JOINT CONNECTOR 9 JUNCTION BLOCK (BEHIND LOWER LEFT SIDE OF DASH) LT BLU WIRE MOTOR RELAY A (LEFT SIDE OF ENGINE COMPT) MOTOR RELAY B (LEFT SIDE OF ENGINE COMPT) NCA WIRE ORG/ WIRE ORG/BLU WIRE ORG/GRN WIRE PNK WIRE POWERTRAIN CONTROL MODULE (BEHIND LOWER RIGHT SIDE OF DASH) RED WIRE RED/BLK WIRE RED/BLU WIRE RED/WHT WIRE RED/YEL WIRE RESISTOR STEERING WHEEL SENSOR (ON LEFT SIDE OF UPPER STEERING COLUMN) TONE ALARM TRANSMISSIONS SYSTEM VIO/WHT WIRE WARNING SYSTEM WHT WIRE WHT/BLU WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/PNK WIRE YEL/RED WIRE YEL/WHT WIRE

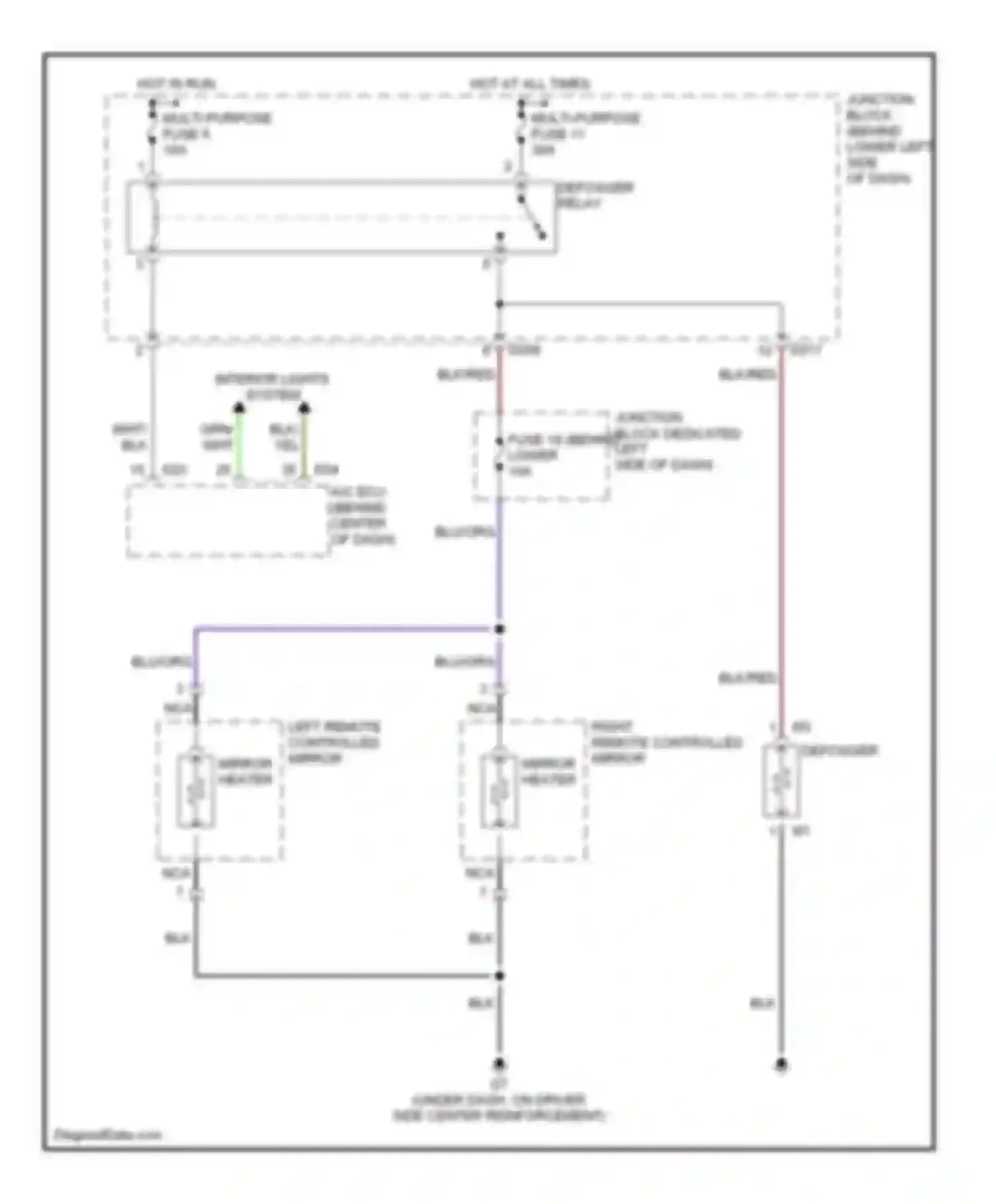

A/C-ECU (BEHIND CENTER OF DASH) BLK WIRE BLK/RED WIRE BLU/ORG WIRE DEFOGGER DEFOGGER RELAY GRN WIRE HOT AT ALL TIMES HOT IN RUN JUNCTION BLOCK (BEHIND LOWER LEFT SIDE OF DASH) JUNCTION BLOCK DEDICATED FUSE 18 (BEHIND LOWER LEFT SIDE OF DASH) LEFT REMOTE CONTROLLED MIRROR MIRROR HEATER MULTI- PURPOSE FUSE 11 MULTI- PURPOSE FUSE 5 NCA WIRE RIGHT REMOTE CONTROLLED MIRROR WHT WIRE YEL WIRE

BLK WIRE BLK/BLU WIRE BLK/RED WIRE BLK/YEL WIRE BLU WIRE BLU/RED WIRE DEDICATED FUSE 11 DOOR LOCKS SYSTEM DOWN DOWN UP ENGINE COMPARTMENT RELAY BOX (ON LEFT INNER FENDER PANEL) FUSIBLE LINK 10 GRN WIRE GRN/WHT WIRE HOT AT ALL TIMES HOT IN RUN JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH) LEFT FRONT POWER WINDOW MOTOR LEFT FRONT POWER WINDOW SWITCH LEFT REAR POWER WINDOW MOTOR LEFT REAR POWER WINDOW SUB SWITCH LEFT REAR POWER WINDOW SWITCH LOCK SWITCH LOCK UNLOCK DOOR LOCK SWITCH NCA WIRE PASSENGER COMPARTMENT RELAY BOX (BEHIND LEFT SIDE OF DASH) POWER WINDOW MAIN SWITCH POWER WINDOW RELAY RED WIRE RED/BLK WIRE RED/BLU WIRE RED/WHT WIRE RIGHT FRONT POWER WINDOW MOTOR RIGHT FRONT POWER WINDOW SUB SWITCH RIGHT FRONT POWER WINDOW SWITCH RIGHT REAR POWER WINDOW MOTOR RIGHT REAR POWER WINDOW SUB SWITCH RIGHT REAR POWER WINDOW SWITCH SWITCH ILLUMINATION LED UNLOCK LOCK UP DOWN
