Mitsubishi Montero III (1999-2006) cargo space light Wiring diagrams
This page contains all the electrical diagrams for the component. cargo space light, in which he is found in the car Mitsubishi Montero III (1999-2006). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

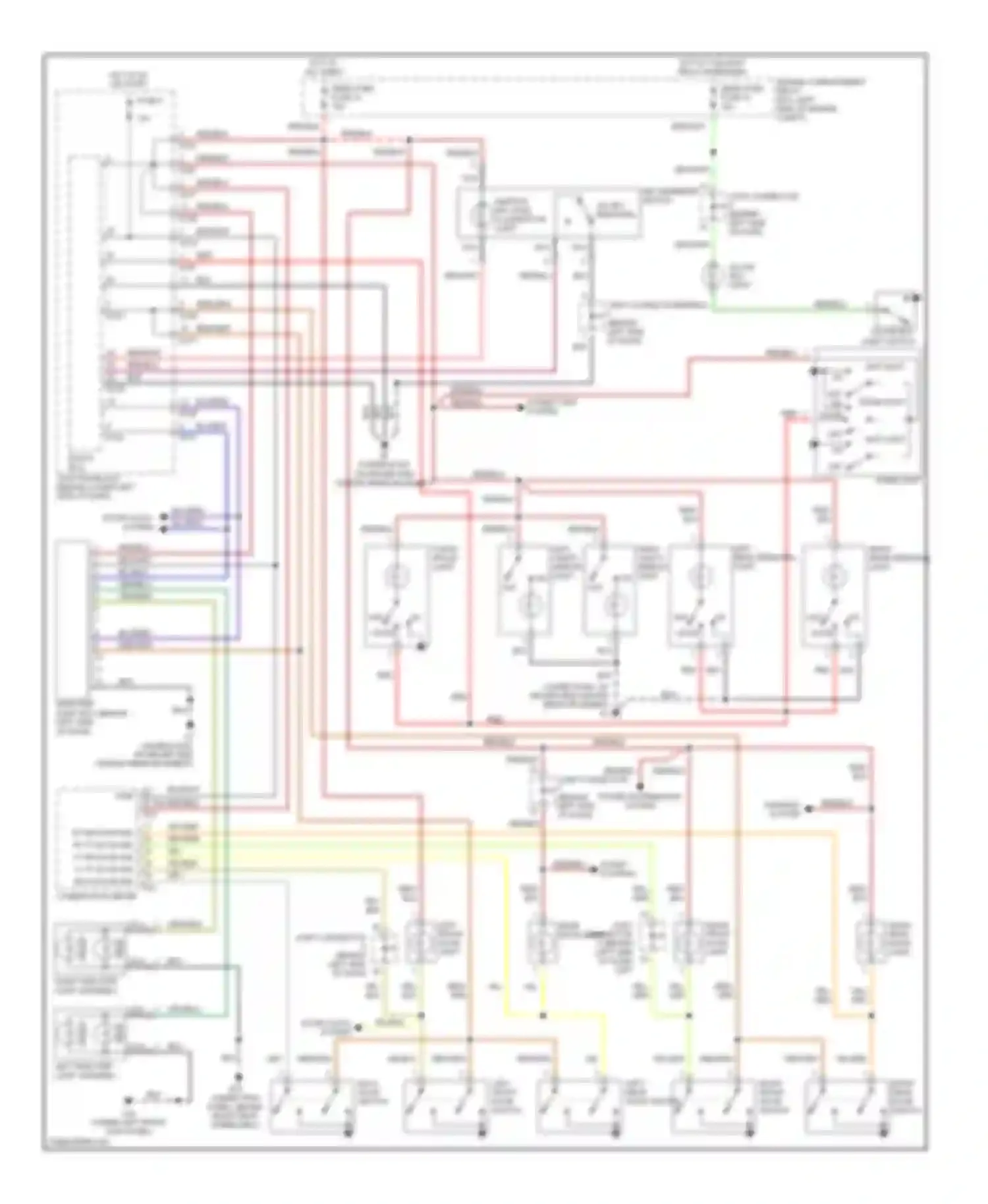

Wiring diagram cargo space light (1 of 2)
62 67 IGN PWR
BACK DOOR SWITCH
BLK WIRE
BLK/WHT WIRE
BLU/BLK WIRE
BLU/RED WIRE
CARGO SPACE LIGHT
COMBINATION METER
DEDICATED FUSE 18
DEDICATED FUSE 23
DOME LIGHT
DOOR
DOOR LOCKS SYSTEM
ENGINE COMPARTMENT RELAY BOX (LEFT SIDE OF ENGINE COMPT)
ETACS-ECU
FRONT
FUSE 6
GLOVE BOX LIGHT
GLOVE BOX LIGHT SWITCH
GRN WIRE
GRN/BLK WIRE
GRN/BLU WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN ON OR START
HOT W/ TAILLIGHT RELAY ENERGIZED
IGNITION KEY HOLE ILLUMINATION LIGHT
JOINT CONNECTOR 6 (BEHIND LEFT SIDE OF DASH)
JOINT CONNECTOR 6 (BEHIND LEFT SIDE OF DASH) LEFT REAR DOOR LIGHT
JOINT CONNECTOR 7 (BEHIND LEFT SIDE OF DASH)
JOINT CONNECTOR 8 (BEHIND LEFT SIDE OF DASH)
JUNCTION BLOCK (BEHIND LOWER LEFT SIDE OF DASH)
KEY REMINDER SWITCH
LEFT FRONT DOOR LIGHT
LEFT FRONT DOOR SWITCH
LEFT REAR DOOR SWITCH
LEFT REAR PERSONAL LIGHT
LEFT SIDE STEP LIGHT ASSEMBLY
LEFT VANITY MIRROR LIGHT
MAP LIGHT
NCA WIRE
OFF
OFF ON DOOR
ON OFF
POWER DISTRIBUTION SYSTEM
POWER TOPS SYSTEM
REAR
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/WHT WIRE
RIGHT FRONT DOOR LIGHT
RIGHT FRONT DOOR SWITCH
RIGHT REAR DOOR LIGHT
RIGHT REAR DOOR SWITCH
RIGHT REAR PERSONAL LIGHT
RIGHT SIDE STEP LIGHT ASSEMBLY
RIGHT VANITY MIRROR LIGHT
SIDE STEP LIGHT ECU (BEHIND LEFT SIDE OF DASH)
SOUND SYSTEMS
WARNING SYSTEM
YEL WIRE
YEL/BLK WIRE
YEL/GRN WIRE
YEL/RED WIRE
Go to component -> Courtesy lamps circuit -> CARGO SPACE LIGHT

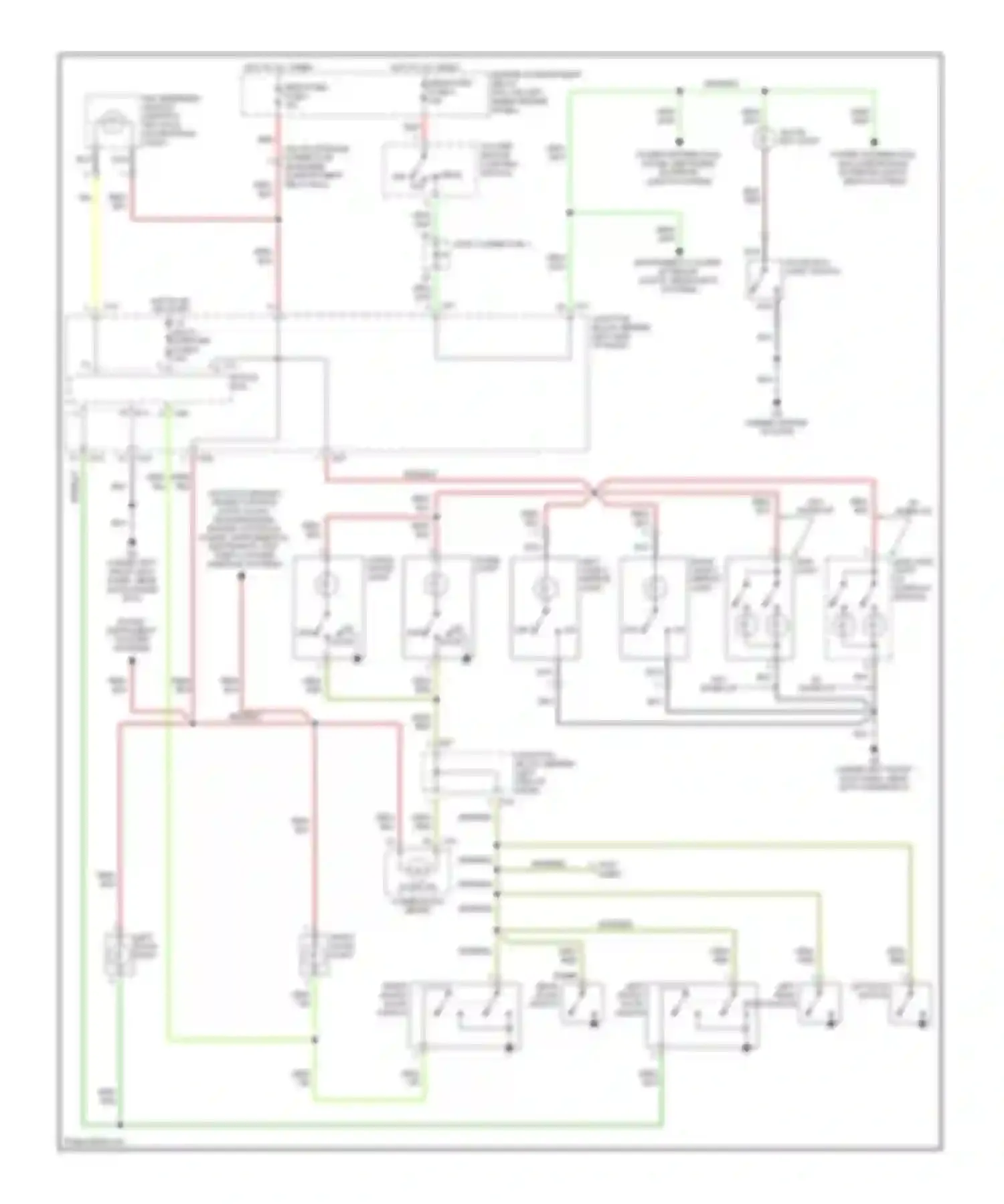

Wiring diagram cargo space light (2 of 2)
1 1 RIGHT REAR DOOR SWITCH
BLK WIRE
CARGO SPACE LIGHT
COLUMN SWITCH (LIGHTING SWITCH)
DEDICATED FUSE 1
DEDICATED FUSE 4
DOME LIGHT
DOOR IND COMBINATION METER
ENGINE COMPARTMENT RELAY BOX (ON LEFT INNER FENDER PANEL)
ETACS-ECU
GLOVE BOX LIGHT
GLOVE BOX LIGHT SWITCH
GRN WIRE
GRN/BLK WIRE
GRN/RED WIRE
GRN/WHT WIRE
HEAD OFF TAIL
HOT AT ALL TIMES
HOT IN ON OR START
INSTRUMENT CLUSTER, EXTERIOR LIGHTS, HEADLIGHTS SYSTEMS
IOD OR STORAGE CONNECTOR (IN ENGINE COMPARTMENT RELAY BOX)
JOINT CONNECTOR 3
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
KEY REMINDER SWITCH IGNITION KEY HOLE ILLUMINATION LIGHT
LEFT DOOR LIGHT
LEFT FRONT DOOR SWITCH
LEFT REAR DOOR SWITCH
LEFT VANITY MIRROR LIGHT
LIFTGATE SWITCH
MAP LIGHT
MAP LIGHT (PART OF SUNROOF SWITCH)
MULTI- PURPOSE FUSE 8
NCA WIRE
OFF
OFF DOOR
ON OFF
ON OFF DOOR
POWER DISTRIBUTION, AIR CONDITIONING, EXTERIOR LIGHTS, SEATS SYSTEMS
POWER DISTRIBUTION, SOUND, DEFOGGER, EXTERIOR LIGHTS SYSTEMS
RED WIRE
RED/BLK WIRE
RIGHT DOOR LIGHT
RIGHT FRONT DOOR SWITCH
RIGHT VANITY MIRROR LIGHT
SOUND, INSTRUMENT CLUSTER SYSTEMS
W/ SUNROOF
W/O SUNROOF
WHT WIRE
YEL WIRE
Go to component -> Courtesy lamps circuit, without keyless entry -> CARGO SPACE LIGHT
