Mitsubishi Montero III (1999-2006) blu/grn Wiring diagram
This page shows the only wiring diagram for the component.blu/grn, which is found in the car Mitsubishi Montero III (1999-2006). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

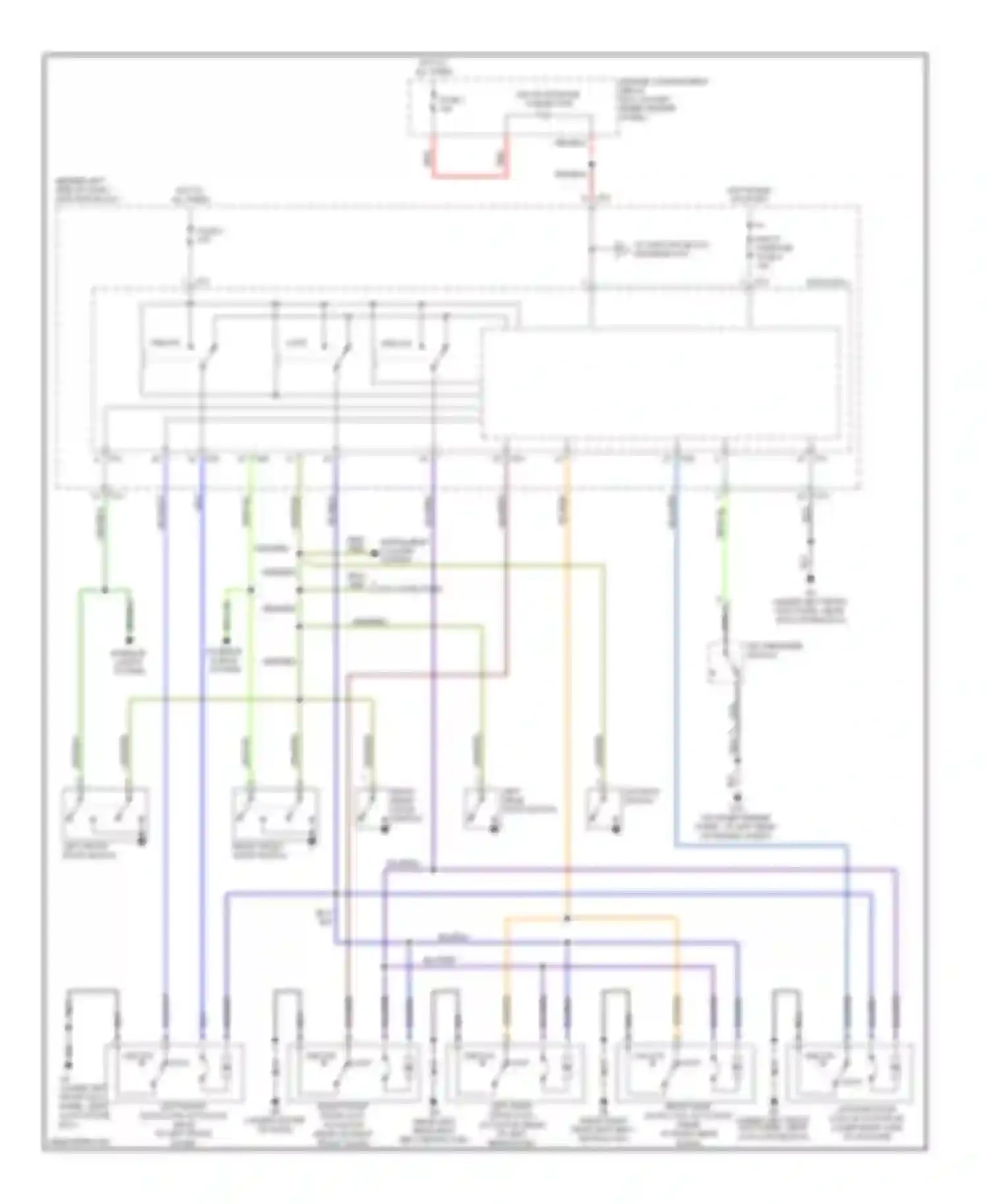

Wiring diagram blu/grn (11 of 11)
BLK WIRE
BLK/RED WIRE
BLU WIRE
BLU/BLK WIRE
BLU/GRN WIRE
BLU/RED WIRE
BLU/WHT WIRE
ENGINE COMPARTMENT RELAY BOX (ON LEFT INNER FENDER PANEL)
ETACS-ECU
FUSE 1
FUSE 3
GRN WIRE
GRN/BLK WIRE
GRN/RED WIRE
GRN/YEL WIRE
HOT AT ALL TIMES
HOT IN RUN OR START
INSTRUMENT CLUSTER SYSTEM
IOD OR STORAGE CONNECTOR
KEY REMINDER SWITCH
LEFT FRONT DOOR LOCK ACTUATOR (REAR OF LEFT FRONT DOOR)
LEFT FRONT DOOR SWITCH
LEFT REAR DOOR LOCK ACTUATOR (REAR OF LEFT REAR DOOR)
LEFT REAR DOOR SWITCH
LIFTGATE DOOR LOCK ACTUATOR (IN LOWER RIGHT SIDE OF LIFTGATE)
LIFTGATE SWITCH
LOCK
MULTI- PURPOSE FUSE 8
NCA WIRE
RED WIRE
RED/BLK WIRE
RIGHT FRONT DOOR SWITCH
RIGHT REAR DOOR LOCK ACTUATOR (REAR OF RIGHT REAR DOOR)
RIGHT REAR DOOR SWITCH
TO JUNCTION BLOCK (DIAGRAM 2 OF 2)
UNLOCK
UNLOCK LOCK
YEL/RED WIRE
Go to component -> Power door locks circuit, with keyless entry (1 of 2) -> BLU/GRN WIRE
