Mitsubishi Montero III (1999-2006) back door switch Wiring diagram
This page shows the only wiring diagram for the component.back door switch, which is found in the car Mitsubishi Montero III (1999-2006). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

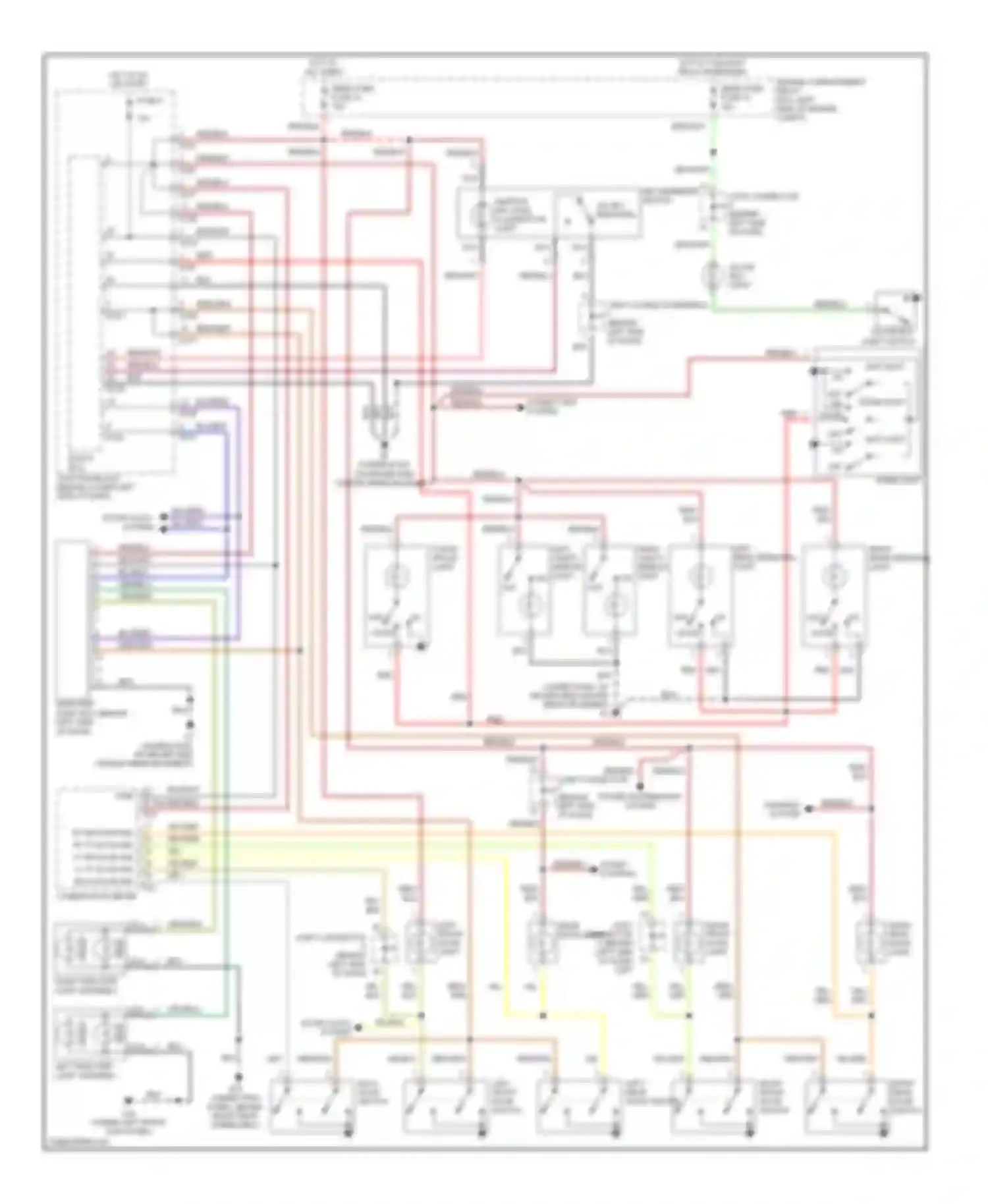

Wiring diagram back door switch (1 of 1)
62 67 IGN PWR
BACK DOOR SWITCH
BLK WIRE
BLK/WHT WIRE
BLU/BLK WIRE
BLU/RED WIRE
CARGO SPACE LIGHT
COMBINATION METER
DEDICATED FUSE 18
DEDICATED FUSE 23
DOME LIGHT
DOOR
DOOR LOCKS SYSTEM
ENGINE COMPARTMENT RELAY BOX (LEFT SIDE OF ENGINE COMPT)
ETACS-ECU
FRONT
FUSE 6
GLOVE BOX LIGHT
GLOVE BOX LIGHT SWITCH
GRN WIRE
GRN/BLK WIRE
GRN/BLU WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN ON OR START
HOT W/ TAILLIGHT RELAY ENERGIZED
IGNITION KEY HOLE ILLUMINATION LIGHT
JOINT CONNECTOR 6 (BEHIND LEFT SIDE OF DASH)
JOINT CONNECTOR 6 (BEHIND LEFT SIDE OF DASH) LEFT REAR DOOR LIGHT
JOINT CONNECTOR 7 (BEHIND LEFT SIDE OF DASH)
JOINT CONNECTOR 8 (BEHIND LEFT SIDE OF DASH)
JUNCTION BLOCK (BEHIND LOWER LEFT SIDE OF DASH)
KEY REMINDER SWITCH
LEFT FRONT DOOR LIGHT
LEFT FRONT DOOR SWITCH
LEFT REAR DOOR SWITCH
LEFT REAR PERSONAL LIGHT
LEFT SIDE STEP LIGHT ASSEMBLY
LEFT VANITY MIRROR LIGHT
MAP LIGHT
NCA WIRE
OFF
OFF ON DOOR
ON OFF
POWER DISTRIBUTION SYSTEM
POWER TOPS SYSTEM
REAR
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/WHT WIRE
RIGHT FRONT DOOR LIGHT
RIGHT FRONT DOOR SWITCH
RIGHT REAR DOOR LIGHT
RIGHT REAR DOOR SWITCH
RIGHT REAR PERSONAL LIGHT
RIGHT SIDE STEP LIGHT ASSEMBLY
RIGHT VANITY MIRROR LIGHT
SIDE STEP LIGHT ECU (BEHIND LEFT SIDE OF DASH)
SOUND SYSTEMS
WARNING SYSTEM
YEL WIRE
YEL/BLK WIRE
YEL/GRN WIRE
YEL/RED WIRE
