Mitsubishi Montero II (1991-2000) transmission, engine controls, supplemental restraint systems Wiring diagram
This page shows the only wiring diagram for the component.transmission, engine controls, supplemental restraint systems, which is found in the car Mitsubishi Montero II (1991-2000). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

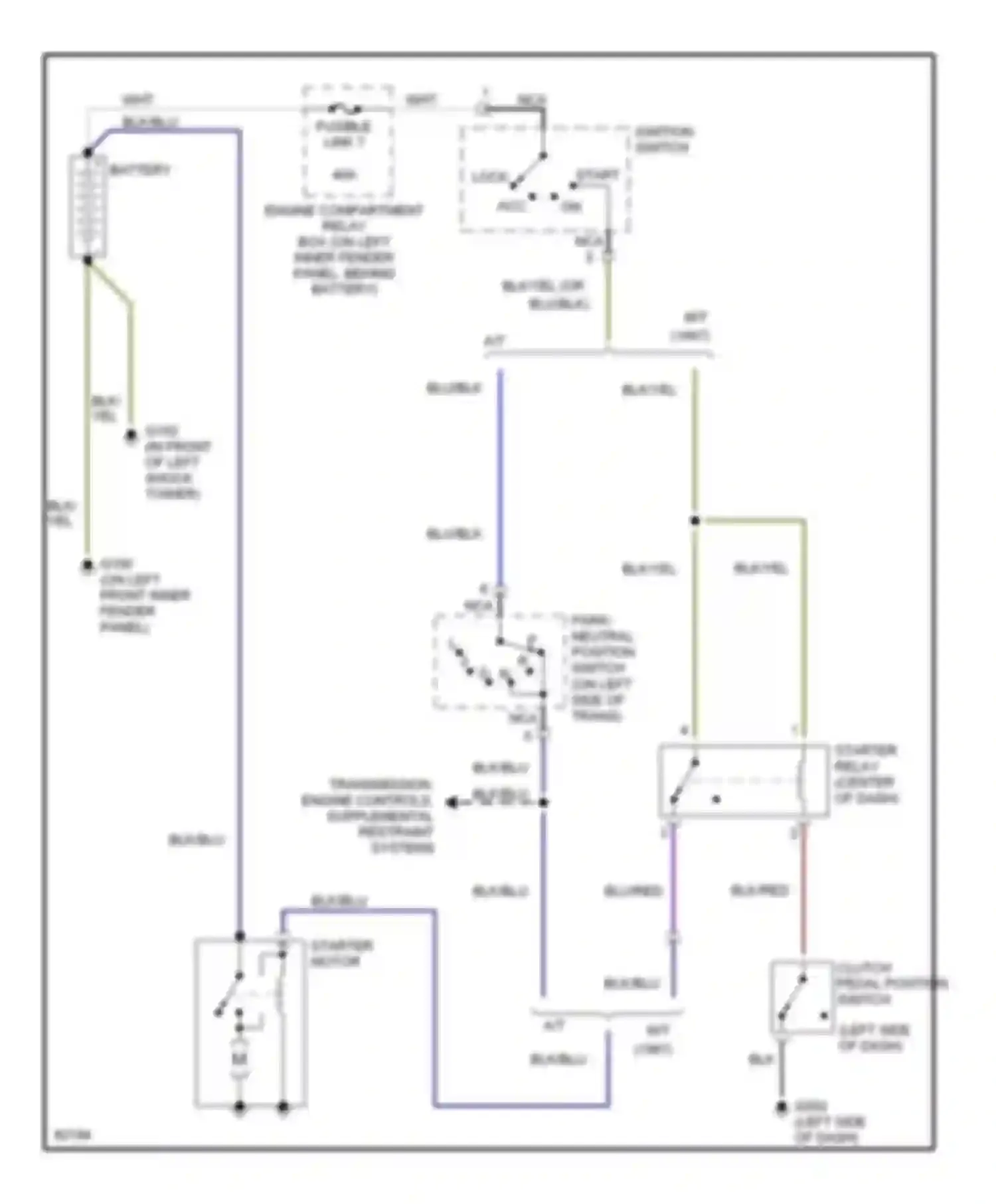

Wiring diagram transmission, engine controls, supplemental restraint systems (1 of 1)
A/T
A/T M/T (1997)
BATTERY
BLK WIRE
BLK/BLU WIRE
BLK/RED WIRE
BLK/YEL OR WIRE
BLK/YEL WIRE
BLU/BLK WIRE
BLU/RED WIRE
CLUTCH PEDAL POSITION SWITCH
ENGINE COMPARTMENT RELAY BOX (ON LEFT INNER FENDER PANEL, BEHIND BATTERY)
FUSIBLE LINK 7
IGNITION SWITCH
LOCK
M/T (1997)
NCA WIRE
PARK/ NEUTRAL POSITION SWITCH (ON LEFT SIDE OF TRANS)
STARTER MOTOR
STARTER RELAY (CENTER OF DASH)
TRANSMISSION, ENGINE CONTROLS, SUPPLEMENTAL RESTRAINT SYSTEMS
WHT WIRE
YEL WIRE
