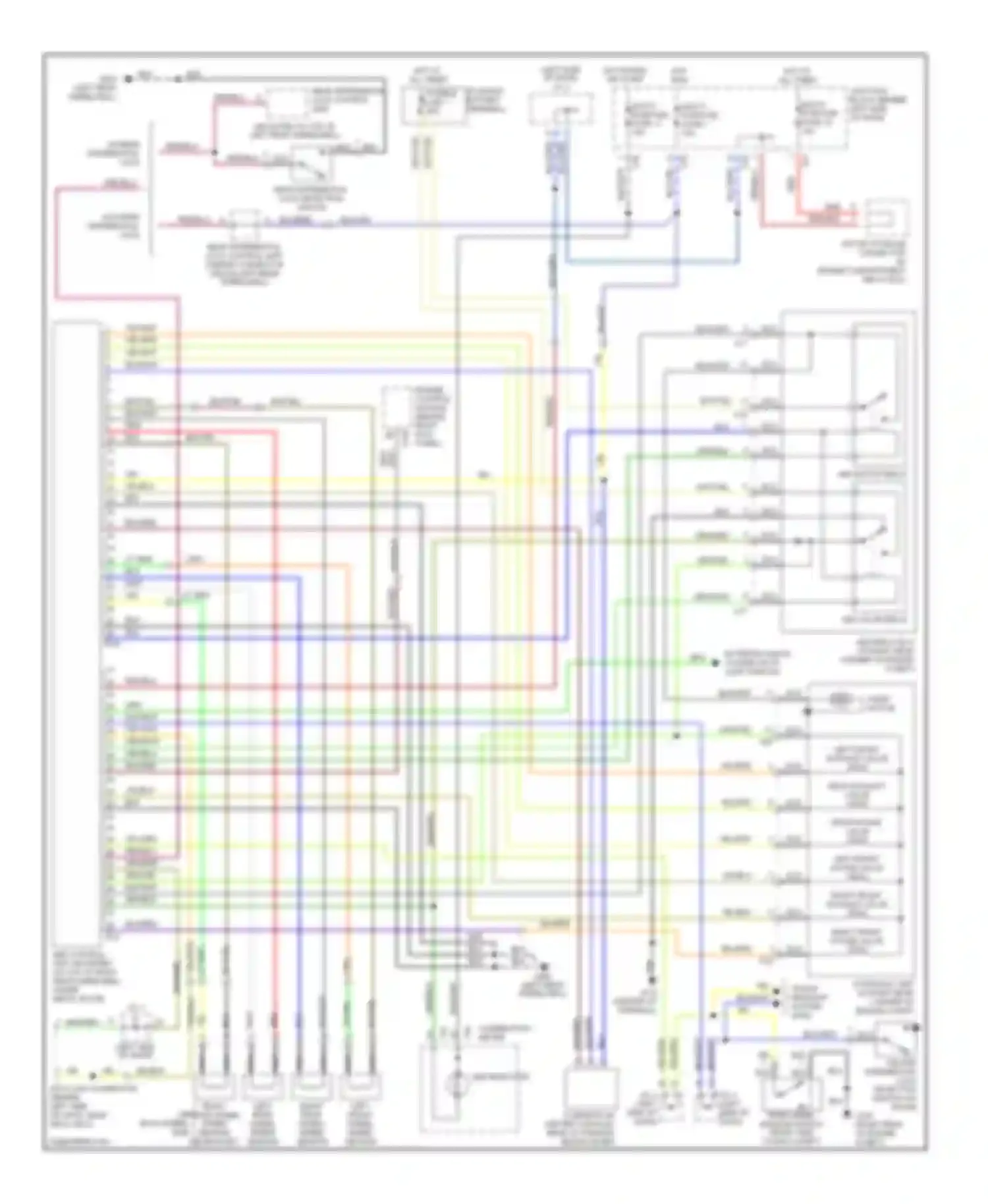

Mitsubishi Montero II (1991-2000) right front exhaust valve Wiring diagram

ABS CONTROL UNIT (MOUNTED ON TOP OF RIGHT REAR WHEELWELL, UNDER METAL PLATE) ABS INDICATOR ABS MOTOR RELAY ABS RELAY BOX (IN RIGHT REAR CORNER OF ENGINE COMPT) ABS VALVE RELAY BLK WIRE BLK/PNK WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/GRN WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE CENTER DIFFERENTIAL LOCK DETECTION SWITCH (ON TRANS) COMBINATION METER DATA LINK CONNECTOR (BEHIND LEFT SIDE OF DASH, NEAR RELAY BOX) ENGINE CONTROL MODULE (BEHIND RIGHT KICK PANEL) EXTERIOR LIGHTS SYSTEM (STOP LIGHT SWITCH) FREE WHEEL ENGAGE SWITCH (RIGHT SIDE OF ENG COMPT) FUSIBLE LINK 1 G SENSOR (IN CENTER CONSOLE, REAR OF PARKING BRAKE LEVER) GRN WIRE GRN/BLK WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE HOT AT ALL TIMES HOT IN HOT IN RUN OR START HYDRAULIC UNIT (IN RIGHT REAR CORNER OF ENGINE COMPT) IOD OR STORAGE CONNECTOR (IN ENGINE COMPARTMENT RELAY BOX) J/C 1 J/C 2 (LEFT SIDE OF DASH) J/C 3 (LEFT SIDE OF DASH) JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH) LEFT FRONT EXHAUST VALVE LEFT FRONT INTAKE VALVE LEFT FRONT WHEEL SPEED SENSOR LEFT REAR WHEEL SPEED SENSOR RIGHT REAR WHEEL SPEED SENSOR LT GRN WIRE MULTI- PURPOSE FUSE 11 MULTI- PURPOSE FUSE 7 MULTI-PURPOSE FUSE 19 NCA WIRE ORG/ WIRE POSITIVE BATTERY TERMINAL PUMP MOTOR REAR DIFFERENTIAL LOCK CONTROL UNIT REAR DIFFERENTIAL LOCK CONTROL UNIT JUMPER CONNECTOR (ABOVE LEFT REAR WHEELWELL) REAR DIFFERENTIAL LOCK DETECTION SWITCH REAR EXHAUST VALVE REAR INTAKE VALVE RED WIRE RED/BLK WIRE RED/BLU WIRE RIGHT FRONT EXHAUST VALVE RIGHT FRONT INTAKE VALVE RIGHT FRONT WHEEL SPEED SENSOR (ON BRACKET, ON EACH WHEEL HUB) RUN WIRE TRANS- MISSIONS SYSTEM W/ REAR DIFFERENTIAL LOCK W/O REAR DIFFERENTIAL LOCK WHT WIRE WHT/ BLK WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/ORG WIRE YEL/RED WIRE YEL/WHT WIRE
