Mitsubishi Mirage V (1995-2003) red Wiring diagrams
This page contains all the electrical diagrams for the component. red, in which he is found in the car Mitsubishi Mirage V (1995-2003). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

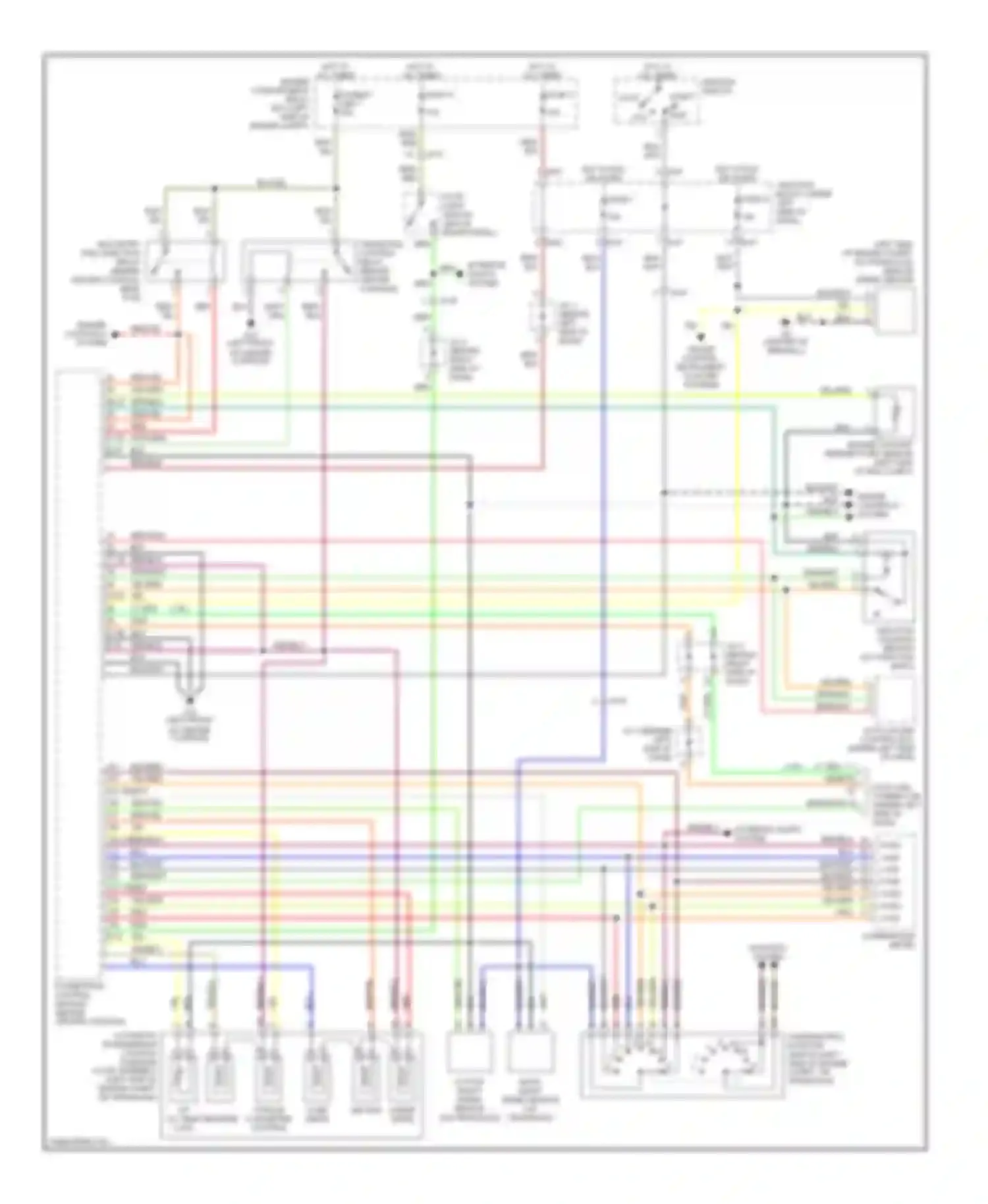

Wiring diagram red (31 of 35)
1 7 B-20 26 B-70
101 102 103 104 106 107 108 109 110 113 120 121 122 123 124 129 130 B-74
41 44 46 47 49 50 57 66 B-76
75 76 77 78 79 80 84 85 88 89 97 98 B-75
A/T OIL TEMP LOW/ REVERSE
AUTO-CRUISE CONTROL ECU (UNDER LEFT SIDE OF DASH)
B-35
B-36
B-51
B-60
B-63
B-66
B-67
BLK WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BLK WIRE
COMBINATION METER
CRUISE CONTROL, INSTRUMENT CLUSTER SYSTEMS
DATA LINK CONNECTOR (UNDER LEFT SIDE OF DASH)
ENGINE COMPARTMENT RELAY BOX (LEFT SIDE OF ENGINE COMPT) FUSIBLE LINK 7
ENGINE CONTROLS SYSTEM
ENGINE COOLANT TEMPERATURE SENSOR (LEFT SIDE OF ENG COMPT)
FUSE 11
FUSE 2
FUSE 4
GRN WIRE
GRN/BLU WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HOT AT ALL TIMES
HOT IN RUN OR START
IGNITION SWITCH
INPUT SHAFT SPEED SENSOR (ON TRANSAXLE)
J/C 3 (BEHIND LEFT SIDE OF DASH)
J/C 5 (BEHIND RIGHT SIDE OF DASH)
JUNCTION BLOCK (UNDER LEFT SIDE OF DASH)
LOCK
LT GRN WIRE
MULTIPORT FUEL INJECTION RELAY (BEHIND CENTER CONSOLE, NEAR PCM)
ORG/ WIRE
OUTPUT SHAFT SPEED SENSOR (ON TRANSAXLE)
OVER DRIVE SECOND
PARK/NEUTRAL POSITION SWITCH (LEFT SIDE OF ENGINE COMPT, ON TRANSAXLE)
POWERTRAIN CONTROL MODULE (BEHIND CENTER CONSOLE)
R IND 3 IND L IND P IND D IND N IND 2 IND
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/WHT WIRE
RED/YEL WIRE
RUN WIRE
STARTING SYSTEM
STOP- LIGHT SWITCH (ABOVE BRAKE PEDAL)
THROTTLE POSITION SENSOR (ON THROTTLE BODY)
TORQUE CONVERTER CONTROL
TRANSAXLE CONTROL RELAY (BEHIND CENTER CONSOLE)
UNDER DRIVE
WHT WIRE
WHT/GRN WIRE
YEL WIRE
YEL/BLU WIRE
YEL/GRN WIRE
YEL/RED WIRE
Go to component -> A/t circuit -> RED WIRE

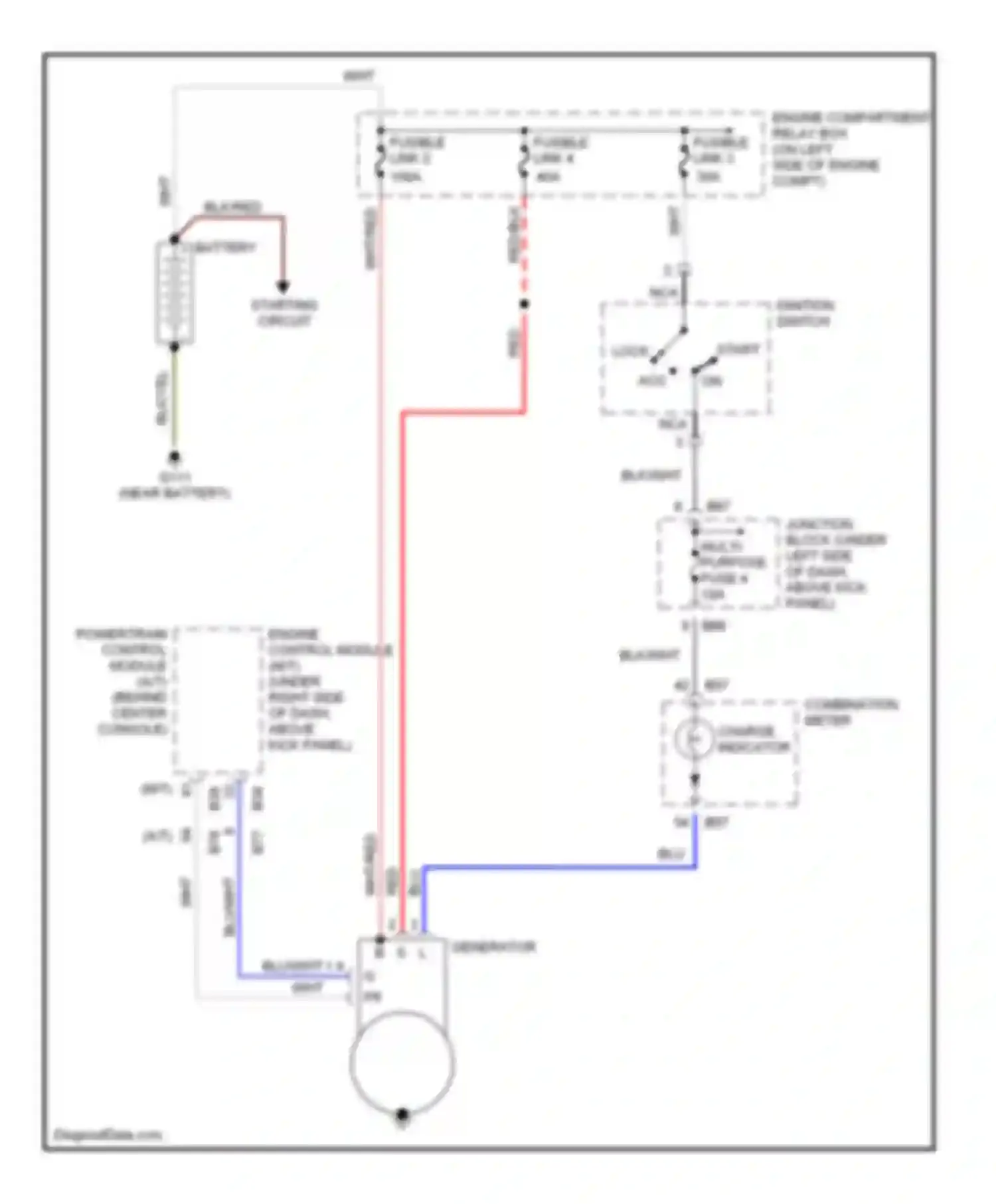

Wiring diagram red (32 of 35)
A/T
BATTERY
BLK/RED WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
BLU/WHT WIRE
CHARGE INDICATOR
COMBINATION METER
ENGINE COMPARTMENT RELAY BOX (ON LEFT SIDE OF ENGINE COMPT)
ENGINE CONTROL MODULE (M/T) (UNDER RIGHT SIDE OF DASH, ABOVE KICK PANEL)
FUSIBLE LINK 2
FUSIBLE LINK 3
FUSIBLE LINK 4
GENERATOR 1 4
IGNITION SWITCH
JUNCTION BLOCK (UNDER LEFT SIDE OF DASH, ABOVE KICK PANEL)
LOCK
M/T
MULTI- PURPOSE FUSE 4
NCA WIRE
POWERTRAIN CONTROL MODULE (A/T) (BEHIND CENTER CONSOLE)
RED WIRE
RED/BLK WIRE
STARTING CIRCUIT
WHT WIRE
WHT/RED WIRE
Go to component -> Charging circuit -> RED WIRE

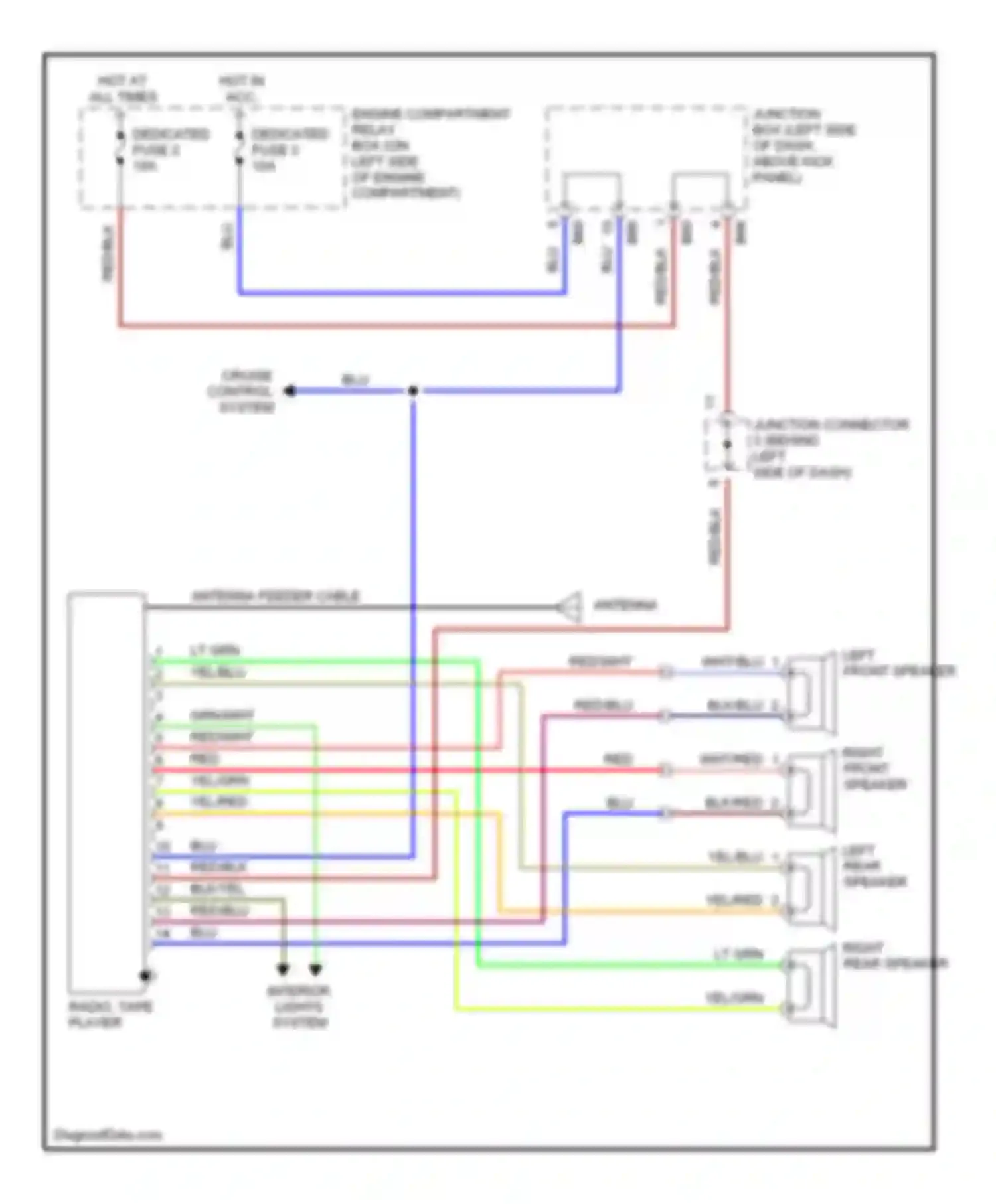

Wiring diagram red (33 of 35)
ANTENNA
BLK/BLU WIRE
BLK/RED WIRE
BLK/YEL WIRE
BLU WIRE
CRUISE CONTROL SYSTEM
DEDICATED FUSE 2
DEDICATED FUSE 3
ENGINE COMPARTMENT RELAY BOX (ON LEFT SIDE OF ENGINE COMPARTMENT)
GRN/WHT WIRE
HOT AT ALL TIMES
HOT IN ACC, ON
JUNCTION BOX (LEFT SIDE OF DASH, ABOVE KICK PANEL)
JUNCTION CONNECTOR 3 (BEHIND LEFT SIDE OF DASH)
LEFT FRONT SPEAKER
LEFT REAR SPEAKER
LT GRN WIRE
RADIO, TAPE PLAYER
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/WHT WIRE
RIGHT FRONT SPEAKER
RIGHT REAR SPEAKER
WHT/BLU WIRE
WHT/RED WIRE
YEL/BLU WIRE
YEL/GRN WIRE
YEL/RED WIRE
Go to component -> Radio circuits -> RED WIRE

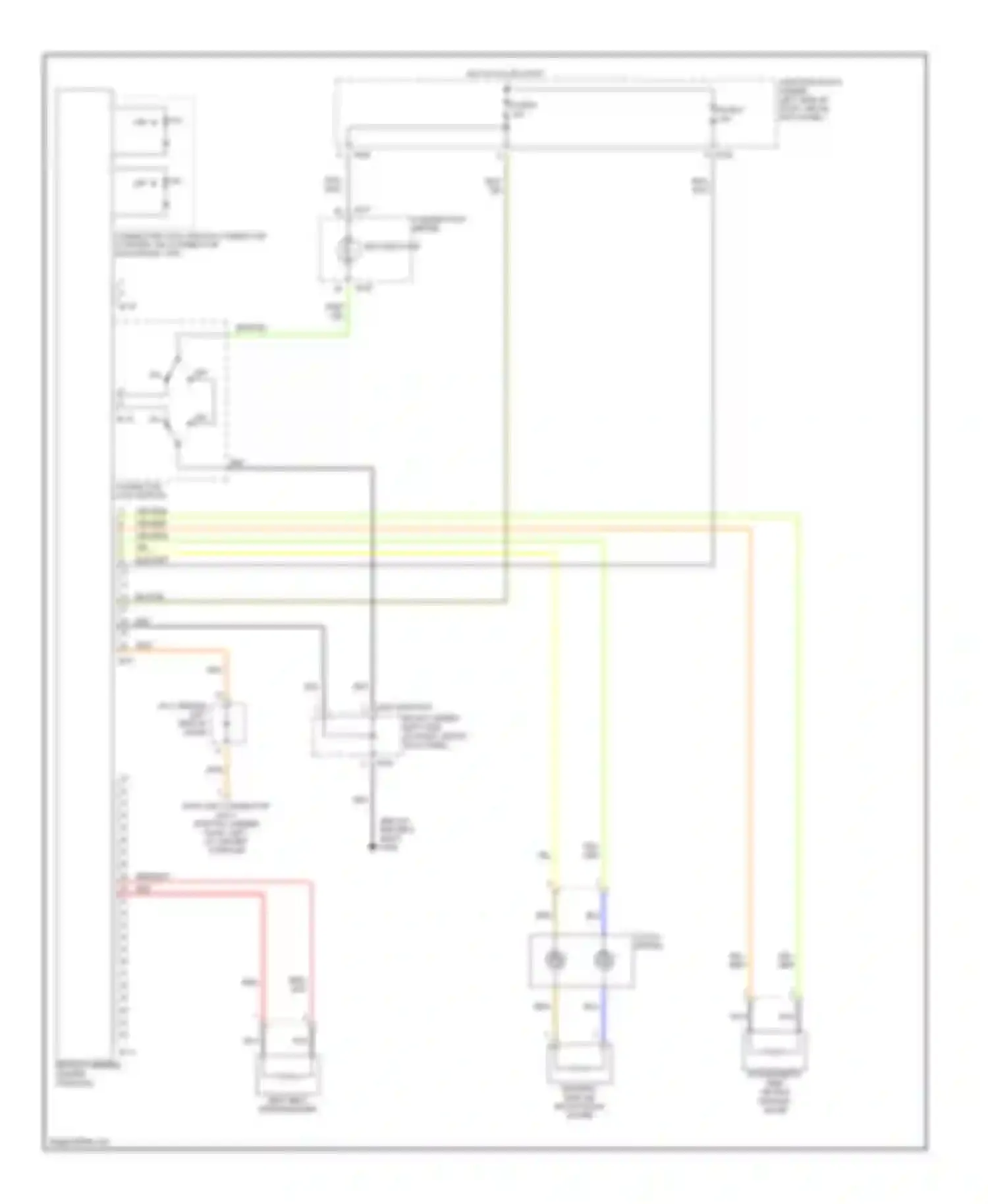

Wiring diagram red (34 of 35)
1 2 B-19
B-07
B-08
B-64
B-66
B-68
B-68 JUNCTION BLOCK (UNDER LEFT SIDE OF DASH, ABOVE KICK PANEL)
B-71
BLK WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU WIRE
BRN WIRE
CLOCK- SPRING
COMBINATION METER
CONNECTOR LOCK SWITCH
CONNECTOR LOCK SWITCH (CONNECTOR COUPLED: ON) (CONNECTOR UNCOUPLED: OFF)
DATA LINK CONNECTOR (DLC) (PARTIAL) (UNDER DASH, LEFT OF CENTER CONSOLE)
DRIVER'S SIDE AIR BAG MODULE SQUIB
FUSE 6
FUSE 8
GRN WIRE
GRN/YEL WIRE
HOT IN ON OR START
J/C 3 (BEHIND LEFT SIDE OF DASH)
JUNCTION BLOCK (UNDER LEFT SIDE OF DASH, ABOVE KICK PANEL)
NCA WIRE
OFF B-19 ON
OFF ON
ON OFF
ORG/ WIRE
PASSENGER'S SIDE AIR BAG MODULE SQUIB
RED WIRE
RED/WHT WIRE
SEAT BELT PRETENSIONER
SRS INDICATOR
SRS-ECU (BEHIND CENTER CONSOLE)
WHT WIRE
YEL WIRE
YEL/GRN WIRE
YEL/RED WIRE
Go to component -> Supplemental restraint circuit -> RED WIRE

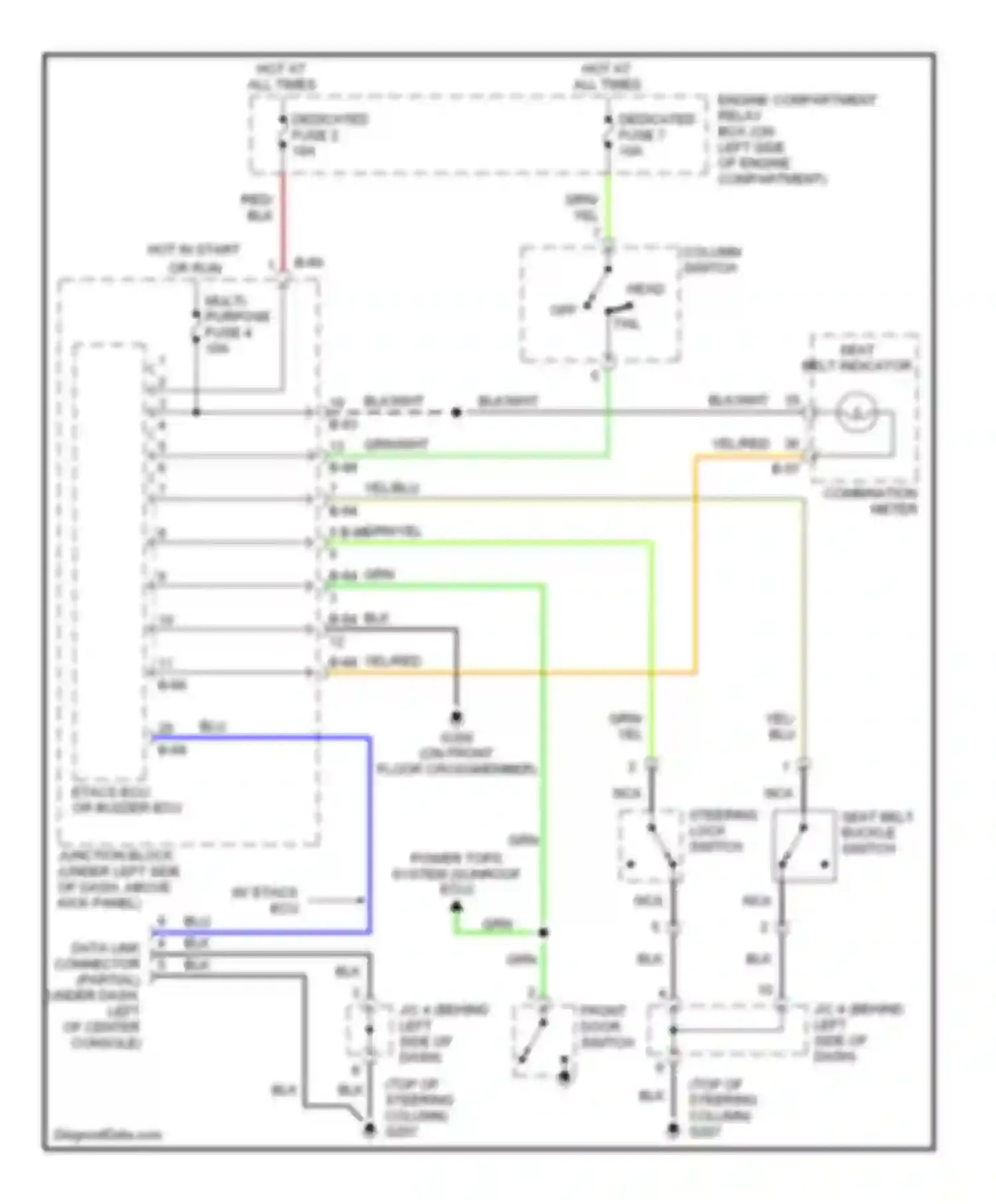

Wiring diagram red (35 of 35)
10 B-63 13 B-66 7 B-64 5 B-66 5 B-64 3 B-64 12 B-66
11 B-65
25 B-69
36 B-07
B-60
BLK WIRE
BLK/WHT WIRE
BLU WIRE
COLUMN SWITCH
COMBINATION METER
DATA LINK CONNECTOR (PARTIAL) (UNDER DASH, LEFT OF CENTER CONSOLE)
DEDICATED FUSE 2
DEDICATED FUSE 7
ENGINE COMPARTMENT RELAY BOX (ON LEFT SIDE OF ENGINE COMPARTMENT)
ETACS-ECU OR BUZZER-ECU
FRONT DOOR SWITCH
GRN WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HEAD OFF TAIL
HOT AT ALL TIMES
HOT IN START OR RUN
J/C 4 (BEHIND LEFT SIDE OF DASH)
JUNCTION BLOCK (UNDER LEFT SIDE OF DASH, ABOVE KICK PANEL)
MULTI- PURPOSE FUSE 4
NCA WIRE
POWER TOPS SYSTEM (SUNROOF ECU)
RED WIRE
SEAT BELT BUCKLE SWITCH
SEAT BELT INDICATOR
STEERING LOCK SWITCH
W/ ETACS-ECU
YEL WIRE
YEL/BLU WIRE
YEL/RED WIRE
Go to component -> Warning system circuits -> RED WIRE
