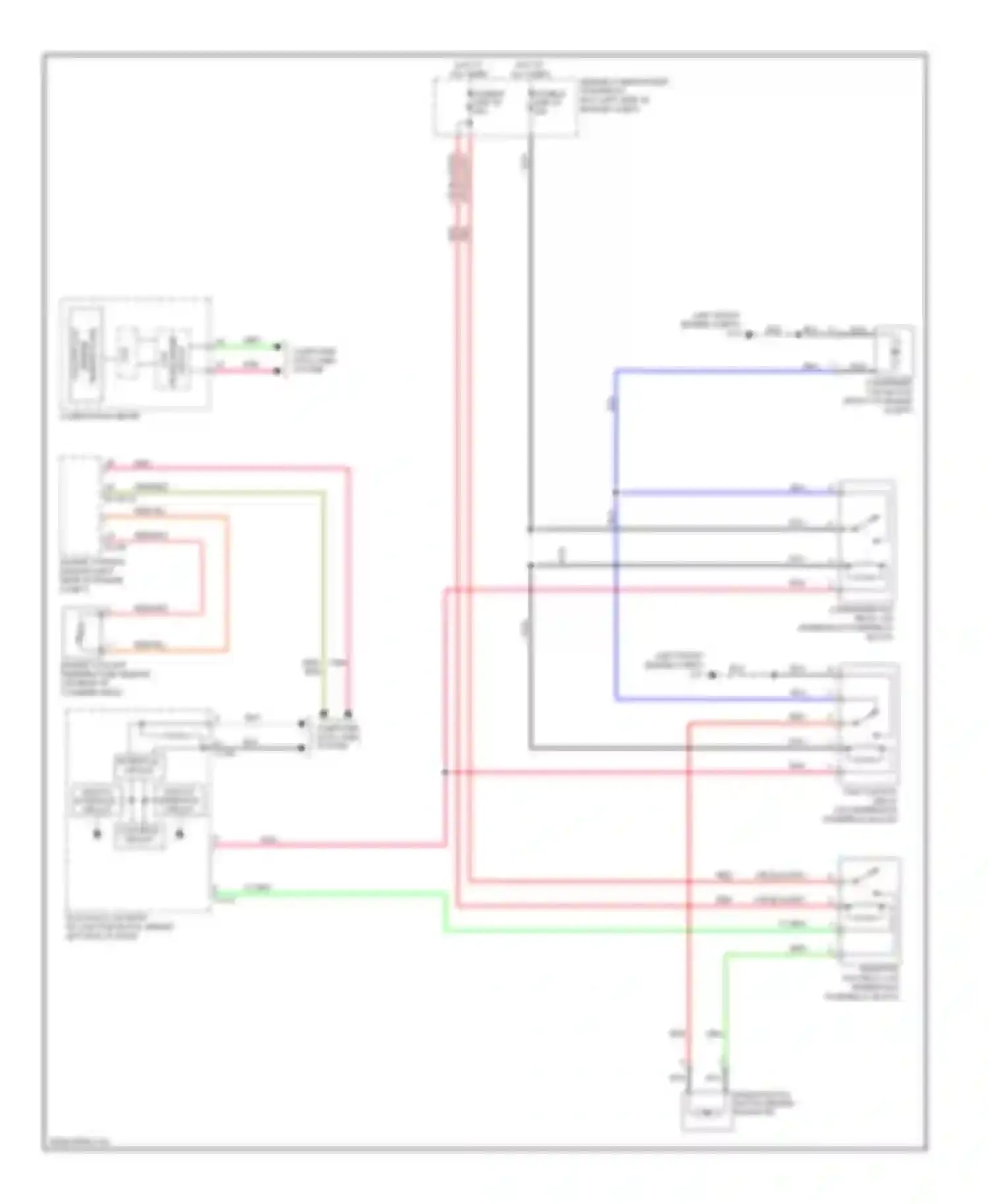

2.0l, cooling fan circuit for Mitsubishi Lancer X facelift (2011-2015)

27 B-108 9 C-301 91 B-109 26 ANALOG INTERFACE CIRCUIT BLK WIRE BLU WIRE C-312 CAN DRIVE CIRCUIT COMBINATION METER COMPUTER DATA LINES SYSTEM CONDENSER FAN MOTOR (FRONT OF ENGINE COMPT) CONDENSER FAN RELAY (ON UNDERHOOD FUSE/RELAY BLOCK) ENGINE COMPARTMENT FUSE/RELAY BOX (LEFT SIDE OF ENGINE COMPT) ENGINE CONTROL MODULE (LEFT REAR OF ENGINE COMPT) ENGINE COOLANT TEMPERATURE SENSOR (ON REAR OF CYLINDER HEAD) ETACS-ECU (ON REAR OF JUNCTION BLOCK, BEHIND LEFT END OF DASH) FAN CONTROL RELAY FUSE/RELAY BLOCK FUSIBLE LINK 28 FUSIBLE LINK 29 GRN WIRE GRN/RED WIRE HOT AT ALL TIMES INTERFACE CIRCUIT LT GRN WIRE NCA WIRE PNK WIRE RADIATOR FAN MOTOR (BEHIND RADIATOR) RADIATOR FAN RELAY (ON UNDERHOOD RED WIRE RED/WHT WIRE RED/YEL WIRE TEMPERATURE TRANSCEIVER CIRCUIT WHT WIRE
