Mitsubishi Lancer IX (2000-2007) right remote controlled mirror Wiring diagrams
This page contains all the electrical diagrams for the component. right remote controlled mirror, in which he is found in the car Mitsubishi Lancer IX (2000-2007). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

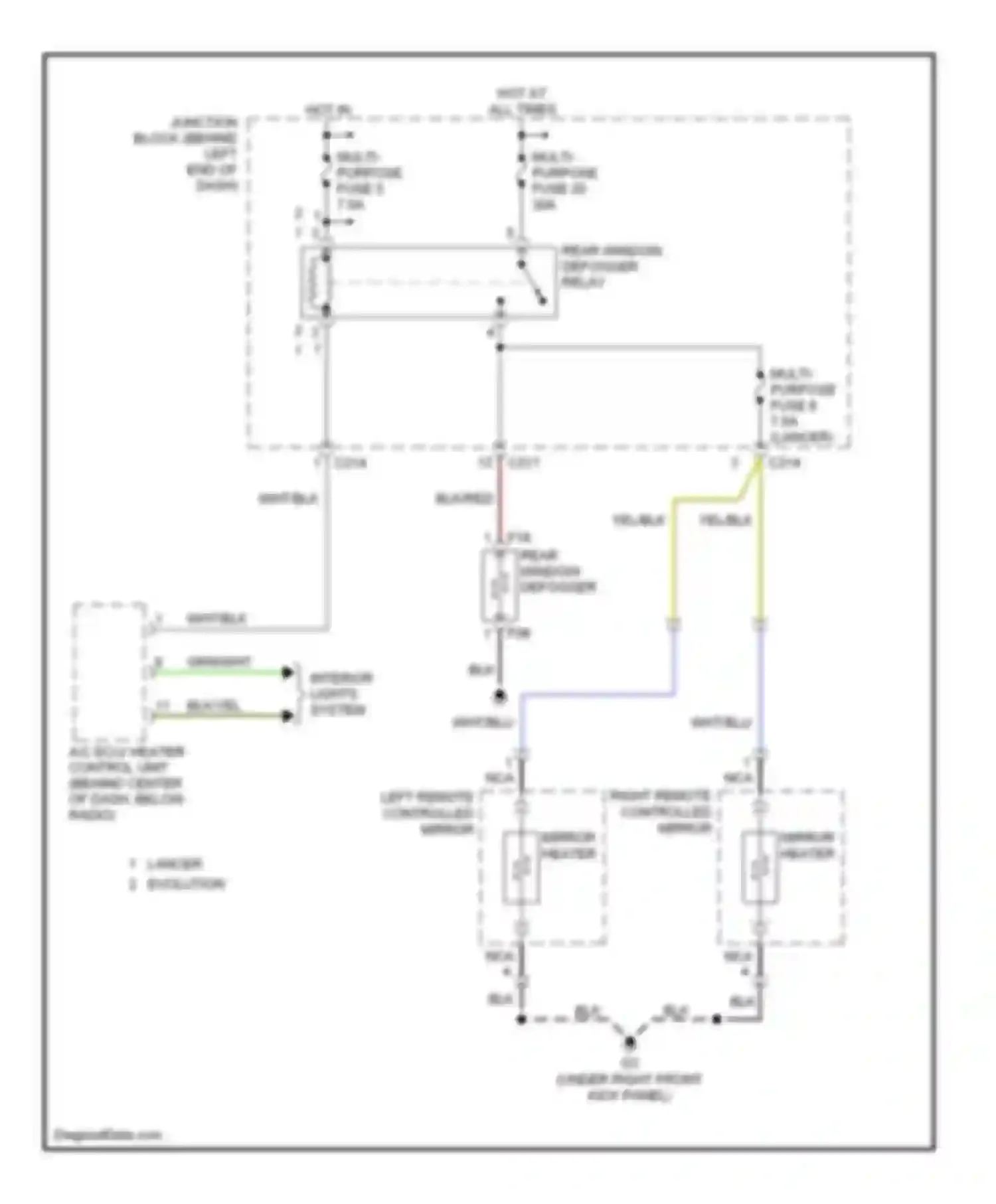

right remote controlled mirror wiring diagram (1 of 2)
A/C ECU/ HEATER CONTROL UNIT (BEHIND CENTER OF DASH, BELOW RADIO)
BLK WIRE
BLK/RED WIRE
BLK/YEL WIRE
GRN/WHT WIRE
HOT AT ALL TIMES
HOT IN ON
JUNCTION BLOCK, BEHIND LEFT END OF DASH)
LANCER EVOLUTION
LEFT REMOTE CONTROLLED MIRROR
MIRROR HEATER
MULTI- PURPOSE FUSE 20
MULTI- PURPOSE FUSE 5
MULTI-PURPOSE FUSE 6
NCA WIRE
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER RELAY
RIGHT REMOTE CONTROLLED MIRROR
WHT/BLK WIRE
WHT/BLU WIRE
YEL/BLK WIRE
Go to component -> Defoggers circuit -> RIGHT REMOTE CONTROLLED MIRROR

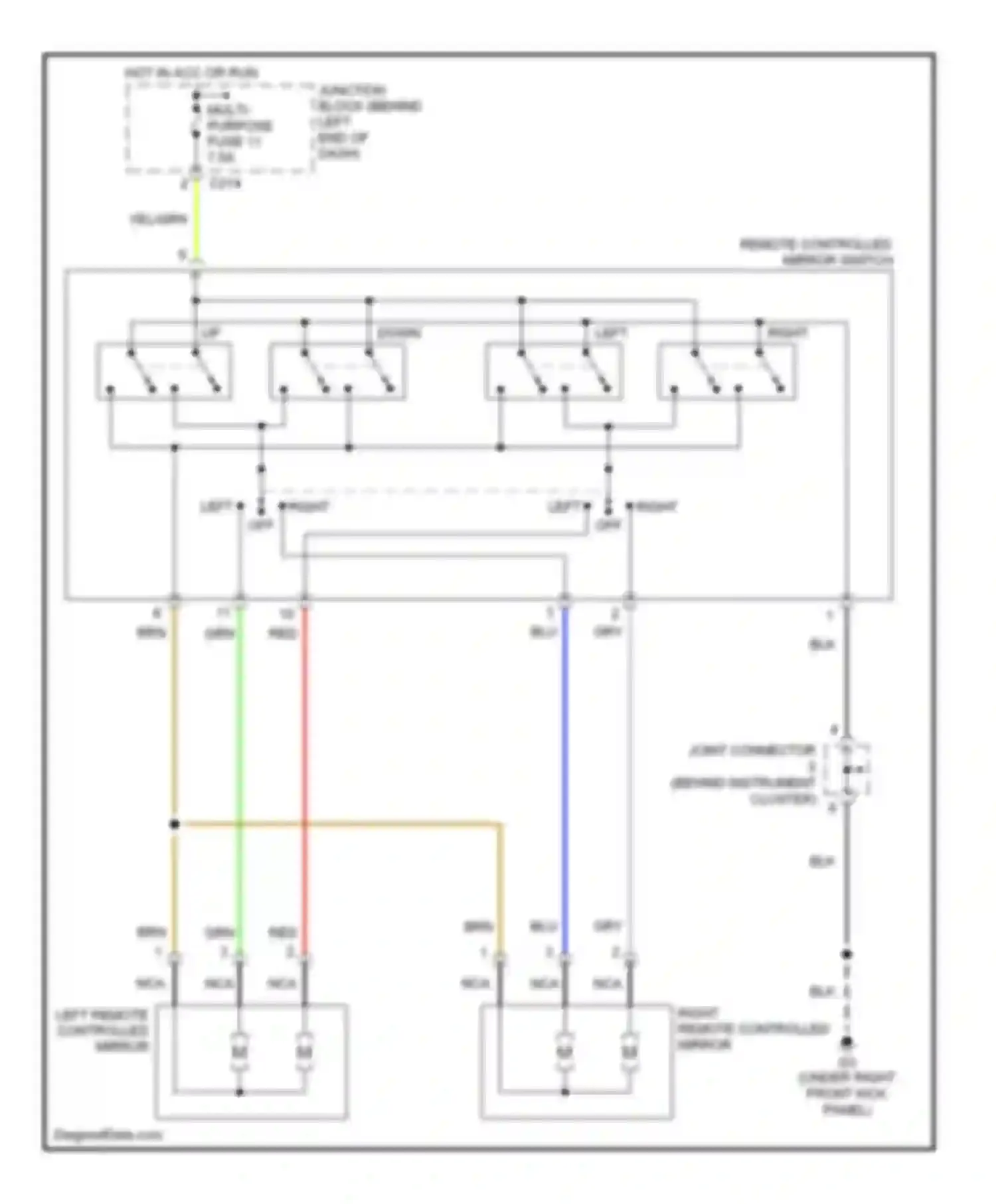

right remote controlled mirror wiring diagram (2 of 2)
BLK WIRE
BLU WIRE
BRN WIRE
DOWN
GRN WIRE
GRY WIRE
HOT IN ACC OR RUN
JOINT CONNECTOR 2 (BEHIND INSTRUMENT CLUSTER)
JUNCTION BLOCK, BEHIND LEFT END OF DASH)
LEFT
LEFT REMOTE CONTROLLED MIRROR
LEFT RIGHT OFF
MULTI- PURPOSE FUSE 11
NCA WIRE
RED WIRE
REMOTE CONTROLLED MIRROR SWITCH
RIGHT
RIGHT OFF
RIGHT REMOTE CONTROLLED MIRROR
YEL/GRN WIRE
Go to component -> Power mirrors circuit, evolution -> RIGHT REMOTE CONTROLLED MIRROR
