Mitsubishi Lancer IX (2000-2007) mirror heater Wiring diagram
This page shows the only wiring diagram for the component.mirror heater, which is found in the car Mitsubishi Lancer IX (2000-2007). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

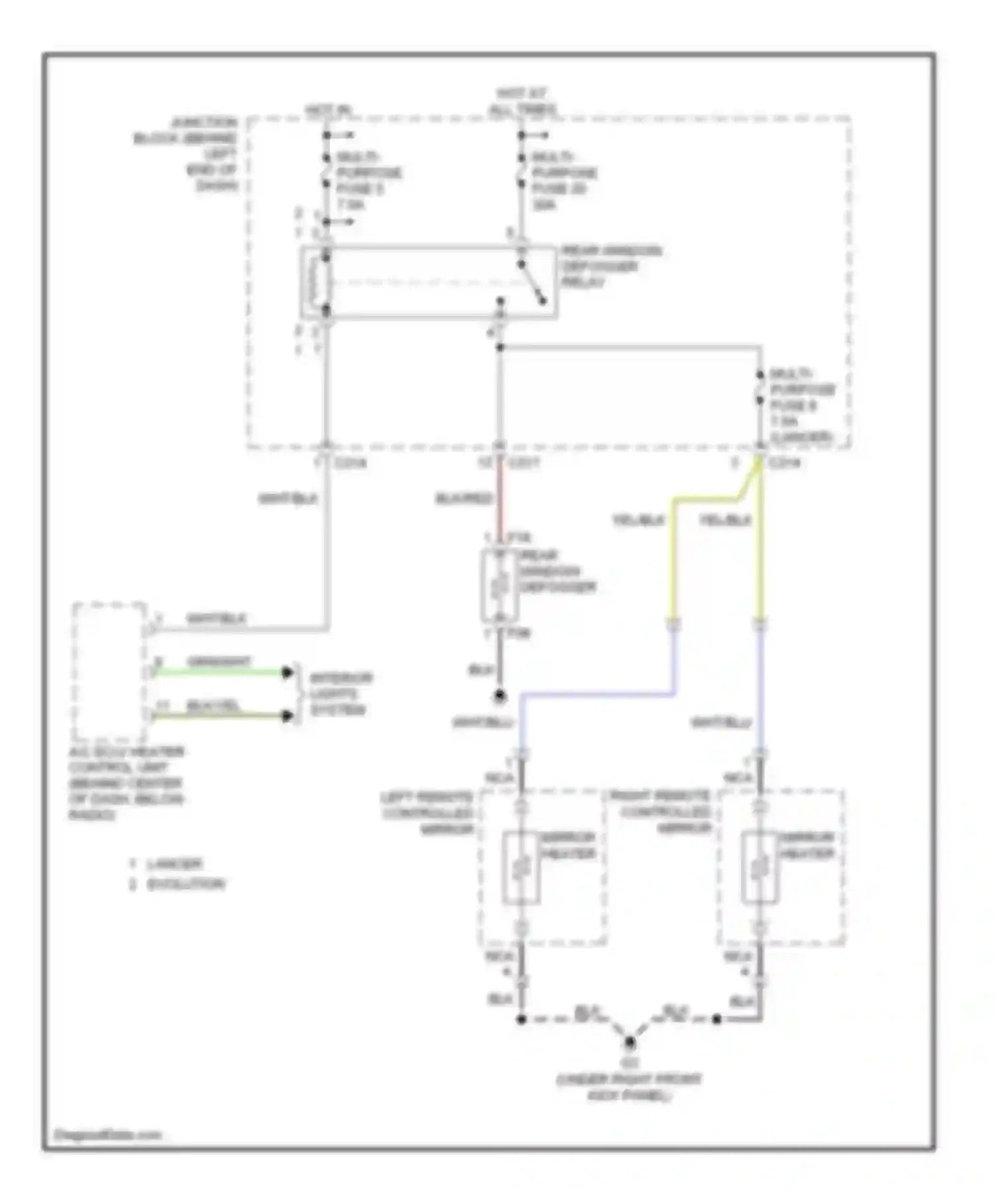

Wiring diagram mirror heater (1 of 1)
A/C ECU/ HEATER CONTROL UNIT (BEHIND CENTER OF DASH, BELOW RADIO)
BLK WIRE
BLK/RED WIRE
BLK/YEL WIRE
GRN/WHT WIRE
HOT AT ALL TIMES
HOT IN ON
JUNCTION BLOCK, BEHIND LEFT END OF DASH)
LANCER EVOLUTION
LEFT REMOTE CONTROLLED MIRROR
MIRROR HEATER
MULTI- PURPOSE FUSE 20
MULTI- PURPOSE FUSE 5
MULTI-PURPOSE FUSE 6
NCA WIRE
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER RELAY
RIGHT REMOTE CONTROLLED MIRROR
WHT/BLK WIRE
WHT/BLU WIRE
YEL/BLK WIRE
Go to component -> Defoggers circuit -> MIRROR HEATER
