Mitsubishi Lancer IX (2000-2007) lancer evolution Wiring diagrams
This page contains all the electrical diagrams for the component. lancer evolution, in which he is found in the car Mitsubishi Lancer IX (2000-2007). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
lancer evolution wiring diagram (1 of 2)
A/C ECU/ HEATER CONTROL UNIT (BEHIND CENTER OF DASH, BELOW RADIO)
BLK WIRE
BLK/RED WIRE
BLK/YEL WIRE
GRN/WHT WIRE
HOT AT ALL TIMES
HOT IN ON
JUNCTION BLOCK, BEHIND LEFT END OF DASH)
LANCER EVOLUTION
LEFT REMOTE CONTROLLED MIRROR
MIRROR HEATER
MULTI- PURPOSE FUSE 20
MULTI- PURPOSE FUSE 5
MULTI-PURPOSE FUSE 6
NCA WIRE
REAR WINDOW DEFOGGER
REAR WINDOW DEFOGGER RELAY
RIGHT REMOTE CONTROLLED MIRROR
WHT/BLK WIRE
WHT/BLU WIRE
YEL/BLK WIRE
Go to component -> Defoggers circuit -> LANCER EVOLUTION

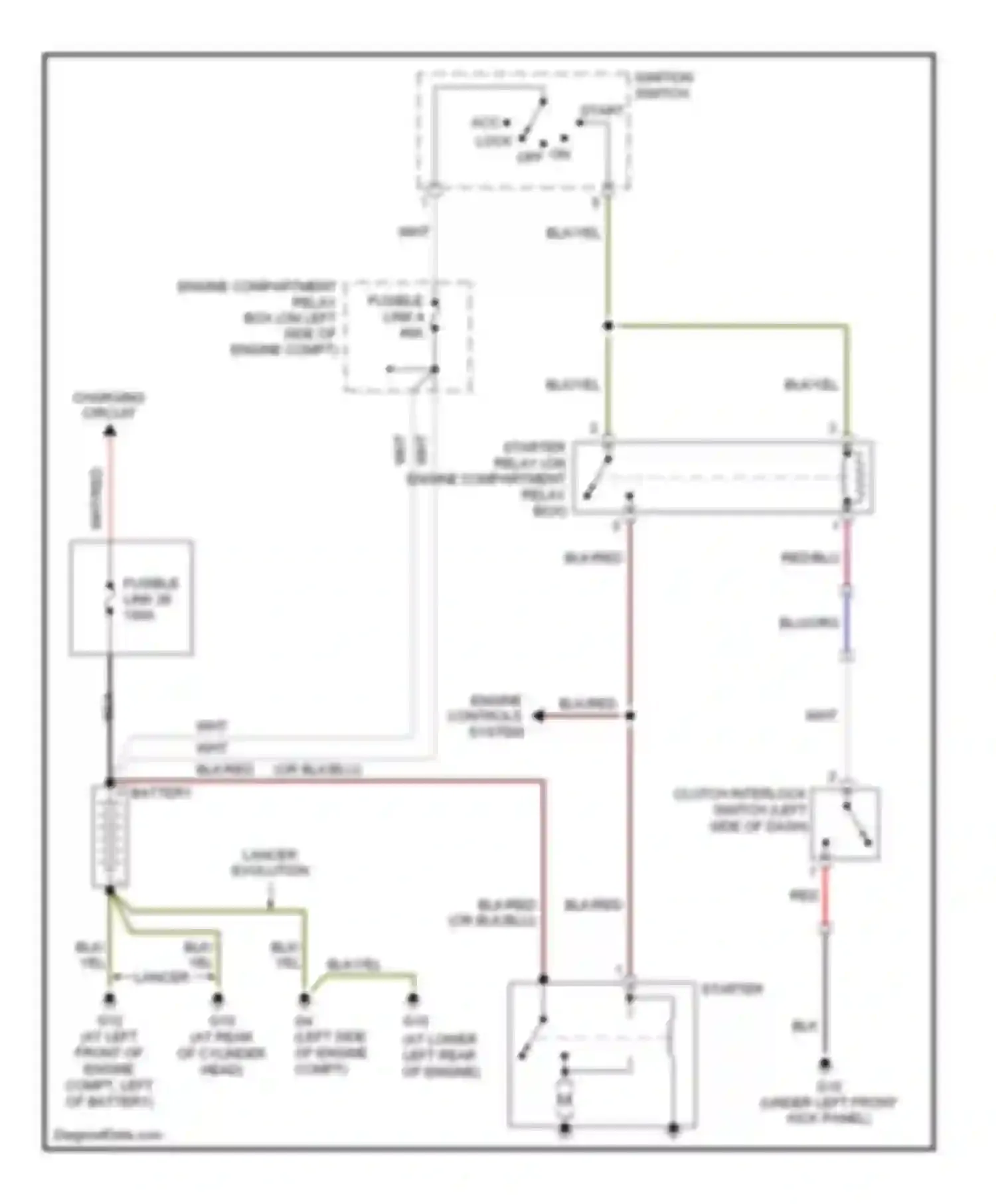

lancer evolution wiring diagram (2 of 2)
BATTERY
BLK WIRE
BLK/RED WIRE
BLK/YEL WIRE
BLU/ORG WIRE
CHARGING CIRCUIT
CLUTCH INTERLOCK SWITCH (LEFT SIDE OF DASH)
ENGINE COMPARTMENT RELAY BOX (ON LEFT SIDE OF ENGINE COMPT)
ENGINE CONTROLS SYSTEM
FUSIBLE LINK 26
FUSIBLE LINK 4
IGNITION SWITCH
LANCER EVOLUTION
LOCK OFF
NCA WIRE
RED WIRE
RED/BLU WIRE
STARTER
STARTER RELAY (ON ENGINE COMPARTMENT RELAY BOX)
WHT WIRE
WHT/RED WIRE
YEL WIRE
Go to component -> Starting circuit, m/t -> LANCER EVOLUTION
