Mitsubishi Galant VIII facelift (1998-2006) comb- ination meter Wiring diagram
This page shows the only wiring diagram for the component.comb- ination meter, which is found in the car Mitsubishi Galant VIII facelift (1998-2006). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

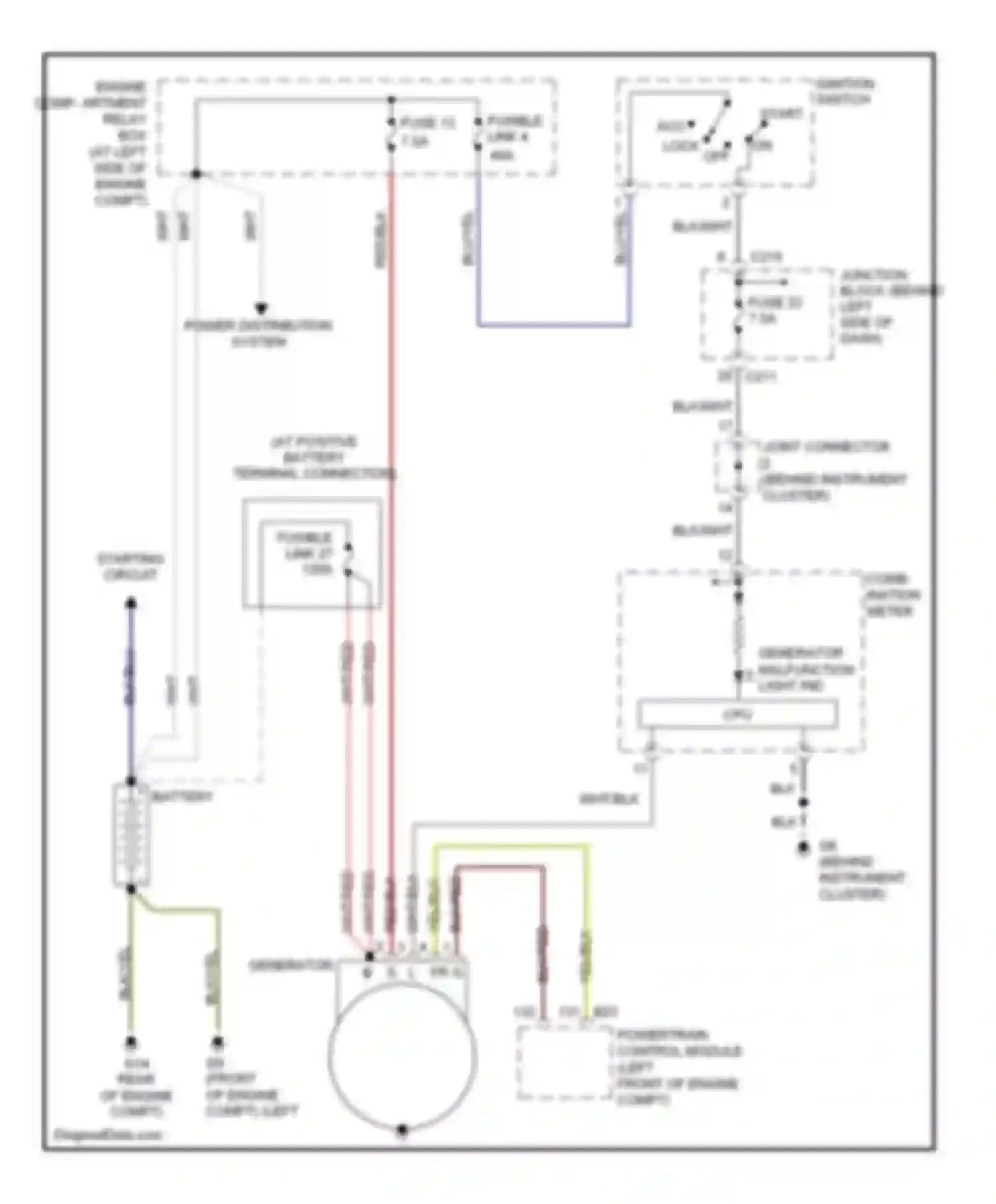

Wiring diagram comb- ination meter (1 of 1)
BATTERY
BLK WIRE
BLK/BLU WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLU/YEL WIRE
COMB- INATION METER
ENGINE COMP- ARTMENT RELAY BOX (AT LEFT SIDE OF ENGINE COMPT)
FUSE 13
FUSE 23
FUSIBLE LINK 27
FUSIBLE LINK 4
GENERATOR
GENERATOR MALFUNCTION LIGHT IND
IGNITION SWITCH
JOINT CONNECTOR 2 (BEHIND INSTRUMENT CLUSTER)
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
ON LOCK OFF
POWER DISTRIBUTION SYSTEM
POWERTRAIN CONTROL MODULE (LEFT FRONT OF ENGINE COMPT)
RED/BLK WIRE
STARTING CIRCUIT
WHT WIRE
WHT/BLK WIRE
WHT/RED WIRE
YEL/BLK WIRE
Go to component -> Charging circuit -> COMB- INATION METER
