Wiring Diagrams for Mitsubishi Galant VIII facelift (1998-2006)

Automatic a/c circuit Manual a/c circuit, low option Manual a/c circuit, middle option

Anti-lock brakes circuit, without traction control Anti-lock brakes circuit, with traction control

Forced entry circuit Immobilizer circuit

Body control modules circuit

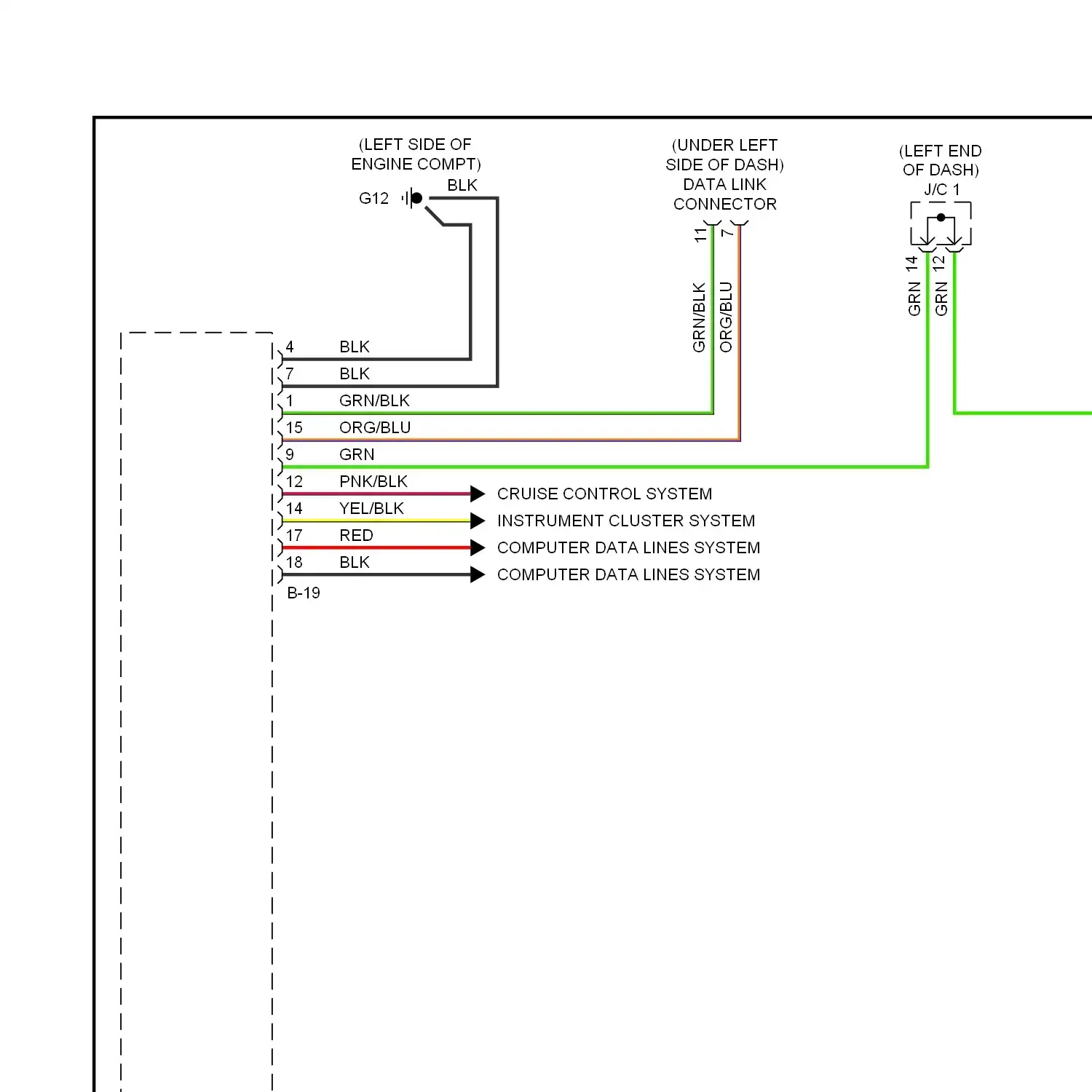

Computer data lines circuit

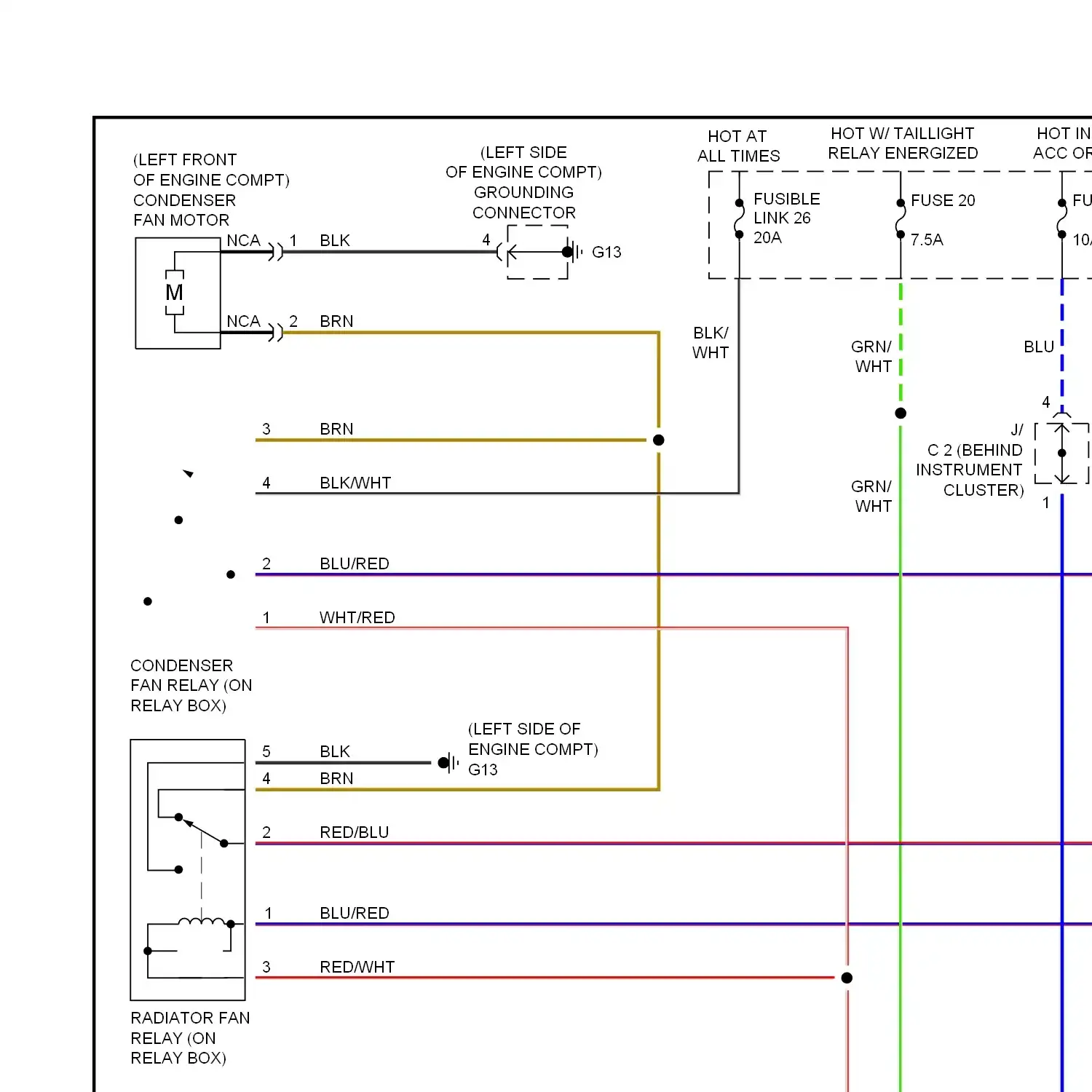

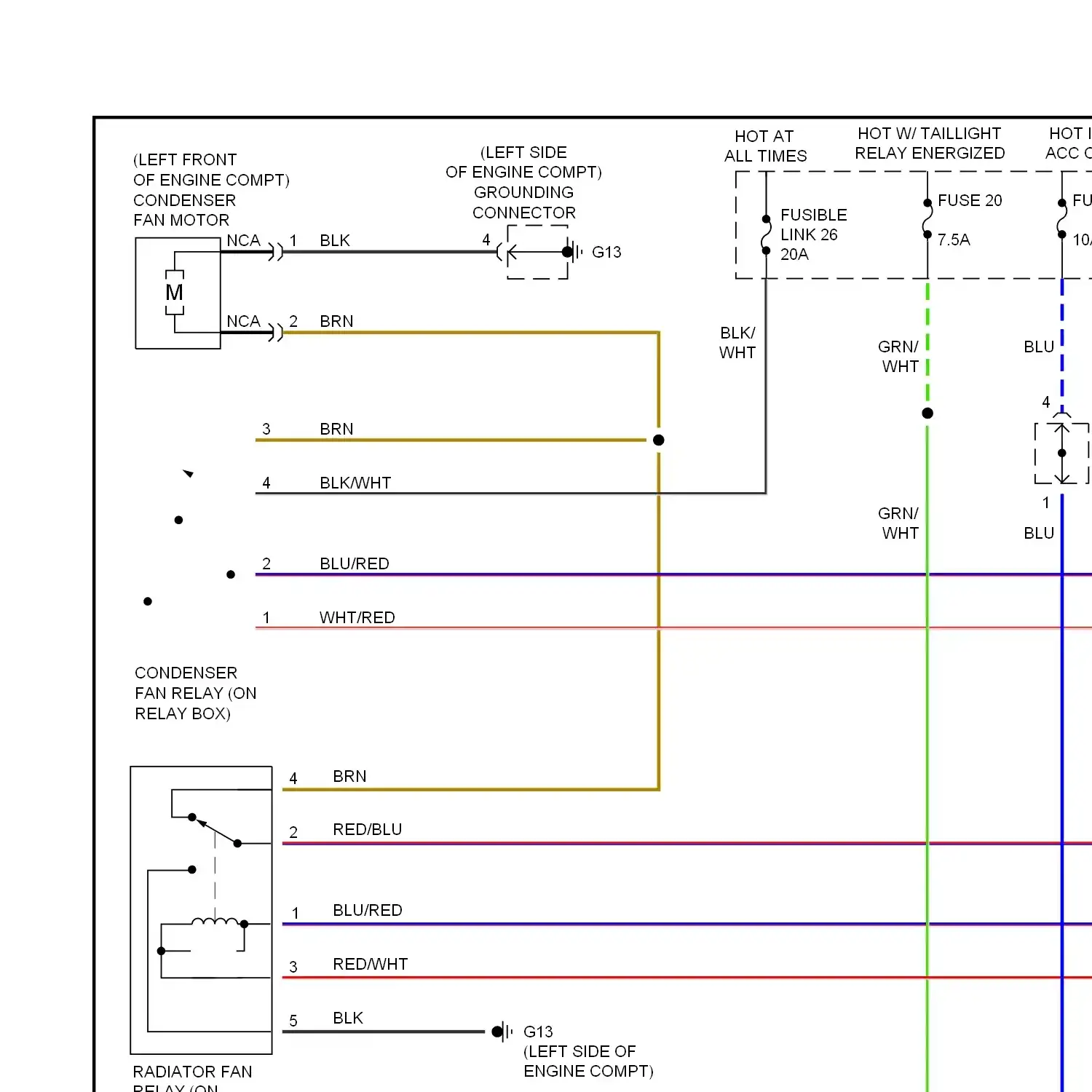

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Wiring diagram engine performance 2.4l

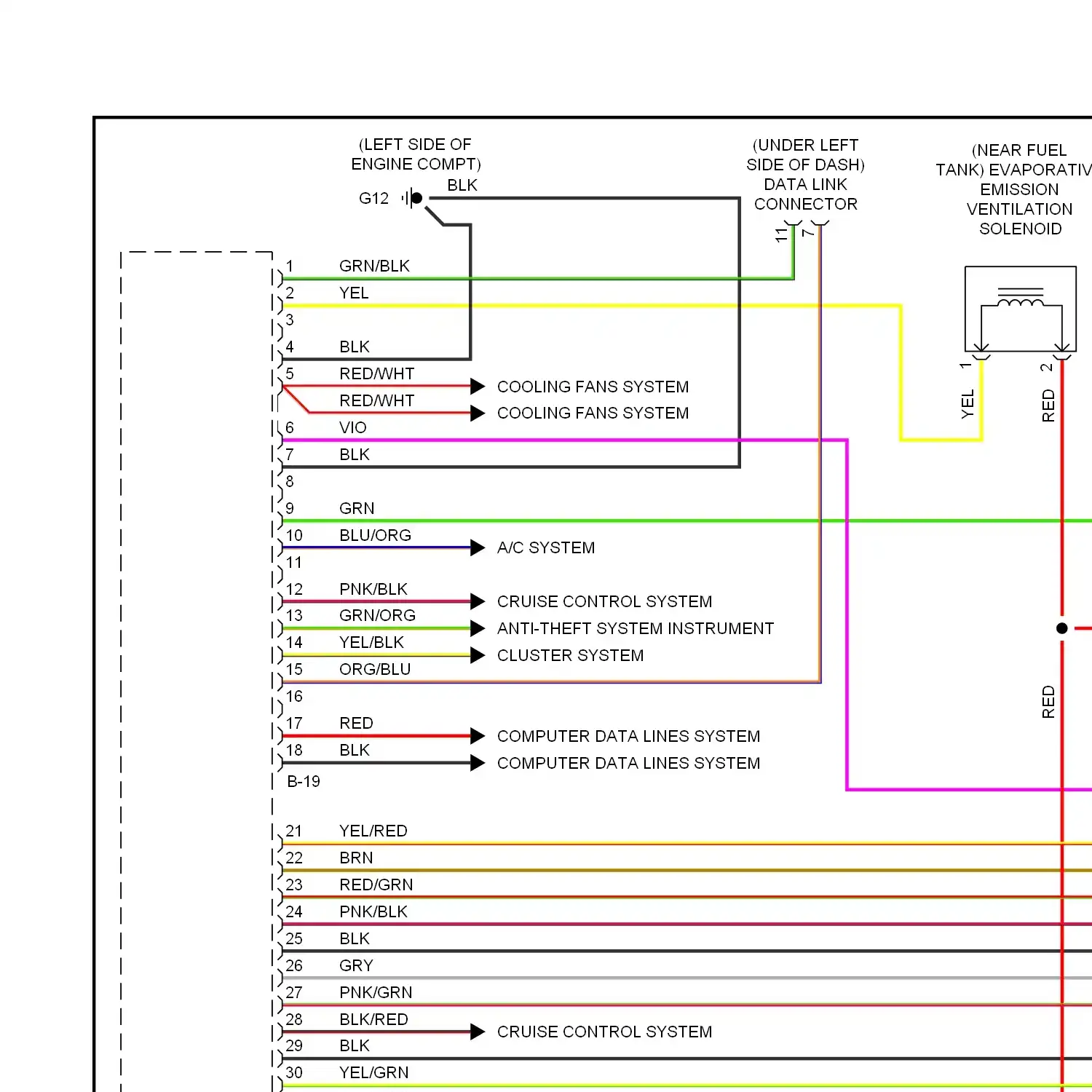

Wiring diagram engine performance 3.8l

Back-up lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit, 2 bulb type Headlights circuit, 4 bulb type

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

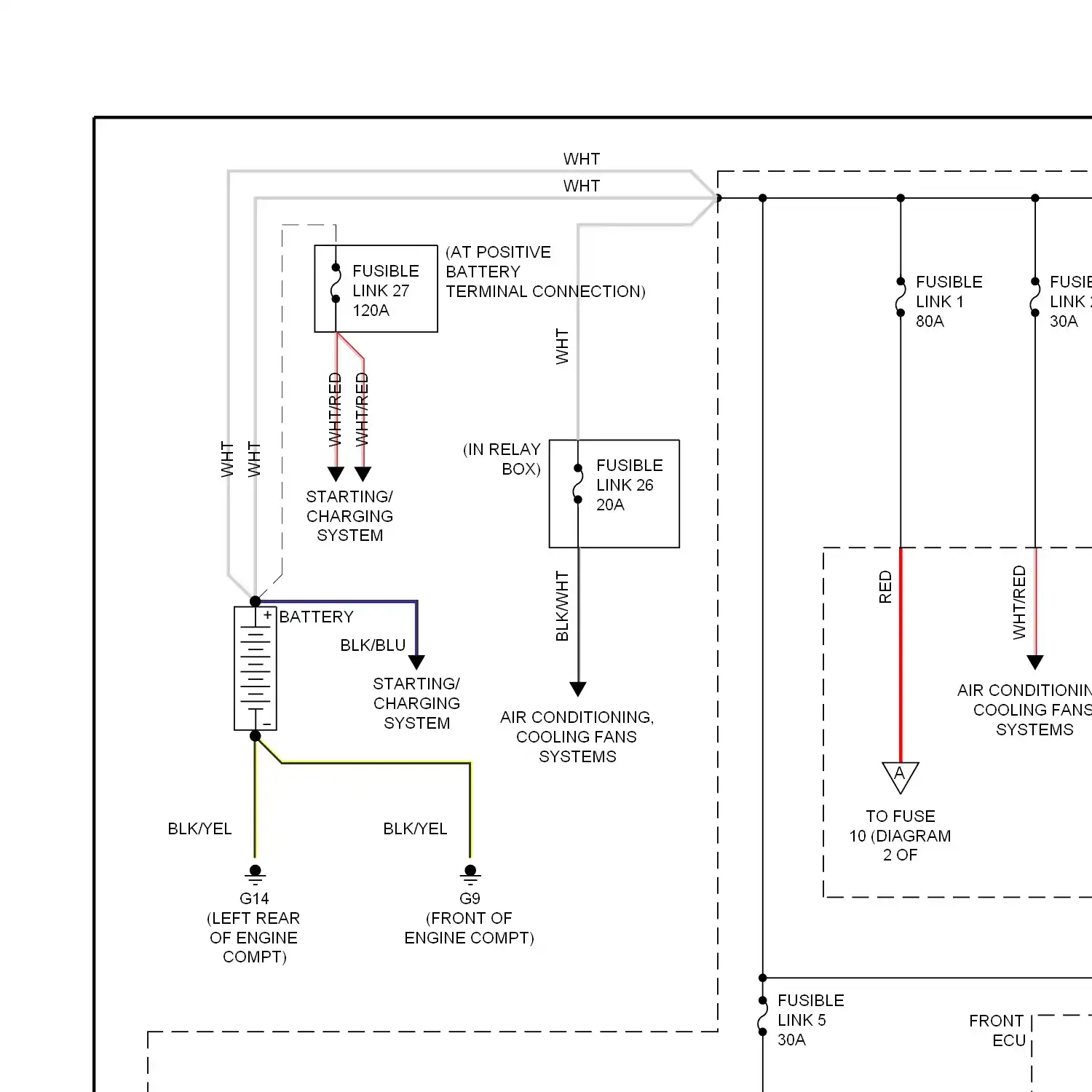

Power distribution circuit

Power mirrors circuit

Heated seats circuit Power seat circuit

Power top/sunroof circuit

Power windows circuit

Radio circuit, with amplifier Radio circuit, without amplifier

Charging circuit Starting circuit

Supplemental restraints circuit

2.4l, transmission circuit

3.8l, transmission circuit

Trunk, tailgate, fuel door circuit

Warning systems circuit

Wiper/washer circuit

2.4L: W/O ELECTRONIC BRAKE-FORCE DISTRIBUTION, ANTI-LOCK BRAKING SYSTEM 3.8L, 2.4L: W/ ELECTRONIC BRAKE-FORCE DISTRIBUTION, ANTI-LOCK BRAKING SYSTEM ANTI LOCK TCL IND ANTI- LOCK ANTI-LOCK BRAKE IND ANTI-LOCK BRAKES SYSTEM AUDIO AMPLIFIER GENERATOR MALFUNCTION LIGHT GENERATOR MALFUNCTION LIGHT IND IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 LOCK OFF LOCK OFF ON ON LOCK OFF UNLOCK LOCK DOWN W/ ELECTRONIC BRAKE-FORCE DISTRIBUTION, ANTI-LOCK BRAKING SYSTEM W/O ELECTRONIC BRAKE-FORCE DISTRIBUTION, ANTI-LOCK BRAKING SYSTEM

AIR MIXING DAMPER CONTROL MOTOR, POTENTIOMETER BLOWER MOTOR CRUISE CONTROL, COMPUTER DATA LINES, TRANSMISSIONS, ENGINE CONTROLS SYSTEMS ENGINE CONTROLS SYSTEM ENGINE COOLANT TEMPERATURE FRONT HEIGHT MOTOR MODE SELECTION DAMPER CONTROL MOTOR, POTENTIOMETER OUTSIDE/INSIDE AIR SELECTION DAMPER CONTROL MOTOR REAR HEIGHT MOTOR RECLINING MOTOR SLIDE MOTOR SUNROOF MOTOR THROTTLE ACTUATOR CONTROL MOTOR

DIVERSITY ANTENNA GLASS ANTENNA IGNITION KEY RING ANTENNA

LEFT FRONT DOOR WINDOW REGULATOR MOTOR LEFT REAR DOOR WINDOW REGULATOR MOTOR RIGHT FRONT DOOR WINDOW REGULATOR MOTOR) RIGHT REAR DOOR WINDOW REGULATOR MOTOR

ACCESSORY SOCKET 2 JOINT CONNECTOR 1 JOINT CONNECTOR 2 JOINT CONNECTOR 3

POWERTRAIN CONTROL MODULE, CONDENSER FAN MOTOR, RADIATOR FAN RELAY POWERTRAIN CONTROL MODULE, FRONT-ECU, WINDSHIELD WASHER MOTOR

A/C- ECU ABS/TCL-ECU, ABS-ECU COLUMN ECU COLUMN ECU TURN SIGNAL LIGHT ETACS-ECU FRONT ECU HYDRAULIC UNIT MULTI CENTER DISPLAY UNIT OCCUPANT CLASSIFICATION-ECU, RIGHT SEAT BACK HEATER, SRS-ECU SUNROOF ECU

DEDICATED FUSE 8 DEDICATED FUSE 22 FUSE 3 FUSE 3 FUSE 4 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 9 FUSE 9 FUSE 8 FUSE 9 FUSE 11 FUSE 15 FUSE 10 FUSE 11 FUSE 13 FUSE 14 FUSE 14 FUSE 13 FUSE 15 FUSE 15 FUSE 7 FUSE 16 FUSE 17 FUSE 17 FUSE 23 FUSE 18 FUSE 19 FUSE 20 FUSE 20 FUSE 13 FUSE 11 FUSE 20 FUSE 21 FUSE 21 FUSE 22 FUSE 22 FUSE 24 FUSE 23 FUSE 23 FUSE 22 LEFT SIDE OF DASH) FUSE 24 FUSE 25 MULTI- PURPOSE FUSE 14 MULTI- PURPOSE FUSE 23

LEFT HEADLIGHT RIGHT HEADLIGHT

MIRROR HEATER SEAT BACK HEATER SEAT CUSHION HEATER

INDICATOR DRIVE CKT 21 22 23 24 25 26 PASSENGER'S SIDE AIR BAG OFF INDICATOR LIGHT SRS INDICATOR

AIR CONDITIONING, COMPUTER DATA LINES EXTERIOR LIGHTS, SOUND SYSTEMS COMPUTER DATA LINES SYSTEM INTERIOR LIGHTS SYSTEM DOOR LOCKS, EXTERIOR LIGHTS SYSTEMS STARTING/ CHARGING SYSTEM HEAD/TAIL LAMP ON HEADLIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM HEADLIGHTS, EXTERIOR LIGHTS, WIPER/WASHER SYSTEMS INTERIOR LIGHTS, DOOR LOCKS, WIPER/WASHER SYSTEMS WIPER/WASHER SYSTEM EXTERIOR LIGHTS, HEADLIGHTS SYSTEMS

ACCESSORY SOCKET RELAY BLOWER RELAY DEFOGGER RELAY ENGINE COMPARTMENT RELAY BOX ENGINE COMPARTMENT RELAY BOX (AT LEFT SIDE OF ENGINE FUEL PUMP RELAY 2 FUEL PUMP RELAY #1 HEADLIGHT RELAY LOW PULSE WIDTH MODULATOR HEATED SEAT RELAY HOT W/ TAIL RELAY ENERGIZED HOT W/ TAILLIGHT RELAY ENERGIZED HOT WITH TAILLIGHT RELAY ENERGIZED LEFT TURN SIGNAL LIGHT RELAY ON OFF WASHER RELAY POWER WINDOW RELAY RIGHT TURN SIGNAL LIGHT RELAY TAILLIGHT RELAY WIPER AUTO- MATIC STOP RELAY ON WIPER SPEED SWITCHING RELAY

ENGINE COOLANT TEMPERATURE SENSOR (2.4L: ON LEFT SIDE FRONT IMPACT SENSOR BUCKLE SW FUEL TANK TEMPERATURE SENSOR HALL IC 1 PULSE SENSOR IGNITION COILS, KNOCK SENSOR SHIELD OCC SENSOR SEAT BELT BUCKLE SWITCH FRONT IMPACT SENSOR SEAT SLIDE SENSOR DETECTION 1 2 3 4 5 6 TRANSMISSION FLUID TEMPERATURE SENSOR

LEFT FRONT DOOR SPEAKER LEFT REAR SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR SPEAKER

51 52 53 54 55 56 SEAT BELT BUCKLE SWITCH A/C REFRIGERANT TEMPERATURE SWITCH AUTO-CRUISE CONTROL SWITCH BLOWER SWITCH COLUMN SWITCH DIMMER, PASSING SWITCH DOOR LOCK KEY CYLINDER SWITCH DOOR LOCK SWITCH FOG LIGHT SWITCH FRONT POWER WINDOW SUB SWITCH HAZARD WARNING LIGHT SWITCH HEATED SEAT SWITCH HORN SWITCH IGNITION SWITCH KEY REMINDER SWITCH LEFT FRONT DOOR SWITCH LEFT FRONT DOOR SWITCH RIGHT TURN IND LEFT TURN IND LEFT FRONT POWER WINDOW SWITCH AUTO DOWN LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SUB SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REMOTE CONTROLLED RADIO SWITCH LIGHTING SWITCH LOCK SWITCH ODO/TRIP SWITCH ON WINDSHIELD WASHER SWITCH PARKING BRAKE SWITCH POWER SEAT SWITCH POWER WINDOW MAIN SWITCH PRESSURE SWITCH REMOTE CONTROLLED MIRROR SWITCH RIGHT FRONT DOOR SWITCH RIGHT FRONT POWER WINDOW SUB SWITCH RIGHT FRONT POWER WINDOW SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SUB SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REMOTE CONTROLLED RADIO SWITCH SEAT BELT BUCKLE SWITCH SELECT SWITCH SLOW VARIABLE INTERMITTENT WIPER CONTROL SWITCH SUNROOF SWITCH OVERHEAD CONSOLE ASSEMBLY TCL SWITCH WIND- SHIELD WIPER SWITCH OFF

ABS SOLENOID VALVE LOW, REVERSE SOLENOID VALVE OVERDRIVE SOLENOID VALVE SECOND SOLENOID VALVE SECOND SOLENOID VALVE OVERDRIVE SOLENOID VALVE TORQUE CONVERTER CLUTCH CONTROL SOLENOID VALVE UNDERDRIVE SOLENOID VALVE

BLK BLK WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/ORG WIRE BLK/PNK WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/RED WIRE BRN/WHT WIRE GRN WIRE GRN/BLK WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/GRN WIRE GRY/RED WIRE INDICATOR DRIVE CKT PNK WIRE LT BLU WIRE LT GRN WIRE LT GRN/BLK WIRE LT GRN/RED WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE PNK WIRE PNK/BLK WIRE PNK/GRN WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE WHT/VIO WIRE YEL BLK/ WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/PNK WIRE YEL/RED WIRE YEL/VIO WIRE

1 15 17 18 12 9 B-19 1 IND 2 IND 2.4L 3 C-303 3 IND 3.8L 4 IND 5 10 B-19 17 B-19 31 32 33 34 35 36 C-16 38 39 40 41 42 43 44 45 46 47 48 SIDE IMPACT INTERFACE GRD 69 B-21 81 69 B-21 93 B-22 93 B-22 A/C COMPRESSOR ASSEMBLY A/C COMPRESSOR CLUTCH A/C SYSTEM AIR CONDITIONING SYSTEM AIR CONDITIONING, COOLING FANS SYSTEMS AIR CONDITIONING, NAVIGATION SYSTEMS ANTI-THEFT SYSTEM AUTO MODE B-19 B-20 B-21 B-22 B-23 BACK-UP LAMPS CIRCUIT BRAKE IND C-09 C-16 21 31 C-16 C-09 30 22 C-101 C-111 C-111 RADIO, CD PLAYER C-120 C-121 C-122 C-204 C-211 C-214 C-215 C-306 CLOCK-SPRING C-308 CHARGING CIRCUIT CHARGING CIRCUIT CIRCUIT BREAKER CLOCK- SPRING CLOSE DOWN COMB- INATION METER COMBINATION METER COMPARTMENT) COMPT) COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM COOLING FANS SYSTEM COOLING FANS SYSTEM CRUISE CONTROL SYSTEM CRUISE CONTROL SYSTEM ANTI-THEFT SYSTEM INSTRUMENT CLUSTER SYSTEM CRUISE CONTROL SYSTEM CRUISE CONTROL SYSTEM CRUISE IND DEFOGGER SYSTEM DETECTION CIRCUIT DETECTION CIRCUIT DETECTION CIRCUIT DOOR IND DOOR LOCKS SYSTEM DOWN UP DRIVER'S SIDE AIR BAG MODULE SQUIB FOG IND FRONT HEIGHT FUEL GAUGE FUEL IND FUSIBLE LINK 1 FUSIBLE LINK 2 FUSIBLE LINK 3 FUSIBLE LINK 4 FUSIBLE LINK 5 FUSIBLE LINK 26 FUSIBLE LINK 27 FWD RWD GLOVE BOX LIGHT HALL IC 2 HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HI LO HI LO OFF OFF HIGH MOUNTED STOP LIGHT HORNS SYSTEM HORNS, DOOR LOCKS, ANTI-THEFT SYSTEMS HOT AT ALL TIMES HOT IN HOT IN ACC OR ON HOT IN ACC OR RUN HOT IN ON HOT IN ON OR ACC HOT IN ON OR START HOT IN RUN OR START IGNITION KEY IMMOBILIZER IND IND IND INJECTOR 1 INJECTOR 2 INJECTOR 3 INJECTOR 4 INJECTOR 5 INJECTOR 6) INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER, COMPUTER DATA LINES SYSTEMS J/C 2 (BEHIND INST CLUSTER JUNCTION BLOCK JUNCTION BLOCK (BEHIND LCD ODO/TRIP LEFT BACK-UP LEFT FOG LIGHT LEFT FRONT COMBINATION LIGHT LEFT FRONT SIDE MARKER LIGHT LEFT HEATED SEAT ASSEMBLY LEFT OFF LEFT REAR COMBINATION LIGHT LEFT REMOTE CONTROLLED MIRROR LEFT RIGHT OFF LEFT TURN IND LEFT TWEETER LEFT VANITY MIIRROR LIGHT LICENSE PLATE LIGHT LO ILLUM MAIN CLOCK MALFUNCTION IND MIRRORS SYSTEM OFF LO HI OFF LO ML MH OFF ON OFF ON 7 8 PRETENSIONER DRIVE CIRCUIT OFF ON 9 10 AIR BAG DRIVE CIRCUIT OFF ON 30 31 AIR BAG DRIVE OFF ON OFF ON 33 34 AIR BAG DRIVE OFF ON OFF ON 36 37 AIR BAG DRIVE OFF ON OFF ON 57 58 AIR BAG DRIVE CIRCUIT OFF ON 59 60 PRETENSIONER DRIVE CIRCUIT OIL IND ON 27 28 AIR BAG DRIVE OFF ON ON CAN ON DOOR OFF OFF ON ON INT ON MAIN OFF ON OFF ON OFF OFF ON ON OFF OFF ON ON ON SET OFF ON- +RES OFF PASSENGER'S SIDE AIR BAG MODULE SQUIB PASSENGER'S SIDE SEAT BELT WARNING LIGHT POWER DISTRIBUTION SYSTEM POWER POWER POWER SEAT ASSEMBLY POWER SOURCE POWER SUPPLY POWER TOPS SYSTEM POWER TRANSISTOR PULSE WIDTH MODULATOR RADIO, CD PLAYER RADIO, CD PLAYER, CD CHANGER REAR DOME LIGHT REAR HEIGHT REAR SPOILER TYPE RHEOSTAT CIRCUIT RIGHT BACK-UP RIGHT FOG LIGHT RIGHT FRONT COMBINATION LIGHT RIGHT FRONT SIDE MARKER LIGHT RIGHT HEATED SEAT ASSEMBLY RIGHT REAR COMBINATION LIGHT RIGHT REMOTE CONTROLLED MIRROR RIGHT REMOTE CONTROLLED MIRROR HTR RIGHT TURN IND RIGHT TWEETER RIGHT VANITY MIIRROR LIGHT RWD FWD SEAT BELT IND SEATS SYSTEM SIDE IMPACT INTERFACE SOLID STATE SOUND SYSTEMS SOUND SYSTEMS POWER TOPS SYSTEM SPARK PLUG SPORT MODE SRS IND STARTING CIRCUIT STARTING/ CHARGING STARTING/ CHARGING SYSTEM STARTING/ CHARGING, CRUISE CONTROL SYSTEMS STARTING/CHARGING SYSTEM SUB + SUB CLOCK SUN ROOF ASSEMBLY SUNROOF ASSEMBLY TCL IND TCL OFF IND TEMP GAUGE THERMO- STAT THROTTLE BODY ASSEMBLY TRANSMISSIONS SYSTEM TRANSMISSIONS SYSTEM SEATS SYSTEM TRUNK LID LATCH TRUNK LID TYPE TRUNK LIGHT UP DOWN UPPER BEAM IND W/ MULTI CENTER DISPLAY W/O SUNROOF W/ SUNROOF WARNING SYSTEM WIPER/WASHER SYSTEM
