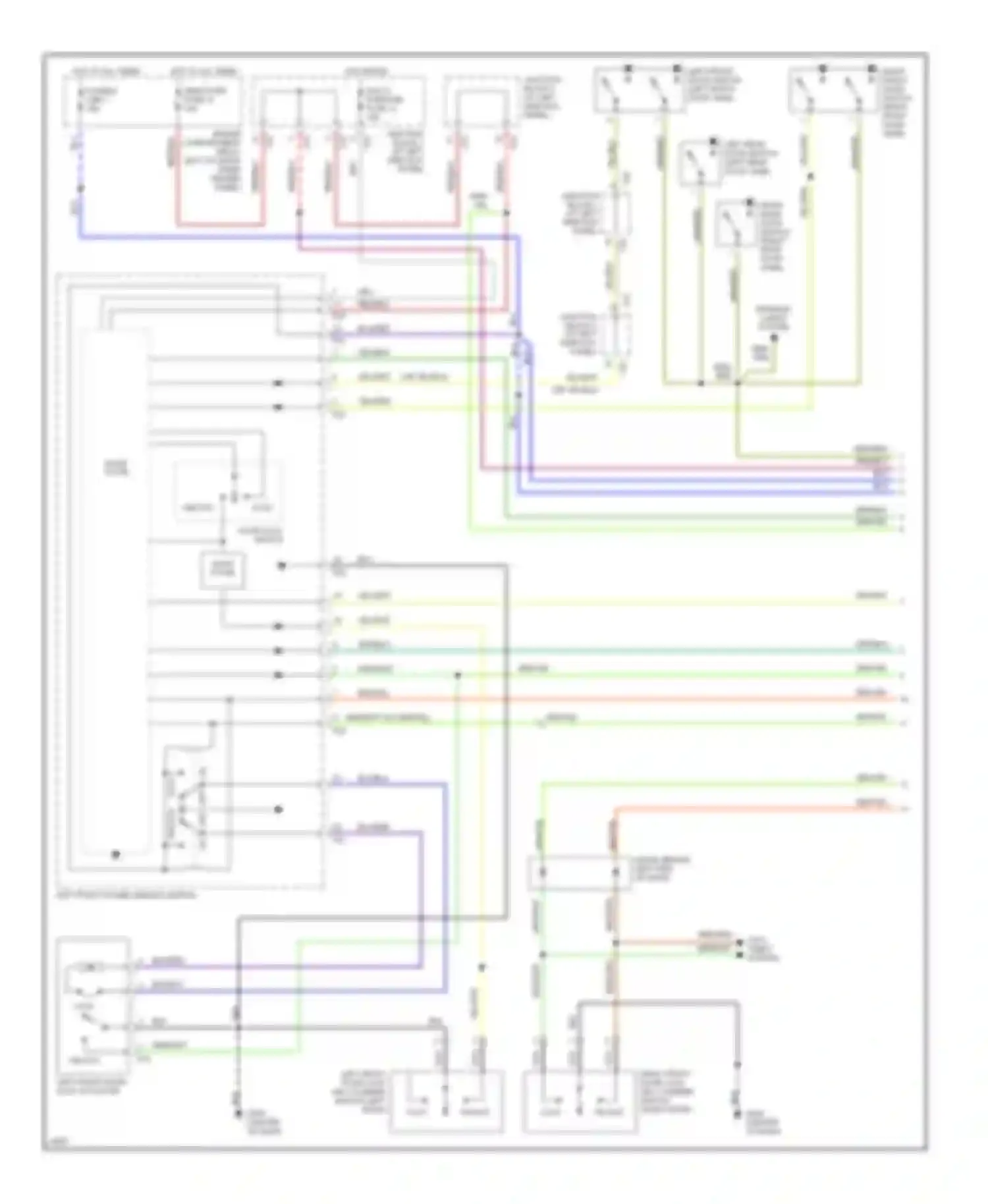

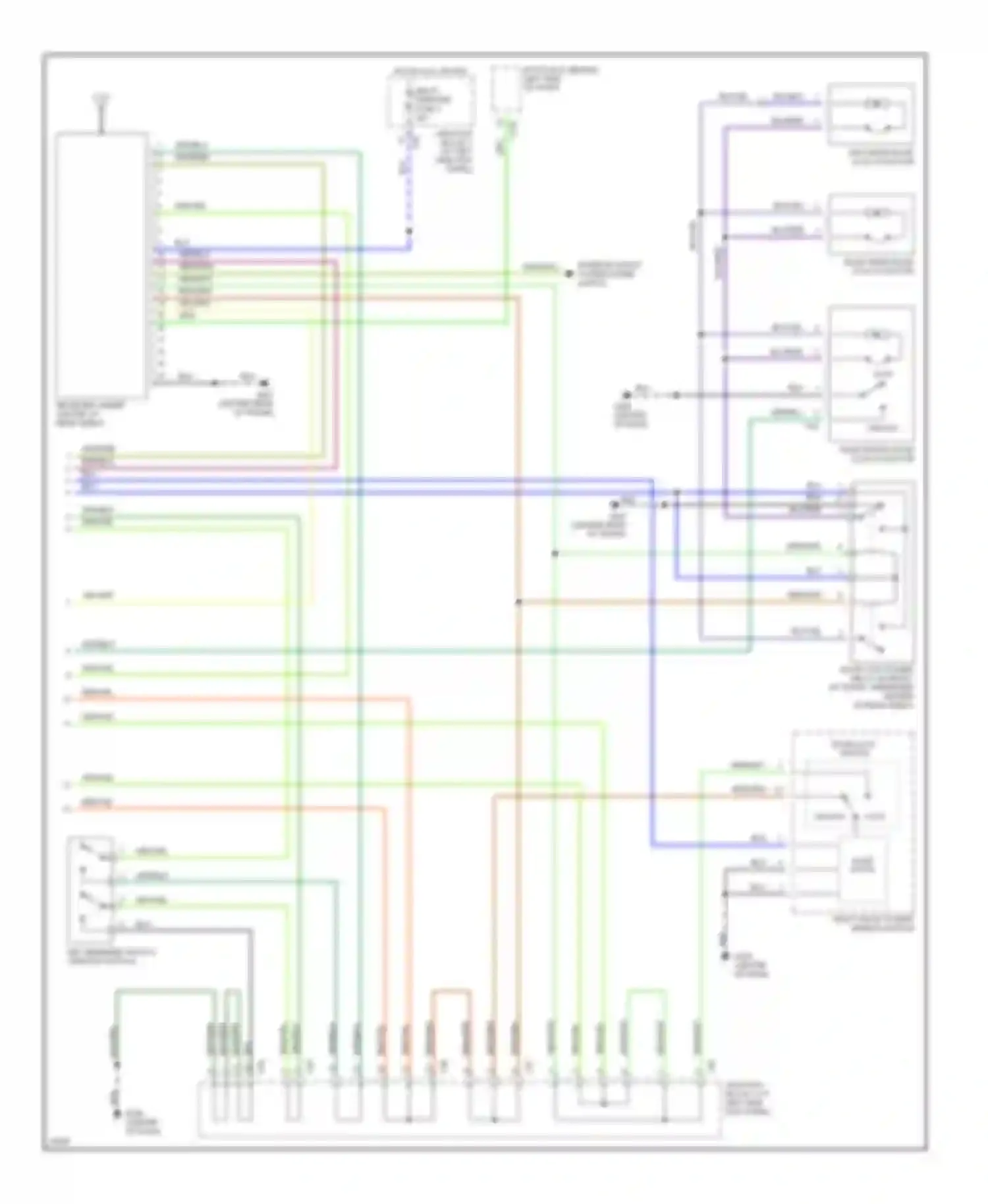

Power door lock circuit, with keyless entry for Mitsubishi Galant VIII (1996-1999)

ANTI-THEFT SYSTEM BLK WIRE BLU WIRE BLU/BLK WIRE BLU/RED WIRE DEDICATED FUSE 12 DIODE (BEHIND LEFT SIDE OF DASH) DOOR LOCK SWITCH ENGINE COMPARTMENT RELAY BOX (ON RIGHT INNER FENDER PANEL) FUSIBLE LINK 7 GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/RED WIRE GRN/WHT (OR GRN/YEL) WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE HOT AT ALL TIMES HOT IN RUN JUNCTION BLOCK 1 (AT LEFT SIDE KICK PANEL) JUNCTION BLOCK 2 (AT LEFT SIDE KICK PANEL) LEFT FRONT DOOR LOCK ACTUATOR LEFT FRONT DOOR LOCK KEY CYLINDER SWITCH (LEFT DOOR) LEFT FRONT DOOR SWITCH (LEFT FRONT DOOR JAMB) LEFT FRONT POWER WINDOW SWITCH LEFT REAR DOOR SWITCH (LEFT REAR DOOR JAMB) LOCK MULTI- PURPOSE FUSE 13 NCA WIRE OFF RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/YEL WIRE RIGHT FRONT DOOR LOCK KEY CYLINDER SWITCH (RIGHT DOOR) RIGHT FRONT DOOR SWITCH (RIGHT FRONT DOOR JAMB) RIGHT REAR DOOR SWITCH (RIGHT REAR DOOR JAMB) SOLID STATE UNLOCK YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/WHT WIRE

BLK WIRE BLK/GRN WIRE BLU WIRE BLU/BLK WIRE BLU/RED WIRE BLU/YEL WIRE DOOR LOCK POWER RELAY (IN FRONT OF TRUNK, UNDERSIDE CENTER OF REAR SHELF) DOOR LOCK SWITCH ETACS-ECU (BEHIND LEFT SIDE OF DASH) GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE HOT IN ACC OR RUN INTERIOR LIGHTS SYSTEM (DOME LIGHTS) JUNCTION BLOCK 1 (AT LEFT SIDE KICK PANEL) JUNCTION BLOCK 2 (AT LEFT SIDE KICK PANEL) KEY REMINDER SWITCH (IGNITION SWITCH) LEFT REAR DOOR LOCK ACTUATOR LOCK MULTI- PURPOSE FUSE 9 RECEIVER (UNDER CENTER OF REAR SHELF) RED/BLU WIRE RED/GRN WIRE RED/YEL WIRE RIGHT FRONT DOOR LOCK ACTUATOR RIGHT FRONT POWER WINDOW SWITCH RIGHT REAR DOOR LOCK ACTUATOR SOLID STATE UNLOCK UNLOCK LOCK YEL/WHT WIRE
