Mitsubishi Galant VII (1992-1997) hi hi lo lo off int int Wiring diagram
This page shows the only wiring diagram for the component.hi hi lo lo off int int, which is found in the car Mitsubishi Galant VII (1992-1997). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

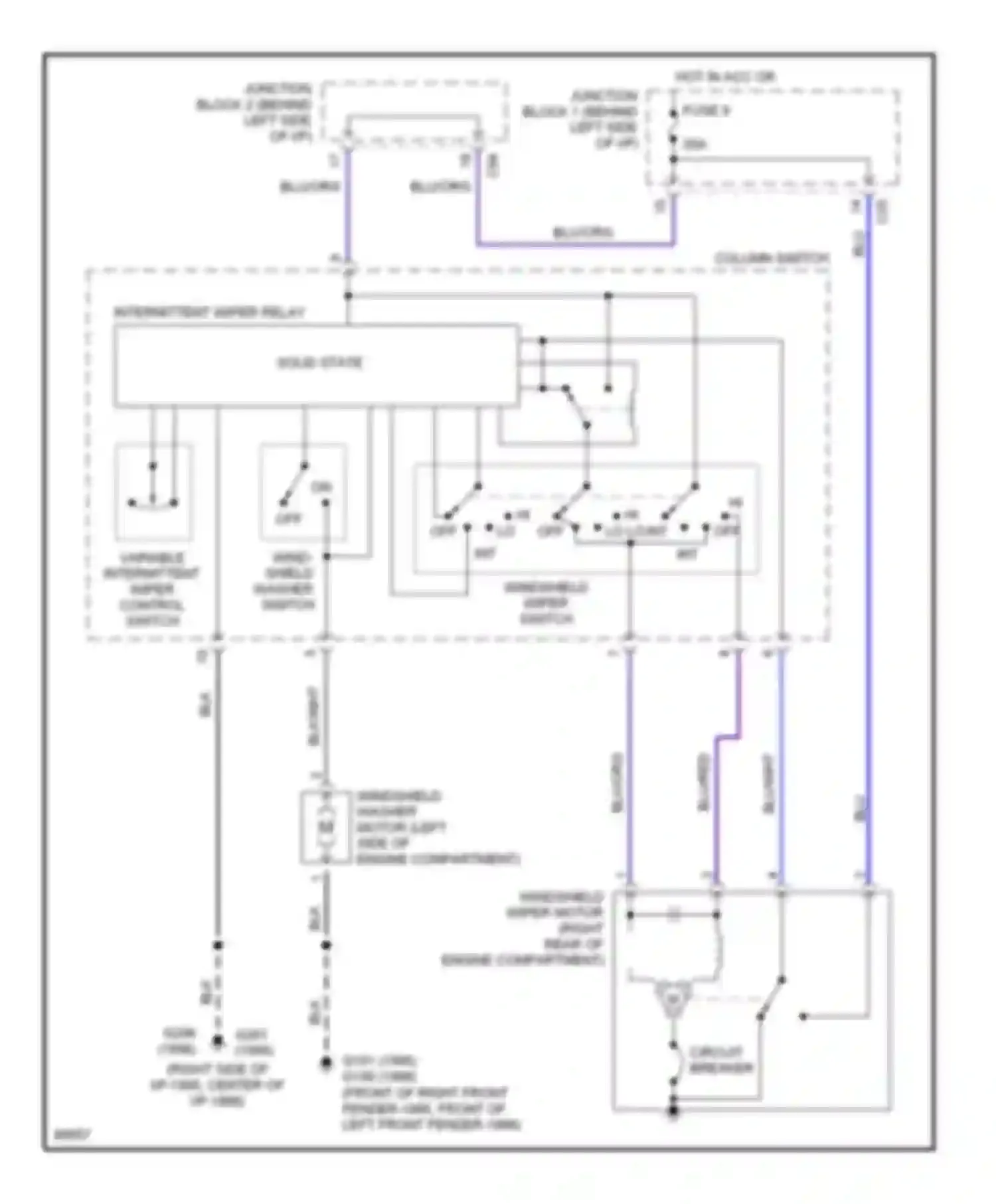

Wiring diagram hi hi lo lo off int int (1 of 1)
BLK WIRE
BLK/WHT WIRE
BLU WIRE
BLU/ORG WIRE
BLU/RED WIRE
BLU/WHT WIRE
CIRCUIT BREAKER
COLUMN SWITCH
FUSE 9
HI HI LO LO OFF INT INT
HI LO OFF INT
HOT IN ACC OR ON
INTERMITTENT WIPER RELAY
JUNCTION BLOCK 1 (BEHIND LEFT SIDE OF I/P)
JUNCTION BLOCK 2 (BEHIND LEFT SIDE OF I/P)
OFF
SOLID STATE
VARIABLE INTERMITTENT WIPER CONTROL SWITCH
WIND- SHIELD WASHER SWITCH
WINDSHIELD WASHER MOTOR (LEFT SIDE OF ENGINE COMPARTMENT)
WINDSHIELD WIPER MOTOR (RIGHT REAR OF ENGINE COMPARTMENT)
WINDSHIELD WIPER SWITCH
Go to component -> Wiper/washer circuit -> HI HI LO LO OFF INT INT
